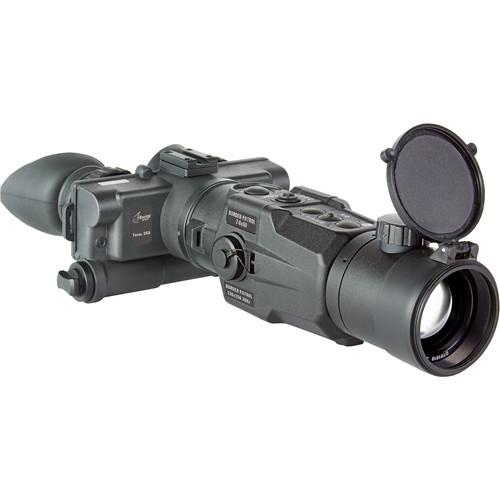

User Manual for Bering Optics Border Patrol 3.5-14x50 Thermal Handheld Bi-Ocular Click to enlarge the picture
Contents of the user manual for the Bering Optics Border Patrol 3.5-14x50 Thermal
- Product category: Thermal Imagers Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics Thermal Imagers
|
User manual for the Bering Optics Border Patrol 3.5-14x50 Thermal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|
Product description Conduct medium-to-long-range observations using the Bering Optics Border Patrol 3.5-14x50 Thermal Handheld Bi-Ocular. The device's 336 x 256 Tau II VOx microbolometer allows you to see long-range infrared images of game, people, warm/hot objects, or other sources of heat through smoke, fog, or light foliage. Using its AMOLED SVGA 800 x 600 display, you will see color images through its eyepieces. The bi-ocular configuration with an adjustable interpupillary distance and wide-winged rubber eyecups offers comfort and reduces fatigue. The internal digital image processor has two digital reticles (crosshair and Mil-Dot) and a multitude of digital image enhancements to optimize the accuracy of detection, recognition, and identification in various conditions. Other highlights are digital zoom that allows you to up your total magnification up to 14x and NTSC video output for viewing or recording on an external device.
Outfitted with a waterproof (IP67-rated) polymer body and a flip-up lens cap (for protecting the germanium objective lens), this thermal imager can follow you anywhere. It can also be used handheld or be mounted to a tripod. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Thermal Sensor
-
- 336 x 256 TAU II VOx uncooled microbolometer
- Automatic shatter-based thermal core
- 7.5-13.5µm spectral response
- 30 Hz image refresh rate
- <50 mK sensitivity
- Optical Performance
-
- 3.5x optical magnification
- 1x, 2x, and 4x digital zoom
- Germanium 50mm, f/1.2 lens system
- Maximum angular field of view at 1x: 7.4 x 5.6°
- 66.0' minimum focus distance
- Internal focusing
- Display & Image Processing
-
- 800 x 600 AMOLED SVGA display
- Digital Detail Enhancement (DDE) provides better image clarity and edge sharpening
- Active Contrast Enhancement (ACE) adjusts scene contrast and relative temperature
- Smart Device Optimization (SDO) enhances extremes in bi-modal scenes
- Information-Based HEQ (IBHEQ) automatically adjusts automatic gain control (AGC)
- Image color polarity control: white hot, black hot, and colored hot
- Seven color palette options
- Use and Handling
-
- Video output port
- Adjustable interpupillary distance: 55-71mm
- Crosshair and Mil-Dot digital reticles
- Construction Details
-
- Polymer housing
- Accessory mount on top
- Mountable on a tripod
- Wide winged eyecups
- Built-in flip-up lens cap
- Waterproof, rated IP67
In the Box Bering Optics Border Patrol 3.5-14x50 Thermal Handheld Bi-Ocular (30 Hz, Matte Black) - Objective Lens Cap
- Soft Carry Case
- 2 x CR123 Batteries
- Neck Cord
- Lens Cloth
- Limited 5-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics Border Patrol 3.5-14x50 Thermal Handheld Bi-Ocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics BE43450 Specs | Array Configuration | 336 x 256 TAU II vanadium oxide uncooled microbolometer | | Gain Control | AGC: Automatic gain control | | Pixel Pitch | 17 µm | | Sensitivity | <50 mK | | Spectral Response | 7.5-13.5 µm | | Refresh Rate | 30 Hz | | Display | 800 x 600 AMOLED SVGA color display | | Magnification | Optical: 3.5x
Digital: 1x, 2x, 4x | | Field of View | 7.4 x 5.6° at 1x | | Lens System | 50mm, f/1.2 | | Eye Relief | 15 mm | | Minimum Focus Distance | 66.0' / 22.0 m | | Diopter Adjustment | +5 to -5 | | Interpupillary Adjustment | 55-71 mm | | Video Output Formats | NTSC | | Battery / Runtime | 2 x CR1213 batteries / 4 hours | | Weatherproofing | Waterproof, nitrogen-purged, rated IP67 | | Operating temperature | -40 to 122°F / -40 to 50°C | | Humidity | 98% | | Dimensions | 13.8 x 5.0 x 3.0" / 35.0 x 12.5 x 7.5 cm | | Weight | 33.5 oz / 950.0 g |
