User Manual for Bering Optics D-740 4x67 High-Performance Night Vision Riflescope Click to enlarge the picture
Contents of the user manual for the Bering Optics D-740 4x67 High-Performance Night
- Product category: Night Vision Riflescopes Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics Night Vision Riflescopes
 |
User manual for the Bering Optics D-740 4x67 High-Performance Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|

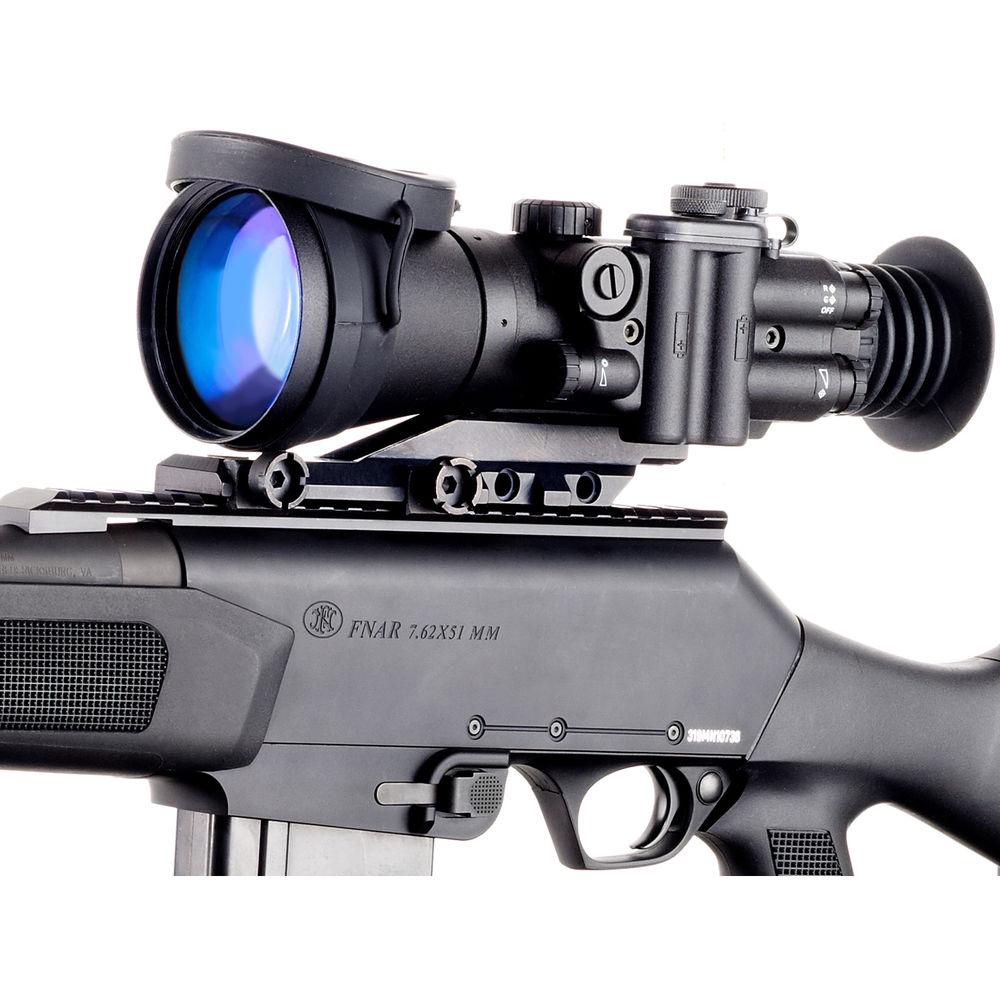

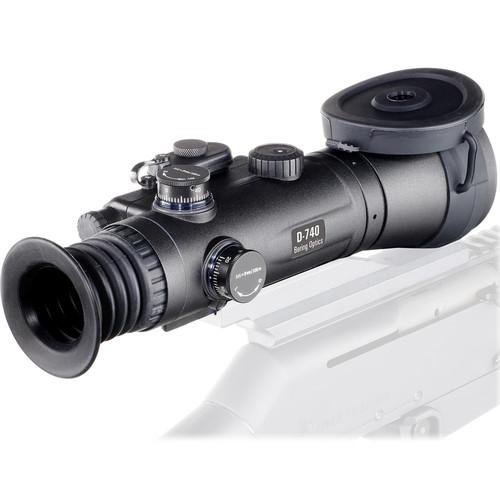

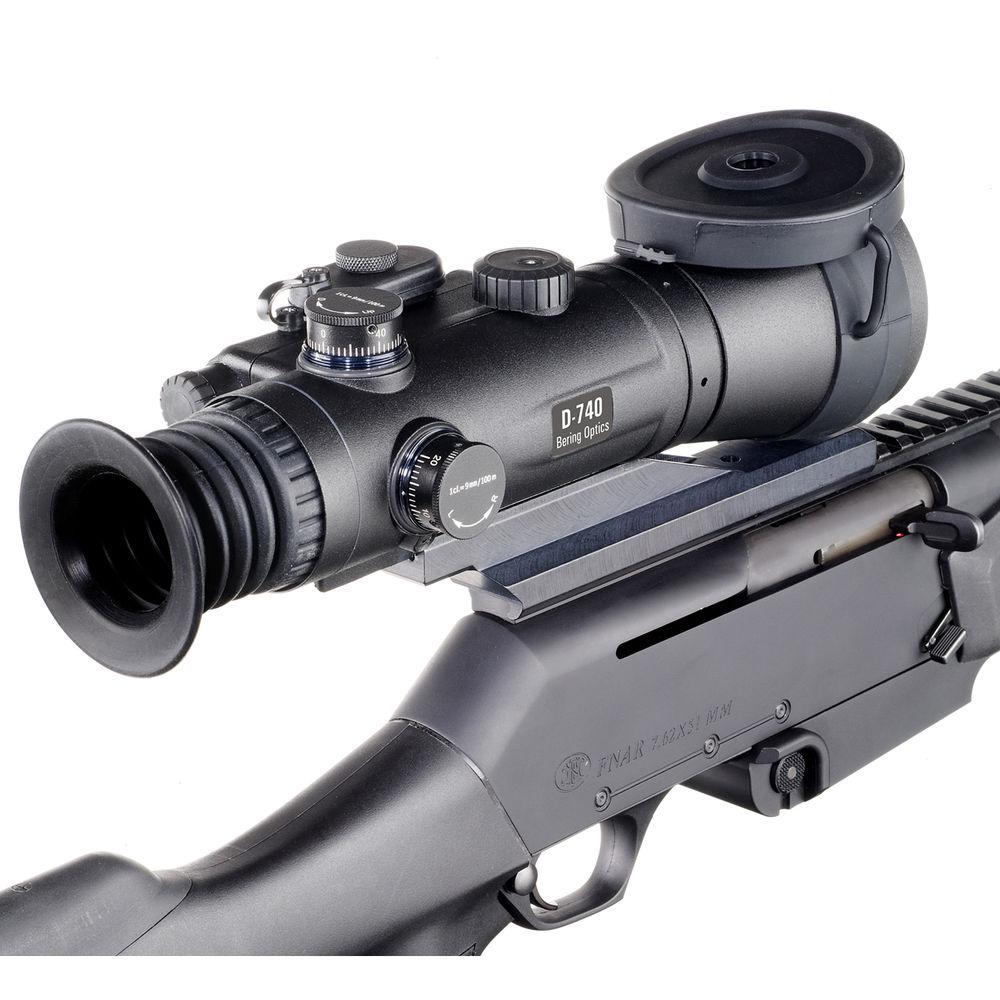

Product description Bering Optics' D-740 4x67 High-Performance Night Vision Riflescope is a versatile and robust night vision riflescope that offers outstanding performance. It features a 2nd generation intensifier tube that offers a great advantage over the first generation tubes by providing greater sensitivity and higher gain. The gain control of this tube type is manual one, which allows an operator to have a full control of the trade-off between amount of detail and image brightness. The tube is also enhanced with the white phosphor technology for operators who prefer black and white images to green ones.
The optical system offers high-grade multi-coated lenses that deliver bright and clear images. The 100 mm f/1.5 objective lens offers a wide aperture for collecting more light at night and enhancing visibility. To enable operation in nearly-complete darkness, providing additional illumination for your targets, this night vision device offers an infrared illuminator. To help you get a precise shot, this night vision optic is equipped with a red-on-white mil-dot reticle with adjustable brightness.
The polymer housing is lightweight, impact-resistant, and water-resistant. For attachment to your firearm, this device provides a Weaver-style mount. Also included is a carrying pouch with a strap, a protective lens cap, and two AA batteries. - Image Intensifier
-
- 2nd generation
- 64-72 lp/mm resolution
- Manual gain allows you to control image brightness or detail
- White phosphor technology generates black and white images
- Infrared illuminator improves image brightness and visibility in total darkness
- Optical Performance
-
- 4x magnification
- Multiple anti-reflection coatings improve transmission and resolution
- 9° angular field of view
- 100mm, f/1.5 lens system
- 21' minimum focus distance
- Reticle
-

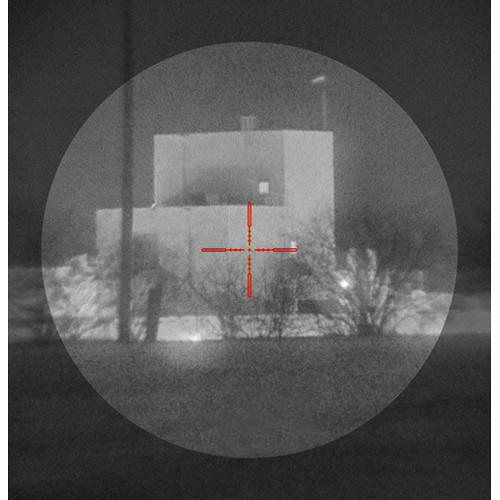

- Red Mil-Dot reticle
- Variable brightness
- Use and Handling
-
- 1/4 MOA impact point correction
- Windage and elevation adjustments
- -4 to +3 dioptric adjustment
- Construction Details
-
- Polyamide-molded housing
- Finger operated exposed elevation adjustment
- Knurled windage and elevation adjustments
- Tethered objective lens cap
- Picatinny/Weaver mount
- Wide rubber eyecup
- Water-resistant
- Shock-resistant
In the Box Bering Optics D-740 4x67 High-Performance Night Vision Riflescope (2nd Gen White Phosphor, Red Mil-Dot Reticle) - Protective Carry Pouch
- IR Illuminator
- 2 x AA Batteries
- Objective Lens Cap
- Weaver Rail Mount
- Lens Tissue
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics D-740 4x67 High-Performance Night Vision Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics D-740 Specs | Intensifier Tube | 2nd generation intensifier tubeWhite phosphor screen | | Resolution | 64-72 lp/mm | | Reticle | Red-White Mil-Dot
Adjustable brightness | | Magnification | 4x | | Angular Field of View | 9° | | Linear Field of View | 473.7' @ 1000 yd / 157.9 m @ 1000 m | | Lens System | 100mm, f/1.5 | | Minimum Focus Distance | 21' / 6.4 m | | Eye Relief | 1.8' / 45 mm | | Dioptric Correction | -4 to +3 | | Impact Point Correction | 1/4 MOA | | Battery / Runtime | 2 x AA batteries / 100 h | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Waterproofing | Water-resistant and fogproof | | Dimensions | 9.3 x 3.8 x 3.1" / 235 x 97 x 78 mm | | Weight | 34 oz / 950 g |
