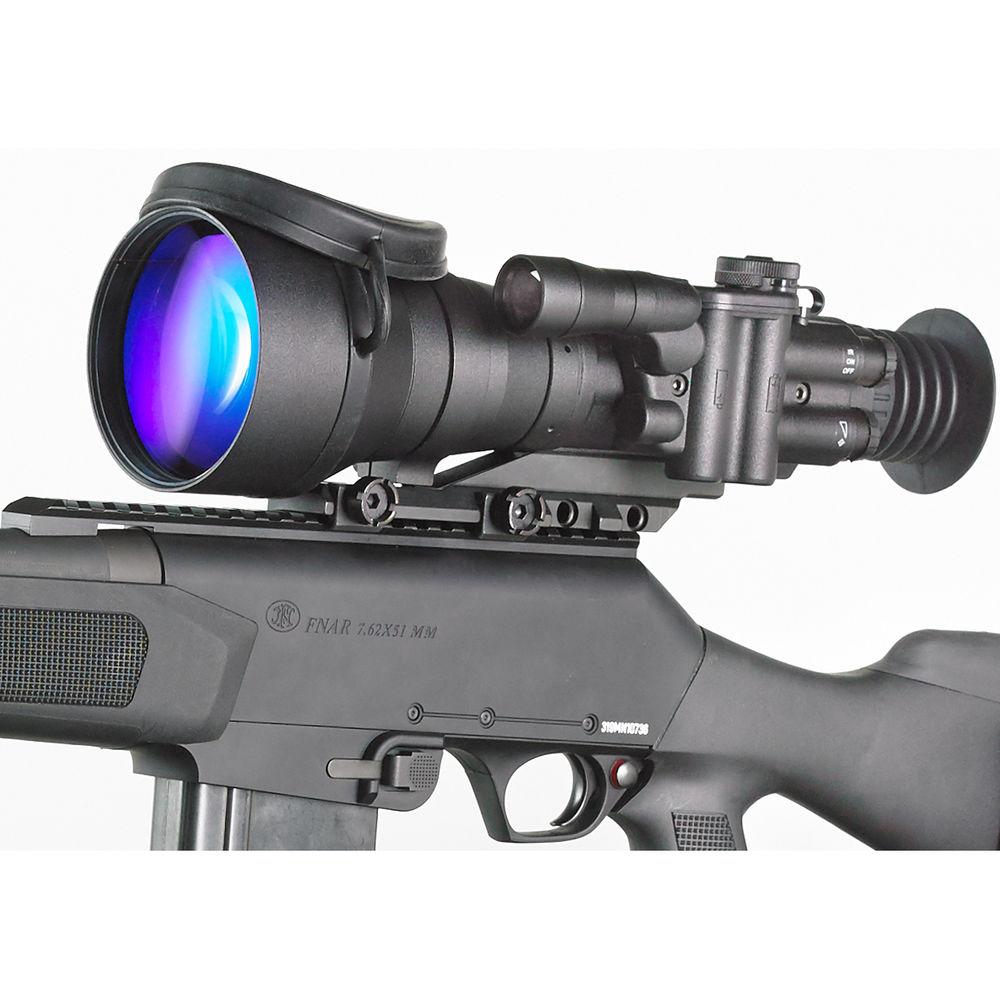

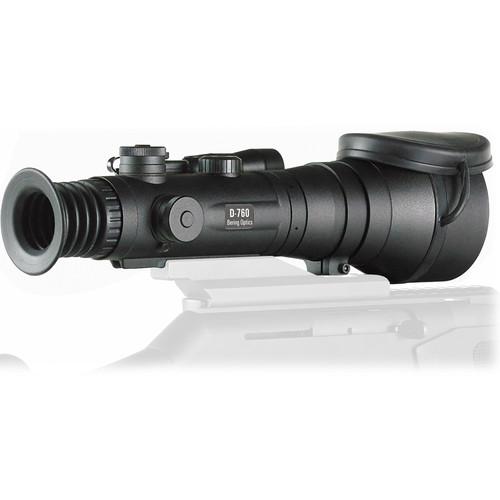

Product description Bering Optics' D-760 6x83 High-Performance Night Vision Riflescope is a versatile and robust night vision riflescope that offers outstanding performance. It features a 2nd generation intensifier tube that offers a great advantage over the first generation tubes by providing greater sensitivity and higher gain. The gain control of this tube type is manual, which allows an operator to have a full control of the trade-off between amount of detail and image brightness. The tube is also enhanced with the white phosphor technology for operators who prefer black and white images to green ones.
The optical system offers High-Definition (HD) multi-coated lenses that deliver improved detail, resolution, clarity, brightness, and target detection and recognition ranges. The 165mm f/2.0 objective lens offers a wide aperture for collecting more light at night, enhancing visibility. To enable operation in nearly-complete darkness, providing additional illumination for your targets, this night vision device offers a built-in infrared illuminator that produces 75mW of power and a focusable beam. For faster and more precise shooting, this night vision optic offers a Red-White mil-dot reticle with adjustable brightness.
The polymer housing is lightweight, impact-resistant, waterproof, and nitrogen-purged fogproof. For attachment to your firearm, this device provides a Weaver style mount. Also included is a carrying pouch with a strap, a protective lens cap, and two AA batteries. - Image Intensifier Features
-
- 2nd generation
- 64-72 lp/mm resolution
- Manual gain control allows adjusting brightness or detail
- White phosphor technology generates black and white images
- Autogating allows for high resolution and contrast in varying light and high-light conditions
- Infrared Illuminator
-
- 75mW power
- Focusable beam
- Adjustable brightness
- Reticle
-

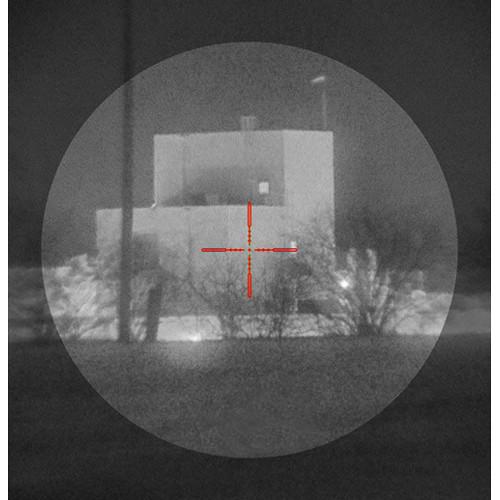

- Red-White Mil-Dot reticle
- Variable brightness
- Optical Performance
-
- 6x magnification
- High-Definition (HD) optics offer greater image detail, clarity, target detection, and recognition
- Multiple anti-reflection coatings improve transmission and resolution
- 6.3° angular field of view
- 165mm, f/2.0 lens system
- 75' minimum focus distance
- Use and Handling
-
- 1cm impact point correction
- Windage and elevation adjustments
- -4 to +3 dioptric adjustment
- Rapid 1 second start-up
- Construction Details
-
- Impact-resistant polyamide-molded housing
- Finger operated exposed elevation adjustment
- Knurled windage and elevation adjustments
- Tethered rubber objective lens cap
- Picatinny/Weaver mount
- Wide rubber eyecup
- Waterproof and fogproof
- Dustproof
In the Box Bering Optics D-760 6x83 High-Performance Night Vision Riflescope (2nd Gen Autogated White Phosphor Tube, Red-White Mil-Dot) - Protective Carry Pouch
- Objective Lens Cap
- Weaver Rail Mount
- 2 x AA Batteries
- Lens Tissue
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics D-760 6x83 High-Performance Night Vision Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics D-760 Specs | Reticle | Red-White Mil-Dot reticle
Adjustable brightness | | Intensifier Tube | 2nd generation intensifier tube
White phosphor screen
Autogated supply
Manual gain | | Resolution | 64-72 lp/mm | | Infrared Illuminator | 75 mW | | Magnification | 6x | | Angular Field of View | 6.3° | | Linear Field of View | 329.8' @ 1000 yd / 110 m @ 1000 m | | Lens System | 165 mm, f/2.0 | | Minimum Focus Distance | 75' / 22.8 m | | Eye Relief | 1.97' / 50 mm | | Dioptric Correction | -4 to +3 | | Impact Point Correction | 1/4 MOA / 1 cm | | Battery / Runtime | 2 x AA batteries / 120 h | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Waterproofing | Waterproof, fogproof, and dustproof, rated IPX67
Humidity: up to 98% | | Dimensions | 12.2 x 3.9 x 3.5" / 310 x 98 x 90 mm | | Weight | 43 oz / 1.22 kg |
