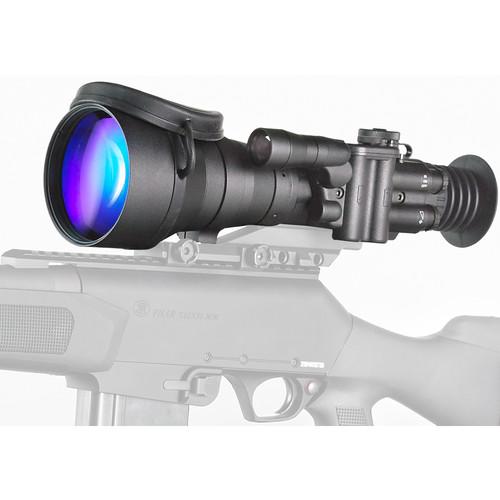

Product description Bering Optics' D-760 6x83 High-Quality 3rd-Gen Night Vision Riflescope is a versatile and robust night vision riflescope that offers outstanding performance. It features a high-quality 3rd-generation intensifier tube with an autogated power supply, no defects or "dead spots" in the central region, and a filmless microchannel plate, which increases signal-to-noise ratio and efficiency of the device. The autogating greatly improves sensitivity in low light and varying lighting conditions, protects against bright light burnout, and extends life. Manual gain allows operators to have full control of the trade-off between amount of detail and image brightness. The tube is also enhanced with the white phosphor screen for those who prefer black and white images to green ones.
The optical system offers High-Definition (HD) multi-coated lenses that deliver improved detail, resolution, clarity, brightness, and target detection and recognition ranges. The 165mm f/2.0 objective lens offers a wide aperture for collecting more light at night and enhancing visibility. To enable operation in nearly complete darkness, providing additional illumination for your targets, this night vision device offers a built-in infrared illuminator that produces 75mW of power and a focusable beam. For faster and more precise shooting, this night vision optic offers a red-green mil-dot reticle with adjustable brightness.

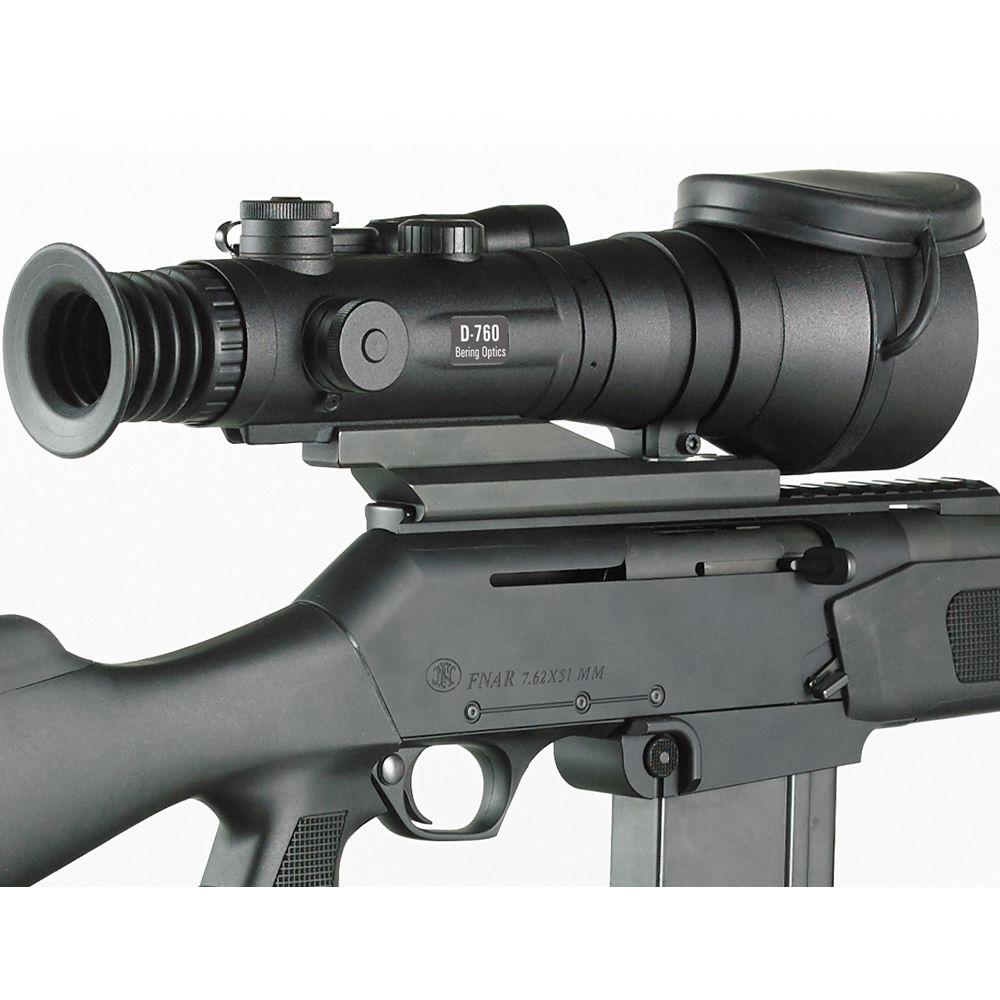

The polymer housing is lightweight, impact-resistant, waterproof, and nitrogen-purged to be fogproof. It also features a built-in electromagnetic shield to protect the device. For attachment to your firearm, this device provides a Weaver-style mount. Also included is a carrying pouch with a strap, a protective lens cap, and two AA batteries. - High-Quality Image Intensifier
-
- 3rd generation
- 72 lp/mm resolution
- Manual gain control allows adjusting brightness or detail
- Contains no defects or spots in the central region
- Filmless microchannel plate improves signal-to-noise ratio
- White phosphor technology generates black and white images
- Filmless microchannel plate improves signal-to-noise ratio
- White phosphor technology generates black and white images
- Infrared Illuminator
-
- 75mW power
- Focusable beam
- Adjustable brightness
- Reticle
-

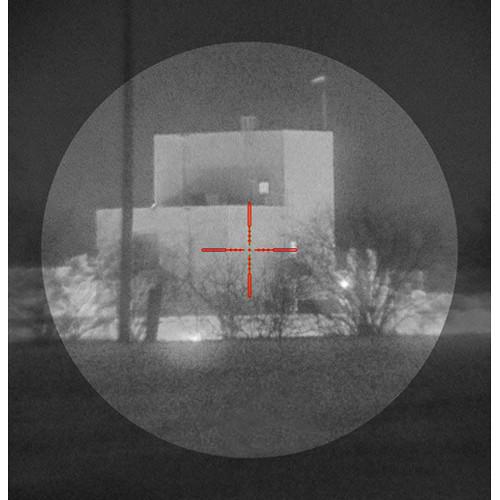

- Red-green Mil-Dot reticle
- Variable brightness
- Optical Performance
-
- 6x magnification
- High-Definition (HD) optics offer greater image detail, clarity, target detection, and recognition
- Multiple anti-reflection coatings improve transmission and resolution
- 6.3° angular field of view
- 165mm, f/2.0 lens system
- 75.4' minimum focus distance
- Use and Handling
-
- 1cm impact point correction
- Windage and elevation adjustments
- +3 to -4 dioptric adjustment
- Rapid 1 second start-up
- Construction Details
-
- Impact-resistant polyamide-molded housing
- Built-in electromagnetic shield
- Finger operated exposed elevation adjustment
- Knurled windage and elevation adjustments
- Tethered rubber objective lens cap
- Picatinny/Weaver mount
- Wide rubber eyecup
- Water and fogproof
- Dustproof
In the Box Bering Optics D-760 6x83 High-Quality 3rd-Gen Night Vision Riflescope (Filmless, White Phosphor, Red-Green Mil-Dot Reticle) - Protective Carry Pouch
- Objective Lens Cap
- Weaver Rail Mount
- 2 x AA Batteries
- Lens Tissue
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics D-760 6x83 High-Quality 3rd-Gen Night Vision Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics D-760 Specs | Reticle | Red-Green Mil-Dot
Adjustable brightness | | Intensifier Tube | 3rd generation intensifier tube
Filmless, white phosphor
Autogated supply
Manual gain | | Resolution | 72 lp/mm | | Infrared Illuminator | 75 mW | | Magnification | 6x | | Angular Field of View | 6.3° | | Lens System | 165mm, f/2.0 | | Minimum Focus Distance | 75.4' / 23.0 m | | Eye Relief | 1.97' / 50 mm | | Dioptric Correction | +3 to -4 | | Impact Point Correction | 0.25 MOA / 1.0 cm at 100 m | | Battery / Runtime | 2 x AA batteries / 120 hours | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Waterproofing | Water, fog, and dustproof, rated IP67
Nitrogen-purged | | Humidity Tolerance | 98% | | Dimensions | 12.2 x 3.9 x 3.5" / 31.0 x 9.8 x 9.0 cm | | Weight | 43.0 oz / 1.22 kg |
