User Manual for Bering Optics D-950 Elite 1x 3rd-Gen Night Vision Riflescope Clip-On Click to enlarge the picture
Contents of the user manual for the Bering Optics D-950 Elite 1x 3rd-Gen
- Product category: Night Vision Riflescopes Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics Night Vision Riflescopes
 |
User manual for the Bering Optics D-950 Elite 1x 3rd-Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|

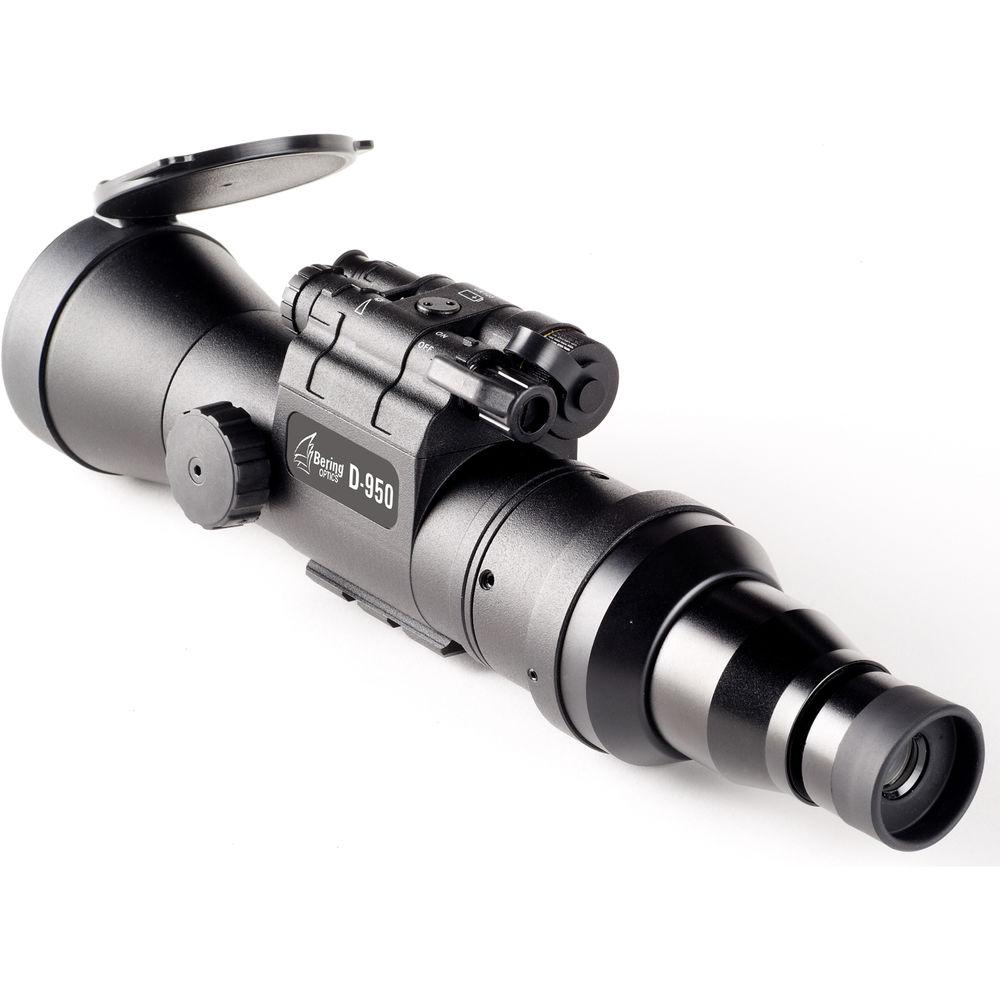

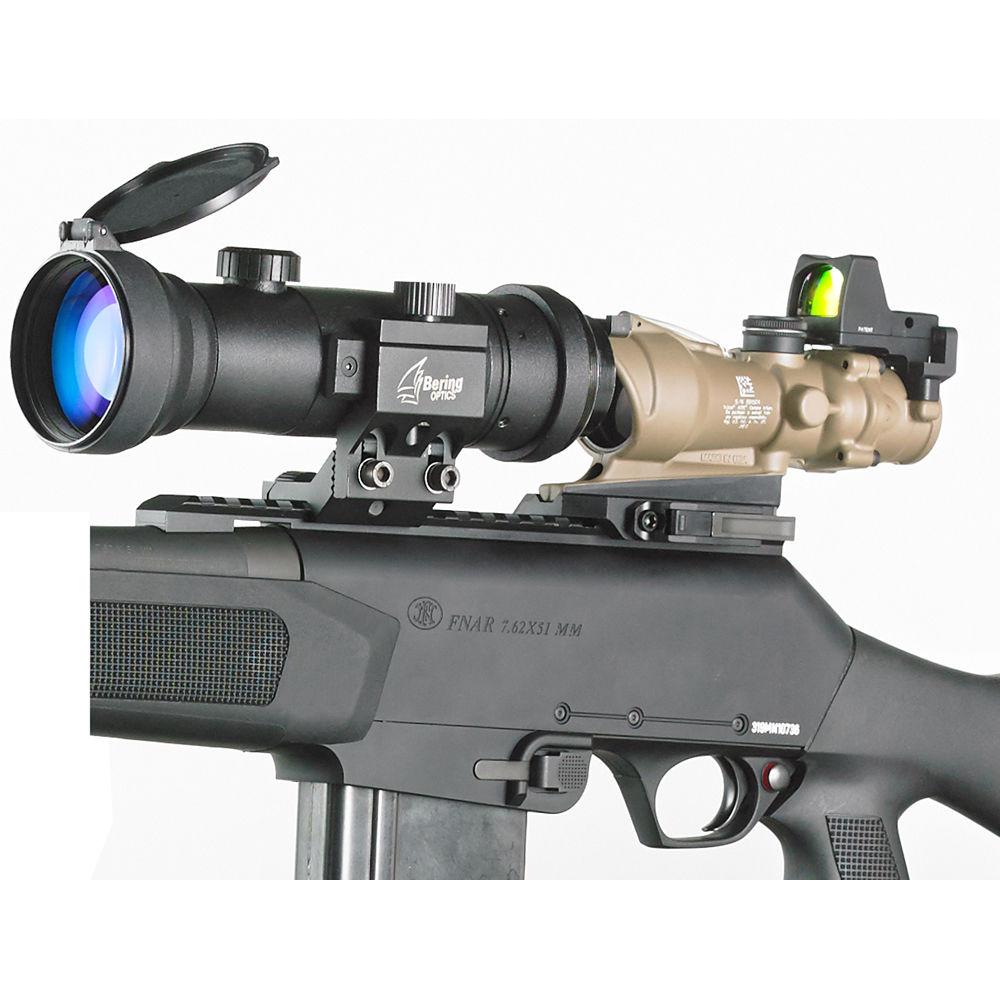

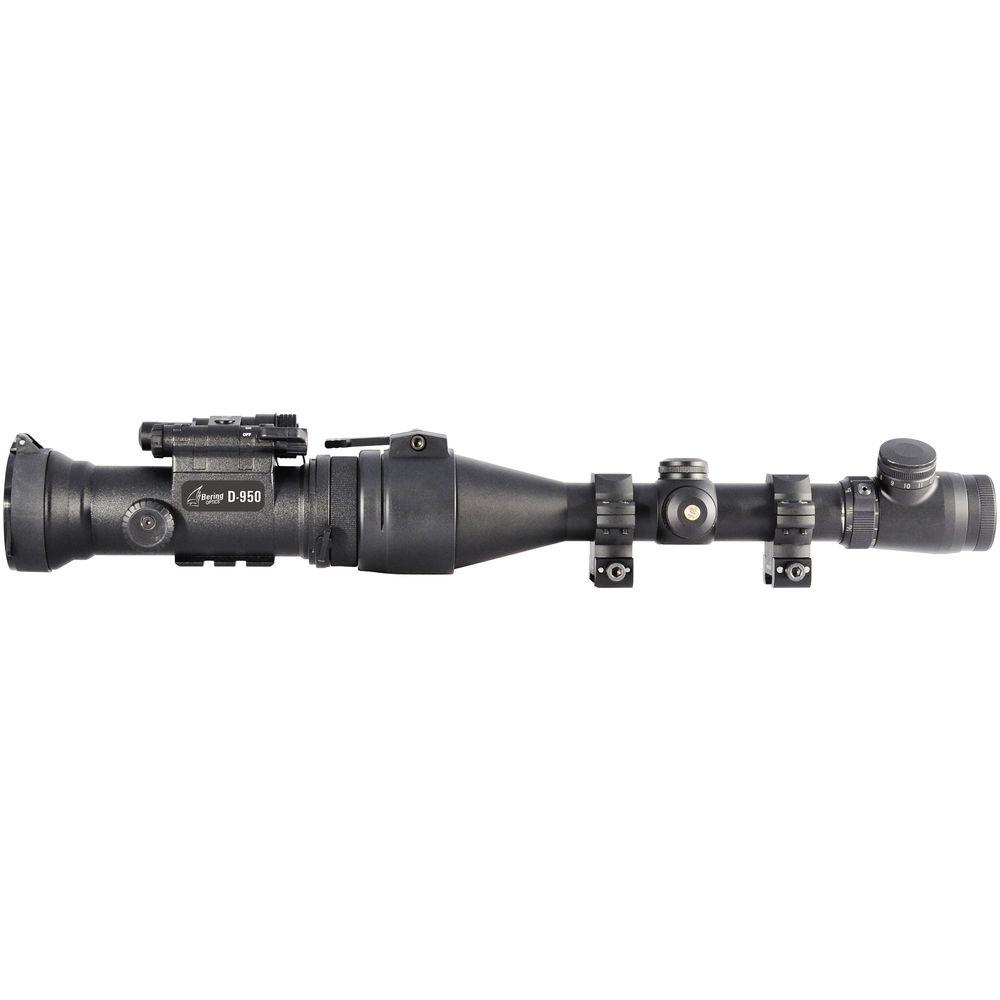

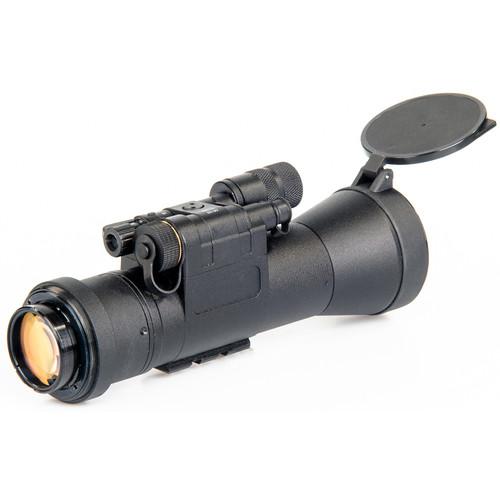

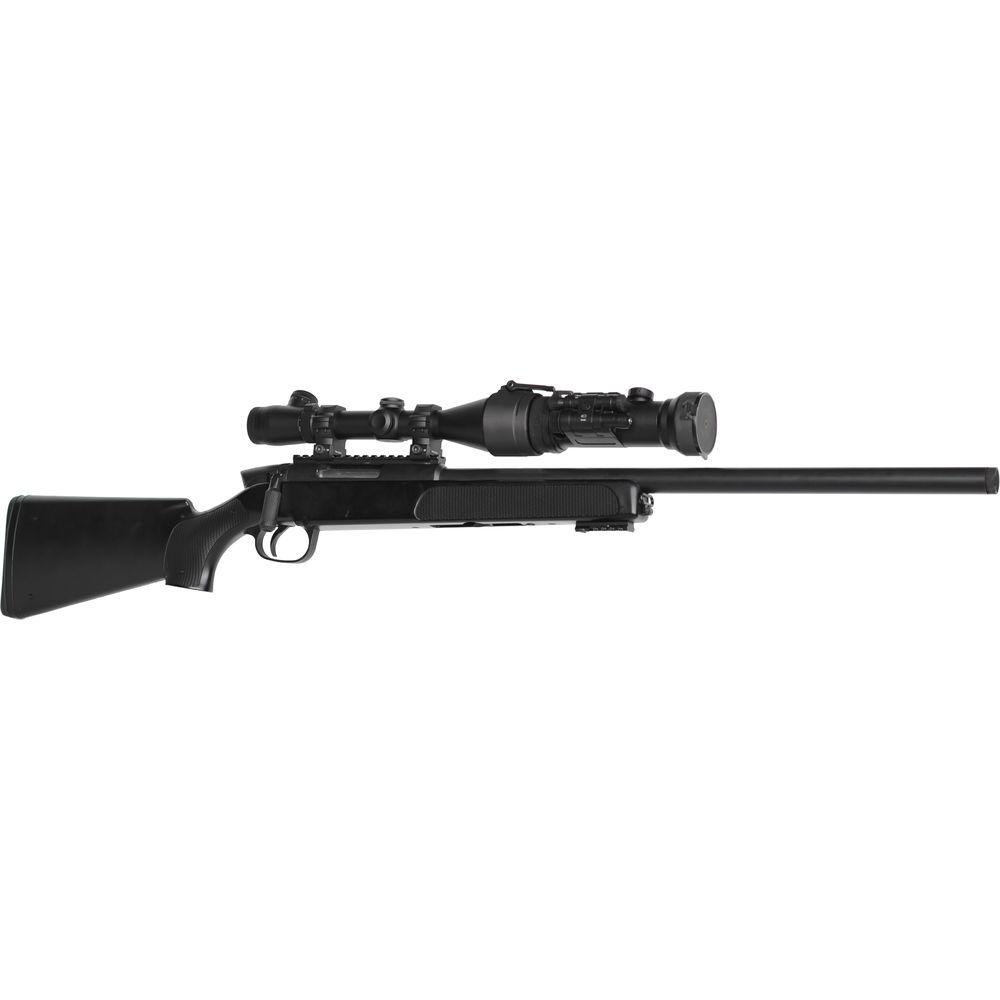

Product description Bering Optics' D-950 Elite 1x 3rd-Gen Night Vision Riflescope Clip-On is a versatile and robust enhancement for a day riflescope. It features a 3rd-generation filmless autogated intensifier tube with a resolution of 64-72 lp/mm and a manual gain. The filmless microchannel plate generates less noise and offers greater sensitivity and higher gain. The device is also enhanced with white phosphor technology for operators who prefer black-and-white images to green ones. The gain control of this tube type is a manual one, which allows operators to have full control of the trade-off between amount of detail and image brightness.
The optical system offers High-Definition (HD) multi-coated lenses that deliver improved detail, resolution, and image clarity and brightness. The 78mm, f/1.6 objective lens offers a wide enough aperture for collecting light at night and enhancing visibility. To enable operation in nearly complete darkness, providing additional illumination for your targets, this night vision device can be used with an optional infrared illuminator.
The polymer housing is lightweight, impact resistant, waterproof, fogproof, and dust-resistant. To provide a solid attachment to your day riflescope's objective, this NVD offers an integrated mount with polymer inserts. As an alternative attachment to your firearm, or for connecting accessories, this device has a built-in Weaver-style rail. Also included is a carrying pouch with a strap, a protective lens cap, and one CR-123 battery. - Image Intensifier Features
-
- 3rd generation
- 64-72 lp/mm resolution
- Manual gain control allows adjusting brightness or detail
- Autogating allows operation in varying light conditions and extends the tube's life
- Filmless microchannel plate improves signal-to-noise ratio
- White phosphor technology generates black-and-white images
- Optical Performance
-
- 1x magnification
- High-Definition (HD) optical glass offers greater image detail and clarity
- Multiple anti-reflection coatings improve transmission and resolution
- 78mm, f/1.6 lens system
- 33' minimum focus distance
- Construction Details
-
- Impact-resistant polymer housing
- Built-in Picatinny/Weaver rail
- Mounts to 24-60mm day scope objectives
- Can be used as a scope with optional 2x eyepiece
- Flip-up objective cap
- Waterproof and fogproof
In the Box Bering Optics D-950 Elite 1x 3rd-Gen Night Vision Riflescope Clip-On (Filmless, White Phosphor Tube, Matte Black) - Protective Carry Pouch
- Flip-Up Objective Lens Cap
- CR123 Battery
- Lens Tissue
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics D-950 Elite 1x 3rd-Gen Night Vision Riflescope Clip-On in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics D-950 Elite Specs | Reticle | Red-yellow Mil-Dot
Adjustable brightness | | Intensifier Tube | 3rd generation intensifier tube
Filmless microchannel plate
White phosphor screen
Autogated supply
Manual gain | | Resolution | 64-72 lp/mm | | SNR | 1:27 | | Magnification | 1x | | Linear Field of View | 39' at 100 yd / 13 m at 100 m | | Exit Pupil | 34 mm | | Lens System | 78mm, f/1.6 | | Minimum Focus Distance | 33.0' / 10.0 m | | Battery / Runtime | 1 x CR123 battery / 60 hours | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Waterproofing | Waterproof and fogproof, rated IP67
Humidity: Up to 98% | | Dimensions | 8.5 x 2.6 x 3.2" / 21.5 x 6.7 x 8.1 cm | | Weight | 27.0 oz / 765.0 g |
