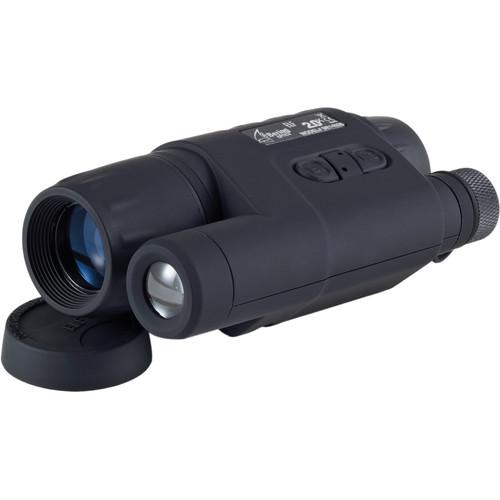

User Manual for Bering Optics ELF2 2x 1st Generation Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Bering Optics ELF2 2x 1st Generation
- Product category: NV Monoculars & Multi-Systems Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics NV Monoculars & Multi-Systems
 |
User manual for the Bering Optics ELF2 2x 1st Generation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|

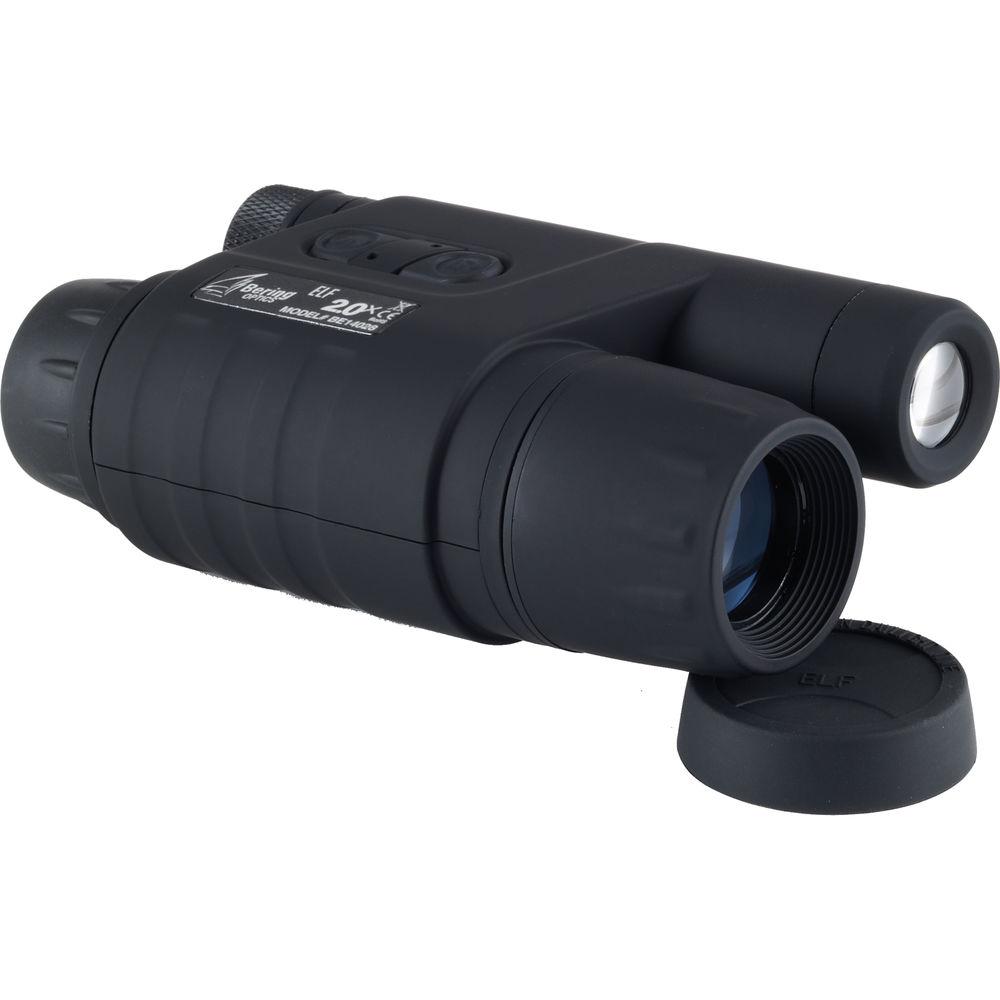

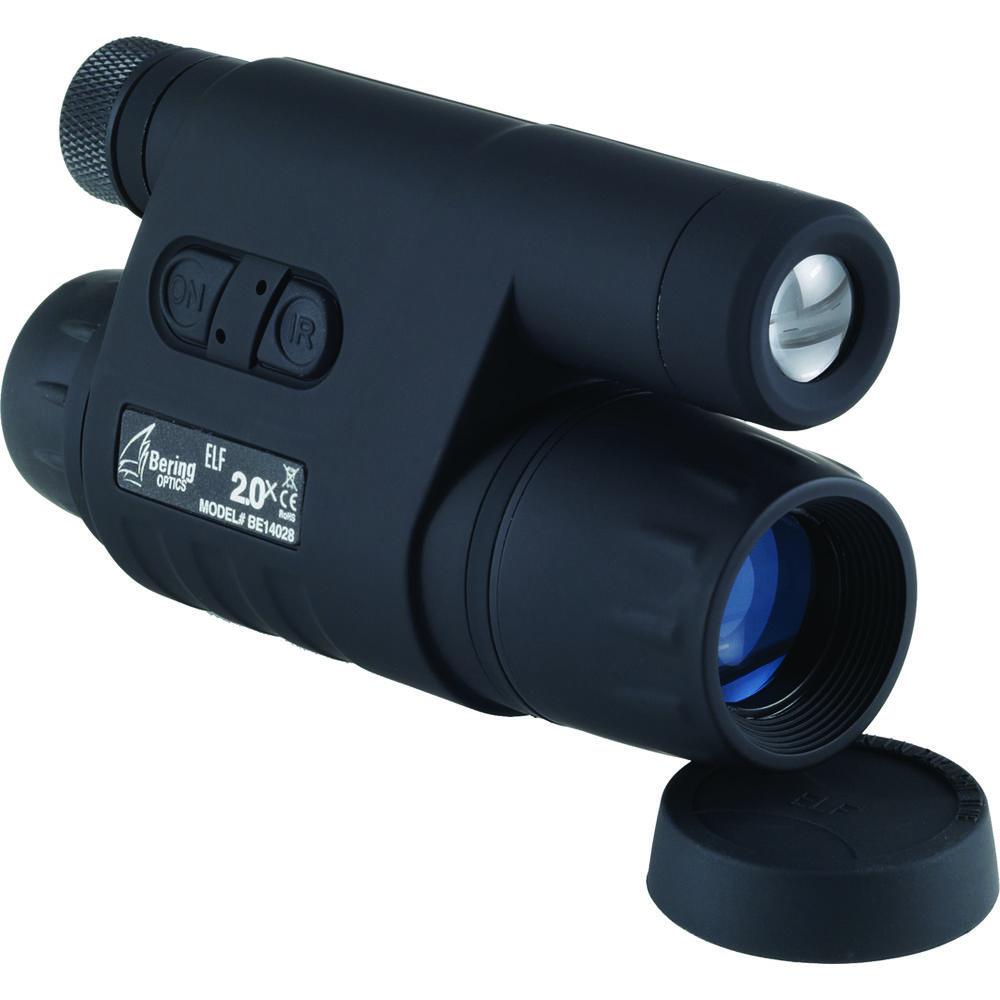

Product description The lightweight and ergonomic ELF2 2x 1st Generation Night Vision Monocular from Bering Optics can be used as a handheld or tripod-mounted night vision device for your night explorations. It features a 1st generation intensifier tube and an integrated infrared illuminator that improves image brightness and detail in total darkness. The fully multicoated optics feature a notable 2x magnification with a wide 23.4° angle of view. Additionally, for your convenience, the monocular offers a diopter adjustment.
The black housing is ergonomic and water-resistant. It features a rubberized covering for a secure grip, knurled adjustment rings, and a convenient menu pad. It provides a 1/4"-20 socket for mounting on a tripod. Also included with the monocular is an objective lens cap. - Intensifier Tube and Illuminator
-
- 1st generation intensifier tube
- Integral infrared illuminator
- Optical Performance
-
- Magnification: 2x
- Angular field of view: 23.4°
- Lens system: 39mm, f/1.2
- Minimum focus distance: 0.5 yd
- Dioptric adjustment: +4 to -4
- Eye relief: 10mm
- Construction Details
-
- Ergonomic housing with armoring
- Rubberized coating provides a non-slip grip
- Knurled objective ring, diopter ring, and a battery compartment cap
- 1/4"-20 socket for mounting on a tripod
- Water-resistant
UPC: 850432003519 In the Box Bering Optics ELF2 2x 1st Generation Night Vision Monocular - Objective Lens Cap
- Carry Pouch
- Limited Lifetime Warranty
- Limited 1-Year Warranty for Intensifier Tube
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics ELF2 2x 1st Generation Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics BE14028 Specs | Intensifier Tube | 1s generation | | Magnification | 2x | | Linear Field of View | Angular: 23.4°
Linear: 123' @ 100 yd (41 m @ 100 m) | | Lens System | 39mm, f/1.2 | | Minimum Focus Distance | 0.5 yd (0.46 m) | | Eye Relief | 0.4" (10 mm) | | Dioptric Correction | -4 to +4 | | Battery / Runtime | 1 x CR123 / 60 hr max | | Weatherproofing | Rated IPX4, water-resistant
93% humidity rating | | Operating Temperature | -22 to 113°F (-30 to 45°C) | | Tripod Adaptable | 1/4"-20 | | Dimensions | 6.2 x 3.2 x 2" (155 x 80 x 50 mm) | | Weight | 8.5 oz (242 g) |
