User Manual for Bering Optics HiPo 3.4x50 1st Generation Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Bering Optics HiPo 3.4x50 1st Generation
- Product category: NV Monoculars & Multi-Systems Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics NV Monoculars & Multi-Systems
|
User manual for the Bering Optics HiPo 3.4x50 1st Generation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|

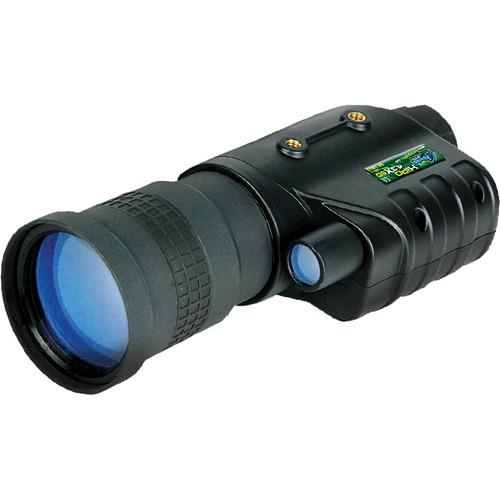

Product description Bering Optics' HiPo 3.4x50 1st Generation Night Vision Monocular can be used as a handheld or tripod-mounted night vision device for your night explorations. It features a 1st generation intensifier tube and a 25mW integrated infrared illuminator that improves image brightness and detail in total darkness. To protect the intensifier tube from accidental damage due to bright light, the device is equipped with a bright light auto off function. The fully multi-coated optics feature a notable 3.4x magnification with a wide field of view of 60' at 100 yd. Additionally, for your convenience, the monocular offers a diopter adjustment and a minimum focus distance of 1yd.
The black housing is ergonomic and water-resistant. It features a rubberized covering for a secure grip, knurled adjustment rings, and a convenient menu pad. It provides two 1/4"-20 sockets for mounting on a tripod and a built-in Weaver rail for mounting additional accessories. - Sensor and Built-in IR Illuminator
-
- 1st generation intensifier tube
- Auto shut-off bright light protection
- Built-in 25mW infrared illuminator
- Adjustable illumination brightness
- Optical Performance
-
- Fully multi-coated optics
- 3.4x magnification
- Wide 50mm objective diameter
- 80mm focal Length
- Field of view: 60' at 100 yd
- Minimum focus: 1 yd
- Construction
-
- Two built-in 1/4"-20 tripod sockets
- Comfortable contoured housing with rubberized covering for a sure grip
- Built-in rail for mounting accessories
- Weather-resistant, rated IPX4
UPC: 850432003038 In the Box Bering Optics HiPo 3.4x50 1st Generation Night Vision Monocular - Carry Case
- Lens Cap
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics HiPo 3.4x50 1st Generation Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics HiPo Specs | Intensifier Tube | 1st generation | | Magnification | 3.4x | | Linear Field of View | 60' @ 100 yd / 20 m @ 100 m | | Objective Lens Diameter | 50mm | | Lens System | 80 mm f/1.2 | | Minimum Focus Distance | 1 yd / 0.91 m | | Eye Relief | 12 mm | | Exit Pupil | 6 mm | | Dioptric Correction | +4 to -4 | | Infrared Illuminator | 25 mW, 850 nm | | Battery / Runtime | 2 x AA batteries / IR on: 25 h, IR off: 75 h | | Weatherproofing | IPX4, water-resistant | | Operating Temperature | -22 to 113°F / -30 to 45°C | | Tripod Compatibility | 2 x 1/4"-20 sockets | | Humidity | 93% | | Dimensions | 7.8 x 3.9 x 2.6" / 198 x 100 x 65 mm | | Weight | 18.3 oz / 520 g | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 8.9 x 4.3 x 3.0" |
