User Manual for Bering Optics MAGNUM-860 Centurion 2nd Gen 6x83 Night Vision Sight Click to enlarge the picture
Contents of the user manual for the Bering Optics MAGNUM-860 Centurion 2nd Gen
- Product category: NV Monoculars & Multi-Systems Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics NV Monoculars & Multi-Systems
 |
User manual for the Bering Optics MAGNUM-860 Centurion 2nd Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|

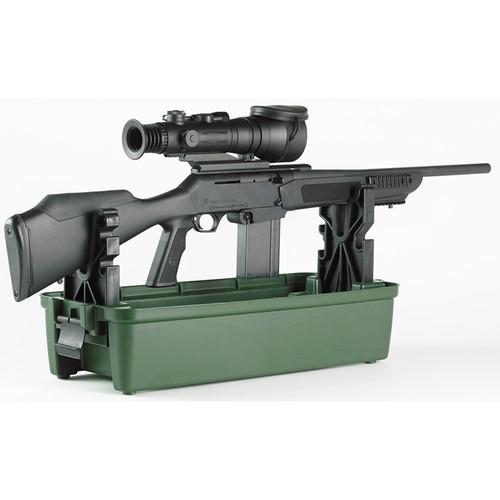

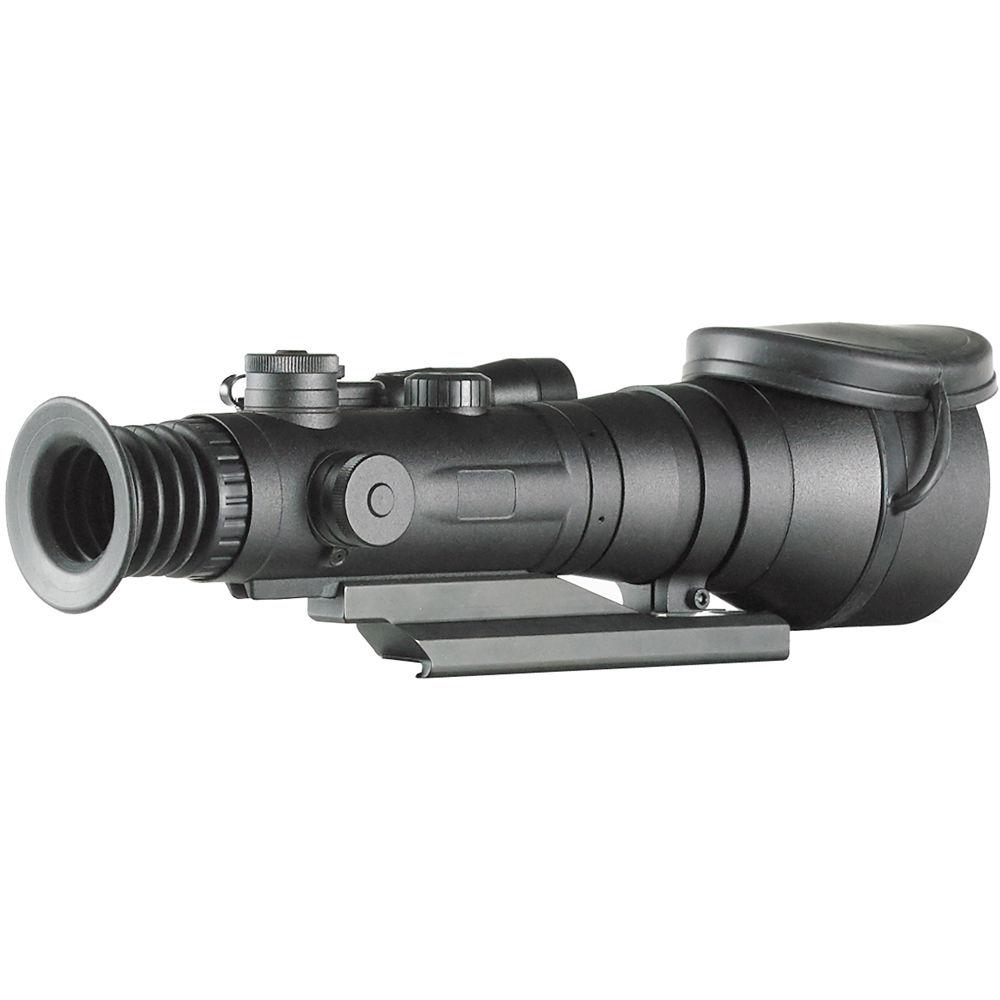

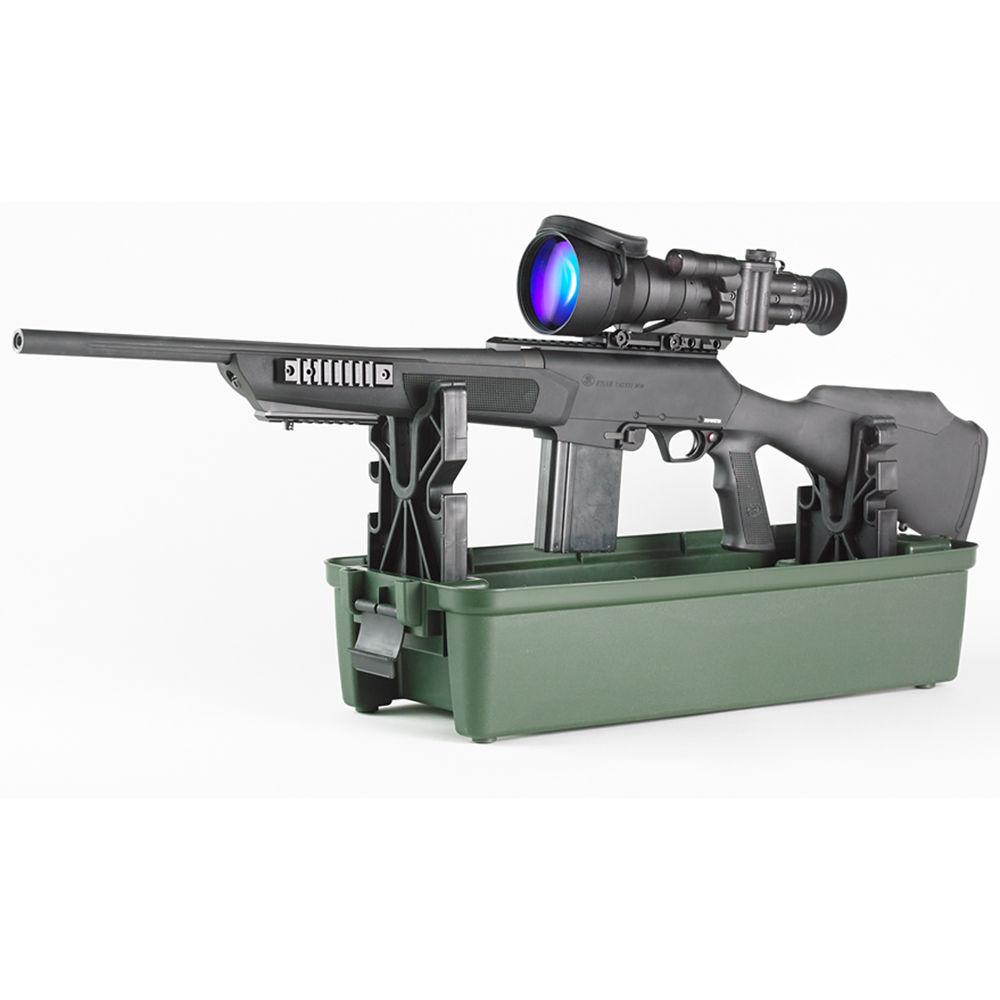

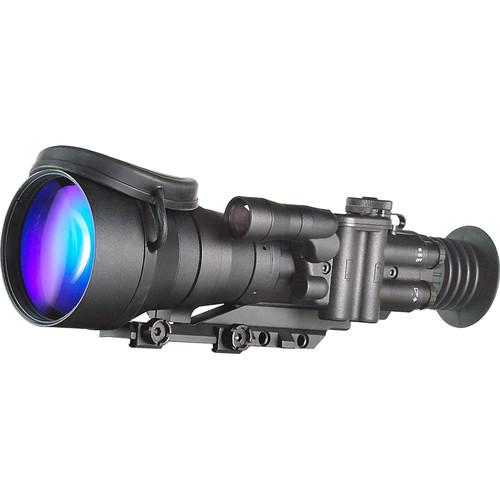

Product description With a lightweight and durable aluminum with glass fiber housing, the MAGNUM-860 Centurion 2nd Gen 6x83 Night Vision Sight from Bering Optics offers users a 2nd generation night vision experience, a large 83mm aperture, and a red Mil-Dot reticle. While the 165mm, f/2.0 optical system provides improved light gathering capacity, which translates into brighter images and longer range, the second generation night vision intensifier tube offers improved sensitivity and image detail and contrast. The electronics also offer the bright light cut-off function, which turns off your intensifier tube when it is exposed to a sudden flash of bright light. This helps to extend tube life, protects it from damage and burn-out, and to prevent a temporary loss of eye-sight due to flash blindness.
To compliment clear visibility of your targets with precise aiming and accurate target acquisition, this sight offers a red Mil-Dot reticle with adjustable brightness. To help you account for wind drift and ballistic bullet drop, there are windage and elevations adjustments with 1/2 MOA increments. The optical system also features multiple layers of anti-glare coatings to increase transmission of light and reduce glare, a wide 6.2° angular field of view, and a 33 yd minimum focus. To accommodate individual needs, there are a 50mm eye relief and a +4 to -4 dioptric adjustment.
The housing is made of aluminum and lightweight and durable glass fiber composite. It offers recoil resistance, water resistance, and protection against humidity as high as 98%. With a built-in mount, you can attach this night vision sight to any Weaver style rail.
The included objective lens cover is tethered to the housing to prevent loss. The wide compressible rubber eye cup covers the entire orbit of the eye to prevent leakage of green intensifier light and to help protect your eye from the recoil. Also included with this NVD, are a carrying bag and a lens tissue. - Intensifier Tube and Illuminator
-
- Intensifier tube: 2nd generation
- Resolution: 64 lp/mm
- Bright light cut-off
- Reticle
-
- Red Mil-Dot
- Adjustable brightness
- Optical Performance
-
- Magnification: 6x
- Lens system: 165mm, f/2.0
- Objective lens diameter: 83mm
- Angular field of view: 6.2°
- Minimum focus distance: 33 yd
- Eye relief: 50 mm
- Diopter adjustment: +4 to -4
- Construction Details
-
- Windage and elevation adjustments with 1/2 MOA per click increments
- Lightweight and durable aluminum and glass fiber housing
- Knurled diopter ring and adjustment knobs
- Integrated Weaver mount for mounting to a barrel
- Wide rubber eyecup
- Recoil resistant
- Water resistant
In the Box Bering Optics MAGNUM-860 Centurion 2nd Gen 6x83 Night Vision Sight (Red Mil-Dot) - Lens Cap
- Carry Bag
- Lens Tissue
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics MAGNUM-860 Centurion 2nd Gen 6x83 Night Vision Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics CS46062 Specs | Intensifier Tube | 2nd generation | | Magnification | 6x | | Angle/Field of View | 6.2° | | Objective Lens Diameter | 83mm | | Minimum Focus Distance | 33 yd (30 m) | | Eye Relief | 50mm | | Dioptric Correction | ±4 | | Infrared Illuminator | Optional | | Battery / Runtime | 2 x AA batteries / 72 hr max | | Weatherproofing | IPX6 rated, resistant to powerful jets of water
Humidity: 98% | | Temperature Ranges | -40 to 122°F (-40 to 50°C) | | Dimensions | 13 x 4.1 x 3.6" (331 x 105 x 91 mm) | | Weight | 46 oz (1.3 kg) |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
