User Manual for Bering Optics Night Probe 2nd Gen Night Vision Clip-On Kit Click to enlarge the picture
Contents of the user manual for the Bering Optics Night Probe 2nd Gen
- Product category: Day/Night Systems Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics Day/Night Systems
 |
User manual for the Bering Optics Night Probe 2nd Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|

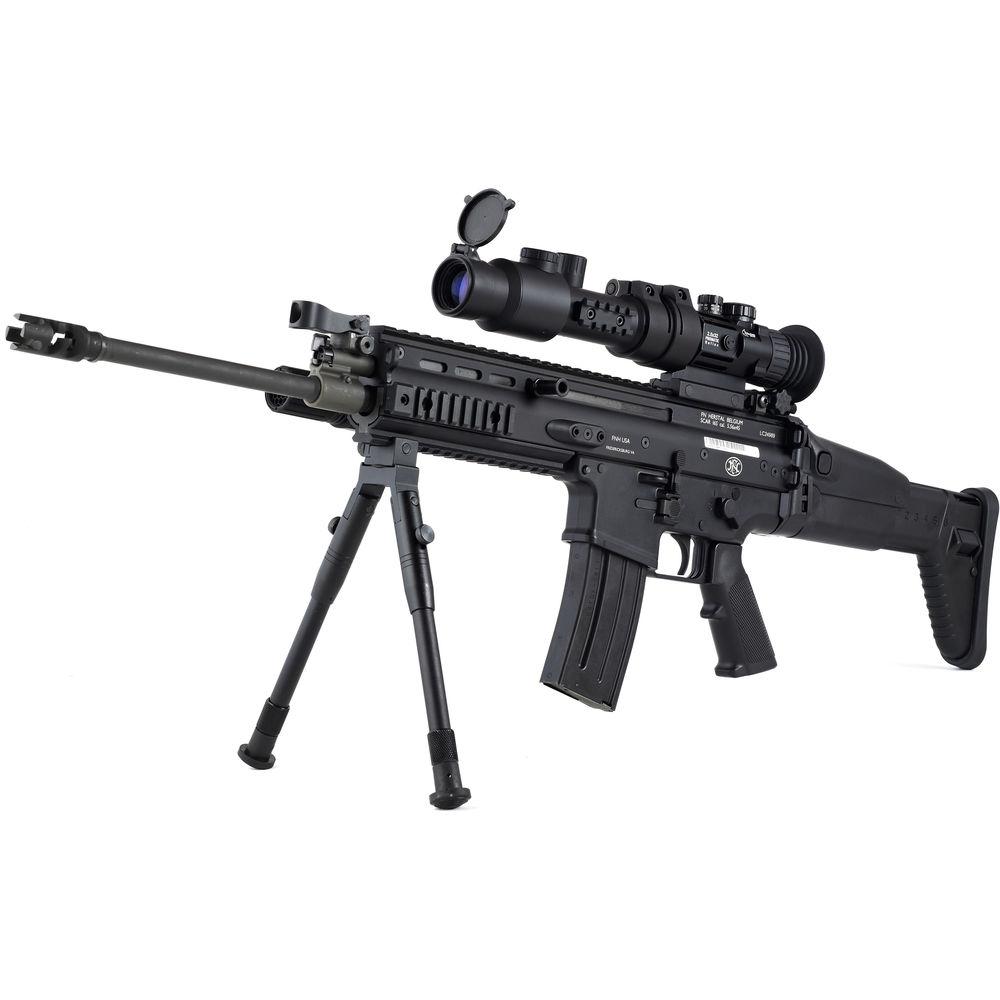

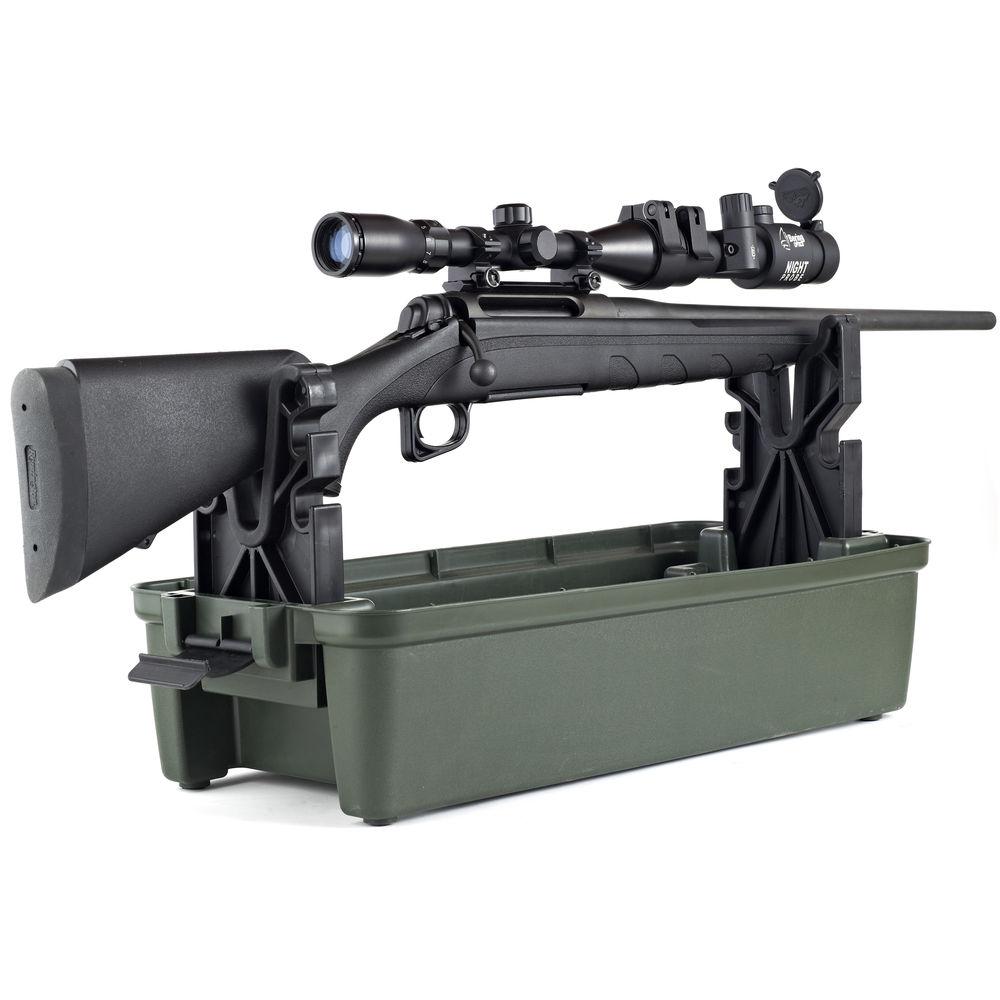

Product description Use your favorite day optic at night with Bering Optics' Night Probe 2nd Gen Night Vision Clip-On Kit. The kit includes a 2nd generation Night Probe night vision device and a mounting system for riflescopes with objective diameter from 32 to 40mm. The included night vision attachment features a 2nd generation intensifier tube with Automatic Brightness Control (ABC) and a 60-hour runtime on single CR-123 battery. When compared to 1st generation tubes, the 2nd generation intensifier tube offers significant improvements in image resolution and brightness and provides softer tones of green. The optical system offers multi-coated optics, 1x magnification, a 30mm objective lens, a 16° wide angle of view, and a 33' minimum focus.
The aluminum housing features water-resistant and corrosion-resistant performance and provides an extra Weaver rail for mounting optional accessories, like infrared lasers or LED illuminators. For coupling your Night Probe NVD to a day riflescope, use the included quick release adapter and fitting rings for 32-40mm objective bells. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Intensifier Tube
-
- 2nd generation tube
- 45-56 lp/mm resolution
- ABC - Automatic Brightness Control
- Optical Performance
-
- 1x magnification
- 30mm diameter objective
- Ideal for 2 - 4x day riflescopes
- Angular field of view: 16°
- Minimum focus distance: 33'
- Construction Details
-
- Durable high-quality aluminum body
- Included adapter rings are compatible with 32-40mm riflescope objectives
- Water, corrosion, and dust-resistant
- Two Weaver rails included
- Flip-up objective lens cover

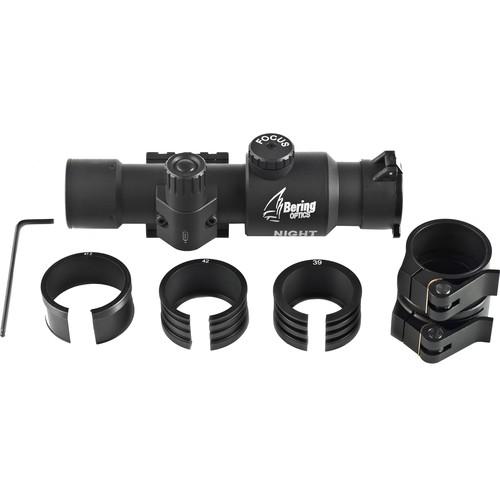

UPC: 850432003335 In the Box Bering Optics Night Probe 2nd Gen Night Vision Clip-On Kit (32-40mm Objectives) - Clip-On Adapter Kit for Night Probe/Night Probe Mini (24-40mm)
- Flip-Up Objective Cap
- Carry Pouch
- Allen Wrench
- 2 x Weaver Rails
- Limited Lifetime Warranty
- Limited 2-Year Warranty on Intensifier Tube
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics Night Probe 2nd Gen Night Vision Clip-On Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics BE26041 Specs | Intensifier Tube | 2nd generation | | Resolution | 45-56 lp/mm | | Object Diameter | 30mm | | Magnification | 1x | | Angle/Field of View | 16° | | Minimum Focus Distance | 33' / 10 m | | Battery / Runtime | 1 x CR-123 battery / 60 h max | | Weatherproofing | Rated IPX4, water-resistant
98% humidity rating | | Temperature Ranges | -22 to 122°F (-30 to 50°C) | | Material | Housing: Aluminum | | Dimensions | 7.6 x 3.2 x 2.4" / 194 x 80 x 62 mm | | Weight | 17 oz / 480 g |
