User Manual for Bering Optics Night Probe Mini 3rd Gen Clip-On and Supra Reflex Sight Kit Click to enlarge the picture
Contents of the user manual for the Bering Optics Night Probe Mini 3rd
- Product category: Day/Night Systems Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics Day/Night Systems
 |
User manual for the Bering Optics Night Probe Mini 3rd contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|

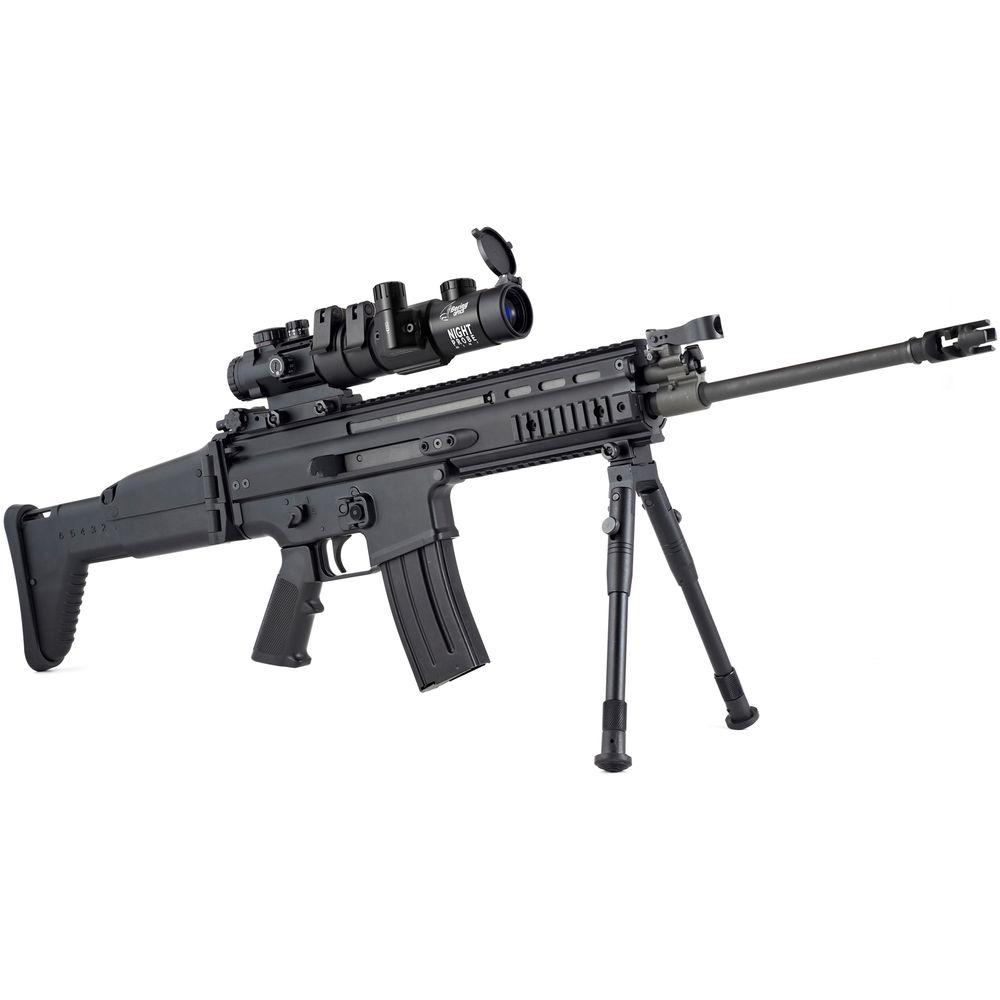

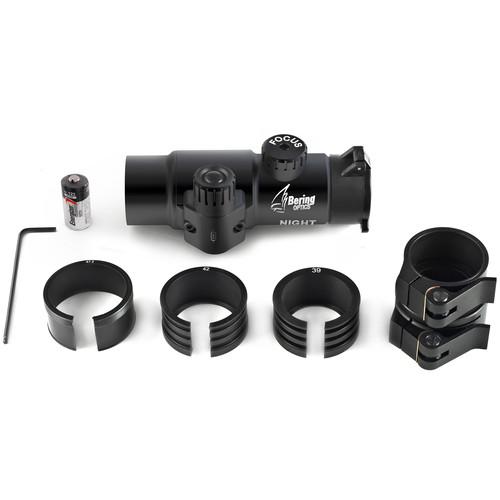

Product description Bering Optics offers Night Probe Mini 3rd Gen Clip-On and Supra Reflex Sight Kit as a self-contained package for all your daytime and nighttime tactical missions. The ultra-compact Night Probe Mini is a 3rd generation night vision clip-on attachment for daytime riflescopes or sights with 24-40mm objective bell diameters. This NVD carries a third generation image intensifier tube with superior resolution and contrast, and edge-to-edge image clarity and detail. The 1x multi-coated optical system is optimized for use with 2-5x daytime scopes and sights and offers a 30mm objective lens, a 16° wide angle of view, and a 24' minimum focus. The high-quality, ultra-compact aluminum housing is lightweight, durable, and offers a water and impact-resistant performance. To protect the objective lens from impact and elements it has a built-in flip-up lens cover, and for slip-free grip it provides knurled knobs and rings. Its clip-on mount with two quick-release levers is designed for 24-40mm objectives and together with fitting rings provides a solid attachment. To mount it, use the included four fitting rings with different diameters. If you need to attach secondary optics or extra accessories like infrared lasers, LED illuminators, or cameras, the device provides an extra Weaver rail for mounting.
The included 3x32 Prismatic Supra Reflex Sight is compatible with Night Probe Mini and eliminates the need to look for a matching day optic. Its top feature is the illuminated Circle-Dot Reticle with a BDC scale for fast holdover estimation. The reticle provides three color patterns: red, green, and black. The brightness of red and green patterns can be controlled to accommodate your personal preferences or outside lighting conditions. The multi-coated optical system provides a 3x magnification, a 6° angle of view, and a 6' minimum focus. Other highlights are the 1/2 MOA per click windage and elevation adjustments and the 60 MOA total range. The aluminum housing is shock-resistant, water-resistant, and lightweight. It also offers an integrated co-witness mount for attachment to Picatinny/Weaver rails and two 45° offset Weaver accessory rails on both sides. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. Night Probe Mini 2nd Gen Clip-On - Image Intensifier Tube
- 3rd generation tube
- Resolution of 64-72 lp/mm
- Produces green images with superior contrast and edge-to-edge clarity
Optical Performance
- 1x magnification
- Optimized for 2-5x daytime optics
- 30mm objective lens diameter
- Multi-coated optical elements
- Angular field of view: 16°
- 24' minimum focus distance
Construction Details
- Durable high-quality aluminum housing
- Ultra-compact and lightweight body
- Clip-on adapter for 24-40mm objectives
- Two quick-release clamping levers
- Knurled adjusters and knobs are slip-free
- Integrated Weaver accessory rail
- Flip-up objective lens cover
- Water and shock-resistant
3x32 Prismatic Supra Reflex Sight - Reticle
- Circle-Dot Reticle with vertical BDC line
- Red or green illuminated reticle patterns
- Black non-illuminated reticle pattern
- 5-level brightness levels
Optical Performance
- 3x magnification
- 32mm objective diameter
- Multi-coated optical elements
- 9' minimum focus distance
- 6° angle of view
- 2.8" eye relief
- +2 to -2 diopter adjustment
Use and Handling
- 1/2 MOA impact point correction
- 60 MOA windage and elevation ranges
Construction Details
- Aluminum housing
- Black anodized finish
- Knurled rings and knobs for slip-free grip
- Graduations on windage and elevation turrets
- Oversized brightness control knob
- Two 45° offset Picatinny/Weaver accessory rails on both sides
- Picatinny/Weaver rail co-witness mount
- Water and shock-resistant

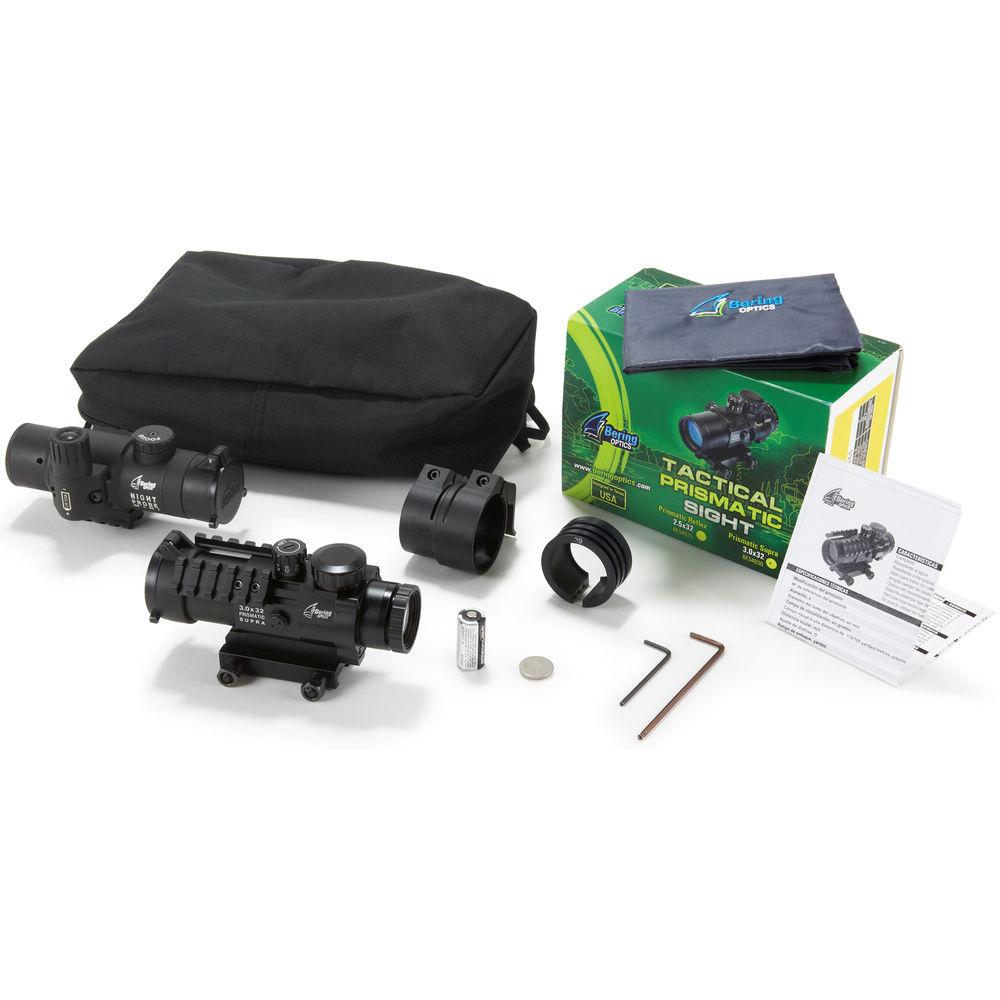

In the Box Bering Optics Night Probe Mini 3rd Gen Clip-On and Supra Reflex Sight Kit 3x32 Prismatic Supra Reflex Sight (Circle-Dot BDC) Flip-Up Objective Cover Carry Bag Allen Wrench 2 x Weaver Rails Limited Lifetime Warranty Limited 3-Year Warranty for Intensifier Tube Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics Night Probe Mini 3rd Gen Clip-On and Supra Reflex Sight Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics BE36141C Specs | Intensifier Tube | 3rd generation | | Resolution | 64-72 lp/mm | | Objective Diameter | 30mm | | Magnification | 1x | | Angle/Field of View | 16° | | Minimum Focus Distance | 24' / 7.3 m | | Battery / Runtime | NVD: 1 x CR123 battery / 60 h
Sight: 1 x CR-2032/DL-2032/ECR-2032 battery / 300 h | | Weatherproofing | Rated IPX4, water-resistant
98% humidity | | Temperature Ranges | -22 to 122°F (-30 to 50°C) | | Material | Housing: Aluminum | | Dimensions | NVD: 5.2 x 3.1 x 2.44" / 132 x 78 x 62mm
Sight: 5.35 x 3.19 x 2.44" / 136 х 81 х 62 mm | | Weight | NVD: 15.5 oz / 440 g
Sight: 16.1 oz / 456 g |
