User Manual for Bering Optics Night Probe Mini 3rd Gen White Phosphor Clip-On Kit Click to enlarge the picture
Contents of the user manual for the Bering Optics Night Probe Mini 3rd
- Product category: Day/Night Systems Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics Day/Night Systems
 |
User manual for the Bering Optics Night Probe Mini 3rd contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|

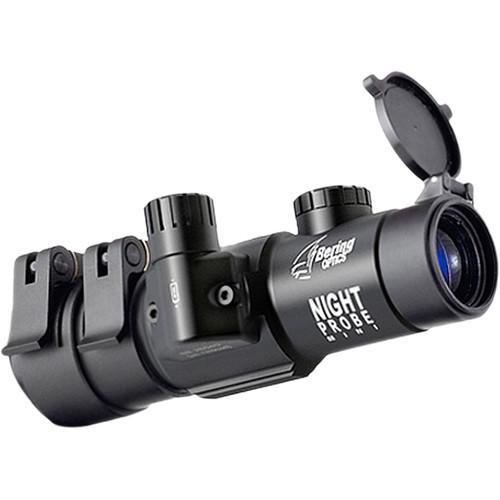

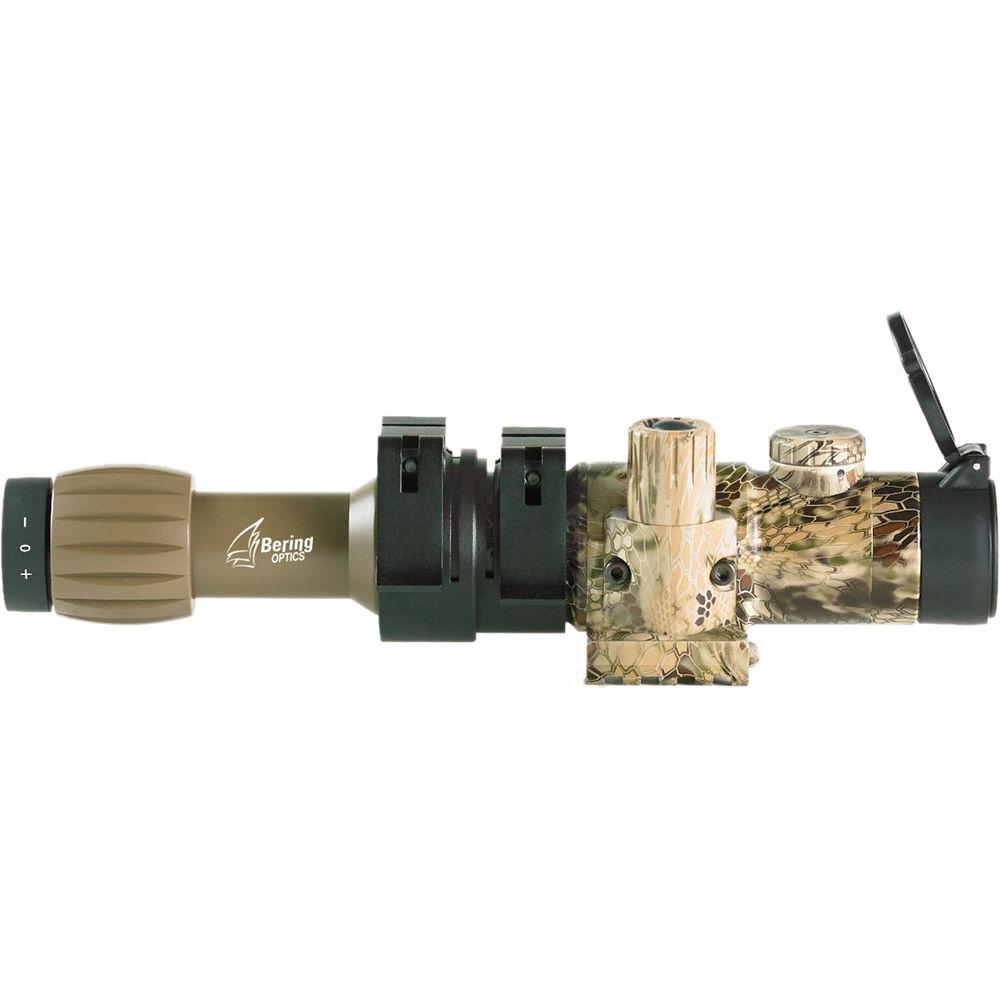

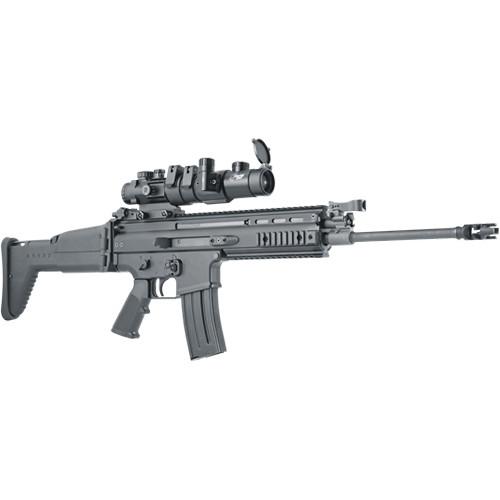

Product description Bering Optics offers the Night Probe Mini 3rd Gen White Phosphor Clip-On Kit as a self-contained package to enhance your favorite daytime riflescope with night vision tactical capabilities. This ultra-compact NVD carries a 3d generation intensifier tube with 64-72 lp/mm resolution, white phosphor screen that produces black and white images, high contrast, and high edge-to-edge image clarity and detail. The 1x multi-coated optical system is optimized for use with 2-5x daytime scopes and sights and offers a 30mm objective lens, a 16° wide angle of view, and a 24' minimum focus. The high-quality, ultra-compact aluminum housing is lightweight, durable, and offers a water, dust, and impact-resistant performance. To protect the objective lens from impacts and abrasions, it has a built-in flip-up lens cover, and for a slip-free grip it provides knurled knobs and rings. For coupling your Night Probe NVD to a day riflescope, use the included quick release adapter and fitting rings for 32-40mm objective bells. If you need to attach secondary optics or extra accessories like infrared lasers, LED illuminators, or cameras, the device provides an extra Weaver rail for mounting. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Night Vision Sensor
-
- 3rd generation IIT
- Filmless intensifier tube
- Resolution of 64-72 lp/mm
- White Phosphor screen generates black and white images
- Optical Performance
-
- 1x magnification
- 30mm objective lens
- Multi-coated optical elements
- 16° angular field of view
- 24' minimum focus distance
- Optimized for 2-5x day optics
- Construction Details
-
- Durable high-quality aluminum body
- Ultra-compact and lightweight design
- Knurled adjusters and knobs are slip-free
- Integrated accessory Weaver rail
- Quick release adapter and rings for 30-56mm riflescope objectives
- Water, corrosion, and dust-resistant
- Flip-up objective lens cover
- Impact-resistant

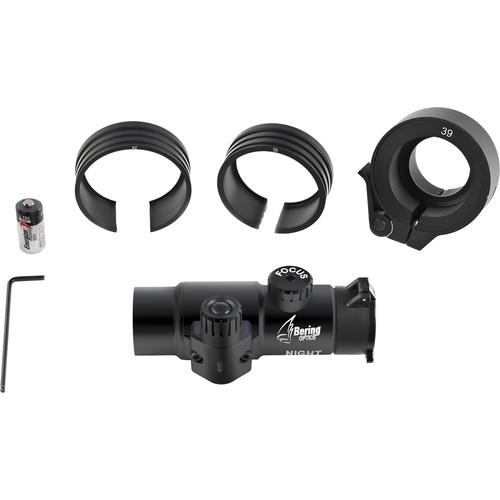

UPC: 850432003953 In the Box Bering Optics Night Probe Mini 3rd Gen White Phosphor Clip-On Kit (30-56mm Objectives) - Clip-On Adapter Kit for Night Probe/Night Probe Mini (30-56mm) zuxdfsrstdxtuddxwdttxtuerebyszuqtysves
- CR-123 Li-Ion Battery
- Flip-Up Objective Cap
- Carry Pouch
- Allen Wrench
- Limited Lifetime Warranty
- Limited 2-Year Warranty for Intensifier Tube
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics Night Probe Mini 3rd Gen White Phosphor Clip-On Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics BE36142W Specs | Intensifier Tube | 3rd generation
Resolution: 64-72 lp/mm
White phosphor screen | | Object Diameter | 30mm | | Magnification | 1x | | Angle/Field of View | 16° | | Minimum Focus Distance | 24' / 7 m | | Battery / Runtime | 1 x CR-123 Li-ion battery / 60 h max | | Weatherproofing | Water-resistant, rated IPX4
Dust-resistant | | Humidity | 98% | | Temperature Ranges | -22 to 122°F / -30 to 50°C | | Dimensions | 5.2 x 3.1 x 2.4" / 132.1 x 78.7 x 61.0 mm | | Weight | 15.5 oz / 439.4 g |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 60 owners. Add your rating and experience with the product.
