User Manual for Bering Optics Night Stealth 2-4x15 Digital Night Vision Camcorder Click to enlarge the picture
Contents of the user manual for the Bering Optics Night Stealth 2-4x15 Digital
- Product category: NV Monoculars & Multi-Systems Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics NV Monoculars & Multi-Systems
 |
User manual for the Bering Optics Night Stealth 2-4x15 Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|

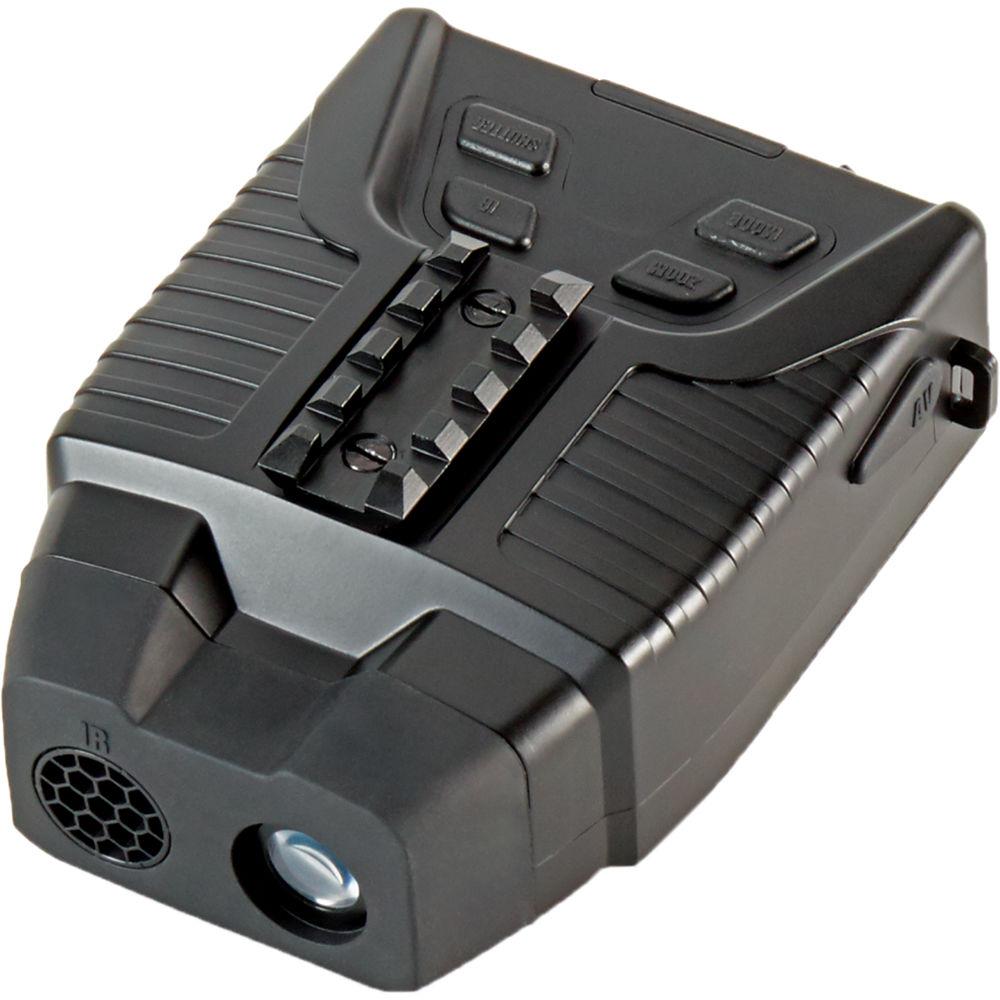

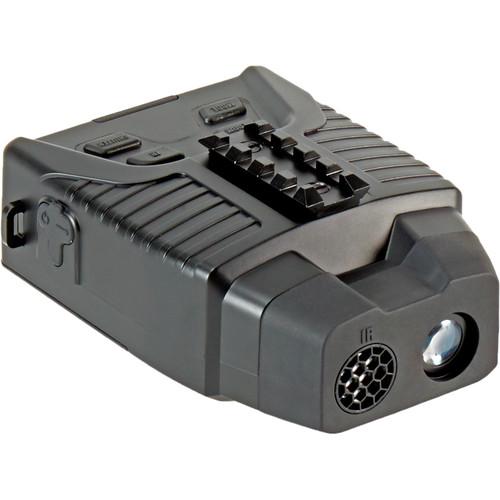

Product description Explore and capture on video nighttime activities using the Bering Optics Night Stealth 2-4x15 Night Vision Digital Camcorder. This compact digital night vision camera allows you to view, stream, and capture night scenery in very low light or in total darkness. To accomplish the task it features a 1/5" CMOS sensor resistant to bright light, a color LCD display, a built-in infrared illuminator, and three ports for saving and streaming your data—a microSD memory slot, a mini-USB port, and an AV video-out port. Its optical system boasts 4x of total zoom magnification, a wide 14° angle of view, and a minimum focus of 3.3'. The digital nature of the night vision sensor provides immunity to bright-light exposure and allows you to use it even during the day. At night, if the ambient infrared light does not provide enough brightness and your images are dim, you can use the integrated infrared illuminator to cast extra IR light on your targets.
To serve you well in a variety of settings, the camcorder comes packaged into a compact and lightweight polymer housing with a 1/4"-20 socket for attachment to tripods and a short Weaver rail on the top for mounting accessories. The unit is also weather resistant with an IPX5 rating and ships with a carry case, neck strap, mini-USB and AV video cables, and a 4GB microSD memory card. - Night Vision Sensor, Illuminator & Display
-
- 640 x 480, 1/5" CMOS sensor
- Works at night or during the day, immune to bright light
- Built-in IR illuminator with adjustable output
- 320 x 240 color LCD display
- Optical Performance
-
- 2x magnification
- 2x digital zoom
- 15mm objective lens
- 14° angle of view
- 3.3' close focus distance
- 20mm exit pupil
- Use and Handling
-
- Mini-USB port for computer connection
- microSD slot for external memory storage
- Captures JPG images and H.264 videos
- NTSC or PAL switchable analog video output
- Can be used as a 24-hour surveillance camera
- 1/4"-20 socket for mounting on a tripod
- Construction Details
-
- Polymer Housing
- Accommodates four AA batteries
- Built-in short Weaver rail for accessories
- Weather-resistant, rated IPX5

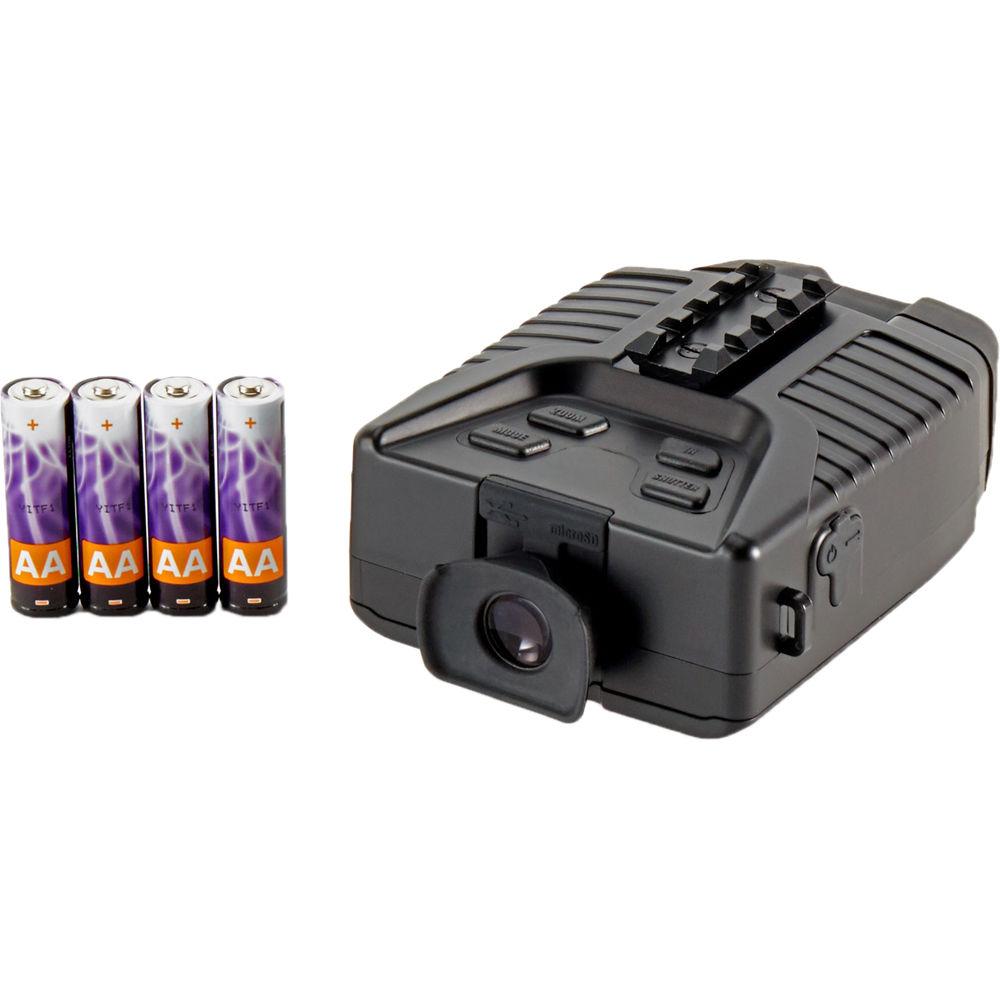

UPC: 850432003984 In the Box Bering Optics Night Stealth 2-4x15 Digital Night Vision Camcorder (Matte Black) - 4GB microSD Card
- AV Video Cable
- Mini-USB Cable
- Carry Case
- Neck Strap
- Lens Cloth
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics Night Stealth 2-4x15 Digital Night Vision Camcorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics BE18030 Specs | Sensor | 640 x 480 1/5" CMOS sensor | | Magnification | 2x optical magnification
2x digital zoom | | Angle/Field of View | 14° | | Objective Diameter | 15mm | | Minimum Focus Distance | 3.3' / 1.0 m | | Exit Pupil | 20 mm | | Infrared Illuminator | Yes
850 nm | | Display | 320 x 240 color LCD | | Image Format | JPG | | Video Format | H.264 | | Video Out | NTSC, PAL | | Ports | Mini-USB, AV video, microSD slot | | Battery / Runtime | 4 x AA batteries / 2 - 5 hours | | Weatherproofing | Weather-resistant, rated IPX5 | | Temperature Ranges | -14 to 122°F / -10 to 50°С | | Dimensions | 5.3 x 3.6 x 1.9" / 13.4 x 9.2 x 4.7 cm | | Weight | 8.8 oz / 250.0 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 7.7 x 6.7 x 2.6" |
