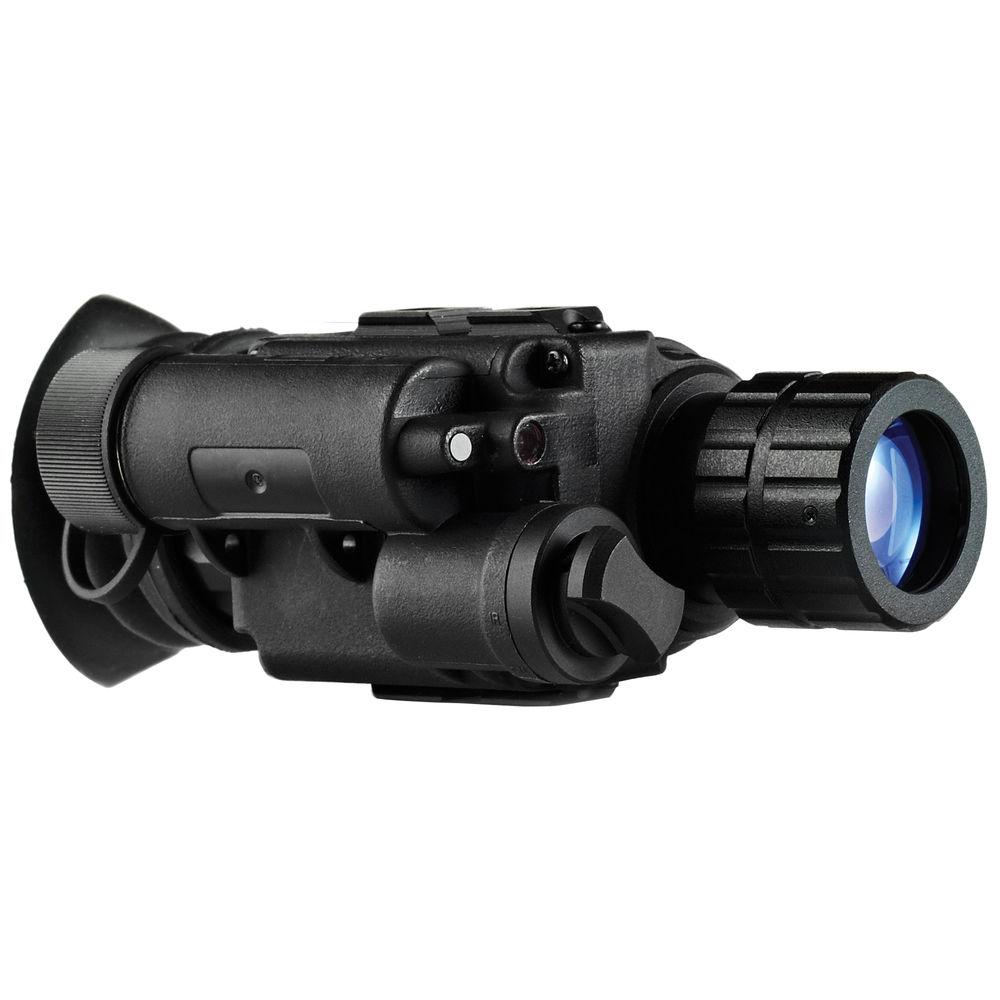

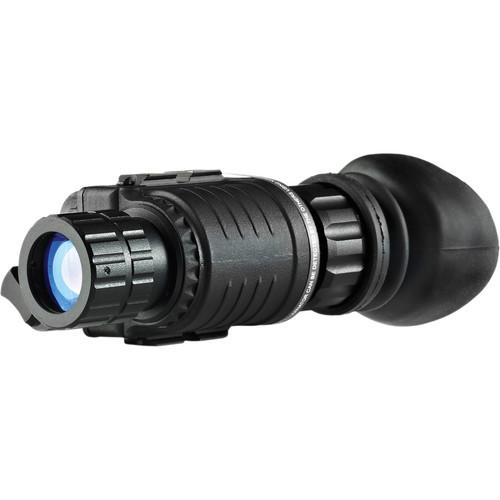

Product description The Ocelot 1x 3rd Generation Night Vision Monocular from Bering Optics features a 3rd generation autogated night vision intensifier tube with resolution of 64-72 lp/mm, multicoated optics, and a lightweight water resistant and corrosion resistant housing. The optics feature a 26mm f/1.2 lens system with multiple layers of anti-glare coatings, a 40° angular field of view, 0.25 yd minimum focus, a 30mm eye relief and +5 to -5 dioptric adjustment. When compared to 1st generation and 2nd generation intensifier tubes, the 3rd generation intensifier tubes offers highest image resolution and brightness. The tube also features automatic brightness control to help you when you are moving through environments with changing lighting conditions and don't have the time to adjust a brightness knob. If you encounter a very bright scene or a sudden flash of bright light that may damage your tube, the bright light cut-off function will automatically turn off your device. On the other hand, if you are observing your target in complete darkness, where there is not enough natural infrared illumination, you can use the integrated infrared illuminator to improve image visibility. Additionally, there are a battery status indicator and an infrared-on indicator. The monocular operates using one CR123 or one AA battery, and has a battery status and an infrared-on indicator.

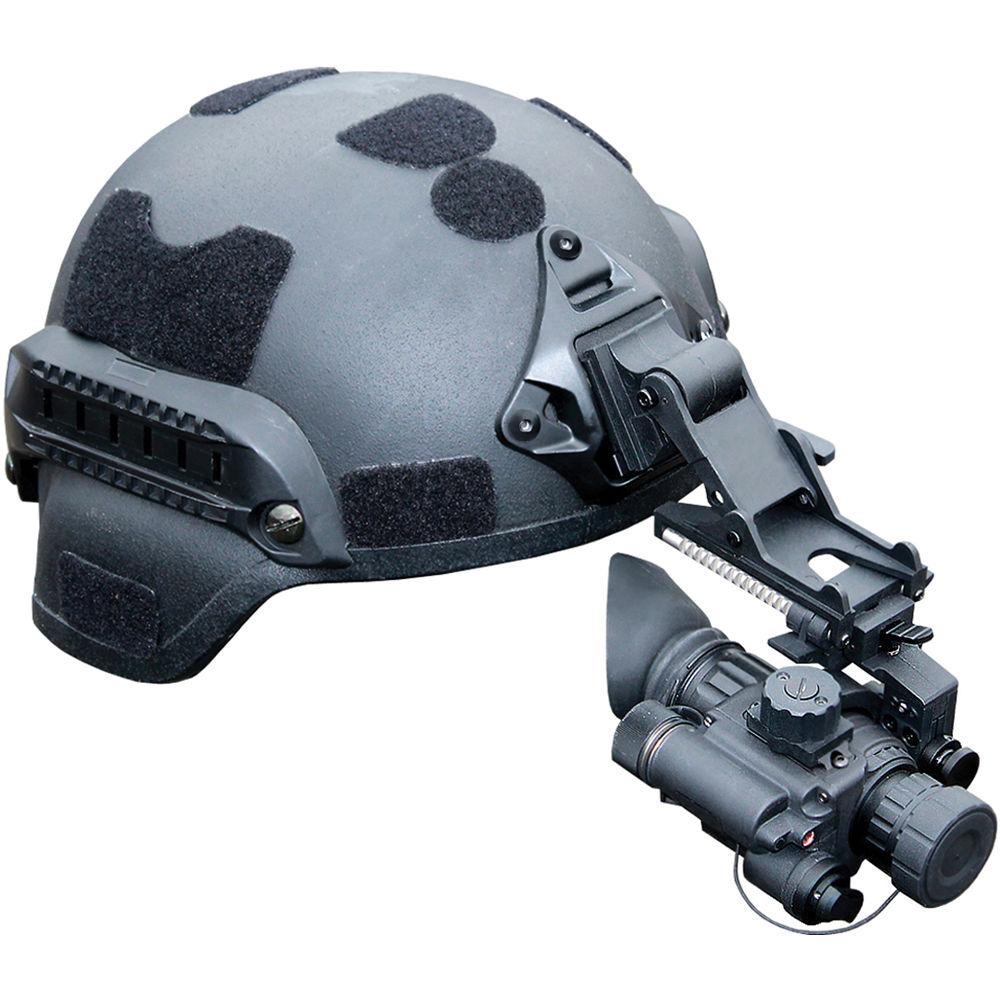

The housing is lightweight, water and corrosion-resistant. It allows using the monocular as a handheld device, as well as mounting it to a barrel, a helmet, or head gear. For prolonged observations, you can also mount it on 1/4"-20 tripod. A battery compartment cap, a diopter ring, and a focusing ring are knurled to ensure comfortable slip-free adjustments even when wearing gloves. Also included with the monocular are a carry case, lens cups, a universal helmet or head gear with a mounting arm, and a mounting adapter. - Intensifier Tube and Illuminator
-
- Intensifier tube: autogated 3rd generation
- Resolution: 64-72 lp/mm
- Automatic brightness control
- Bright light cut-off

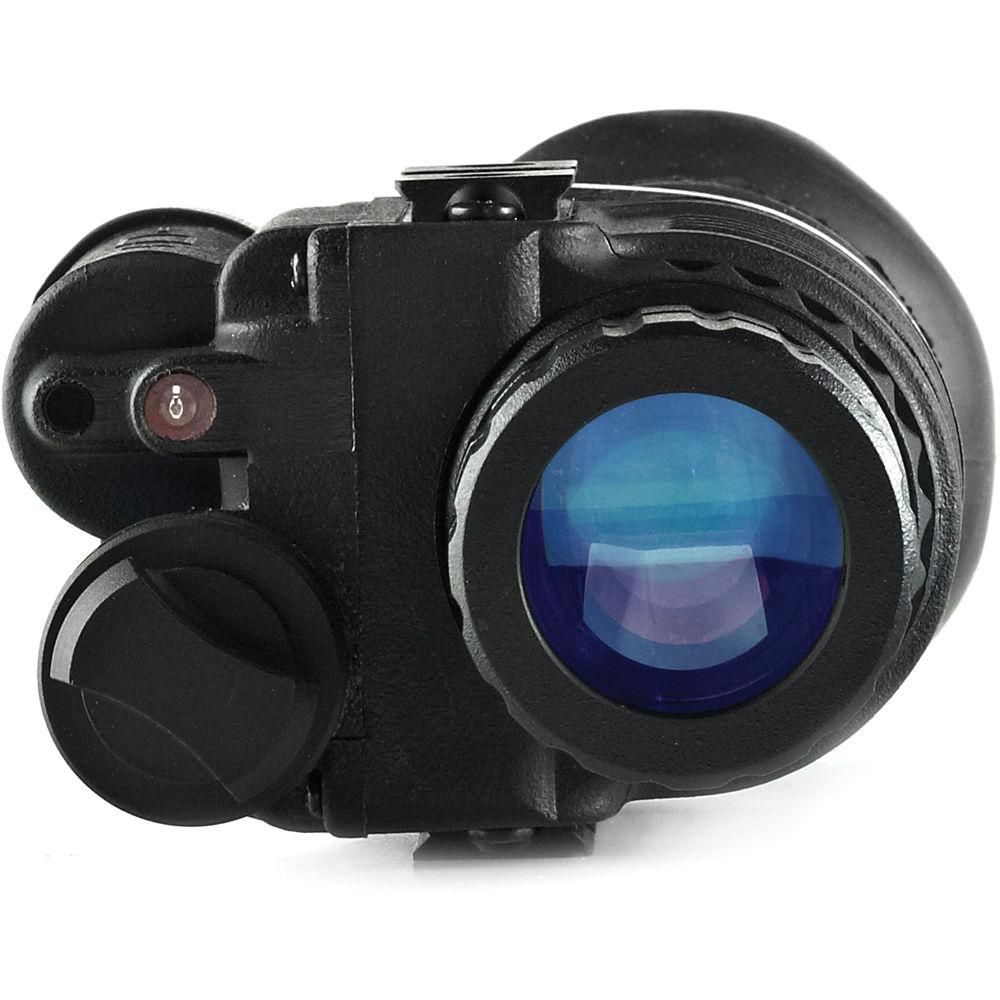

- Integral infrared illuminator
- Optical Performance
-
- Magnification: 1x
- Angular field of view: 40°
- Lens system: 26mm f/1.2
- Minimum focus distance: 0.25 yd
- Exit pupil: 20mm
- Eye relief: 30mm
- Dioptric adjustment: +5 to -5
- Use and Handling
-
- Low-battery and IR-on indicators
- Mountable to rifle or head mount with optional adapters
- Construction Details
-
- Lightweight housing with contoured armoring
- Knurled objective ring, diopter ring and battery compartment cap
- Resistant to powerful water jets, corrosion and dust-resistant
- 1/4"-20 socket for mounting on a tripod

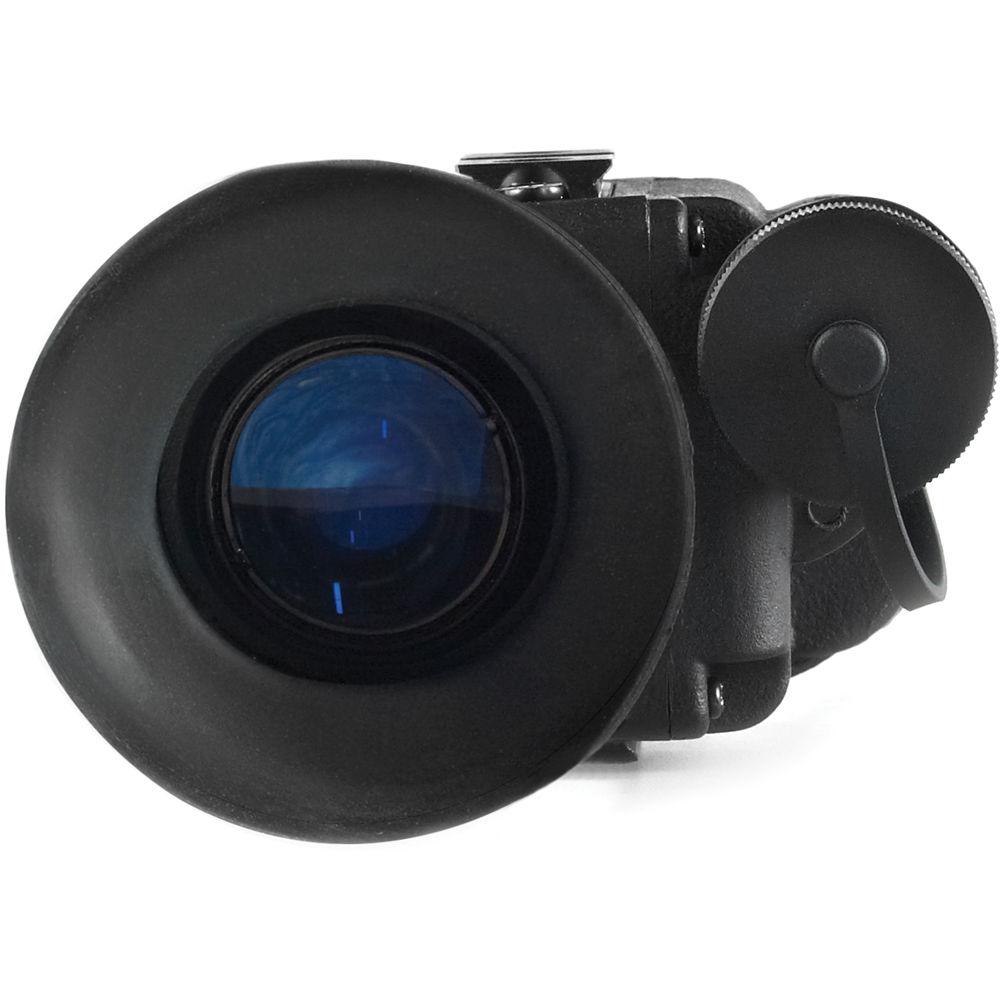

- Winged rubber eyecup
UPC: 850432003281 In the Box Bering Optics Ocelot 1x 3rd Generation Autogated Night Vision Monocular - Universal Head Gear
- Night Vision Mount Adapter
- Head Gear or Helmet Mounting Arm
- Carry Case
- Lens Cap
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics Ocelot 1x 3rd Generation Autogated Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics BE34124 Specs | Intensifier Tube | 3rd generation, autogated
Resolution: 64-72 lp/mm | | Magnification | 1x | | Angle/Field of View | 40° | | Lens System | 26mm f/1.2 | | Minimum Focus Distance | 0.25 yd (0.23 m) | | Eye Relief | 1.2" (30 mm) | | Exit Pupil | 20 mm | | Dioptric Correction | -5 to +5 | | Infrared Illuminator | Yes
5 mW | | Battery / Runtime | 1 x CR123 / 80 hr max
1 x AA / 40 hr max | | Weatherproofing | Rated IPX6, resistant to powerful water jets
Corrosion resistant
98% humidity rating | | Temperature Ranges | -40 to 122°F (-40 to 50°C) | | Tripod Adaptable | 1/4"-20 | | Dimensions | 4.5 x 2.4 x 1.7" (115 x 62 x 42 mm) | | Weight | 13.4 oz (380 g) |
