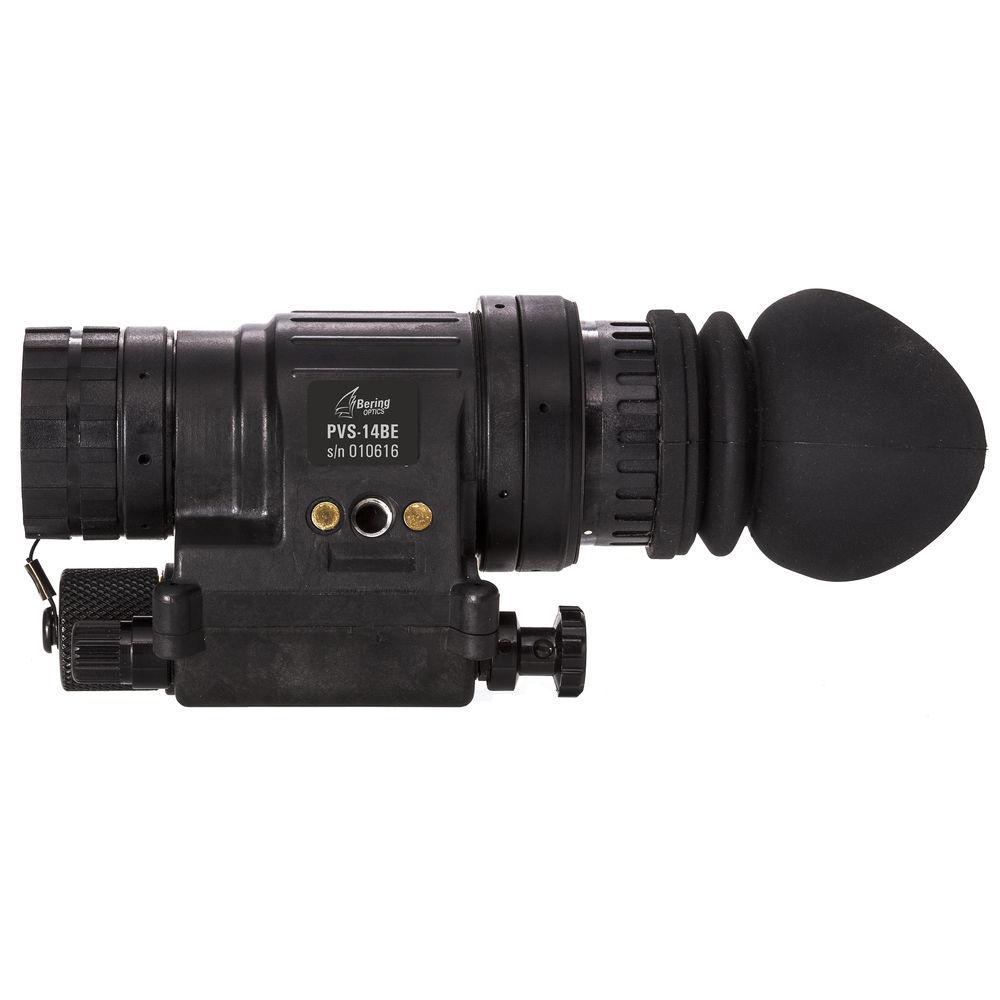

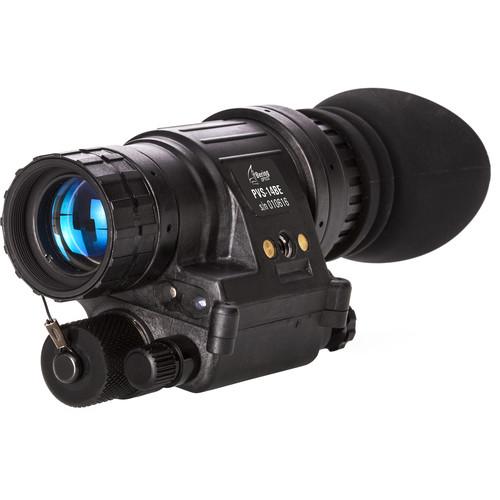

User Manual for Bering Optics PVS-14BE 1x22 2nd Gen Autogated Power Supply Night Vision Monocular & Headgear Kit Click to enlarge the picture
Contents of the user manual for the Bering Optics PVS-14BE 1x22 2nd Gen
- Product category: NV Monoculars & Multi-Systems Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics NV Monoculars & Multi-Systems
 |
User manual for the Bering Optics PVS-14BE 1x22 2nd Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|
Product description Bering Optics' PVS-14BE 1x22 2nd Gen White Phosphor Manual Gain Night Vision Monocular Kit offers a versatile, compact, and rugged night vision device that can be used handheld, mounted to a helmet, weapon, or worn with the included headgear. The second generation intensifier tube technology incorporates a microchannel plate that improves sensitivity, image brightness, and quality compared to first generation devices. To maximize image brightness in nearly-total darkness, the monocular carries a built-in IR illuminator that casts extra infrared light on your targets. To add convenience and stealth for tactical applications, the device offers an activation status indicator and an automatic off function when you turn it up or take of off your headgear. The 1x lens system, upgradable to higher magnifications with optional lenses, offers a wide 40° field of view and an ultra-short minimal focusing distance of 10".
The housing is made of lightweight and impact-resistant polymer, offers fogproof and waterproof performance, and provides protection from adverse conditions and extreme temperatures. To prevent a spill-over of light from the intensifier tube and to provide a comfortable cushion between your eye and the eyepiece, the eyepiece has a wide rubber eye cup. The body is ergonomic, has knurled adjustment rings, and has a 1/4"-20 socket for mounting the device on a tripod. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Night Vision Features
-
- 2nd generation
- 64-72 lp/mm resolution
- Autogating increases sensitivity, protects from bright light, and extends tube life
- IR illuminator casts extra infrared light on targets for visibility in total darkness
- Optical Performance
-
- 1x magnification
- 40° angular field of view
- 26mm, f/1.2 lens system
- 10" minimum focus distance
- Compatible with optional 3x-10x zoom objectives
- Use and Handling
-
- Automatic brightness control
- Bright source protection
- Low-battery and IR-on indicators
- Auto-off function when unmounted or in upright position
- Mountable to rifle or head mount with optional adapters
- 25mm eye relief
- +2 to -6 dioptric adjustment
- Construction Details
-
- Impact-resistant polymer body
- Adjustable headgear with brow pads
- Headgear adapter included
- Knurled adjusters
- Wide rubber eye cup
- Waterproof
In the Box Bering Optics PVS-14BE 1x22 2nd Gen Autogated Power Supply Night Vision Monocular & Headgear Kit - Headgear
- Headgear Adapter
- AA Battery
- Sacrificial Filter
- Demist Shield
- Soft Case with Shoulder Strap
- Rubber Eye Guard
- Neck Cord
- Lens Cover
- Lens Cloth
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics PVS-14BE 1x22 2nd Gen Autogated Power Supply Night Vision Monocular & Headgear Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics PVS-14BE Specs | Intensifier Tube | 2nd generation
64-72 lp/mm | | Magnification | 1x | | Angle/Field of View | 40° | | Linear Field of View | 2093.1' @ 1000 yd / 698 @ 1000 m | | Lens System | 26 mm, f/1.2 | | Minimum Focus Distance | 10" (25 cm) to infinity | | Eye Relief | 25 mm | | Dioptric Correction | +2 to -6 | | Infrared Illuminator | Built-in | | Battery / Runtime | 1 x AA battery / 40 h | | Weatherproofing | Waterproof
Humidity: Up to 98% | | Temperature Ranges | -59 to 131°F / -51 to 55°C | | Dimensions | 4.33 x 2.24 x 1.97" / 110 x 57 x 50 mm | | Weight | 11 oz / 310 g |
