User Manual for Bering Optics PVS-14BE Elite 1x 3rd Gen NV Monocular & Headgear Kit Click to enlarge the picture
Contents of the user manual for the Bering Optics PVS-14BE Elite 1x 3rd
- Product category: NV Monoculars & Multi-Systems Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics NV Monoculars & Multi-Systems
 |
User manual for the Bering Optics PVS-14BE Elite 1x 3rd contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|

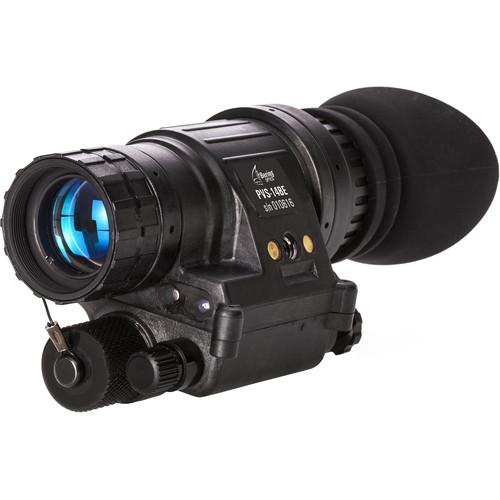

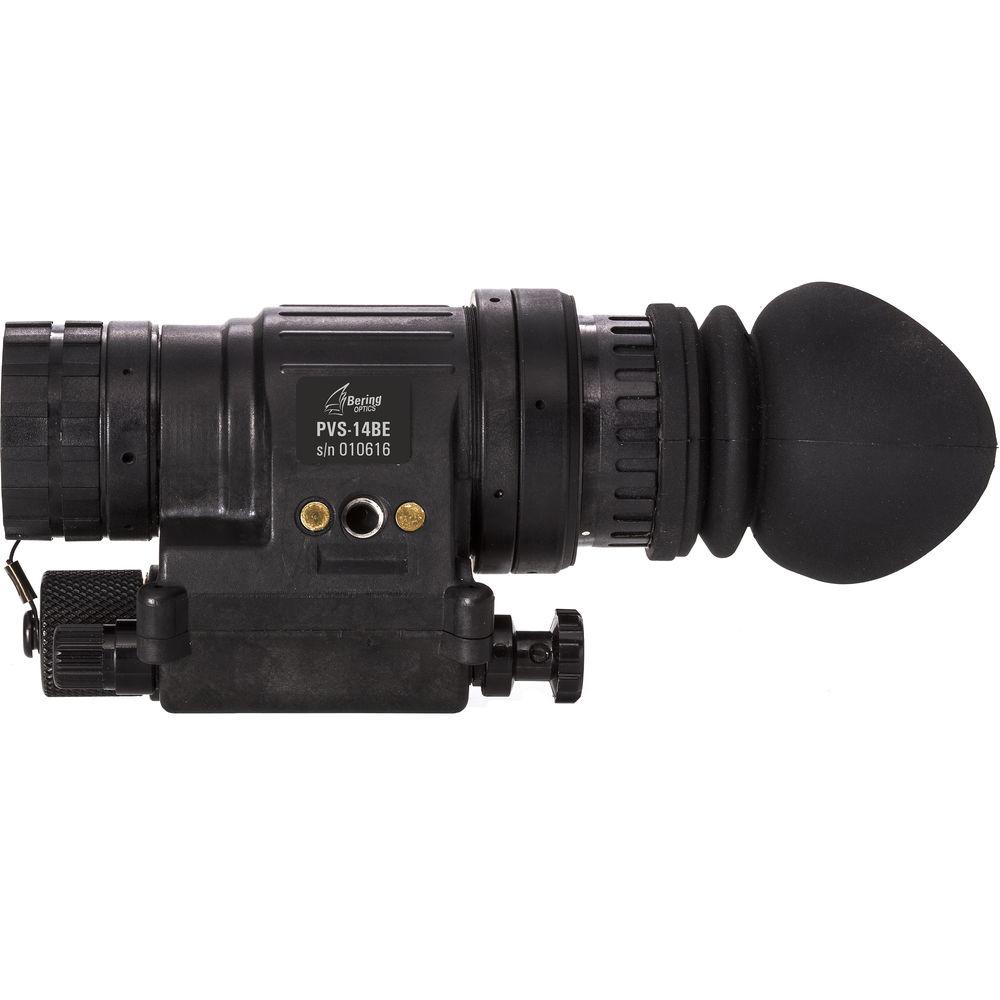

Product description Bering Optics' PVS-14BE Elite 1x 3rd Gen NV Monocular & Headgear Kit offers a versatile, compact, and rugged night vision device that can be used handheld, mounted to a helmet or firearms, or worn with the included headgear. It features a 3rd-generation intensifier tube with an autogated power supply and a filmless microchannel plate, which increases the signal-to-noise ratio and efficiency of the intensifier. The tube is enhanced with the white phosphor screen technology that generates black and white images, instead of green images. The autogating greatly improves sensitivity in low light and varying lighting conditions, protects against bright light burnout, extending the life of the monocular. The manual gain allows operators to have full control of the trade-off between detail and image brightness.
To maximize image brightness in nearly total darkness, the monocular carries a built-in IR illuminator that casts extra infrared light on your targets. To add convenience and stealth for tactical applications, the device offers an activation status indicator and an automatic off function when you turn it up or take off your headgear. The 1x lens system, upgradable to higher magnifications with optional lenses, offers a wide 40° field of view and an ultra-short minimal focusing distance of 10".
The housing is made of a lightweight and impact-resistant polymer, offers fogproof and waterproof performance, and provides protection from adverse conditions and extreme temperatures. To prevent a spill-over of light from the intensifier tube and to provide a comfortable cushion between your eye and the eyepiece, the eyepiece has a wide rubber eye cup. The ergonomic body has knurled adjustment rings, and has a 1/4"-20 socket for mounting the device on a tripod. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Image Intensifier
-
- 3rd generation
- 64-72 lp/mm resolution
- Filmless microchannel plate improves signal-to-noise ratio
- White phosphor screen generates black and white images
- Manual gain allows precise control of image brightness and detail
- IR illuminator casts extra infrared light on targets for visibility in total darkness
- Optical Performance
-
- 1x magnification
- 40° angular field of view
- 26mm, f/1.2 lens system
- 10" minimum focus distance
- Compatible with optional 3x-10x zoom objective lenses
- Use and Handling
-
- Automatic brightness control
- Bright source protection
- Low-battery and IR-on indicators
- Auto-off function when unmounted or in upright position

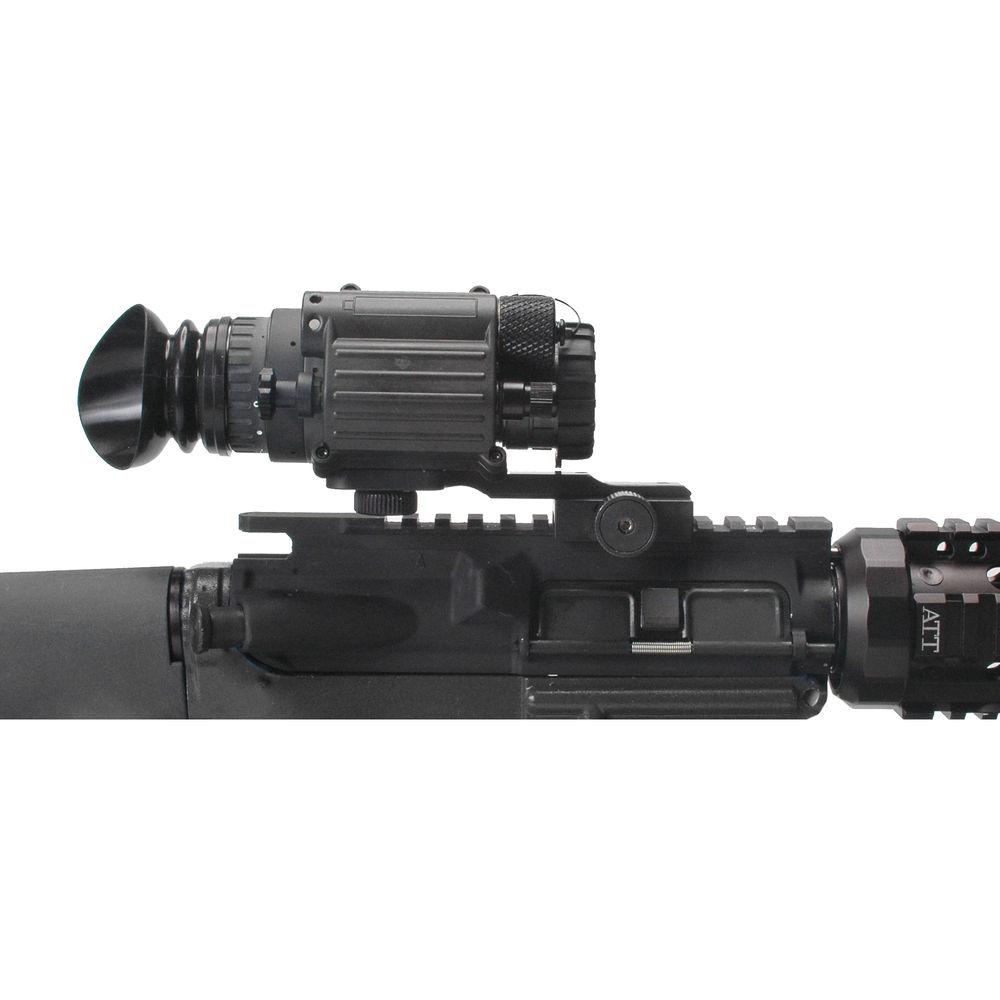

- Mountable to rifle or head mount with optional adapters
- 25mm eye relief
- +2 to -6 dioptric adjustment
- Construction Details
-
- Impact-resistant polymer body
- Adjustable headgear with brow pads
- Headgear adapter included
- Knurled adjusters
- Wide rubber eye cup
- Waterproof

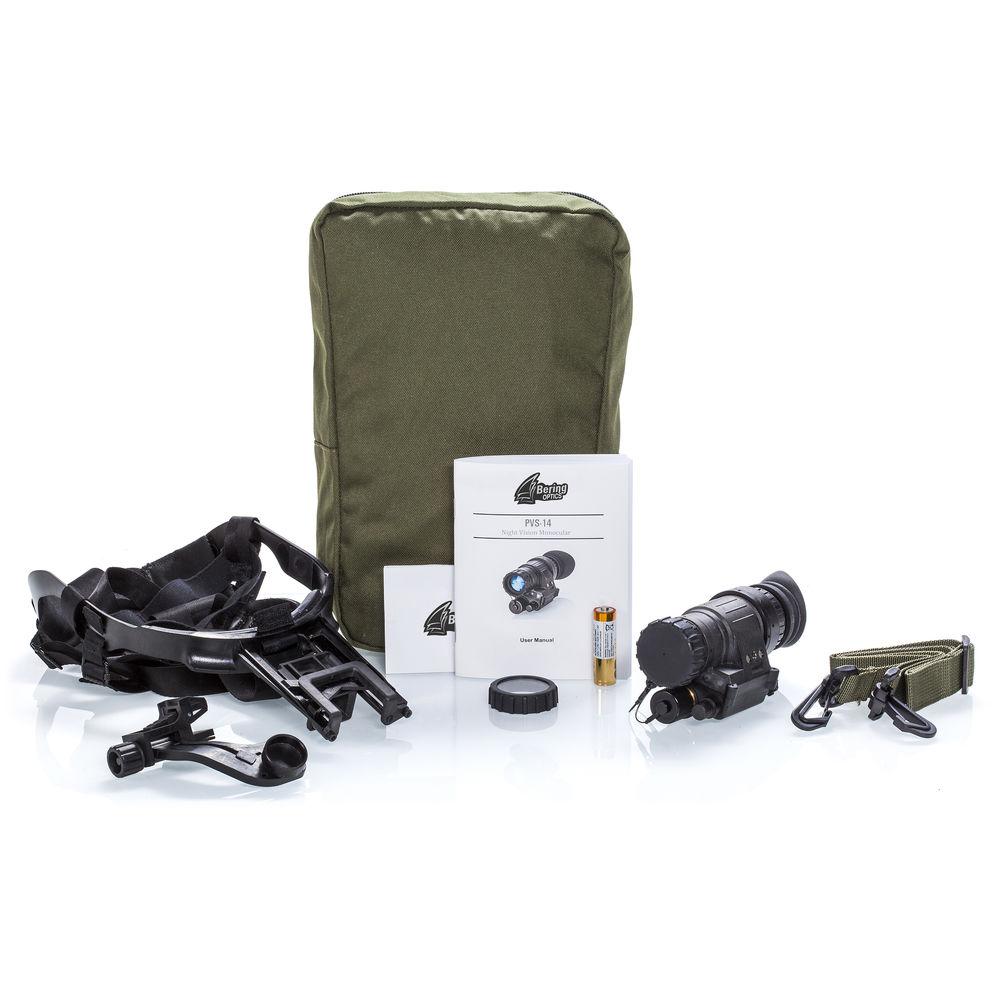

In the Box Bering Optics PVS-14BE Elite 1x 3rd Gen NV Monocular & Headgear Kit (White Phosphor, Matte Black) - Headgear
- Headgear Adapter
- Sacrificial Window
- Demist Shield
- AA Battery
- Soft Case with Shoulder Strap
- Neck Cord
- Rubber Eye Guard
- Lens Cover
- Lens Cloth
- Limited Lifetime Warranty
- Limited 3-Year Warranty on Intensifier Tube
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics PVS-14BE Elite 1x 3rd Gen NV Monocular & Headgear Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics PVS-14BE Elite Specs | Intensifier Tube | 3rd gen filmless tube
White phosphor screen
Manual gain control
SNR: 1:25 | | Resolution | 64-72 lp/mm | | Magnification | 1x | | Angle/Field of View | 40° | | Lens System | 26mm, f/1.2 | | Minimum Focus Distance | 10.0" / 25.0 cm | | Exit Pupil | 14 mm | | Eye Relief | 25 mm | | Dioptric Correction | +2 to -6 | | Infrared Illuminator | Yes, built-in | | Battery / Runtime | 1 x AA battery / 40 hours | | Weatherproofing | Waterproof | | Operation Temperature | -59 to 131°F / -51 to 55°C | | Humidity | 98% | | Dimensions | 4.3 x 2.2 x 2.0" / 11.0 x 5.7 x 5.0 cm | | Weight | Without Headgear: 11.0 oz / 310.0 g
With Headgear: 18.3 oz / 520.0 g |
