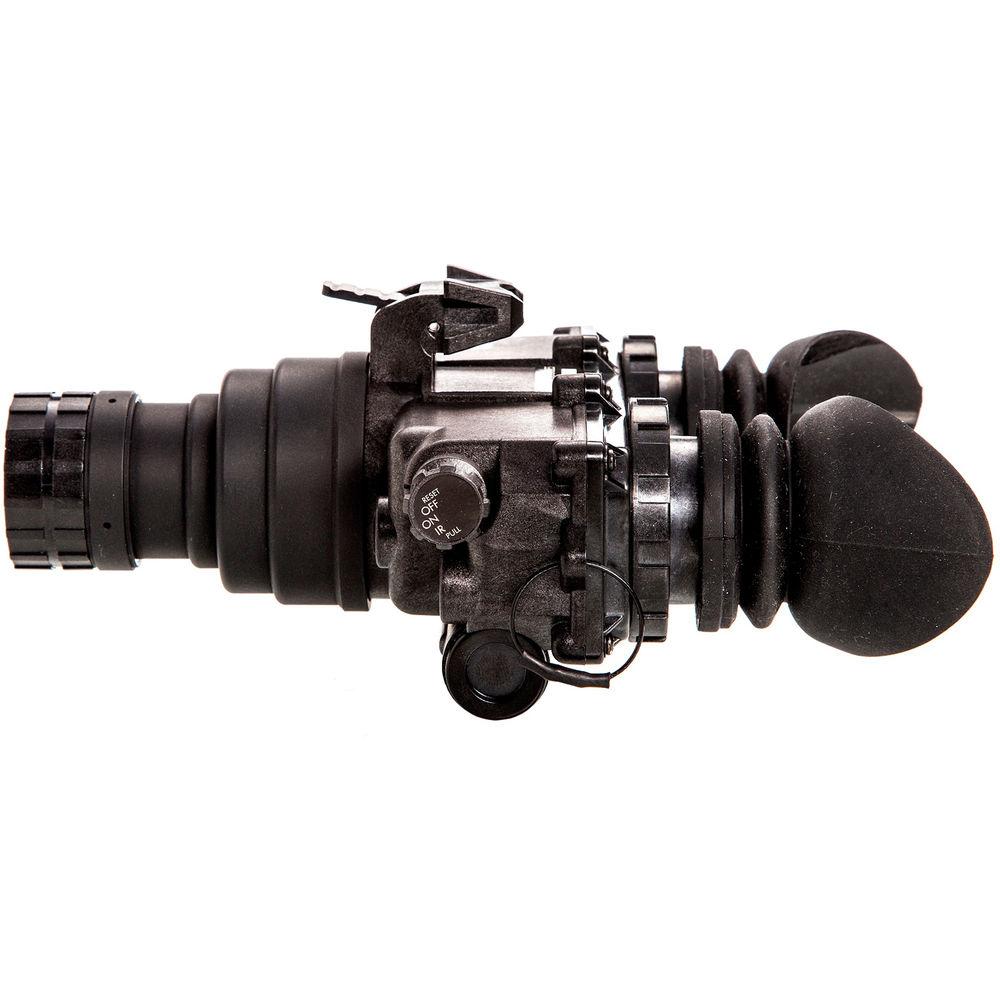

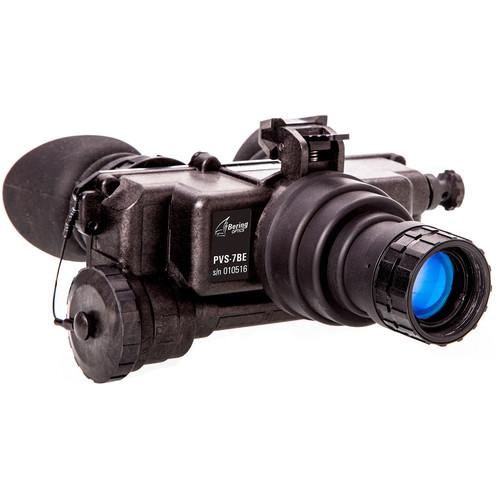

Product description PVS-7BE 1x22 2nd Gen Night Vision Bi-ocular & Headgear Kit offers a versatile, compact, and rugged night vision device that can be used handheld, mounted to a helmet, or worn with the included headgear. It features a 2nd generation intensifier tube with an autogated power supply. The second generation intensifier tube technology incorporates a microchannel plate that improves sensitivity, image brightness, and quality compared to first generation devices. To maximize image brightness in nearly-total darkness, the device carries a built-in infrared illuminator that casts extra infrared light on your targets. To add convenience and stealth for tactical applications, the device offers an activation status indicator and an automatic off function when you turn it up or take of off your headgear. A notable highlight of this NVD is its High-Definition (HD) optics that greatly improve image brightness, clarity, and detail and have an impact on detection and recognition ranges. The 1x lens system, upgradable to higher magnifications with optional lenses, offers a wide 40° field of view and an ultra-short minimal focusing distance of 10".
The housing is made of a lightweight and impact-resistant polymer, offers fogproof and waterproof performance, and provides protection from adverse conditions and extreme temperatures. To prevent a spill-over of light from the intensifier tube and to provide a comfortable cushion between your eyes and the eyepieces, the eyepieces offer wide-winged rubber eyecups. The body is ergonomic, has knurled adjustment rings, and has a 1/4"-20 socket for mounting the device on a tripod. - Night Vision Features
-
- 2nd generation
- 46-56 lp/mm resolution
- IR illuminator casts extra infrared light on targets for visibility in nearly-total darkness
- Optical Performance
-
- 1x magnification
- HD - High Definition optics
- Improve image brightens, clarity, and detail
- Increase target detection and recognition range
- 40° angular field of view
- 26mm, f/1.2 lens system
- 10" minimum focus distance

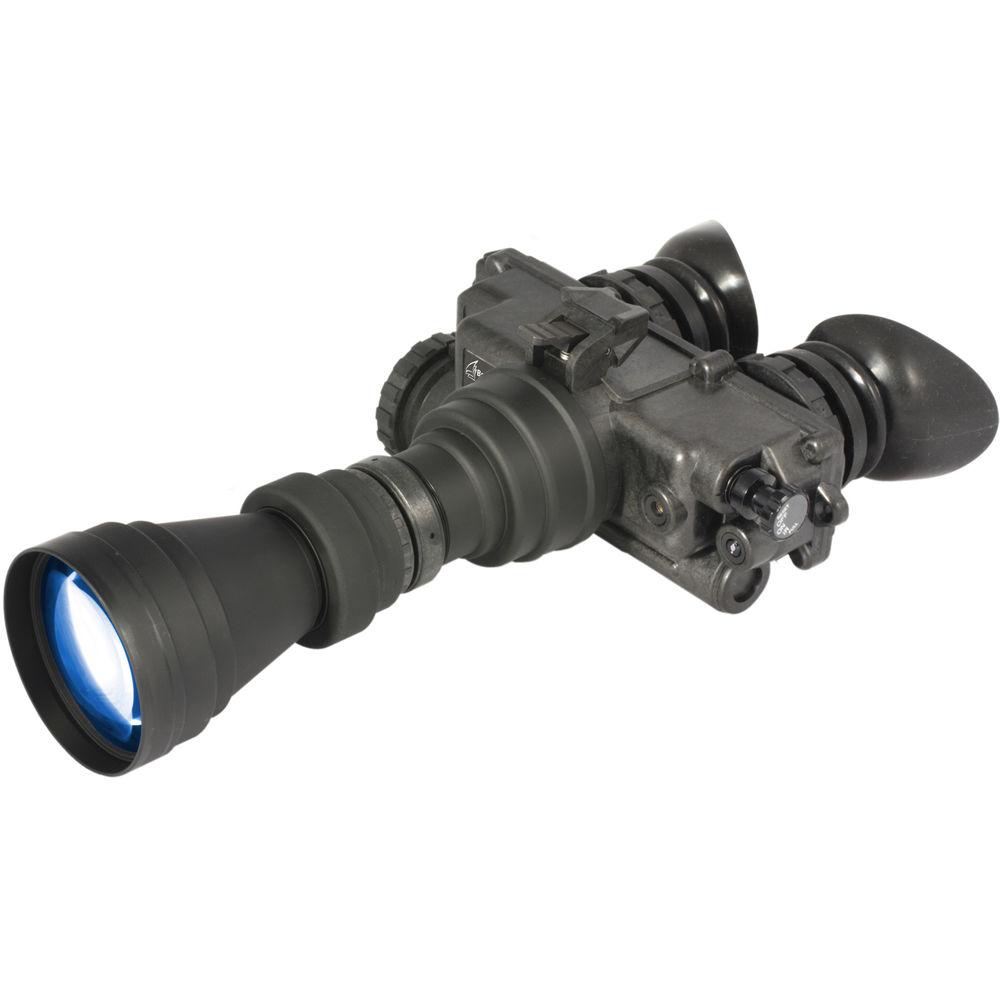

- Compatible with optional 3x-10x zoom objectives
- 15mm eye relief
- +2 to -6 dioptric adjustment
- Use and Handling
-
- Automatic brightness control
- Bright source protection
- Low-battery and IR-on indicators
- Auto-off function when in upright position
- Construction Details
-
- Impact-resistant polymer body
- Adjustable headgear assembly included
- Compatible with select optional helmets
- Sacrificial window protects the objective lens
- A set of extra brow pads included
- Knurled adjusters

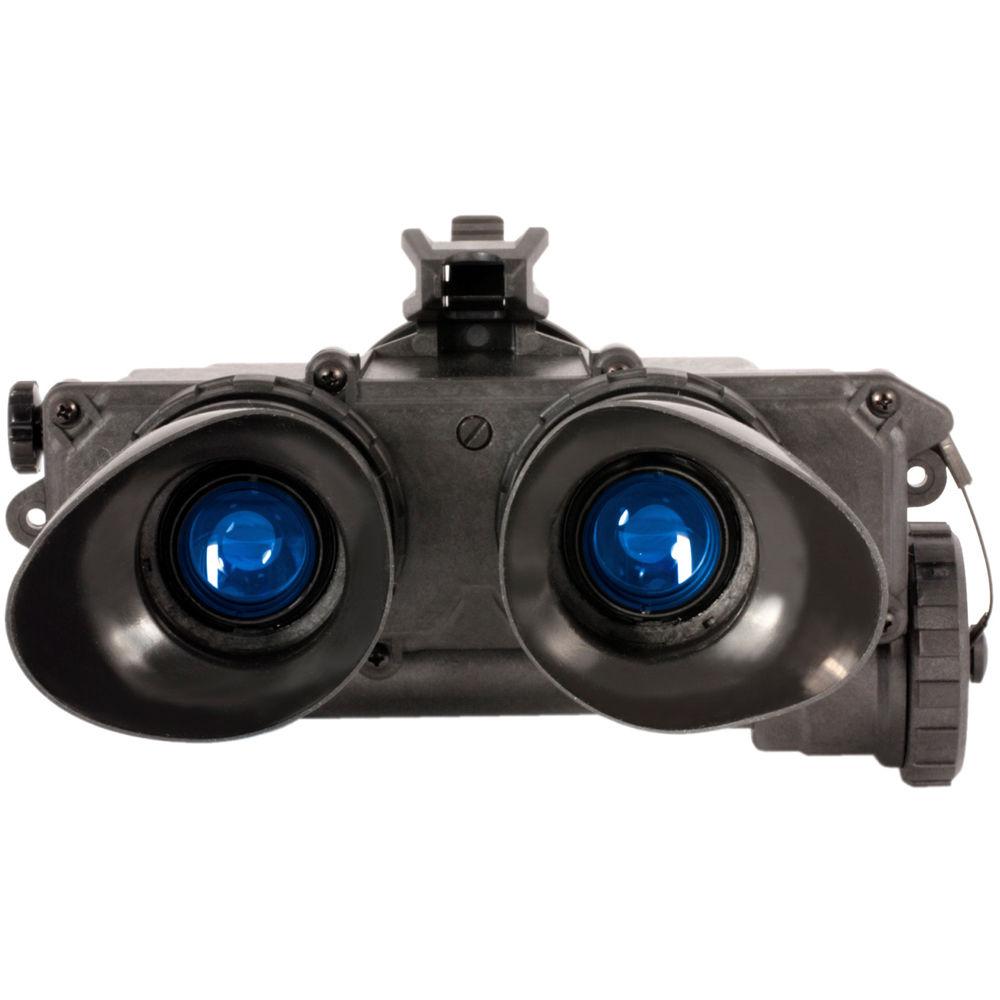

- Wide rubber eyecups
- Waterproof

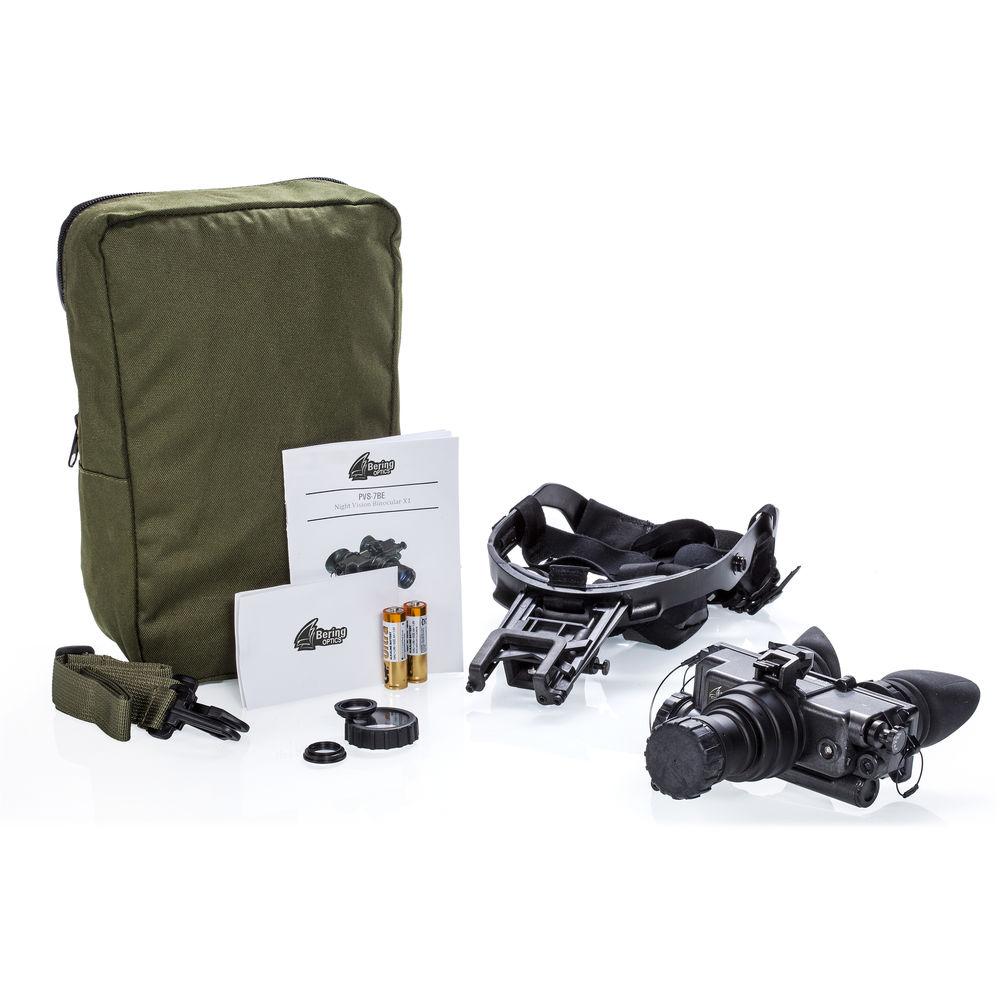

In the Box Bering Optics PVS-7BE 1x22 2nd Gen Night Vision Bi-Ocular & Headgear Kit - Headgear Assembly
- Set of Extra Bow Pads
- 2 x AA Batteries
- Sacrificial Window
- 2 x Demist Shields
- Soft Case with Shoulder Strap
- 2 x Rubber Eyecups
- Neck Cord
- Lens Cover
- Lens Cloth
- Limited Lifetime Warranty
- Limited 3-Year Warranty on Intensifier Tube
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics PVS-7BE 1x22 2nd Gen Night Vision Bi-Ocular & Headgear Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics PVS-7BE Specs | Intensifier Tube | 2nd generation tube
SNR: 1:18 | | Resolution | 46-56 lp/mm | | Magnification | 1x | | Angle/Field of View | 40° | | Linear Field of View | 2093.1' @ 1000 yd / 698 @ 1000 m | | Lens System | 26 mm, f/1.2 | | Minimum Focus Distance | 10" (25 cm) to infinity | | Eye Relief | 15 mm | | Dioptric Correction | +2 to -6 | | Interpupillary Distance | 2.2 - 2.8' / 55 - 71 mm | | Battery / Runtime | 2 x AA batteries / 60 h
1 x BA-5567 rechargeable battery | | Weatherproofing | Nitrogen-purged, waterproof and fogproof | | Humidity | Up to 98% | | Temperature Ranges | -59 to 131°F / -51 to 55°C | | Dimensions | 7.7 x 6.2 x 3.5" / 195 x 157 x 88 mm | | Weight | Without headgear: 17.6 oz / 500 g
With headgear: 23.3 oz / 660 g |
