User Manual for Bering Optics Trifecta 3x50 1st Gen Night Vision Sight Click to enlarge the picture
Contents of the user manual for the Bering Optics Trifecta 3x50 1st Gen
- Product category: Night Vision Riflescopes Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics Night Vision Riflescopes
 |
User manual for the Bering Optics Trifecta 3x50 1st Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|

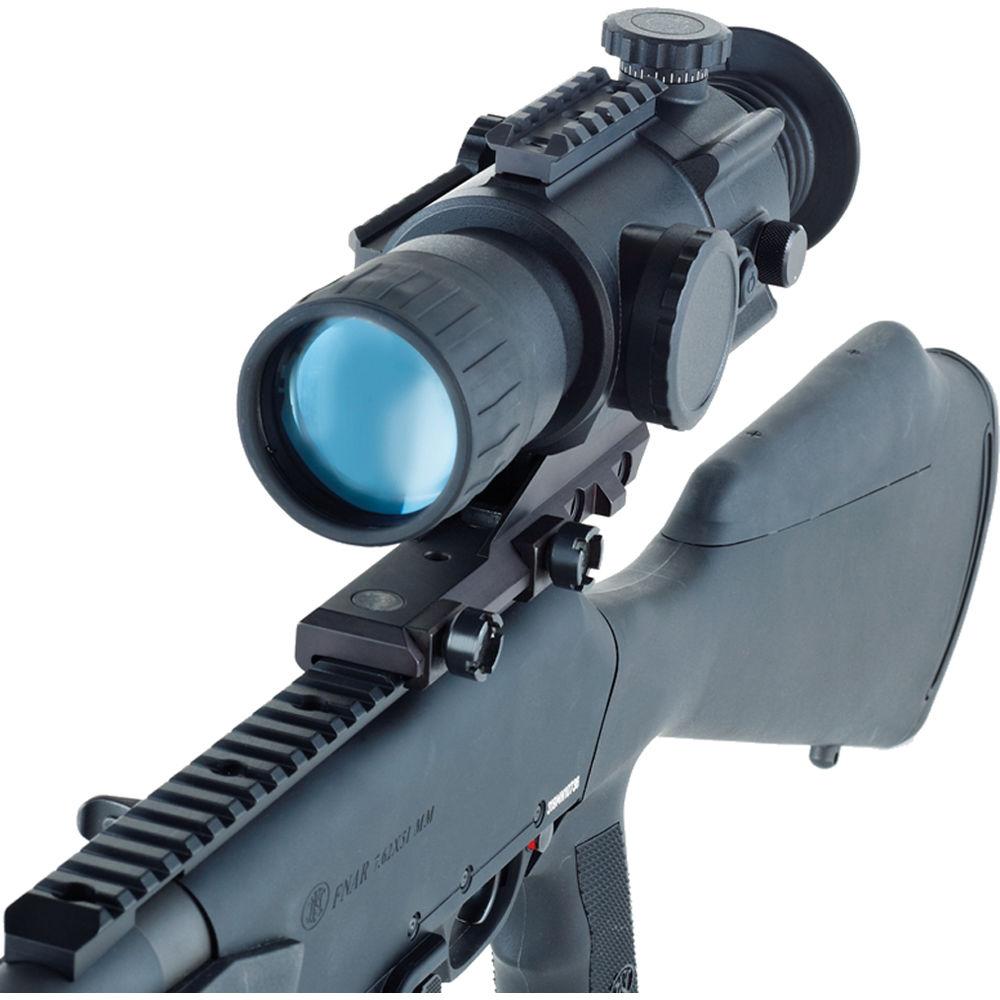

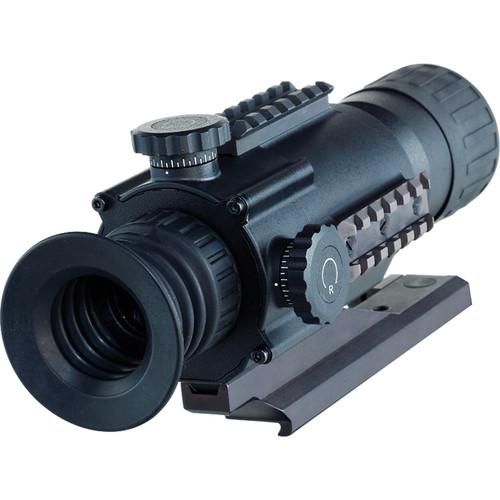

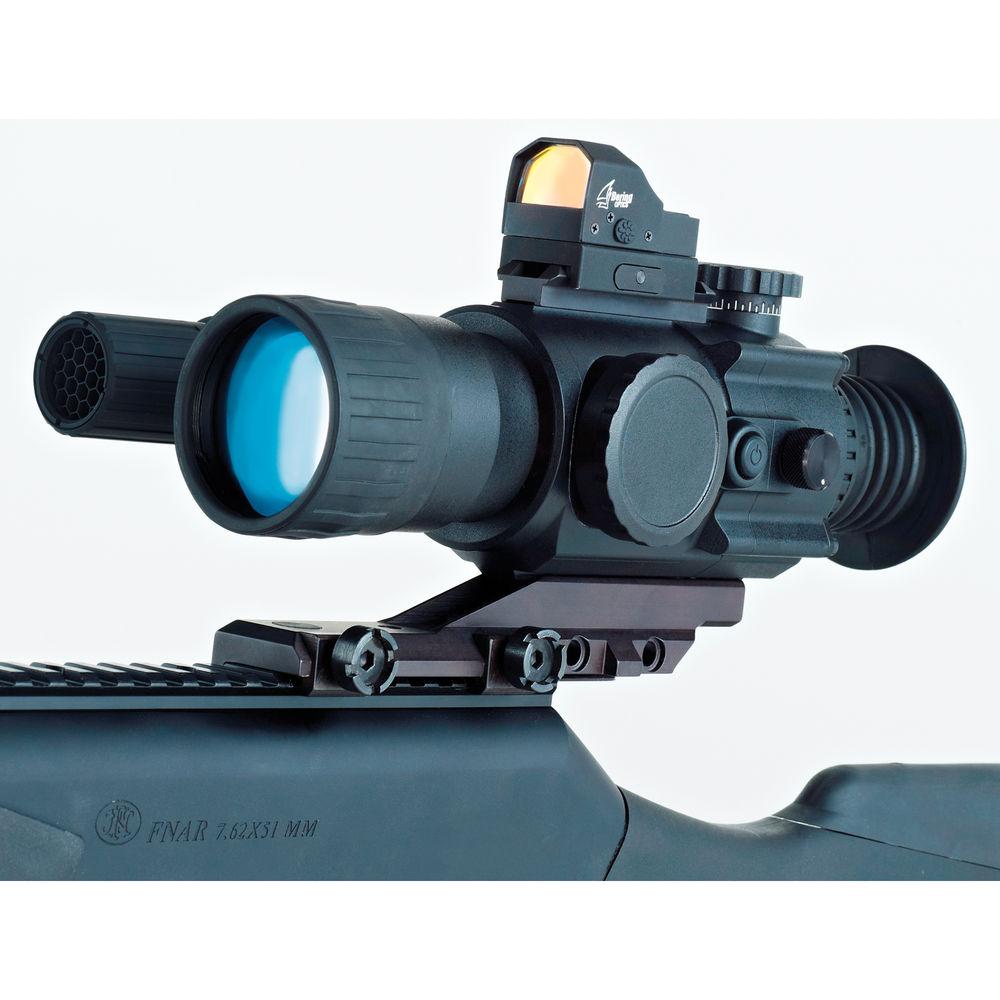

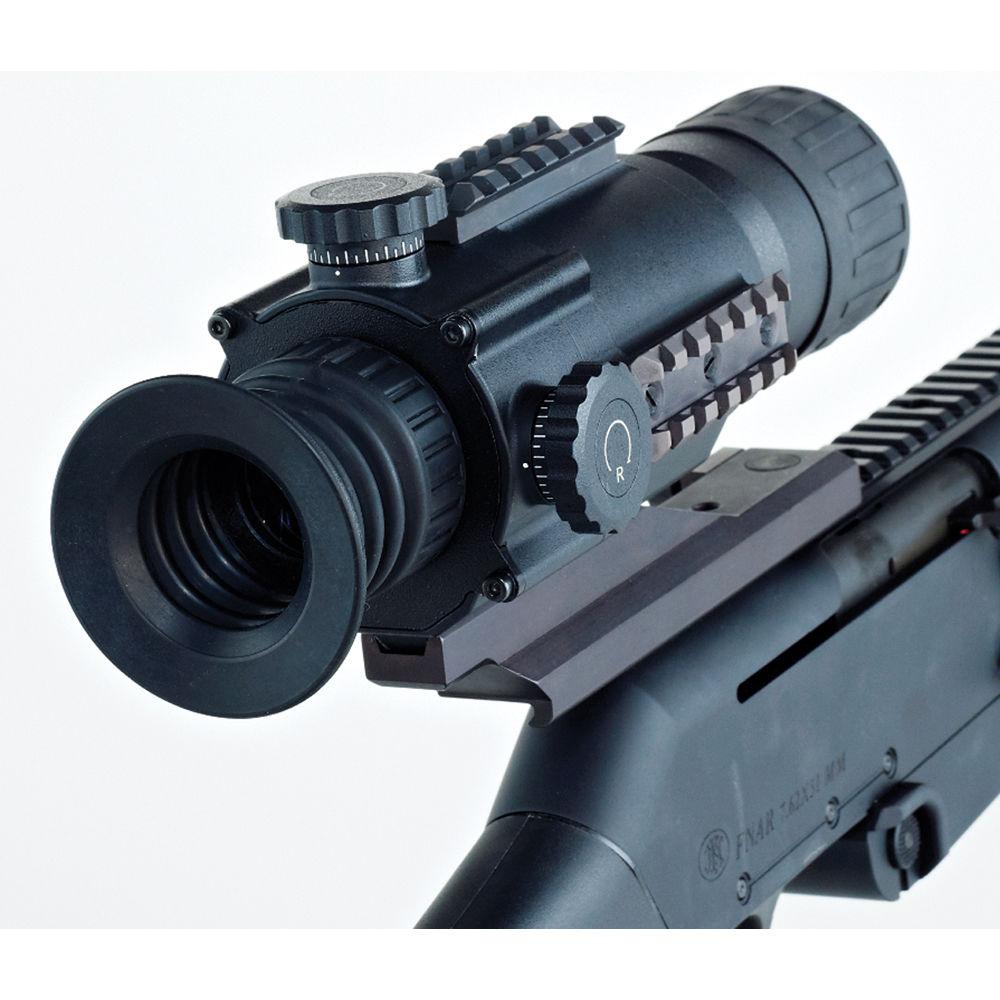

Product description The Trifecta 3x50 1st Generation Night Vision Sight from Bering Optics is intended for night varmint hunting. It features a 1st generation intensifier tube and a Ballistic Red Dot Reticle with adjustable brightness. The optics feature a notable 3x magnification and a large 50mm objective for gathering more light and improving visibility in total darkness. Additionally, for your convenience, the scope offers a wide angle of view, 50 mm eye relief, a diopter adjustment. To help you to compensate for ballistic bullet drop and wind drift, the scope offers windage and elevation adjustments with an increment of 1 MOA per click.
The black aluminum housing is durable and water-resistant. It features a cantilever style Weaver mount, oversized knurled adjustment knobs, two attached Picatinny or Weaver rails for attaching accessories like infrared lights or day red dot sights, and a wide rubberized light suppressing eyecup. Also included with the sight are a carry pouch and an objective lens cap. - Image Intensifier
-
- 1st generation intensifier tube
- Ballistic Red Dot Reticle
-
- Illuminated Ballistic Red Dot reticle
- Adjustable brightness
- Optical Performance
-
- 3x magnification
- 50mm objective
- 10° angle of view
- 50mm eye relief
- Use and Handling
-
- Windage and elevation adjustments
- 1 MOA per click windage and elevation increments
- Construction Details
-
- Aluminum housing wit black anodizing finish
- Oversized windage and elevation knobs
- Wide rubberized eyecup
- Two rails for mounting accessories
- Compatible with Weaver style rails
- IPX4 water-resistant housing
UPC: 850432003595 In the Box Bering Optics Trifecta 3x50 1st Gen Night Vision Sight (Ballistic Red Dot Reticle) - Carrying Case
- Lens Cap
- Limited Lifetime Warranty
- Limited 1-Year Warranty for Intensifier Tube
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics Trifecta 3x50 1st Gen Night Vision Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics BE16350 Specs | Intensifier Tube | 1st generation | | Mean Time Before Failure | 32 hr | | Magnification | 3x | | Objective Lens Diameter | 50mm | | Angle of View | 10° | | Minimum Focus Distance | 5' (1.5 m) | | Eye Relief | 50 mm | | Dioptric Correction | ±3 | | Impact Point Correction | 1 MOA | | Windage/Elevation Adjustment | Yes | | Battery / Runtime | 1 x CR-123 battery /32 hr maximum without IR illuminator | | Weatherproofing | IPX4 | | Humidity Tolerance | 93% | | Operating Temperature | -22 to 122°F (-30 to 50°C) | | Dimensions | 9.5 x 4.1 x 3.5" (240 x 104 x 90 mm) | | Weight | 44 oz (1.2 kg) | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 11.6 x 4.5 x 3.4" |
