User Manual for Bering Optics UFO SKYWATCH PRO Gen 2 Night Vision Biocular with Headgear Click to enlarge the picture
Contents of the user manual for the Bering Optics UFO SKYWATCH PRO Gen
- Product category: Night Vision Bi-Oculars Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics Night Vision Bi-Oculars
 |
User manual for the Bering Optics UFO SKYWATCH PRO Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|

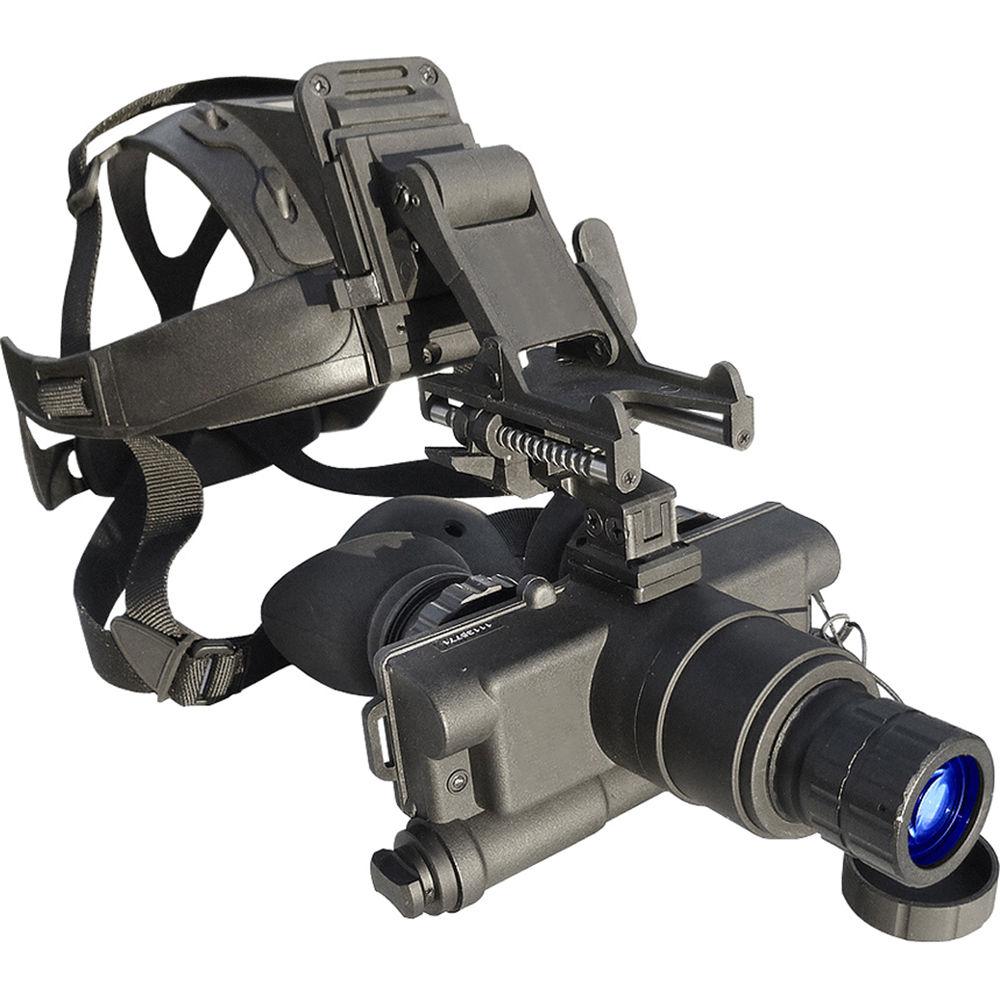

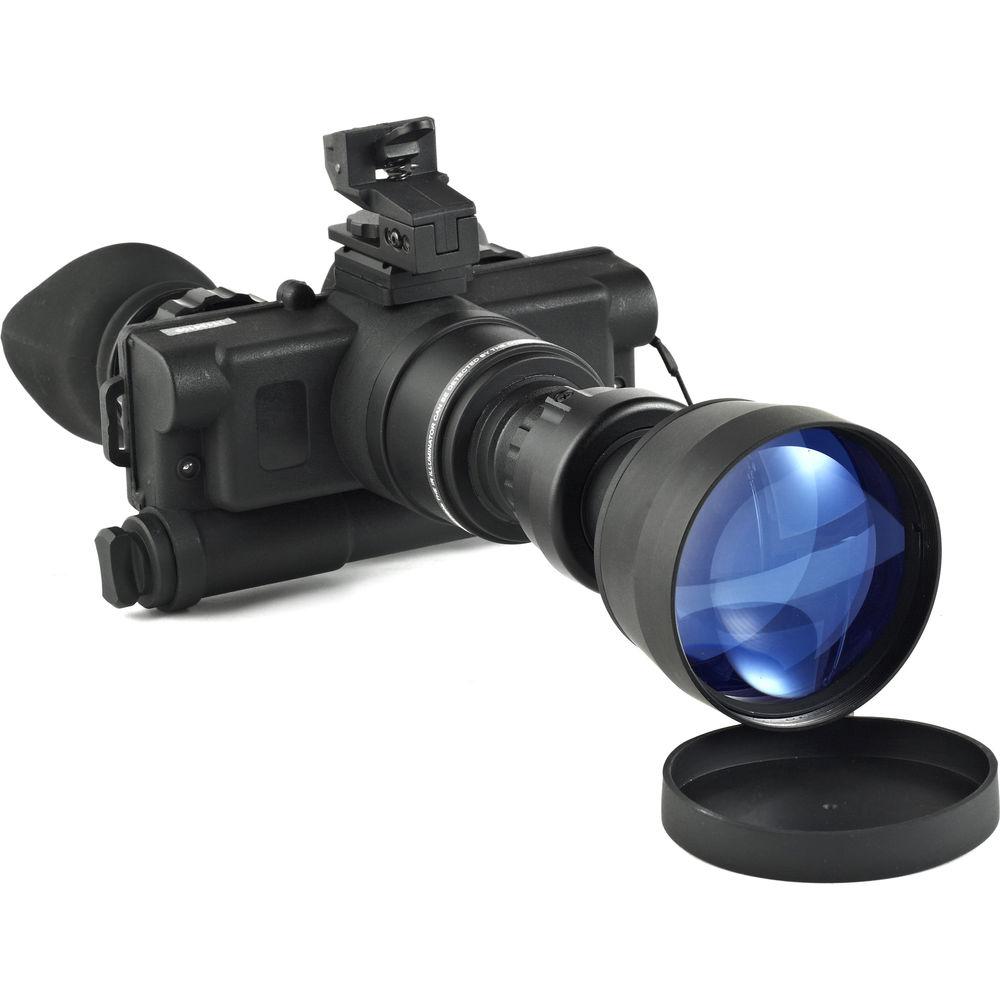

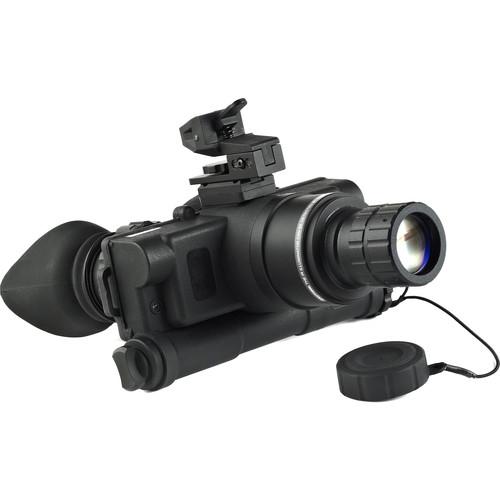

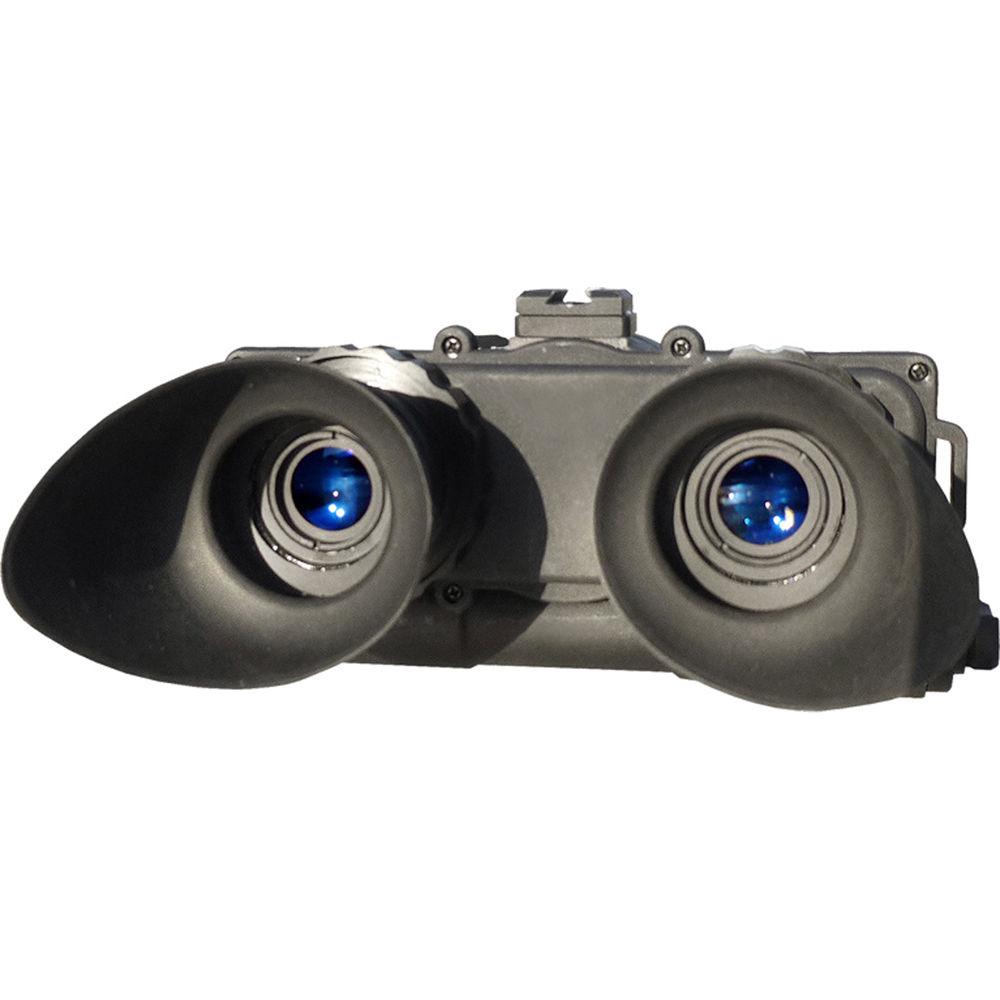

Product description Raid the field with the Bering Optics UFO SKYWATCH PRO Gen 2 Night Vision Biocular with Headgear. This 2nd-generation night vision biocular allows you to see a night landscape hands-free by attaching it to the included flip-up headgear and generates green images. The biocular configuration allows you the comfort of looking with both eyes, while the f/1.2, 26mm lens system provides a short 9.8" close focus distance and a wide 40° angular field of view. To preserve the intensifier tube from harmful bright light exposure, the device features a bright light cutoff function, and to adjust image brightness it has an automatic brightness control (ABC). When you enter a very dark environment with very little ambient infrared light from the sky, you can use a built-in illuminator for casting extra infrared light on your targets and make images brighter. To free your hands for other tasks, you can attach the biocular to a fully adjustable headgear. The headgear fits your head or helmet and provides a flip-up adapter for moving the biocular in and out of your line of sight on demand.
This NVD is outfitted with a weather-resistant polymer body that can withstand extreme temperatures. For ease of adjustment and non-slip operation, all the rings and adjusters are heavily knurled to ensure comfortable contact with your face. To prevent leakage of light from the eyepieces, the oculars have extra-wide rubber winged eyecups. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Night Vision Sensor & IR Illuminator
-
- 2nd-generation tube
- 46-56 lp/mm resolution
- Automatic brightness control (ABC)
- Bright light cutoff
- Built-in IR illuminator
- Optical Performance
-
- 1x magnification
- Compatible with optional lenses
- Biocular viewing allows using both eyes
- 40° wide angle of view
- f/1.2, 26mm lens system
- 9.8" minimum focus distance
- Use and Handling
-
- Diopter correction
- Built-in IR and low-battery indicators
- Adjustable interpupillary distance
- Headgear with flip-up adapter included
- Construction Details
-
- Lightweight and durable polymer body
- Knurled adjusters and rings for non-slip grip
- Accommodates one CR123 battery
- Wide, winged rubber eyecups
- Weather resistant, rated IPX5
In the Box Bering Optics UFO SKYWATCH PRO Gen 2 Night Vision Biocular with Headgear ( Matte Black) - CR123 Battery
- Carry Case
- Neck Strap
- 2 x Rubber Eyecups
- Objective Lens Cap
- Lens Cloth
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics UFO SKYWATCH PRO Gen 2 Night Vision Biocular with Headgear in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics UFO SKYWATCH PRO Specs | Intensifier Tube | 2nd generation | | Magnification | 1x | | Angle/Field of View | 40° | | Lens System | f/1.2, 26mm | | Minimum Focus Distance | 9.8" / 25.0 cm | | Eye Relief | 15 mm | | Dioptric Correction | Yes | | Interpupillary Adjustment | Yes | | Infrared Illuminator | Yes | | Battery / Runtime | 1 x CR123 battery / 60 hours | | Weatherproofing | Rated IPX5, weather resistant | | Temperature Ranges | -40 to 122°F / -40 to 50°C | | Humidity | 98% | | Dimensions | 7.2 x 5.2 x 2.3" / 18.3 x 13.2 x 5.8 cm | | Weight | 17.6 oz / 500.0 g |
