User Manual for Bescor 12V Li-Ion Battery Kit for ENG Cameras and LED Lights Click to enlarge the picture
Contents of the user manual for the Bescor 12V Li-Ion Battery Kit for
- Product category: Battery Belts & Packs Bescor
- Brand: Bescor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bescor Battery Belts & Packs
|
User manual for the Bescor 12V Li-Ion Battery Kit for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bescor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bescor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bescor product will considerably shorten its lifespan!
|

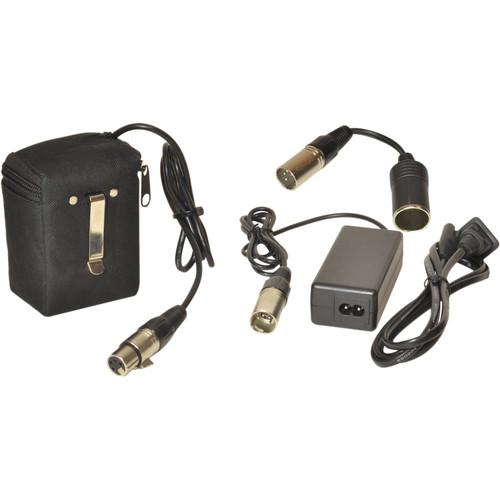

Product description This Bescor 12V Li-Ion Battery Kit includes the FP-12V belt clip battery with a 4-pin XLR connector for powering professional video equipment such as select LED Lights and ENG cameras.
The battery is housed in a pouch that features a military-style belt clip for attachment around your waist. The XLR connector extends from the pouch on an integrated 3' cable. Also included is an XLR-to-car lighter adapter for using the light to power select LED lights and other equipment with standard 12V car lighter power input sockets. The kit also includes a 110 to 240 VAC wall outlet charger with an XLR input.
The battery operates between 11.1 and 12.6 VDC, and it features a 98Wh capacity. It charges in approximately four hours and is rated for over 500 charge cycles. It does not suffer from memory effect. The charger provides an output of 12.6V and 2500mAh. It features a red/green charge indicator. Key Features - 12V belt clip battery with a 4-pin XLR connector for select ENG cameras and more
- Includes XLR-to-car lighter adapter for powering select LED lights
- Housed in a pouch with a military-style belt clip
- Approximately four-hour charge time
- Rated for over 500 charge cycles
- Includes 110-240 VAC wall outlet charger
UPC: 741147931023 In the Box Bescor 12V Li-Ion Battery Kit for ENG Cameras and LED Lights FP-12V Lithium Ion Battery BC-FP12 110-240 VAC Charger XLR to Car Lighter Adapter Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bescor 12V Li-Ion Battery Kit for ENG Cameras and LED Lights in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBescor FP-12VATM Specs | | | Chemistry | Lithium-Ion | | Output Voltage | 12 V (11.1 and 12.6 VDC Operating Voltage) | | Capacity | 98 Wh, 8.8 Ah | | Power Output | Female 4-Pin XLR | | Cable Length | 3' / 91 cm | | Charge Time | Approx. 4 Hours for Full Charge | | Operating Temperature | -4 and 140°F / -20 to 60°C | | Dimensions | 4 x 3 x 2.5" / 10.1 x 7.6 x 6.4 cm | | Weight | 1.3 lb / 0.6 kg | | | | Battery Input Connector | Male 4-pin XLR | | Outlet Connector | US Plug | | Operating Voltage | 110-240 VAC | | Output | 12.6 V, 2500 mA | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 8.3 x 4.7 x 4.4" |
