Product description

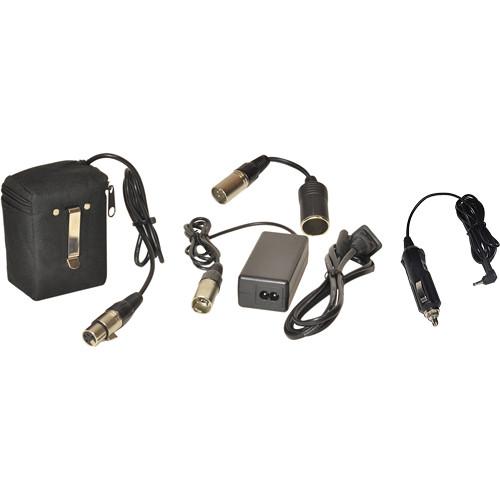

• Bescor 12V Li-Ion Battery Kit for ENG Cameras and LED Lights This Bescor 12V Li-Ion Battery Kit includes the FP-12V belt clip battery with a 4-pin XLR connector for powering professional video equipment such as select LED Lights and ENG cameras.

  The battery is housed in a pouch that features a military-style belt clip for attachment around your waist. The XLR connector extends from the pouch on an integrated 3' cable. Also included is an XLR-to-car lighter adapter for using the light to power select LED lights and other equipment with standard 12V car lighter power input sockets. The kit also includes a 110 to 240 VAC wall outlet charger with an XLR input.

  The battery operates between 11.1 and 12.6 VDC, and it features a 98Wh capacity. It charges in approximately four hours and is rated for over 500 charge cycles. It does not suffer from memory effect. The charger provides an output of 12.6V and 2500mAh. It features a red/green charge indicator.

  Key Features

  • 12V belt clip battery with a 4-pin XLR connector for select ENG cameras and more
  • Includes XLR-to-car lighter adapter for powering select LED lights
  • Housed in a pouch with a military-style belt clip
  • 98Wh capacity
  • Approximately four-hour charge time
  • Rated for over 500 charge cycles
  • Zero memory effect
  • Includes 110-240 VAC wall outlet charger
  UPC: 741147931023
• Bescor CLC-180 Cigarette Lighter Adapter The Bescor CLC-180 Cigarette Lighter Adapter is designed for the LED-180 light. UPC: 741147400802

• 12V Li-Ion Battery Kit for ENG Cameras and LED Lights fybwavytfrax
• FP-12V Lithium Ion Battery
• BC-FP12 110-240 VAC Charger
• XLR to Car Lighter Adapter
• Limited 90-Day Warranty

• CLC-180 Cigarette Lighter Adapter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Bescor 12V Li-Ion Battery Kit for ENG Cameras and LED Lights

  Chemistry	Lithium-Ion
  Output Voltage	12 V (11.1 and 12.6 VDC Operating Voltage)
  Capacity	98 Wh, 8.8 Ah
  Power Output	Female 4-Pin XLR
  Cable Length	3' / 91 cm
  Charge Time	Approx. 4 Hours for Full Charge
  Operating Temperature	-4 and 140°F / -20 to 60°C
  Dimensions	4 x 3 x 2.5" / 10.1 x 7.6 x 6.4 cm
  Weight	1.3 lb / 0.6 kg

  Battery Input Connector	Male 4-pin XLR
  Outlet Connector	US Plug
  Operating Voltage	110-240 VAC
  Output	12.6 V, 2500 mA

  Box Dimensions (LxWxH)	8.3 x 4.7 x 4.4"

• Bescor CLC-180 Cigarette Lighter Adapter

  Box Dimensions (LxWxH)	7.7 x 1.1 x 0.8"
