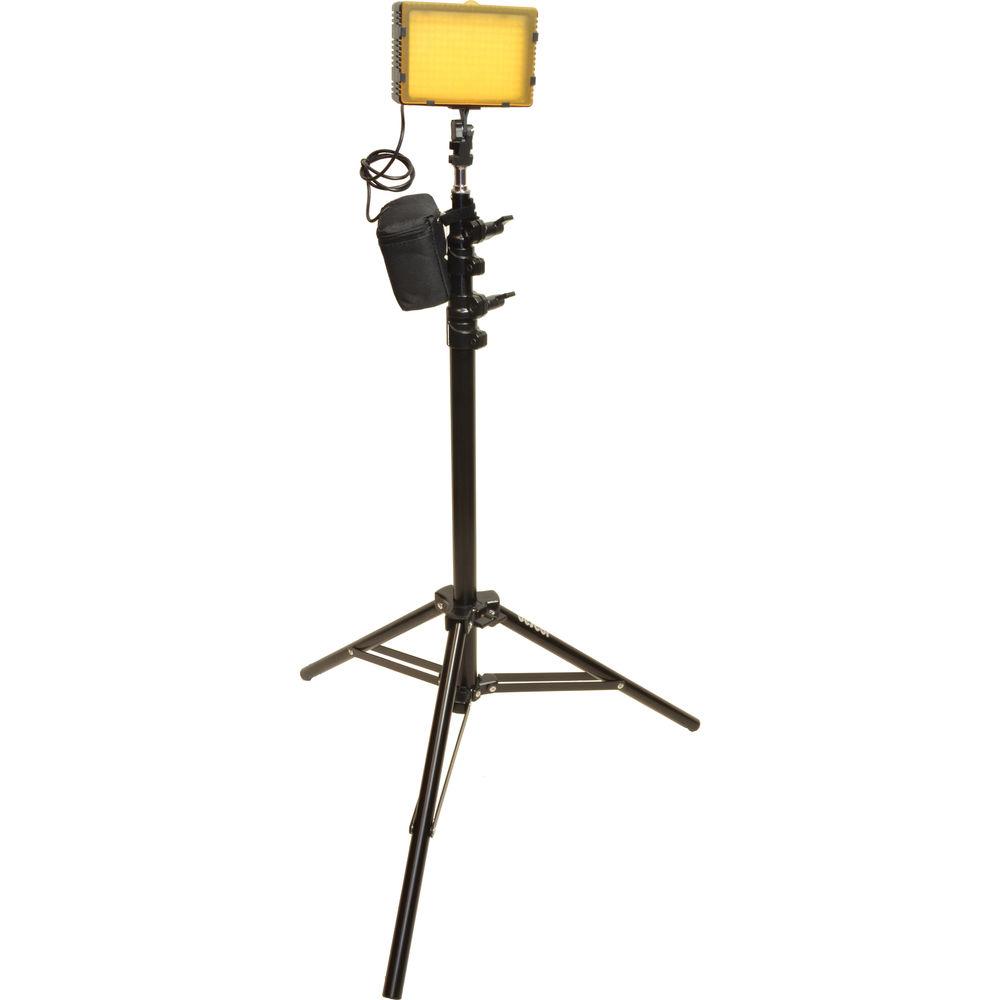

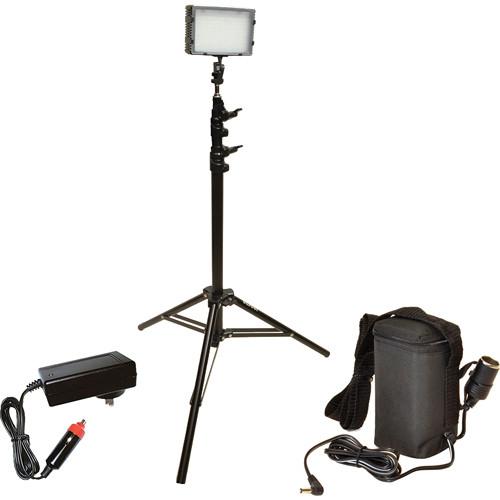

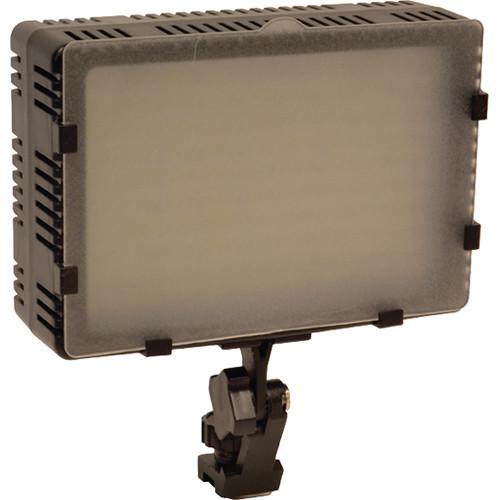

Product description The FP-180 Bi-Color 1-Light Kit from Bescor is a wise choice for basic, flexible reliable lighting. The kit includes an FP-180 Bi-Color Dimmable LED Light along with the HP-3NC SLA battery which is good for about 2.5 hours of power, the ATM-PRU automatic charger, an LS-180 light stand, and an AC-12V2 Universal Power Supply. An orange/yellow color correction filter is also included. The FP-180 light has 90 5600K and 90 3200K LEDs with separate dimmer controls for each color. Power options include the kit's multi-voltage AC power supply or the HP-3NC SLA battery. Additionally, it can be powered by 8 easily-sourced AA batteries. - FP-180 Bi-Color Dimmable On-Camera Light The Bescor FP-180 Bi-Color Dimmable On-Camera Light features 180 LEDs, 90 daylight and 90 tungsten bulbs, providing variable color temperature from 3200 to 5400K. The unit incorporates separate dimmers for the tungsten and the daylight balanced LEDs, allowing you to precisely control the color balance. The unit features an on/off switch and provides a flicker free light that dims from 100 to 10% brightness and is flicker free at all dimming levels.
The FP-180 is powered by 8 x AA batteries, or you can use an optional power supply that connects to the unit's DC input jack. A diffusion filter and orange color correction filter are included to allow you soften or adjust the color temperature of the light. It features a 1/4"-20 threaded mounting hole that accommodates the included articulating arm (with accessory shoe mount) or the included metal hook so you can hang the light. - Independently dimmable tungsten and daylight balanced LED bulbs.
- Powers from 8 x AA batteries, or via optional power supply.
- 1/4"-20 threaded mounting hole.
- Articulating arm with accessory shoe mount.
UPC: 741147930804 - HP-3NC Starved Electrolyte Battery The Bescor HP-3NC is a small and lightweight high performance Starved Electrolyte (Lead Acid) battery. The HP-3 is memory free and when properly maintained will offer a consistent run time over the life of the battery.
- Portable
- A convenient shoulder strap is standard in addition to a sewn-in belt loop.
UPC: 741147250056 - ATM-PRU Automatic Universal Charger (12V, 1.5A) The Bescor ATM-PRU Automatic Universal Charger (12V, 1.5A) is an automatic "smart" battery charger that's universally compatible (with optional adapter). The ATM-PRU will charge the Bescor PRB series battery belts and shoulder packs. The charger's universal plug-in feature allows it to be used "worldwide" in 110-240VAC. It is also designed to automatically stop the charge cycle once the battery is fully charged.
- Automatic Shut-Off
- For worry-free battery maintenance, the ATM-PRU charger will sense when the battery has reached maximum charge status and shut off automatically
- Universal Worldwide Plug-In
- Compatibility worldwide with 110-240VAC outlets
UPC: 741147230140 In the Box Bundle Items FP-180 Bi-Color Dimmable On-Camera Light - Drop-In Orange Color Correction Filter
HP-3NC Starved Electrolyte Battery waqwwbycewtaewcq ATM-PRU Automatic Universal Charger (12V, 1.5A)
Also Includes - LS-180 Light Stand
- AC-12V2 Universal Power Supply
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bescor Field Pro FP-180 Bi-Color 1-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - FP-180 Bi-Color Dimmable On-Camera Light
| | | Color Accuracy Standard | CRI 91 | | Number of LEDs | 180 | | | | Battery Plate | 8 x AA | | Power Input Connector | Barrel | | | | Mount Type | 1/4"-20 Female Thread, Cold Shoe | | Dimensions | 5.5 x 3.5 x 1.8" / 14 x 8.9 x 4.4 cm | | Weight | 15 oz / 425.2 g | | | | Box Dimensions (LxWxH) | 6.9 x 6.3 x 3.05" | - HP-3NC Starved Electrolyte Battery
| Chemistry | Starved Electrolyte (Lead Acid) | | Output Voltage | 12 VDC | | Connection | Cigarette Lighter Connector | | Capacity | 36 Wh
3 Ah | | Weight | 1.26kg
2.8lbs | | Dimensions | 5.5 x 3 x 3" (WxHxD)
13.97 x 7.62 x 7.62cm (WxHxD) | | | | Box Dimensions (LxWxH) | 8.25 x 5.15 x 4.95" | - ATM-PRU Automatic Universal Charger (12V, 1.5A)
| Power Supply | No | | Battery Bays | 1 | | Type of Charging | Single Only | | Diagnostics | Automatic Shut-Off | | Connections/Interface | Cigarette (for belt and shoulder pack batteries) | | Power Requirements | 110-240VAC | | Dimensions (WxHxD) | 2 x 3 x 1.5" (50 x 76 x 38mm) | | Weight | 0.6 lbs (272g) | | | | Box Dimensions (LxWxH) | 5.1 x 2.7 x 2.25" |
