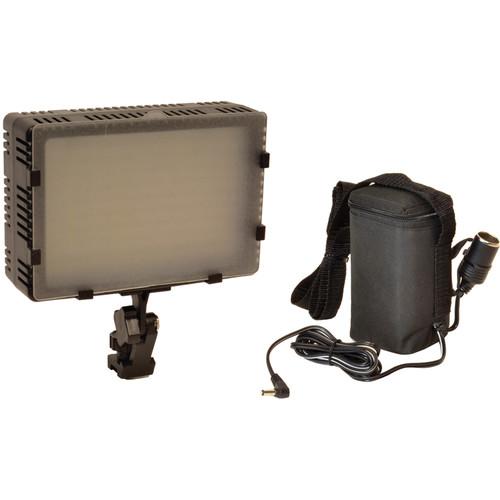

User Manual for Bescor FP-180B Bi-Color Dimmable On-Camera Light and Battery Kit Click to enlarge the picture
Contents of the user manual for the Bescor FP-180B Bi-Color Dimmable On-Camera Light
- Product category: On Camera Lights Bescor
- Brand: Bescor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bescor On Camera Lights
|
User manual for the Bescor FP-180B Bi-Color Dimmable On-Camera Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bescor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bescor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bescor product will considerably shorten its lifespan!
|
Product description The Bescor FP-180B Bi-Color Dimmable On-Camera Light and Battery Kit combines a single FP-180 light with a 2.5 hour lead acid battery pack and an automatic charger. The light features 180 total LEDs (90 daylight and 90 tungsten), providing variable color temperature from 3200 to 5400K. The unit incorporates separate dimmers for the tungsten and the daylight balanced LEDs, allowing you to precisely control the color balance. An on/off switch provides flicker free light that dims from 100 to 10% brightness.
Included with the NP-180 is a diffusion filter and a orange color correction filter to allow you soften or adjust the color temperature of the light. A 1/4"-20 threaded mounting hole on the bottom of the light accommodates an included articulating arm (with accessory shoe mount) or the included metal hook so you can hang the light. The FP-180 can be powered using eight AA batteries or with the included lead acid battery pack. The pack will power the light for approximately 2.5 hours and can be recharged using the automatic charger. The charger's universal plug-in feature allows it to be used in 110 to 240VAC for worldwide use. It is also designed to automatically stop the charge cycle once the battery is fully charged.
Please see the links below for more information on the components of this bundle. - FP-180 Bi-Color Dimmable On-Camera Light The Bescor FP-180 Bi-Color Dimmable On-Camera Light features 180 LEDs, 90 daylight and 90 tungsten bulbs, providing variable color temperature from 3200 to 5400K. The unit incorporates separate dimmers for the tungsten and the daylight balanced LEDs, allowing you to precisely control the color balance. The unit features an on/off switch and provides a flicker free light that dims from 100 to 10% brightness and is flicker free at all dimming levels.
The FP-180 is powered by 8 x AA batteries, or you can use an optional power supply that connects to the unit's DC input jack. A diffusion filter and orange color correction filter are included to allow you soften or adjust the color temperature of the light. It features a 1/4"-20 threaded mounting hole that accommodates the included articulating arm (with accessory shoe mount) or the included metal hook so you can hang the light. - Independently dimmable tungsten and daylight balanced LED bulbs.
- Powers from 8 x AA batteries, or via optional power supply.
- 1/4"-20 threaded mounting hole.
- Articulating arm with accessory shoe mount.
UPC: 741147930804 - HP-3NC Starved Electrolyte Battery The Bescor HP-3NC is a small and lightweight high performance Starved Electrolyte (Lead Acid) battery. The HP-3 is memory free and when properly maintained will offer a consistent run time over the life of the battery.
- Portable
- A convenient shoulder strap is standard in addition to a sewn-in belt loop.
UPC: 741147250056 - ATM-PRU Automatic Universal Charger (12V, 1.5A) The Bescor ATM-PRU Automatic Universal Charger (12V, 1.5A) is an automatic "smart" battery charger that's universally compatible (with optional adapter). The ATM-PRU will charge the Bescor PRB series battery belts and shoulder packs. The charger's universal plug-in feature allows it to be used "worldwide" in 110-240VAC. It is also designed to automatically stop the charge cycle once the battery is fully charged.
- Automatic Shut-Off
- For worry-free battery maintenance, the ATM-PRU charger will sense when the battery has reached maximum charge status and shut off automatically
- Universal Worldwide Plug-In
- Compatibility worldwide with 110-240VAC outlets
UPC: 741147230140 In the Box Bundle Items FP-180 Bi-Color Dimmable On-Camera Light waqwwbycewtaewcq - Drop-In Orange Color Correction Filter
HP-3NC Starved Electrolyte Battery ATM-PRU Automatic Universal Charger (12V, 1.5A) Table of Contents
|
Upload User Manual
Have you got an user manual for the Bescor FP-180B Bi-Color Dimmable On-Camera Light and Battery Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - FP-180 Bi-Color Dimmable On-Camera Light
| | | Color Accuracy Standard | CRI 91 | | Number of LEDs | 180 | | | | Battery Plate | 8 x AA | | Power Input Connector | Barrel | | | | Mount Type | 1/4"-20 Female Thread, Cold Shoe | | Dimensions | 5.5 x 3.5 x 1.8" / 14 x 8.9 x 4.4 cm | | Weight | 15 oz / 425.2 g | | | | Box Dimensions (LxWxH) | 6.9 x 6.3 x 3.05" | - HP-3NC Starved Electrolyte Battery
| Chemistry | Starved Electrolyte (Lead Acid) | | Output Voltage | 12 VDC | | Connection | Cigarette Lighter Connector | | Capacity | 36 Wh
3 Ah | | Weight | 1.26kg
2.8lbs | | Dimensions | 5.5 x 3 x 3" (WxHxD)
13.97 x 7.62 x 7.62cm (WxHxD) | | | | Box Dimensions (LxWxH) | 8.25 x 5.15 x 4.95" | - ATM-PRU Automatic Universal Charger (12V, 1.5A)
| Power Supply | No | | Battery Bays | 1 | | Type of Charging | Single Only | | Diagnostics | Automatic Shut-Off | | Connections/Interface | Cigarette (for belt and shoulder pack batteries) | | Power Requirements | 110-240VAC | | Dimensions (WxHxD) | 2 x 3 x 1.5" (50 x 76 x 38mm) | | Weight | 0.6 lbs (272g) | | | | Box Dimensions (LxWxH) | 5.1 x 2.7 x 2.25" |
