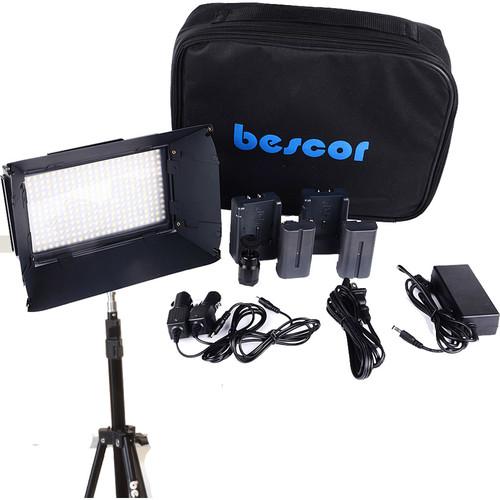

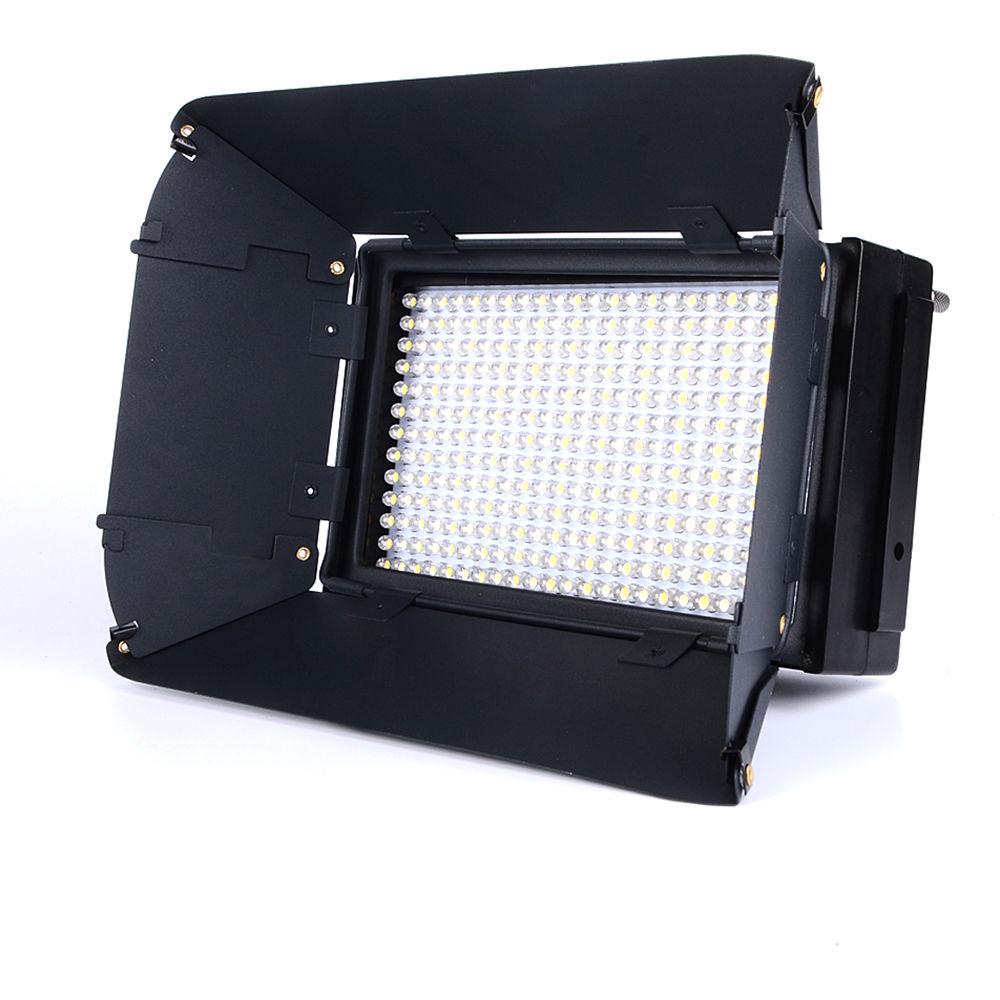

Product description A versatile bi-color lighting kit for on-location or in-the-studio applications, the FP-312S 1-Point LED Light Kit from Bescor includes 1 FP-312 LED fixture and included accessories along with 1 LS180 light stand.
The FP-312 is a compact battery powered daylight/tungsten balanced on-camera LED light, which outputs a continuously variable color temperature light between 3200 and 5600K, and features a built-in dimmer that can adjust the light's output from 100 to 10%. Built into the light is an LCD panel that shows a digital readout of the brightness level, color temperature of the light, and features a battery gauge so you know how much power you have left.

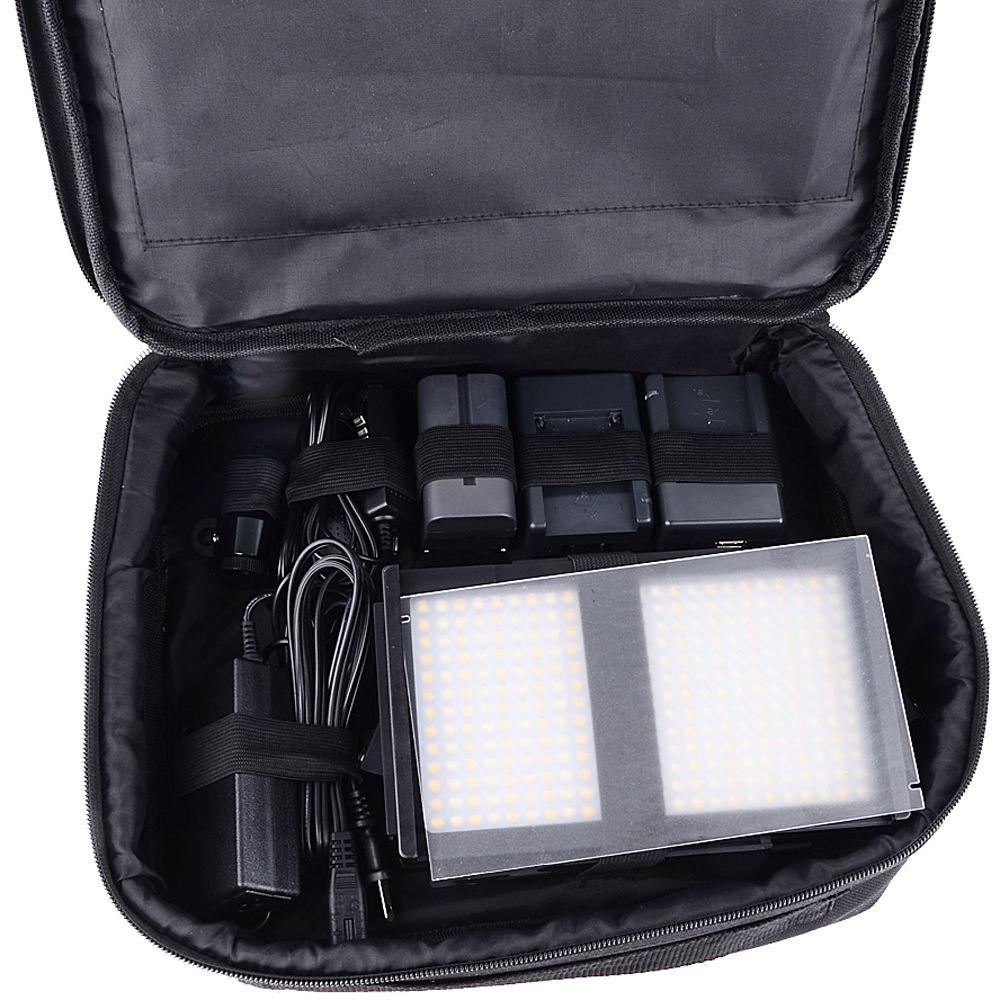

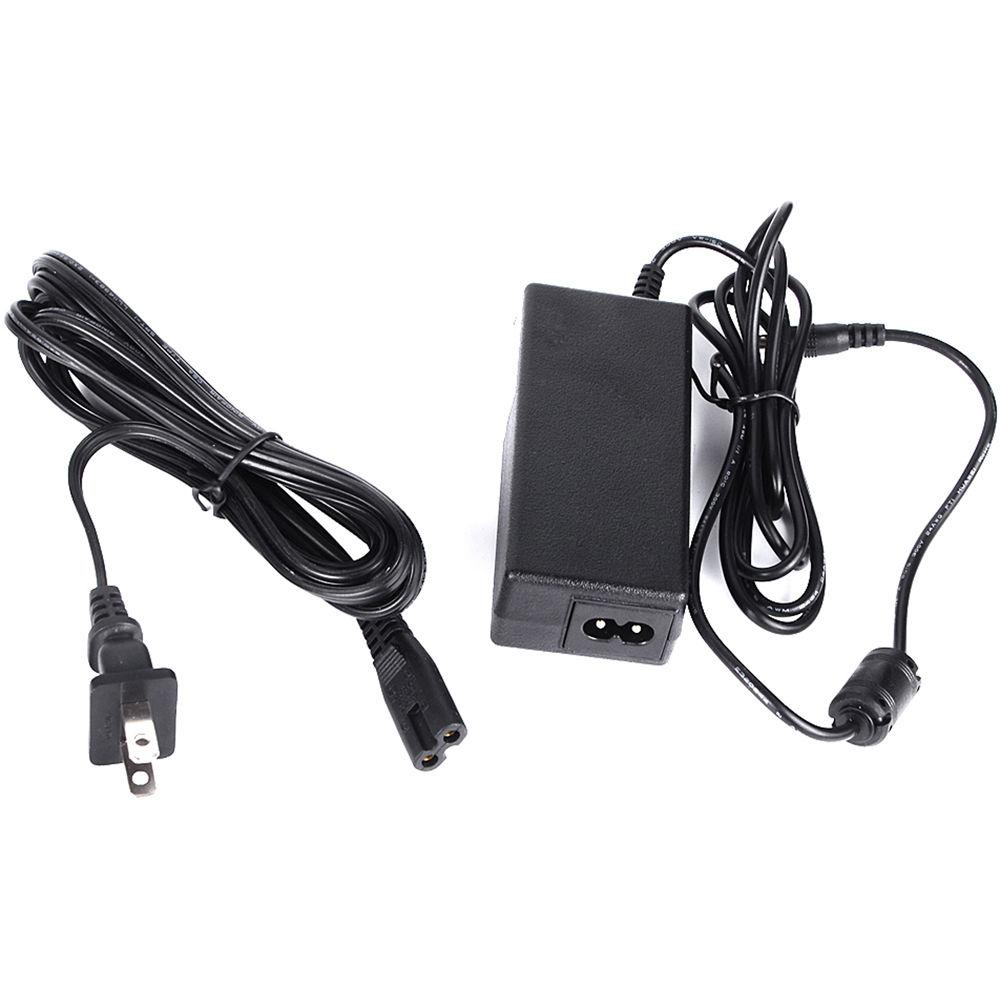

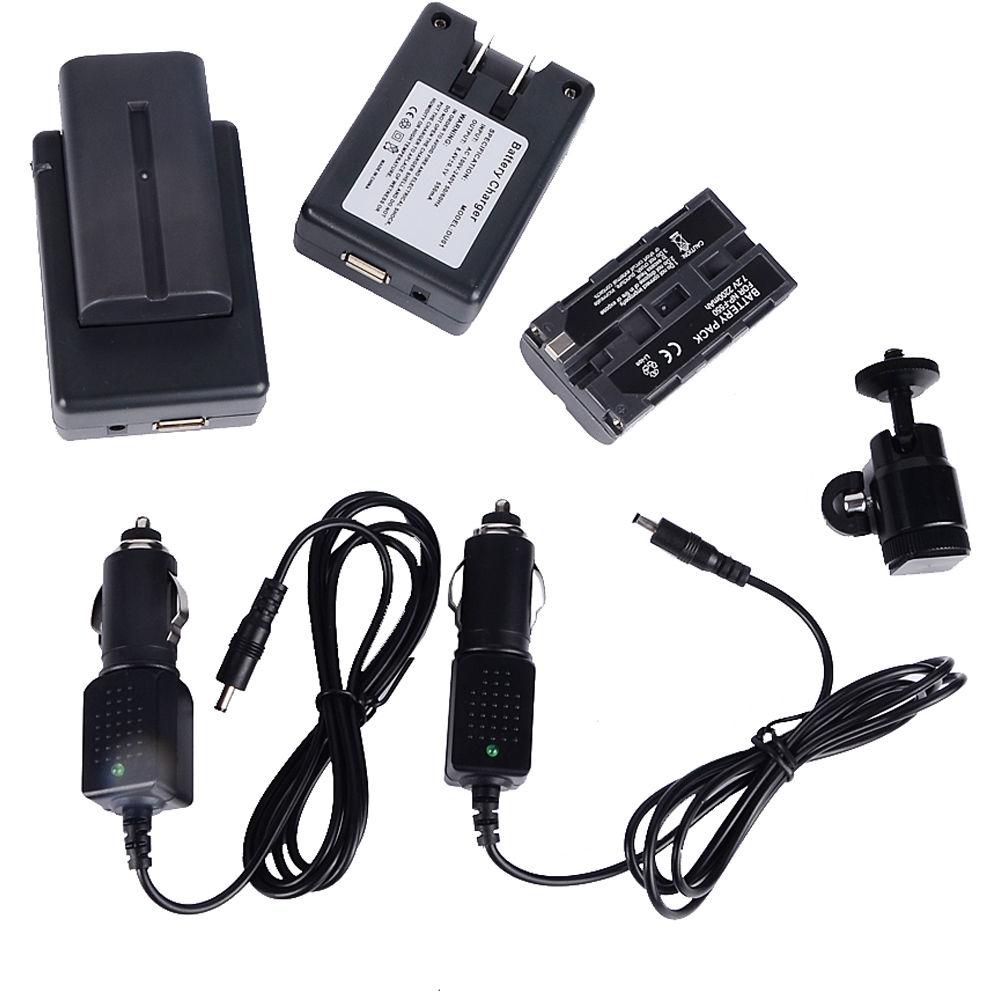

Included with the light is a removable four-leaf barndoor set, diffusion filter, two L-series batteries, two car charger power cords, and an AC adapter. A 1/4"-20 threaded hole allows you to mount the light to your camera's accessory shoe via the included ball adapter. You can also stack multiple FP-312 lights together using the interlocking rail system. - Variable Color Temperature & Dimming

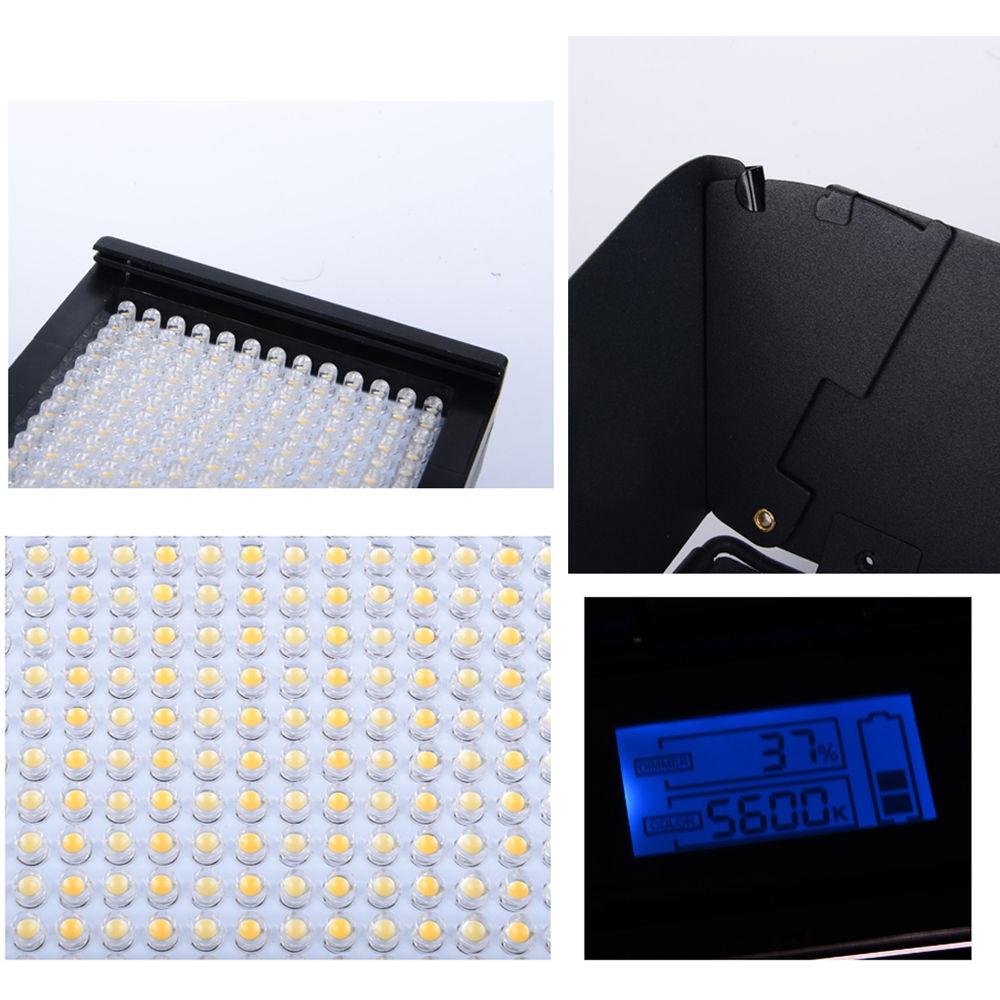

- The FP-312 features a total of 312 LEDs, and a single knob that allows you to vary the color temperature of the unit from 3200 to 5600K. A separate knob controls the dimming of the unit, with a brightness range of 100 to 10%.
- Digital Display Screen

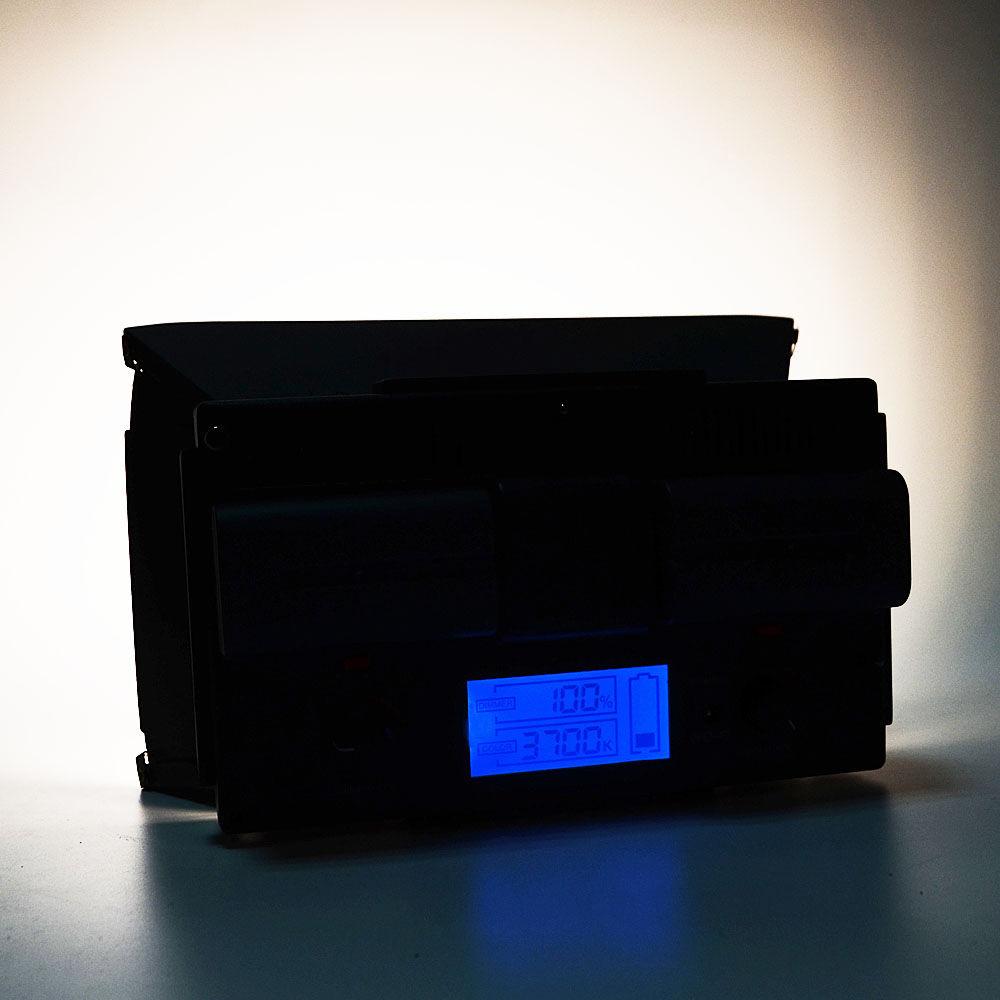

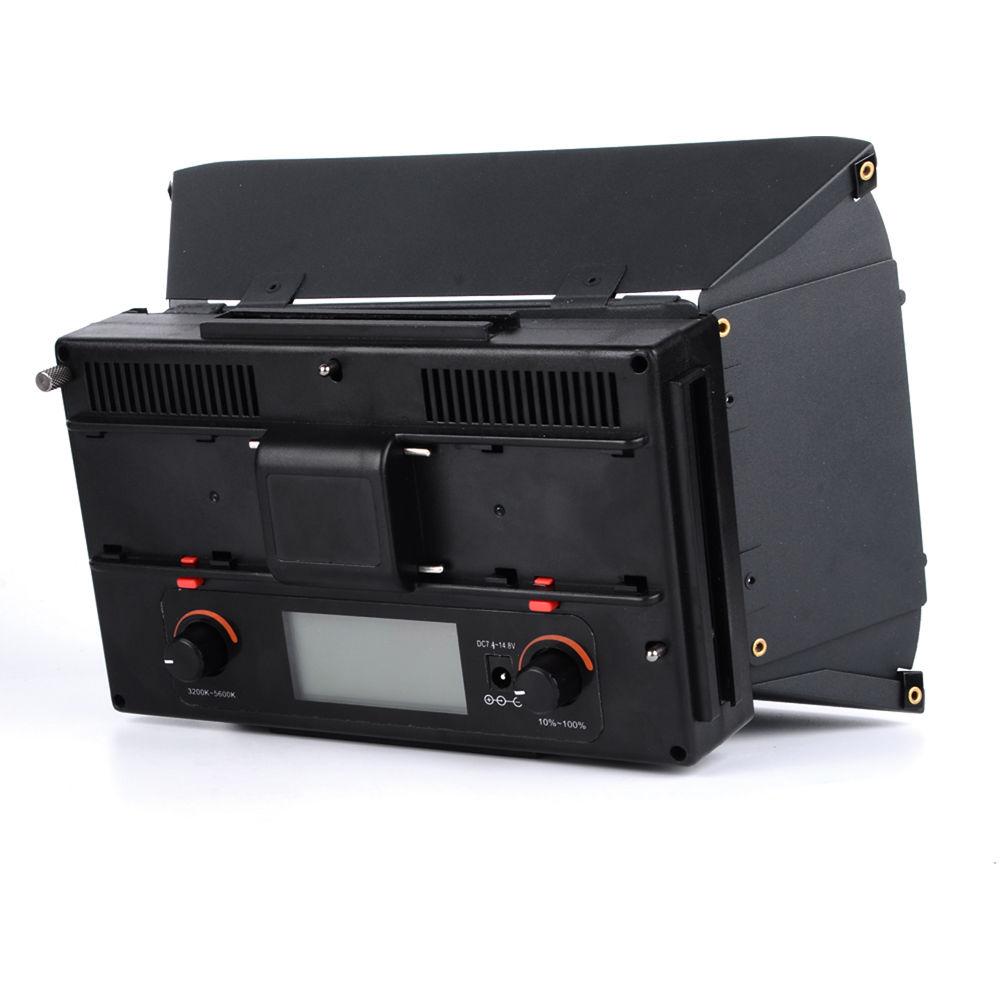

- The dimmer and color temperature settings are controlled by analog knobs, but the digital readout on the built-in display screen allows you to match the output of other units or repeat setups. The display also incorporates a four-step battery gauge so you know how much battery power you have remaining.
- Barndoors

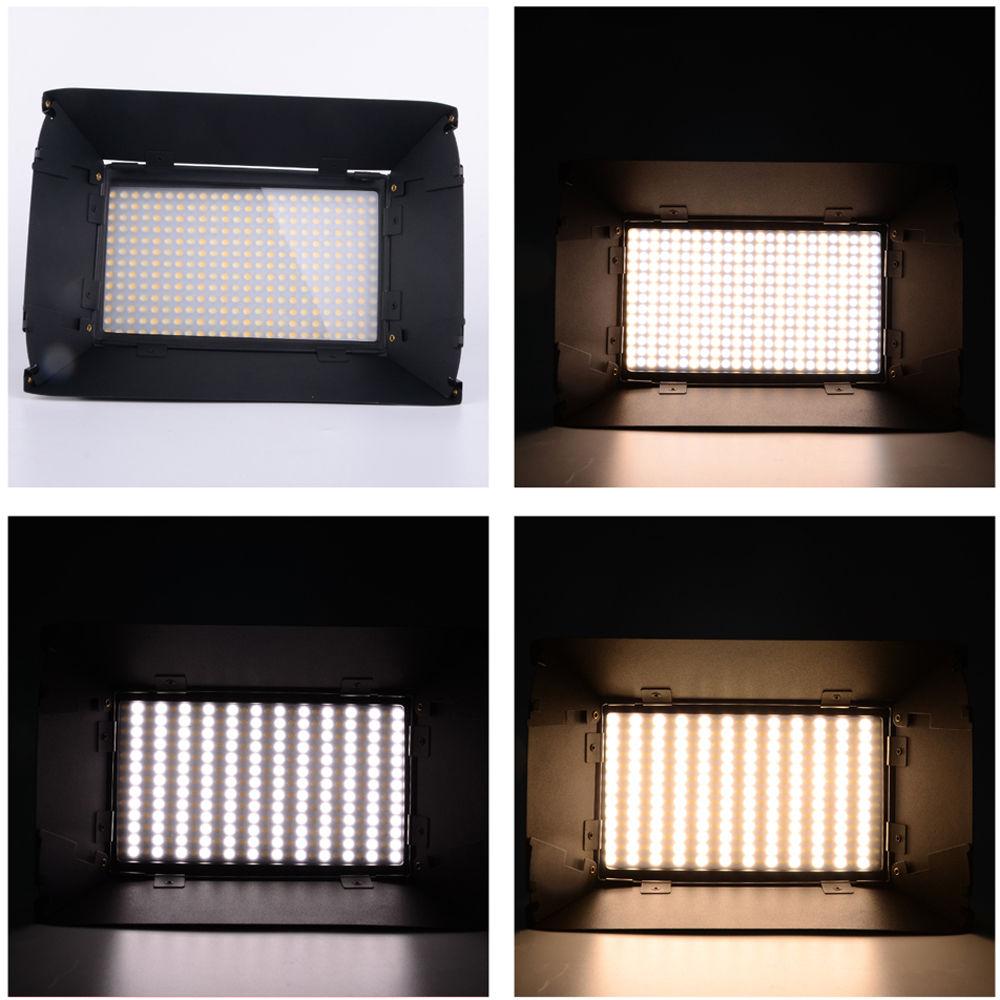

- The included four-sided removable barndoors are constructed so the doors can interlock together, limiting light leak from the edges, controlling light spill, and providing directionality to your light. The side doors feature articulating leafs that provide you a fairly wide range of adjustment while still controlling light leaks from the edges of the doors.
- Diffusion
- Although you can attach diffusion gel to the barndoors, the FP-312 incorporates a slot for the included precut diffusion sheet that can be used with or without the barndoors. The diffusion is notched, and a safety tab engages the notch to prevent it from accidentally falling out.
- Power

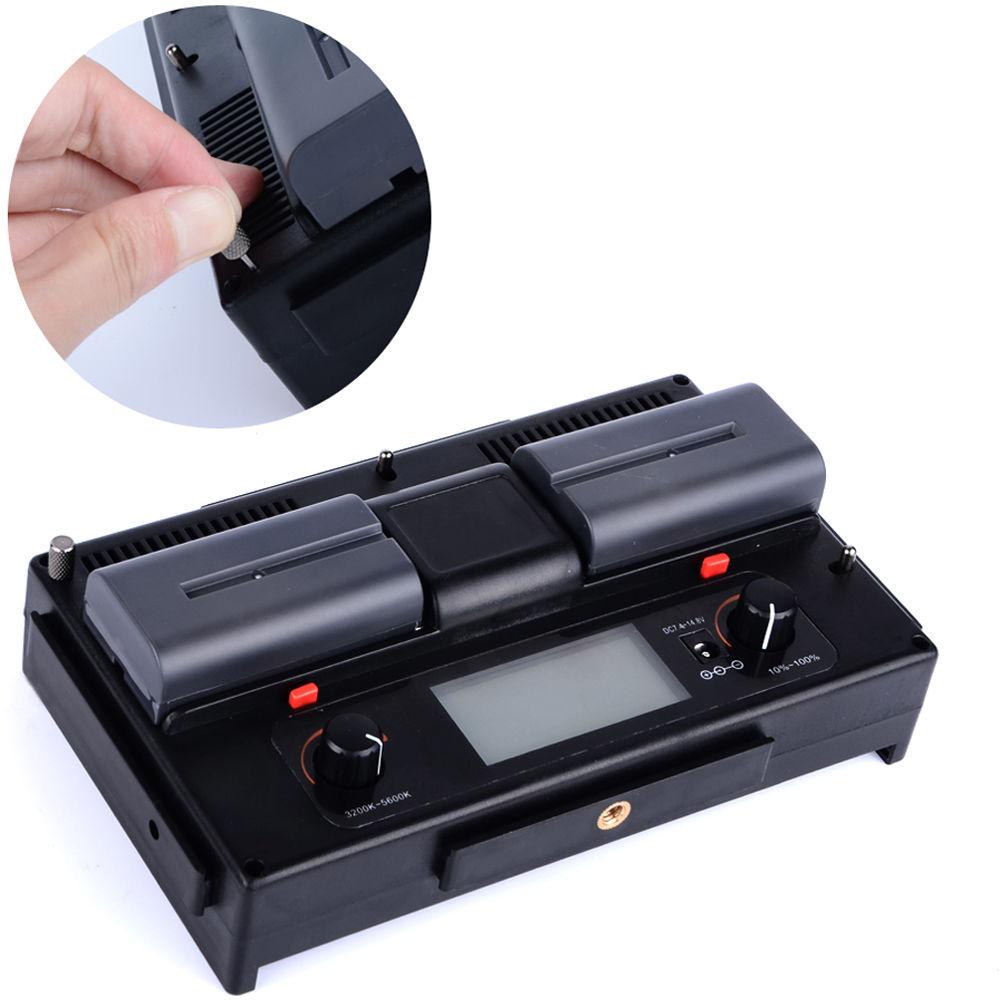

- The light unit features slots for two L-series batteries of any capacity, and includes two L-series batteries. The light can run on one or two batteries, or you can use the AC adapter to power the light via the power connector on the back of the unit.
- Mounting
- The light incorporates a 1/4"-20 threaded mounting hole in the bottom of the unit, and an interlocking rail system that allows you to stack units vertically or horizontally.
UPC: 741147950277 In the Box Bescor FP-312S 1-Point LED Light Kit with Light Stand FP-312 On-Camera Bi-Color LED Light with Digital Display eadqvcerwczzdy LS180 Light Stand Table of Contents
|
Upload User Manual
Have you got an user manual for the Bescor FP-312S 1-Point LED Light Kit with Light Stand in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBescor FP-312 Specs | | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Display | None | | Number of LEDs | 312 | | Fixture Dimensions | 8.0 x 1.8 x 5.0" / 20.0 x 4.5 x 13.0 cm | | | | Battery Plate | 2 x Sony L-Series (NP-F) | | Power Input Connector | Barrel | | | | Fixture Mount | 1/4"-20 Female Thread | | Accessory Mount | None | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | DC Input Power | 7.4 to 14.8 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 240 W | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 32.0 x 10.25 x 7.2" |
