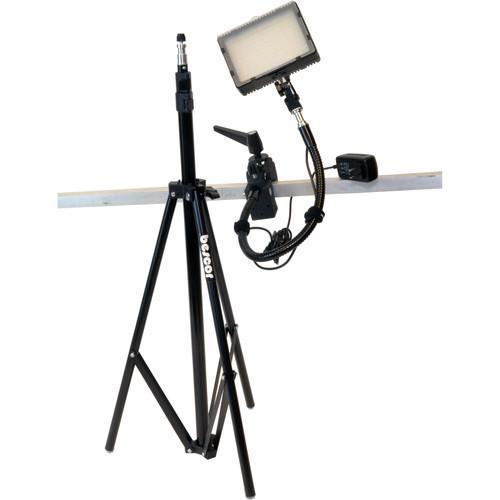

Bescor Grip-181K Gripper Gooseneck Bi-Color 1-Light

User Manual for Bescor Grip-181K Gripper Gooseneck Bi-Color 1-Light Kit with Light Stand

• Product category: LED Lights Bescor
• Brand: Bescor
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Bescor LED Lights

Product description

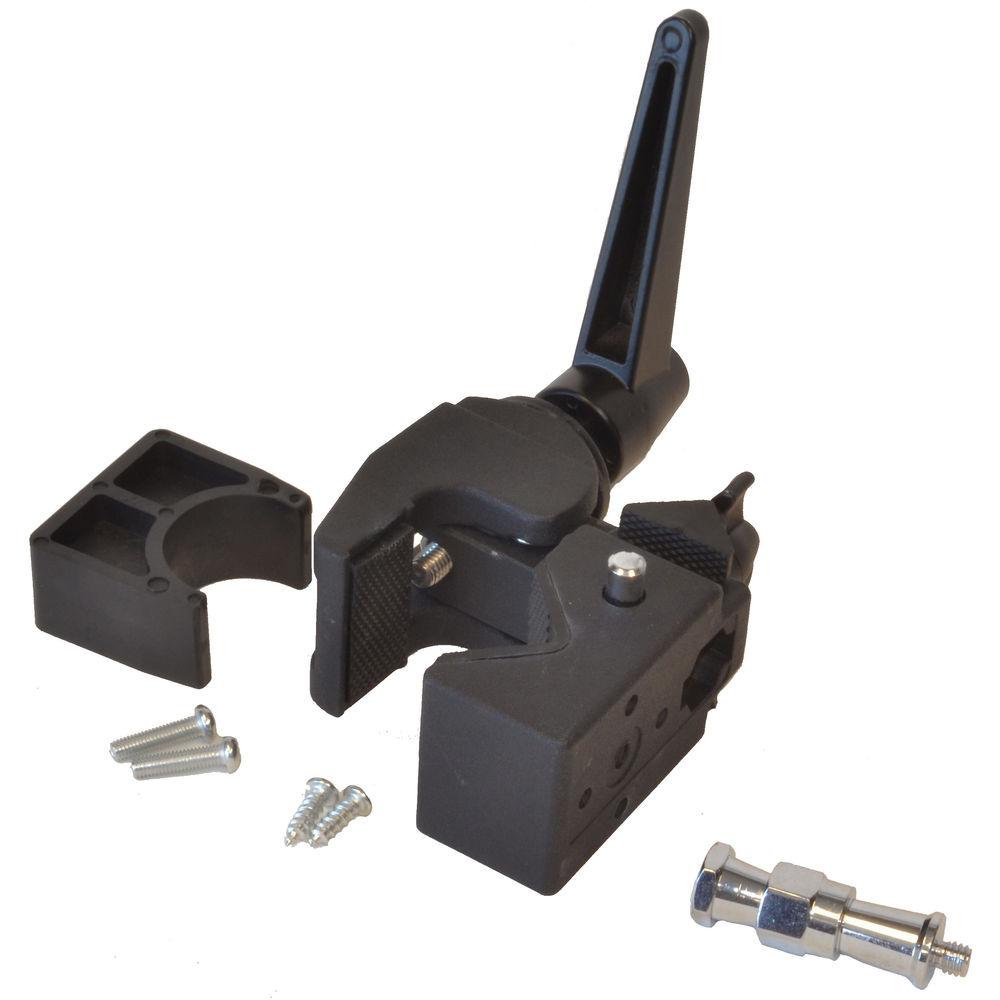

• Gripper Clamp A staple on image maker's sets and in their kit bags, the Gripper Clamp from Bescor has jaws with a 0.5 to 2.1" range allowing it to grip poles or flat objects via the included wedge or pipe inserts. The Gripper has a ratcheting tightening handle that works well in tight spaces and comes with a 5/8" hex pin with male 1/4"-20 threads for attachment to other accessories.

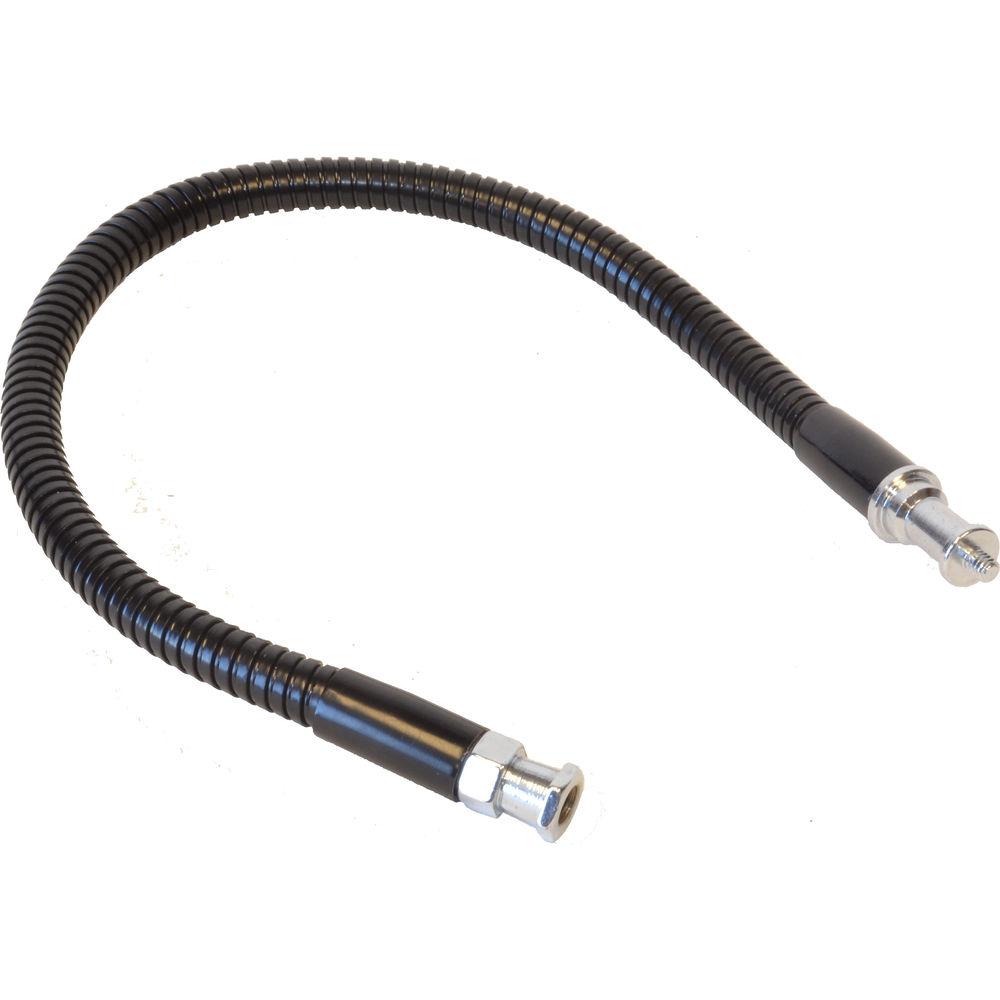

• Flexible Metal Gooseneck Arm Ideal for use with Bescor's Gripper Clamp or a Super Clamp, this Flexible Metal Gooseneck Arm is a 23" long, 18mm in diameter, flexible, segmented aluminum arm that can be twisted into configurations not possible with other tools, such as articulating arms. One end of the arm has a 5/8" stud with a 1/4"-20 male thread, while the other has a 3/8"-16 tapped 5/8" hex that prevents torsion.

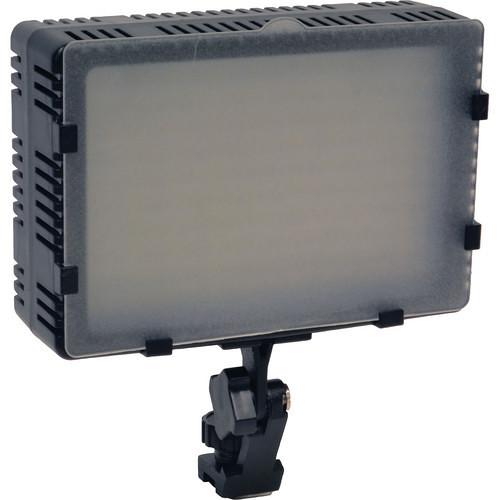

• FP-180 Bi-Color Dimmable On-Camera Light The Bescor FP-180 Bi-Color Dimmable On-Camera Light features 180 LEDs, 90 daylight and 90 tungsten bulbs, providing variable color temperature from 3200 to 5400K. The unit incorporates separate dimmers for the tungsten and the daylight balanced LEDs, allowing you to precisely control the color balance. The unit features an on/off switch and provides a flicker free light that dims from 100 to 10% brightness and is flicker free at all dimming levels.

  The FP-180 is powered by 8 x AA batteries, or you can use an optional power supply that connects to the unit's DC input jack. A diffusion filter and orange color correction filter are included to allow you soften or adjust the color temperature of the light. It features a 1/4"-20 threaded mounting hole that accommodates the included articulating arm (with accessory shoe mount) or the included metal hook so you can hang the light.
  • Independently dimmable tungsten and daylight balanced LED bulbs.
  • Powers from 8 x AA batteries, or via optional power supply.
  • 1/4"-20 threaded mounting hole.
  • Articulating arm with accessory shoe mount.
  UPC: 741147930804
• AC-180 Power Supply The Bescor AC-180 Power Supply is designed for the LED-180 light. UPC: 741147302601

• Furniture Wedge

• Pipe Insert

• 4 x Screws

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Articulating Arm Mount

• Metal Hook

• Drop-In Diffusion Filter

• Drop-In Orange Color Correction Filter

• Limited 90-Day Warranty

Also Includes

• Light Stand

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Gripper Clamp

  Clamp Type	Jaw
  Jaw Opening	0.5 to 2.1 " / 1.3 to 5.3 cm
  Mount Type	1 x 5/8" Receiver 1 x 5/8" Stud 1 x 1/4"-20 Male

  Box Dimensions (LxWxH)	6.378 x 4.173 x 2.362"

• Flexible Metal Gooseneck Arm

  Dimensions	Length: 23" ( Diameter 0.7" (18 mm) End studs: 1x 5/8" (16 mm) Hex with 3/8"-16 tap 1x 5/8" Stud with 1/4"-20 male thread
  Load Capacity	1.1 lb (0.5 kg)

  Box Dimensions (LxWxH)	10.158 x 8.189 x 2.52"

• FP-180 Bi-Color Dimmable On-Camera Light

  Color Accuracy Standard	CRI 91
  Number of LEDs	180

  Battery Plate	8 x AA
  Power Input Connector	Barrel

  Mount Type	1/4"-20 Female Thread, Cold Shoe
  Dimensions	5.5 x 3.5 x 1.8" / 14 x 8.9 x 4.4 cm
  Weight	15 oz / 425.2 g

  Box Dimensions (LxWxH)	6.9 x 6.3 x 3.05"

• AC-180 Power Supply

  Amp-Hours	0.9 Ah
  Output Voltage	12 VDC

  Box Dimensions (LxWxH)	4.3 x 2.95 x 2.85"
