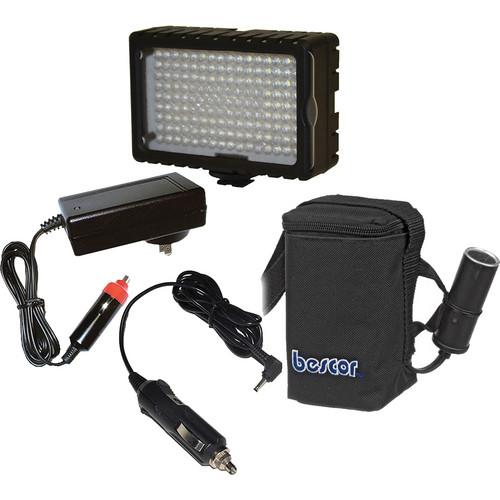

Product description The Bescor LED-125 On-Camera Light with HP-3NC Battery / Charger / Adapter Kit combines a handy LED light with a three-hour runtime belt-pack battery, a worldwide-compatible charger, and a car-lighter adapter that connects the light to the battery.

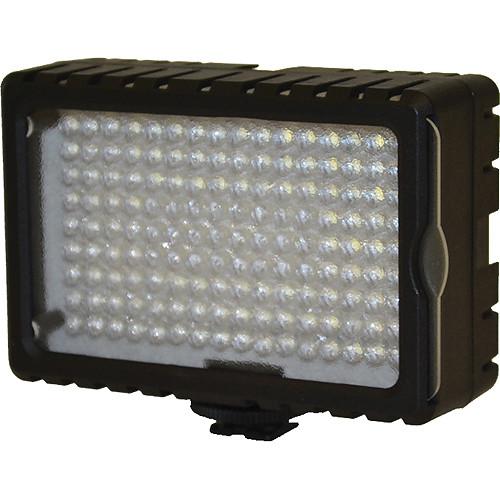

The LED-125 is a camera-top light measuring about 4 x 4" and featuring a hot-shoe mount for attachment to the top of most any camera. 144 LED bulbs make up the light and deliver a 6500K daylight color; and an amber-colored 4300K filter comes included for shooting indoors. The light has an intensity that's 125 watt equivalent and a brightness dimmer 100 to 25% adjustable for regulating the intensity.
The included belt-pack is Bescor's HP-3NC. It has a shoulder strap and a belt-loop sewn in for carry. As an alternative to this battery, the LED-125 optionally accepts a 12V AC adapter or six AA batteries. The AAs power the light for about 75 minutes. And any you may have in the light will automatically cease from being depleted the moment you plug the belt-back in, so you don't need to remove them when connecting the belt-pack.
The included charger works worldwide with any 110-240V AC outlet and shuts off upon sensing when the battery is full. - Morning Star Series LED-125 Dimmable On-Camera Light The Bescor Morning Star Series LED-125 Dimmable 125W On-Camera Light is a daylight-balanced LED light with 144 LEDs and a CRI rating 85 that is equivalent to a 125 W light. The fixture is dimmable from 100% brightness down to 25% without flicker or significant color shift. It includes a diffusion filter that will bring the color temp down to 5500K, and the included amber filter further converts the color temp to 3200K, perfect for use with tungsten lights.
Featuring a cold shoe foot with a built-in 1/4"-20 threaded mounting hole, the fixture provides flexible solutions for mounting to your camera. The body of the light features a cold shoe on both sides and on the top that allows you to mount other lights or accessories, not included, to the fixture. The light will run for up to 80 minutes of off six readily available AA batteries, or you can power it from an optional power supply for extended run times. - Built-in cold shoes on the sides and top of the light allow you to stack additional lights or mount accessories that have a cold shoe mounting foot
- 144 individual 5mm LEDs produce an 125W equivalent beam
- Daylight balanced at 6500K
- Includes an amber colored-correction filter
- Fully dimmable from 100% to 25%
- Features a 75 to 80 minute run time
- DC 12V / .9A input jack for AC use
- Extremely compact dimensions
- Uses six AA batteries or an optional AC adapter (sold separately)
- Suitable for use with 12V Bescor batteries (requires CLC-125 adapter, not included)

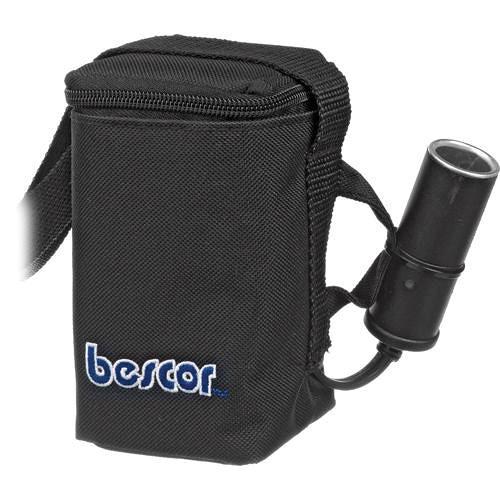

UPC: 741147801005 - HP-3NC Starved Electrolyte Battery The Bescor HP-3NC is a small and lightweight high performance Starved Electrolyte (Lead Acid) battery. The HP-3 is memory free and when properly maintained will offer a consistent run time over the life of the battery.
- Portable
- A convenient shoulder strap is standard in addition to a sewn-in belt loop.

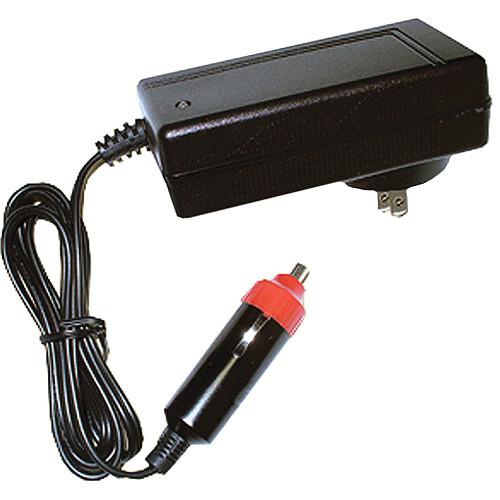

UPC: 741147250056 - ATM-PRU Automatic Universal Charger (12V, 1.5A) The Bescor ATM-PRU Automatic Universal Charger (12V, 1.5A) is an automatic "smart" battery charger that's universally compatible (with optional adapter). The ATM-PRU will charge the Bescor PRB series battery belts and shoulder packs. The charger's universal plug-in feature allows it to be used "worldwide" in 110-240VAC. It is also designed to automatically stop the charge cycle once the battery is fully charged.
- Automatic Shut-Off
- For worry-free battery maintenance, the ATM-PRU charger will sense when the battery has reached maximum charge status and shut off automatically
- Universal Worldwide Plug-In
- Compatibility worldwide with 110-240VAC outlets

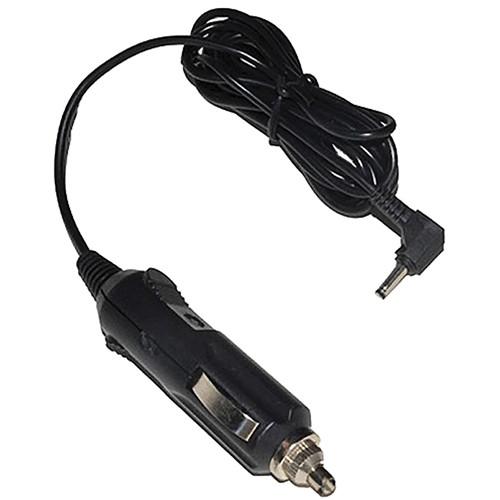

UPC: 741147230140 - CLC-125 Cigarette Adapter for LED-125 Camera Light The Bescor CLC-125 Cigarette Adapter for LED-125 Camera Light powers the Bescor Morning Star LED-125 Camera Light by connecting it to a Bescor battery pack.
One end of the CLC adapter is a 12V barrel connector that plugs into a 12V input port on the LED light. The other end is a cigarette plug that connects into one of three Bescor 12V battery packs -- the HP3, MM7, or NMH54.
The moment the CLC adapter connects the LED light to a battery pack, the LED light stops using the power of any AA batteries that may at the same time be in it. So the AA batteries don't need to be removed in order to be preserved when switching to a battery pack.
The battery packs are carry-on or waist-belt packs, and the CLC adapter is six feet long, so comfort exists when maintaining a connection between a battery pack and the LED light. - Connects Bescor Morning Star LED-125 camera light to HP3, MM7, or NMH54 Bescor battery packs.
- 12V barrel connector on one end and a 12V cigarette plug on the other.
- The LED light's alternate AA batteries don't need to be removed to be preserved upon connecting the LED light to a battery pack.
- 90-Day Repair & Replace Warranty.
UPC: 741147400505 In the Box Bundle Items Morning Star Series LED-125 Dimmable On-Camera Light bvdqcqfaawsrsfcr - Amber Colored 6500 to 3200K Correction Filter
HP-3NC Starved Electrolyte Battery bvdqcqfaawsrsfcr ATM-PRU Automatic Universal Charger (12V, 1.5A) CLC-125 Cigarette Adapter for LED-125 Camera Light - 90-Day Repair & Replace Warranty
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Bescor LED-125 On-Camera Light with HP-3NC Battery Charger Adapter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Morning Star Series LED-125 Dimmable On-Camera Light
| | | Color Temperature | 6500K | | Dimming | Yes, 25 to 100% | | Number of LEDs | 144 | | | | Battery Plate | 6 x AA | | DC Input Power | 12 VDC at 0.9 A | | | | Dimensions | 4.6 x 1.6 x 4" / 11.7 x 4.1 x 10.2 cm | | Weight | 8 oz / 227 g | | | | Box Dimensions (LxWxH) | 5.4 x 4.8 x 2.4" | - HP-3NC Starved Electrolyte Battery
| Chemistry | Starved Electrolyte (Lead Acid) | | Output Voltage | 12 VDC | | Connection | Cigarette Lighter Connector | | Capacity | 36 Wh
3 Ah | | Weight | 1.26kg
2.8lbs | | Dimensions | 5.5 x 3 x 3" (WxHxD)
13.97 x 7.62 x 7.62cm (WxHxD) | | | | Box Dimensions (LxWxH) | 8.25 x 5.15 x 4.95" | - ATM-PRU Automatic Universal Charger (12V, 1.5A)
| Power Supply | No | | Battery Bays | 1 | | Type of Charging | Single Only | | Diagnostics | Automatic Shut-Off | | Connections/Interface | Cigarette (for belt and shoulder pack batteries) | | Power Requirements | 110-240VAC | | Dimensions (WxHxD) | 2 x 3 x 1.5" (50 x 76 x 38mm) | | Weight | 0.6 lbs (272g) | | | | Box Dimensions (LxWxH) | 5.1 x 2.7 x 2.25" | - CLC-125 Cigarette Adapter for LED-125 Camera Light
| Connectors | 12V Barrel Connector and 12V Cigarette Plug | | Length | 6 ft (1.8m) | | | | Box Dimensions (LxWxH) | 3.5 x 1.5 x 1.0" |
