User Manual for Bescor LED-200kb 2 Light Kit with Batteries Click to enlarge the picture
Contents of the user manual for the Bescor LED-200kb 2 Light Kit with
- Product category: LED Lights Bescor
- Brand: Bescor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bescor LED Lights
 |
User manual for the Bescor LED-200kb 2 Light Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bescor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bescor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bescor product will considerably shorten its lifespan!
|

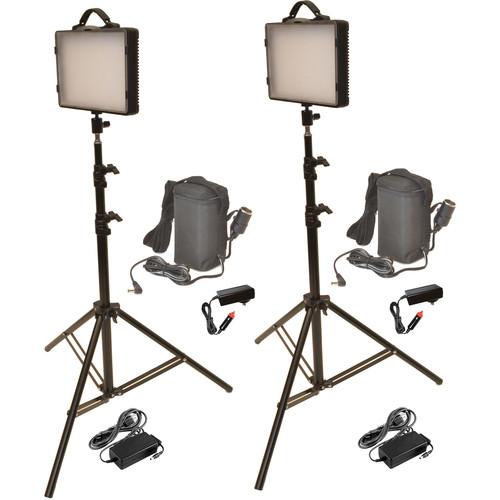

Product description The Bescor LED-200: a Bright, Portable Power-Sipping LED Panel Read More uvrbesadrdrbctafqdxbcyuseybfuaxbfwwrw The Bescor LED-200KB Dual Light Kit with Batteries is a great way for videographers on the run to light interviews, events, or spot news.Each panel is 12 x 11" and has 210 10mm super bright LED bulbs that put out a 200W equivalent totaling 400W with the two panels combined. Each stand is 6.1' when fully extended and reaches 7.1' with a panel atop it. Both sets of panels and stands combine to a total weight of only 5 lbs.

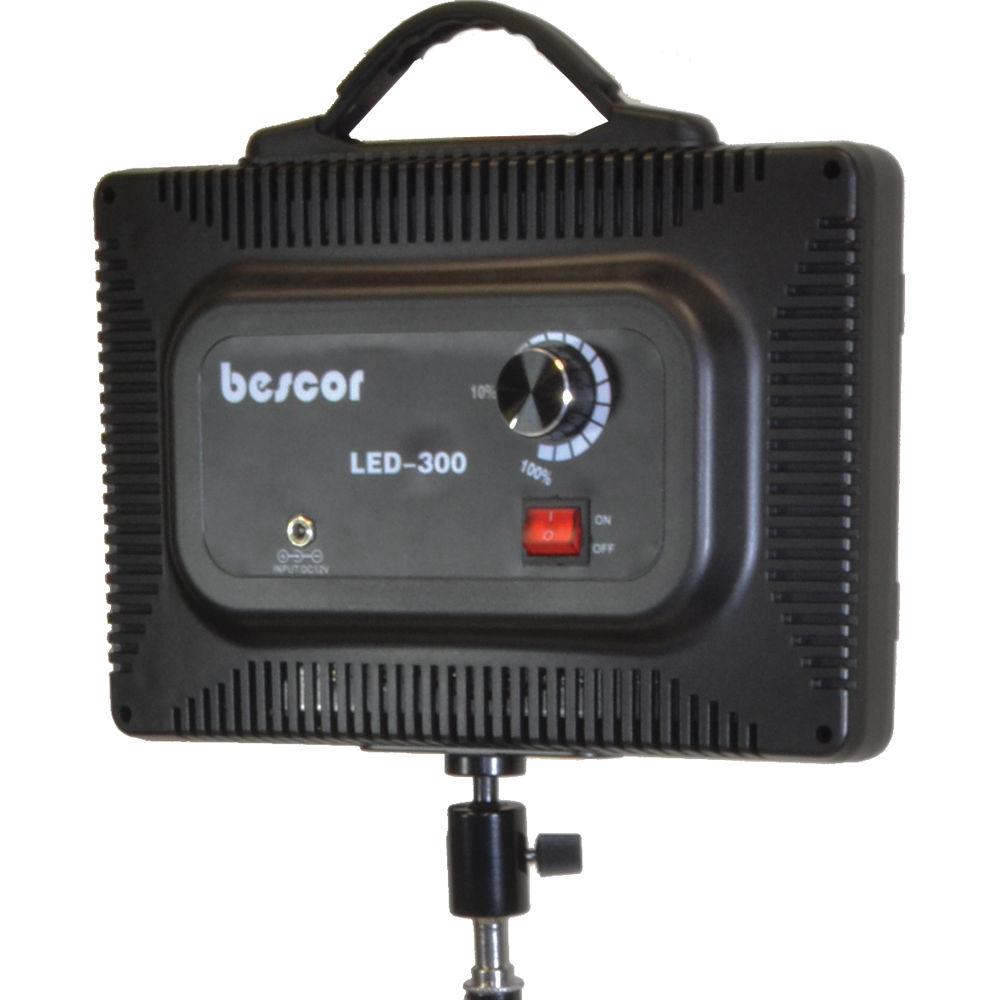

Included with each light panel is a removable soft white diffuser with which the panel produces 6500K color temperature. The panels each offer 2200-lux brightness at 39" and feature a dimmer ranging from 15-100%.
The kit rounded out with 2 HP-3ATM lead acid batteries with chargers and CLC-200 cigarette lighter adapters. - LED-200K Twin 300W Kit This is a set of two upgraded Bescor LED-200K light panels and stands. The upgrade has transformed these lights to include 304 5mm LEDs each. Each panel now provides a 300W equivalent output with a 5500K color temperature.
When you receive these lights, you will find an "LED-220K" label on them instead of "LED-200K," but this is only to indicate that they are the upgraded version. As part of the upgrade, two orange correction filters have been included in addition to the existing soft white diffusers. The light stands offer a maximum height of 74". The two panels total to approximately 6 lb. - Key Features
-
- Two LED light panels and two stands with a max height of 74"
- 304 5mm LEDs, 300W equivalent output per panel
- 5500K color temperature
- 15-100% brightness dimmer
- Two soft white diffusers and two orange correction filters included
UPC: 741147871008 - 12V Cigarette Adapter for LED-200 Series, LED-500 Series, FP-500 Series, and FP-180 Series Lights The Bescor 12V Cigarette Adapter For LED-200 allows you to power your LED-200 series, LED-500 series, FP-500 series, and FP-180 series lights from your car's cigarette lighter socket. UPC: 741147400901

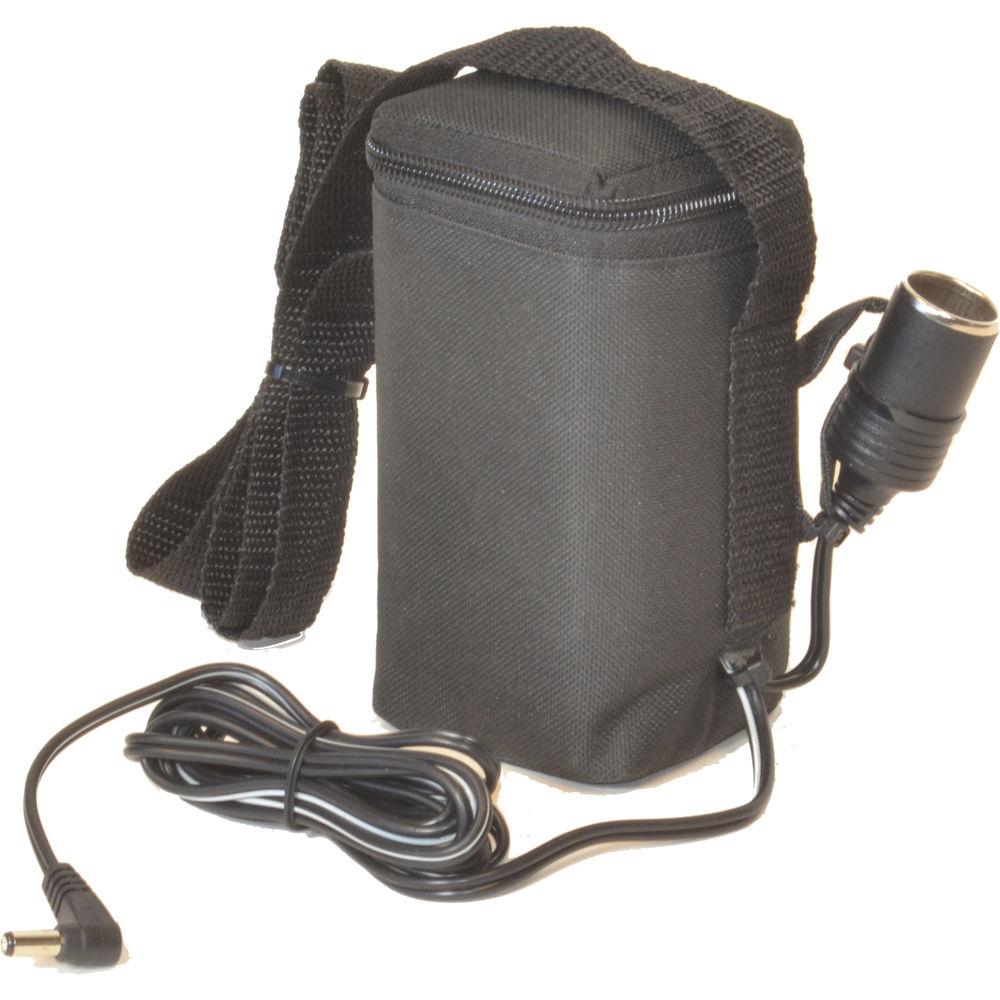

- HP-3NC Starved Electrolyte Battery The Bescor HP-3NC is a small and lightweight high performance Starved Electrolyte (Lead Acid) battery. The HP-3 is memory free and when properly maintained will offer a consistent run time over the life of the battery.
- Portable
- A convenient shoulder strap is standard in addition to a sewn-in belt loop.
UPC: 741147250056 - ATM-PRU Automatic Universal Charger (12V, 1.5A) The Bescor ATM-PRU Automatic Universal Charger (12V, 1.5A) is an automatic "smart" battery charger that's universally compatible (with optional adapter). The ATM-PRU will charge the Bescor PRB series battery belts and shoulder packs. The charger's universal plug-in feature allows it to be used "worldwide" in 110-240VAC. It is also designed to automatically stop the charge cycle once the battery is fully charged.
- Automatic Shut-Off
- For worry-free battery maintenance, the ATM-PRU charger will sense when the battery has reached maximum charge status and shut off automatically
- Universal Worldwide Plug-In
- Compatibility worldwide with 110-240VAC outlets
UPC: 741147230140 - CLC-180 Cigarette Lighter Adapter The Bescor CLC-180 Cigarette Lighter Adapter is designed for the LED-180 light. UPC: 741147400802
In the Box Bundle Items LED-200K Twin 300W Kit uvrbesadrdrbctafqdxbcyuseybfuaxbfwwrw - 2 x AC to DC Power Adapters
- 2 x Orange Correction Filters
2 x 12V Cigarette Adapter for LED-200 Series, LED-500 Series, FP-500 Series, and FP-180 Series Lights 2 x HP-3NC Starved Electrolyte Battery 2 x ATM-PRU Automatic Universal Charger (12V, 1.5A) 2 x CLC-180 Cigarette Lighter Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the Bescor LED-200kb 2 Light Kit with Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LED-200K Twin 300W Kit
| | | Color Temperature | 5500K | | Color Accuracy Standard | CRI 85 | | Cooling System | None | | Dimming | Yes, 15 to 100% | | Display | None | | Number of LEDs | 304 | | Fixture Dimensions | 12.0 x 8.5 x 2.5" / 30.5 x 21.6 x 6.4 cm | | Fixture Weight | 3 lb / 1.4 kg | | | | Fixture Mount | 1/4"-20 Female Thread | | Accessory Mount | None | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 1.2 A | | Power Source | AC Adapter, External Battery | | | | Box Dimensions (LxWxH) | 25.8 x 13.1 x 6.02" | - 12V Cigarette Adapter for LED-200 Series, LED-500 Series, FP-500 Series, and FP-180 Series Lights
| | | Box Dimensions (LxWxH) | 5.1 x 1.6 x 1.0" | - HP-3NC Starved Electrolyte Battery
| Chemistry | Starved Electrolyte (Lead Acid) | | Output Voltage | 12 VDC | | Connection | Cigarette Lighter Connector | | Capacity | 36 Wh
3 Ah | | Weight | 1.26kg
2.8lbs | | Dimensions | 5.5 x 3 x 3" (WxHxD)
13.97 x 7.62 x 7.62cm (WxHxD) | | | | Box Dimensions (LxWxH) | 8.25 x 5.15 x 4.95" | - ATM-PRU Automatic Universal Charger (12V, 1.5A)
| Power Supply | No | | Battery Bays | 1 | | Type of Charging | Single Only | | Diagnostics | Automatic Shut-Off | | Connections/Interface | Cigarette (for belt and shoulder pack batteries) | | Power Requirements | 110-240VAC | | Dimensions (WxHxD) | 2 x 3 x 1.5" (50 x 76 x 38mm) | | Weight | 0.6 lbs (272g) | | | | Box Dimensions (LxWxH) | 5.1 x 2.7 x 2.25" | - CLC-180 Cigarette Lighter Adapter
| | | Box Dimensions (LxWxH) | 7.7 x 1.1 x 0.8" |
