Bescor LED-70 Dimmable 70W On-Camera LED

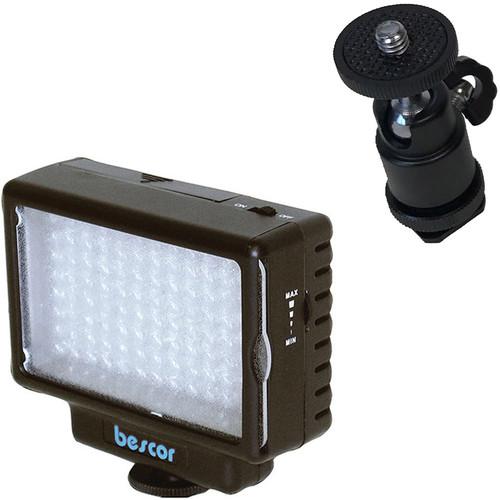

User Manual for Bescor LED-70 Dimmable 70W On-Camera LED Light Kit with Ball Head Mount

• Product category: On Camera Lights Bescor
• Brand: Bescor
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Bescor On Camera Lights

Product description

• LED-70 Dimmable 70W Video Light The Bescor LED-70 is an on-camera, dimmable, daylight-balanced 6500K LED light designed to combine bright output with a compact, highly flexible form factor. Powered by either four standard AA batteries or an optional AC power adapter, the unit's 96 LED bulbs produce an ultra-bright, 70W-equivalent beam with a reach of up to 30 feet. Suitable for both video and DSLR cameras, the LED-70 includes a clear frosted filter for softening glare, as well as an amber 4300K correction filter for shooting indoors.
  LED Technology
  • LED technology offers lamp longevity, low power consumption, daylight-balanced illumination, and never gets hot to the touch.
  DC or AC Power
  • This light utilizes either four alkaline AA batteries or rechargeable NiMH AA batteries. With an optional 6 VDC/1.5A adapter, it can also run off AC power.
  Wide Array
  • The LED-70 offers a wide array of 96 individual LEDs for a wide beam that illuminates up to 30 feet.
  Dimmable
  • Dimmable from 100 to 20%.
  Amber and Frosted Filters
  • The included 4300K amber filter provides a softer, more natural lighting effect, while a frosted clear filter helps smooth and even out the light's tone while reducing glare. Filters are easily removed from the unit's housing by sliding them in and out of the built-in filter holder.
  UPC: 741147770806
• Mini Ball Head Mount Capable of holding gear as heavy as 2 lb, this Mini Ball Head Mount from Bescor is well suited for articulating small accessories, such as portable lights and microphones. It offers a 1/4"-20 screw at the top for attaching to your gear featuring a notch on its base for 90° tilting in one direction, as well as a durable metal construction. At its bottom is a shoe mount with a 1/4"-20 female thread in the middle, which allows it to be installed directly to the hot shoe of your camera or used with compatible light stands and tripods. UPC: 741147950406

• Amber Filter

• Frosted Filter

• Limited 90-Day Warranty

• Limited 90-Day Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• LED-70 Dimmable 70W Video Light

  Color Temperature	6500K
  Number of LEDs	96

  Battery Plate	4 x AA
  DC Input Power	6 VDC at 1.5 A
  Power Input Connector	Barrel
  Power Source	AC Adapter, External Battery

  Mount Type	Cold Shoe
  Dimensions	4.6 x 1.6 x 4" / 11.7 x 4.1 x 10.2 cm
  Weight	10 oz / 283 g (Including Battery)

  Box Dimensions (LxWxH)	5.35 x 4.8 x 2.15"

• Mini Ball Head Mount

  Bottom Mount	1 x Accessory Foot 1 x 1/4"-20 Female
  Top Mount	1 x 1/4"-20 Male
  Load Capacity	2 lb / 0.91 kg

  Box Dimensions (LxWxH)	2.85 x 2.5 x 0.85"
