User Manual for Bescor LED-70 On-Camera Video Light with Swivel Ball Head Mounting Clamp Click to enlarge the picture
Contents of the user manual for the Bescor LED-70 On-Camera Video Light with
- Product category: On Camera Lights Bescor
- Brand: Bescor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bescor On Camera Lights
 |
User manual for the Bescor LED-70 On-Camera Video Light with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bescor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bescor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bescor product will considerably shorten its lifespan!
|

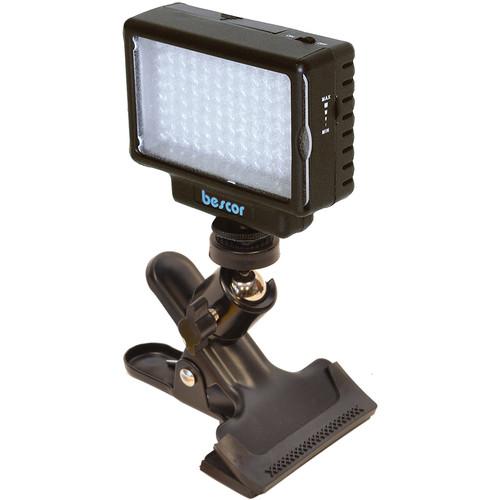

Product description If you need a bright, portable on-camera light for various production situations, the LED-70 On-Camera Video Light with Swivel Ball Head Mounting Clamp from Bescor covers a 30-foot area with its 96 bulbs and 70W power.

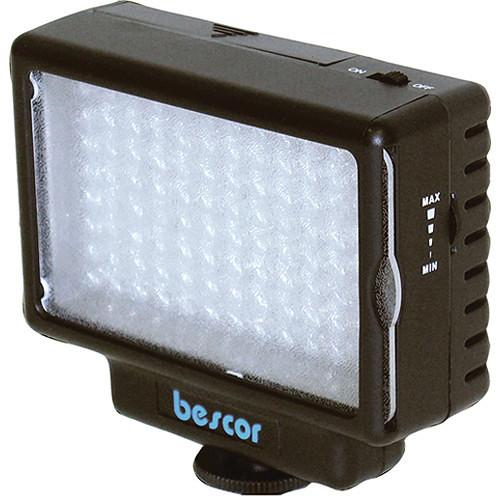

The light's 6500K daylight color temperature can be warmed to 4300K with the included amber correction filter, or it can be softened with the included frosted filter. The light runs on four separately available AA batteries and can run on AC power with a separately available adapter. Also included with the LED-70 is a clip clamp with an attached swivel ball mount so you can mount the light in an alternate location such as on a stand or table. - LED-70 Dimmable 70W Video Light The Bescor LED-70 is an on-camera, dimmable, daylight-balanced 6500K LED light designed to combine bright output with a compact, highly flexible form factor. Powered by either four standard AA batteries or an optional AC power adapter, the unit's 96 LED bulbs produce an ultra-bright, 70W-equivalent beam with a reach of up to 30 feet. Suitable for both video and DSLR cameras, the LED-70 includes a clear frosted filter for softening glare, as well as an amber 4300K correction filter for shooting indoors.
- LED Technology
- LED technology offers lamp longevity, low power consumption, daylight-balanced illumination, and never gets hot to the touch.
- DC or AC Power
- This light utilizes either four alkaline AA batteries or rechargeable NiMH AA batteries. With an optional 6 VDC/1.5A adapter, it can also run off AC power.
- Wide Array
- The LED-70 offers a wide array of 96 individual LEDs for a wide beam that illuminates up to 30 feet.
- Dimmable
- Dimmable from 100 to 20%.
- Amber and Frosted Filters
- The included 4300K amber filter provides a softer, more natural lighting effect, while a frosted clear filter helps smooth and even out the light's tone while reducing glare. Filters are easily removed from the unit's housing by sliding them in and out of the built-in filter holder.

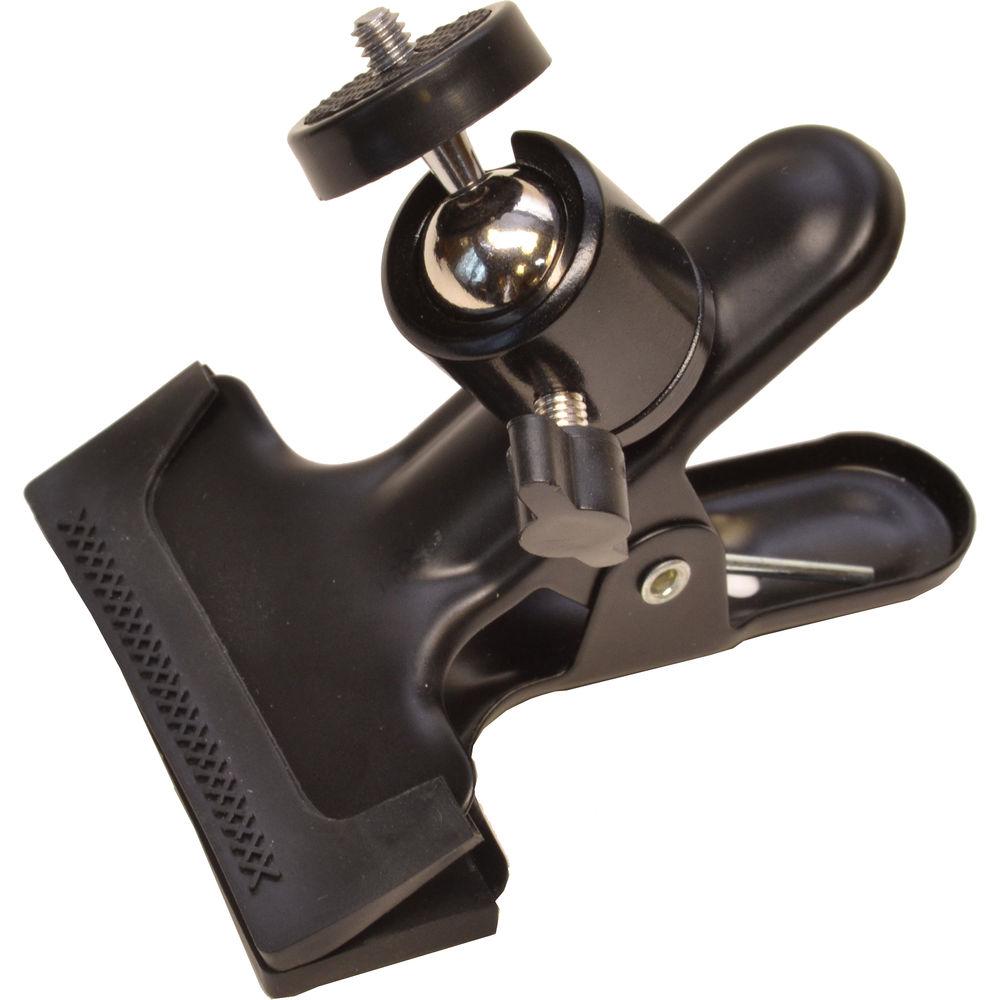

UPC: 741147770806 - Clip Clamp with Attached Swivel Ball Mount If you need to mount a lightweight on-camera light in an alternate location, use this Clip Clamp with Attached Swivel Ball Mount from Bescor to attach it to a C-stand, light stand, or surface such as the edge of a table. A swivel ball mount attached to the clip features a 1/4"-20 screw to mount your light. The clip jaws have a soft grip texture to protect and secure onto the mounting surface. UPC: 741147951069
In the Box Bundle Items LED-70 Dimmable 70W Video Light rqdxzvwxrzye Clip Clamp with Attached Swivel Ball Mount Table of Contents
|
Upload User Manual
Have you got an user manual for the Bescor LED-70 On-Camera Video Light with Swivel Ball Head Mounting Clamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LED-70 Dimmable 70W Video Light
| | | Color Temperature | 6500K | | Number of LEDs | 96 | | | | Battery Plate | 4 x AA | | DC Input Power | 6 VDC at 1.5 A | | Power Input Connector | Barrel | | Power Source | AC Adapter, External Battery | | | | Mount Type | Cold Shoe | | Dimensions | 4.6 x 1.6 x 4" / 11.7 x 4.1 x 10.2 cm | | Weight | 10 oz / 283 g (Including Battery) | | | | Box Dimensions (LxWxH) | 5.35 x 4.8 x 2.15" | - Clip Clamp with Attached Swivel Ball Mount
| Bottom Mount | 1 x Clamp Mount | | Top Mount | 1 x 1/4"-20 Male | | | | Box Dimensions (LxWxH) | 8.0 x 4.5 x 4.25" |
