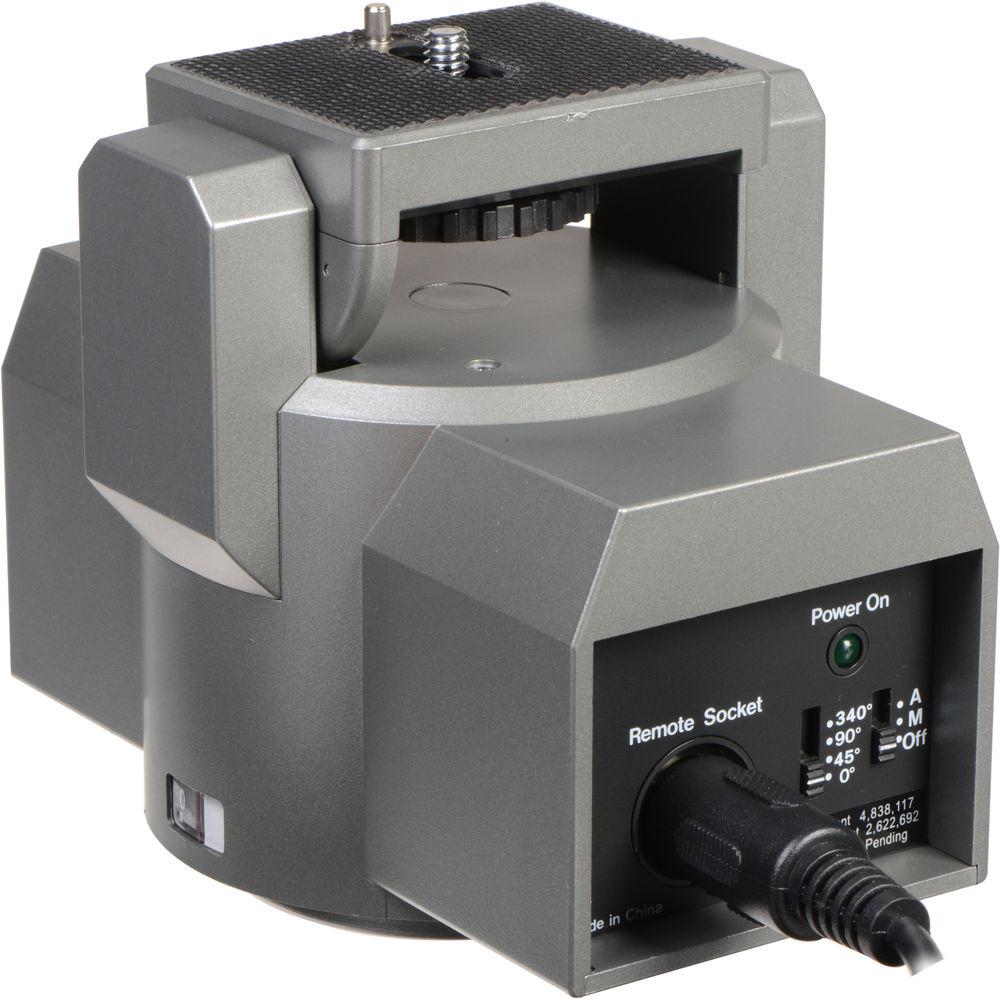

User Manual for Bescor MP-1AC Motorized Pan & Tilt Head Kit Click to enlarge the picture
Contents of the user manual for the Bescor MP-1AC Motorized Pan & Tilt
- Product category: Motorized Pan/Tilt Heads Bescor
- Brand: Bescor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bescor Motorized Pan/Tilt Heads
 |
User manual for the Bescor MP-1AC Motorized Pan & Tilt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bescor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bescor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bescor product will considerably shorten its lifespan!
|
Product description The Bescor MP-1AC Motorized Pan & Tilt Head Kit includes the MP-101 Motorized Pan & Tilt Head and PS-260 AC power supply, which delivers 6 VDC, 700 mA output and features 120-240 VAC worldwide compatibility.
The MP-101 attaches between a tripod and camera and enables you to pan and tilt the camera remotely using an included remote control. It supports up to 6 lb cameras and offers a 1/4"-20 camera mount screw and 1/4"-20 tripod mount thread.
The MP-101 features independent, adjustable-speed pan and tilt motors, and offers a max pan angle of +/-170° and max tilt angle of +/-15°. It also has an Auto Pan Mode that allows for continuous pan motion, as well as selectable end points of 45°, 90°, and 340° assignable via a selector switch. - MP-101 Motorized Pan & Tilt Head The Bescor MP-101 Motorized Pan & Tilt Head attaches between a tripod and camera and enables remote panning and tilting of the camera. Two independent motors smoothly operate horizontal and vertical motion at adjustable speeds. The head supports payloads up to 6 lb. The two mounting points are the 1/4"-20 tripod threads underneath and the 1/4"-20 camera mounting screw with registration pin on top. All tripods and cameras are compatible.
An Auto Pan Mode allows for continuous panning motion, and a switch selector lets you assign end points at 45°, 90°, or 340°. The maximum horizontal angle is ±170 degrees, and the maximum vertical angle is ±15 degrees. This head can be powered by four AA batteries, the Bescor PS-260 AC power supply, or a Bescor 90-645 external battery, all sold separately. -
- Enables panning and tilting of a camera remotely at adjustable speeds
- Attaches between a tripod and camera
- 1/4"-20 threads for tripod, 1/4"-20 screw mount for camera
- 6 lb payload
- Remote control included
UPC: 741147090010 - PS-260 AC Power Supply for MP-101 Motorized Pan Head The Bescor PS-260 AC Power Supply for MP-101 Motorized Pan Head features a 120-240VAC, 60/50Hz input and 6VDC, 700mA output. It can be used worldwide with an appropriate adapter, sold separately. UPC: 741147030153
In the Box Bundle Items MP-101 Motorized Pan & Tilt Head - Remote Control - for MP-101 Motorized Pan Head
PS-260 AC Power Supply for MP-101 Motorized Pan Head Table of Contents
|
Upload User Manual
Have you got an user manual for the Bescor MP-1AC Motorized Pan & Tilt Head Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MP-101 Motorized Pan & Tilt Head
| Power Source | Bescor PS-260 AC power supply, Bescor 90-645 external battery, or 4 x AA batteries
(All sold separately) | | Payload | 6 lb (2.7 kg) | | Mount Types | 1/4"-20 tripod mount thread, 1/4"-20 camera mount stud | | Dimensions | 5.8 x 4.5 x 4.0" (14.7 x 11.4 x 10.2 cm) | | Weight | 1.7 lb (0.8 kg) | | | | Box Dimensions (LxWxH) | 6.4 x 5.8 x 4.4" | - PS-260 AC Power Supply for MP-101 Motorized Pan Head
| Input | 120-240 VAC, 60/50 Hz | | Output | 6 VDC, 700 mA | | | | Box Dimensions (LxWxH) | 4.95 x 2.9 x 2.3" |
