Bescor MP-PRO Motorized Pan & Tilt

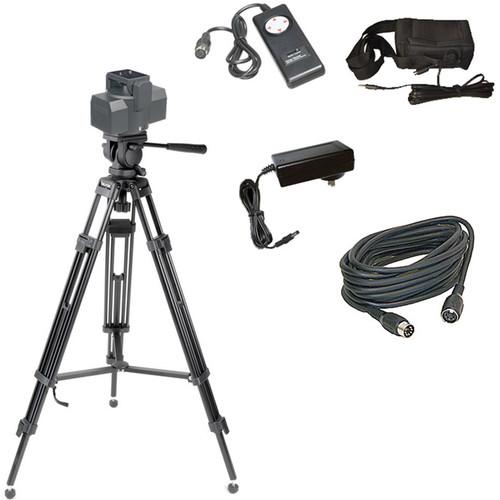

User Manual for Bescor MP-PRO Motorized Pan & Tilt Head Total Package Kit

• Product category: Motorized Pan/Tilt Heads Bescor
• Brand: Bescor
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Bescor Motorized Pan/Tilt Heads

Product description

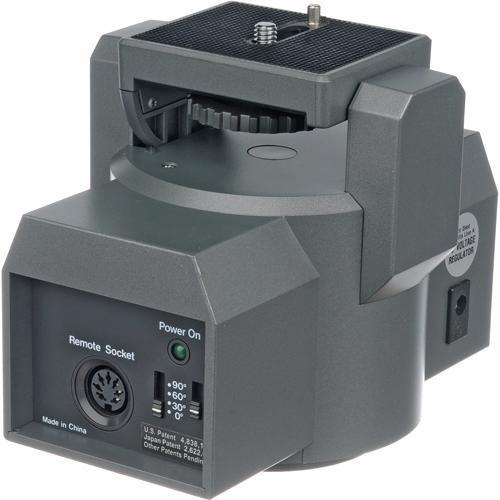

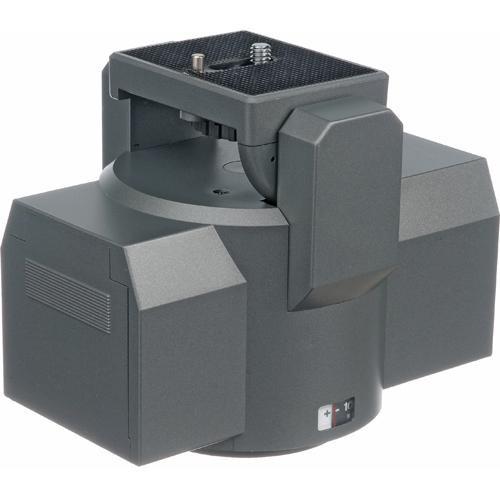

• MP-101 Motorized Pan & Tilt Head The Bescor MP-101 Motorized Pan & Tilt Head attaches between a tripod and camera and enables remote panning and tilting of the camera. Two independent motors smoothly operate horizontal and vertical motion at adjustable speeds. The head supports payloads up to 6 lb. The two mounting points are the 1/4"-20 tripod threads underneath and the 1/4"-20 camera mounting screw with registration pin on top. All tripods and cameras are compatible.

  An Auto Pan Mode allows for continuous panning motion, and a switch selector lets you assign end points at 45°, 90°, or 340°. The maximum horizontal angle is ±170 degrees, and the maximum vertical angle is ±15 degrees. This head can be powered by four AA batteries, the Bescor PS-260 AC power supply, or a Bescor 90-645 external battery, all sold separately.
  • • Enables panning and tilting of a camera remotely at adjustable speeds
    • Attaches between a tripod and camera
    • 1/4"-20 threads for tripod, 1/4"-20 screw mount for camera
    • 6 lb payload
    • Remote control included
  UPC: 741147090010

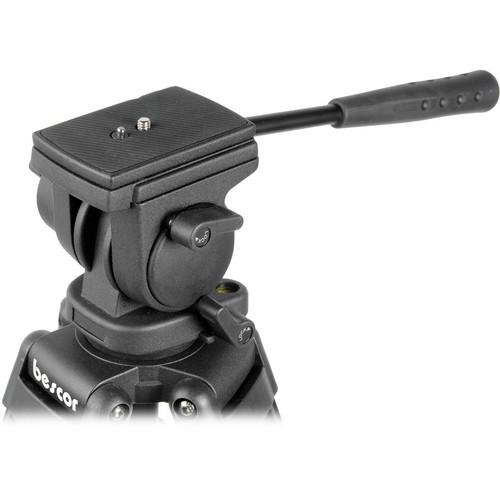

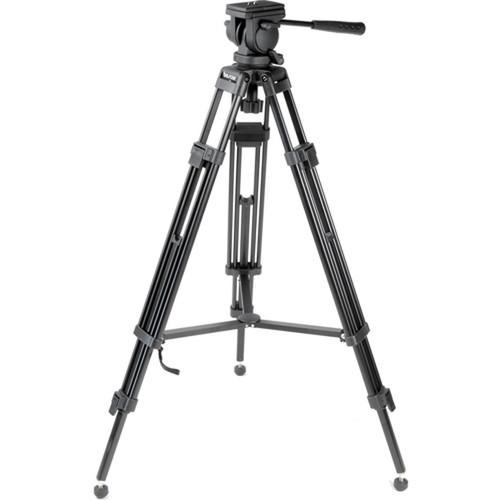

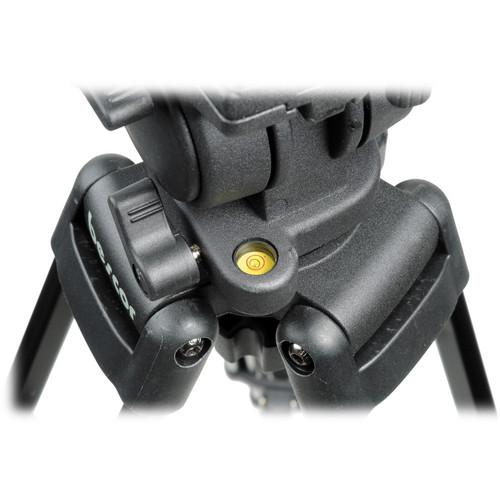

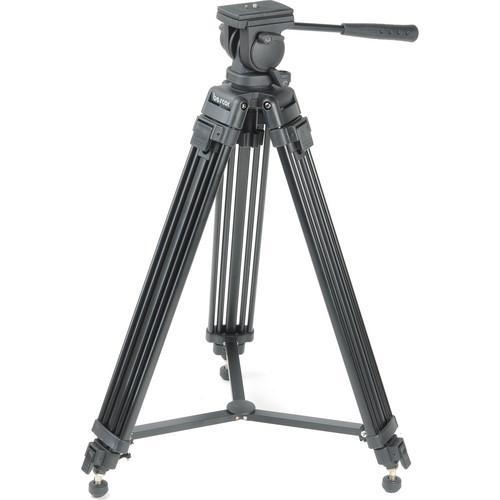

• TH-770 High Performance Tripod System The Bescor TH-770 is a high performance tripod system for mid-sized camcorders up to 15 lbs. It features lightweight portability and a camera plate with long travel. This kit comes with a tripod and head combo with a carry case.
  Mid-Level Spreader
  • This system comes with a mid-level spreader for support security on uneven surfaces.
  Case
  • This kit offers a carry case for portability.
  UPC: 741147760951

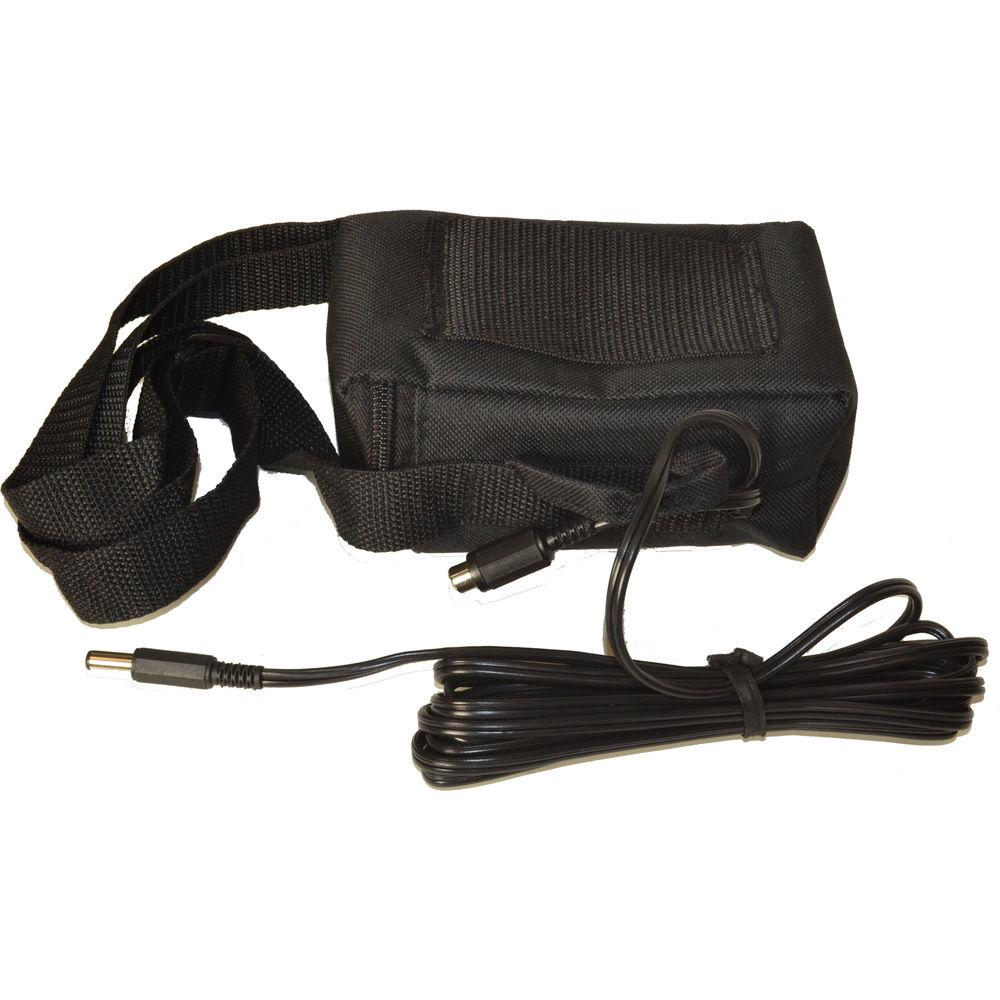

• 90-645 Extended External Battery The Bescor 90-645 Extended External Battery is a 6 V/4.5 A rechargeable lead acid battery for use with Bescor's LED-70 on-camera LED Light. The battery features 4 hours of run time.
  • 6 V/4.5 A rechargeable lead acid battery
  • For use with LED-70 / LED-60X / LED-95DK2 on-camera LED Light
  • 4 hours of run time
  UPC: 741147902108
• ATM-X Automatic Charger (650-mAh) The ATM-X is an automatic "smart" battery charger. Designed to automatically stop the charge cycle once the battery is fully charged. The ATM-X will charge Bescors compact 6V X series batteries.The ATM-X will charge all:
  • X batteries
  • XC batteries
  • XL batteries
  • XP batteries
  • XV batteries
  Auto Shut-Off
  • The ATM-X battery charger offers perfect maintenance charging. When the battery has reached ultimate charge status, the charger shuts off automatically.
  UPC: 741147030115
• RE-20 20' Extension Cord for MP-101 Pan Head Remote Control The Bescor RE-20 extension affords 20' (609.6 cm) of additional separation from the MP-101 remote pan head to its remote control. UPC: 741147090027

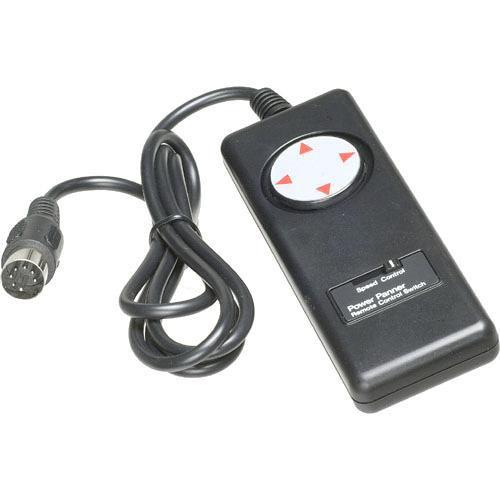

• Remote Control - for MP-101 Motorized Pan Head

• 90-Day Limited Warranty

• Tripod

• Mid-level Spreader

• Case

• Limited 90-Day Warranty

• 90 Day Limited Warranty

• 90 Day Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• MP-101 Motorized Pan & Tilt Head

  Power Source	Bescor PS-260 AC power supply, Bescor 90-645 external battery, or 4 x AA batteries (All sold separately)
  Payload	6 lb (2.7 kg)
  Mount Types	1/4"-20 tripod mount thread, 1/4"-20 camera mount stud
  Dimensions	5.8 x 4.5 x 4.0" (14.7 x 11.4 x 10.2 cm)
  Weight	1.7 lb (0.8 kg)

  Box Dimensions (LxWxH)	6.4 x 5.8 x 4.4"

• TH-770 High Performance Tripod System

  Maximum Height	5' (152cm)
  Maximum Height w/o Column Extended	N/A
  Minimum Height	30" (76.5cm)
  Folded Length	Not Specified by Manufacturer
  Load Capacity	15 lbs (7kg)
  Leg Sections	2
  Leg Lock Type	Not Specified by Manufacturer
  Independent Leg Spread	40" (102cm)
  Center Column Sections	Not Specified by Manufacturer
  Center Column Type	Not Specified by Manufacturer
  Center Brace	Mid-Level
  Spiked Feet	Not Specified by Manufacturer
  Head Type	Fluid
  Head Mount Thread Size	Not Specified by Manufacturer
  Weight	7 lbs (3.2kg)

  Box Dimensions (LxWxH)	29.8 x 6.0 x 5.5"

• 90-645 Extended External Battery

  Dimensions	3 x 4.25 x 2.2" / 7.62 x 10.8 x 5.6 cm
  Weight	1.6 oz / 45 g

  Box Dimensions (LxWxH)	6.7 x 6.2 x 4.4"

• ATM-X Automatic Charger (650-mAh)

  AC Input Power	120 VAC, 60 Hz
  Number of Battery Bays	1
  Dimensions	2 x 3 x 1.5" / 50 x 76 x 38 mm
  Weight	0.6 lb / 272 g

  Box Dimensions (LxWxH)	5.2 x 4.9 x 3.0"

• RE-20 20' Extension Cord for MP-101 Pan Head Remote Control

  Box Dimensions (LxWxH)	5.6 x 5.05 x 2.1"
