Product description

• XT96 5600K On-Camera LED Light The Bescor XT96 5600K On-Camera Light is an on-camera, dimmable, daylight-balanced 5600K LED light designed to combine bright output with a compact form factor. The compact and lightweight light features 10-100% dimming.

  Powered by either one NP-F battery or an optional AC power adapter, the unit's 96 LED bulbs produce a bright beam with a rating of 687 lux at 3.2 feet. Suitable for both video and DSLR cameras, the XT96 includes a clear filter for softening glare, a blue filter to further cool the light to 7500K, and an amber correction filter to warm the light to 3200K for shooting indoors.
  LED Technology
  • LED technology offers lamp longevity, low power consumption, daylight-balanced illumination, and never gets hot to the touch.
  DC or AC Power
  • This light utilizes one NP-F battery and can also run off AC power with an optional 12 VDC/2A adapter.
  Wide Array

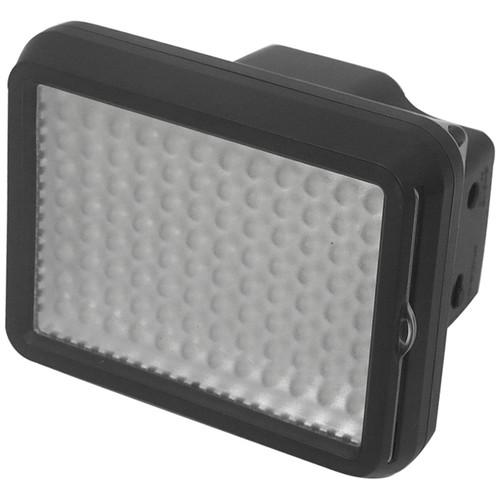

  • The XT96 offers 96 individual LEDs for a wide beam.
  Dimmable
  • Dimmable from 100 to 10%.
  Amber and Frosted Filters

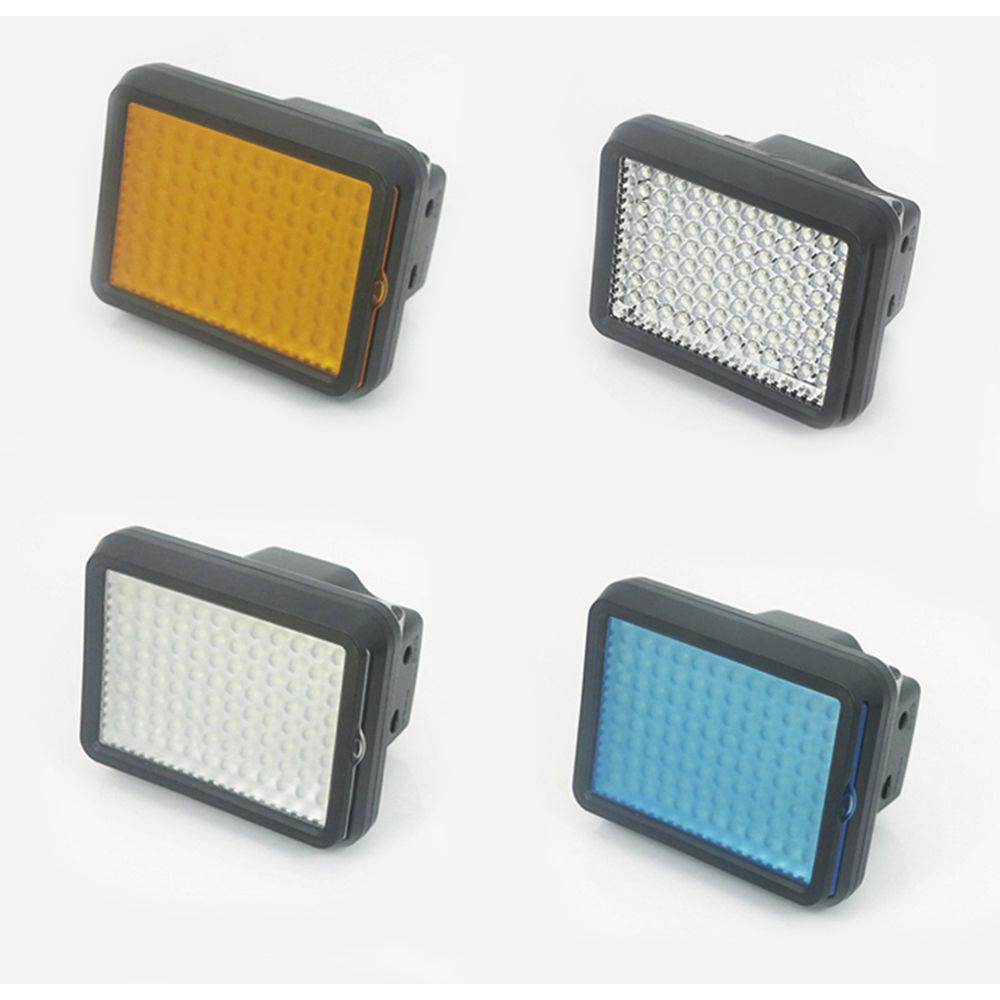

  • The included blue 7500K filter helps cool the image for outdoor shooting, the 3200K amber filter provides a softer, more natural lighting effect, and the clear filter helps smooth and even out the light's tone while reducing glare. Filters are easily removed from the unit's housing by sliding them in and out of the built-in filter holder.
  UPC: 741147951205

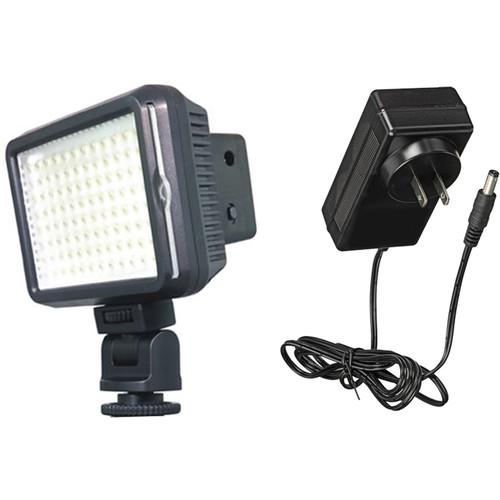

• AC12V2 AC Power Adapter with Power Cord (12V, 2A) Use this AC12V2 AC Power Adapter with Power Cord as a spare or replacement to power select Bescor lights. The adapter features a 12 VAC, 2A 2.1mm barrel output and the power cord is attached to the power module.
  Compatibility
  • The AC12V2 is compatible with the FP180, LED125, LED144, Specter, XT96, and XT160 light models
  UPC: 741147302618

• Clear Filter

• Amber Filter

• Blue Filter

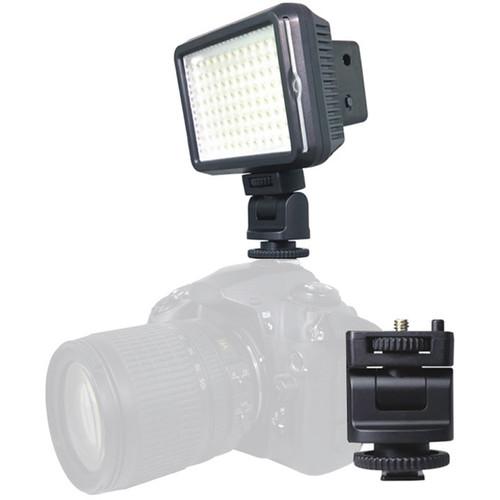

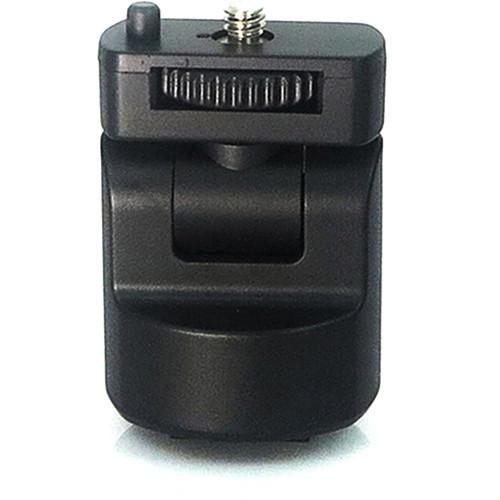

• Articulating Shoe Mount

• Limited 90-Day Warranty

• Limited 90-Day Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• XT96 5600K On-Camera LED Light

  Color Temperature	5600K
  Color Temperature with Included Filter	3200K
  Photometrics	5600K: 63.8 fc / 687 lux at 3.28' / 1 m 3200K: 44.6 fc / 480 lux at 3.28' / 1 m 7500K: 38.6 fc / 415 lux at 3.28' / 1 m 3200K and 7500K with Included Filters
  Dimming	Yes, 10 to 100%
  Number of LEDs	96 (Daylight)

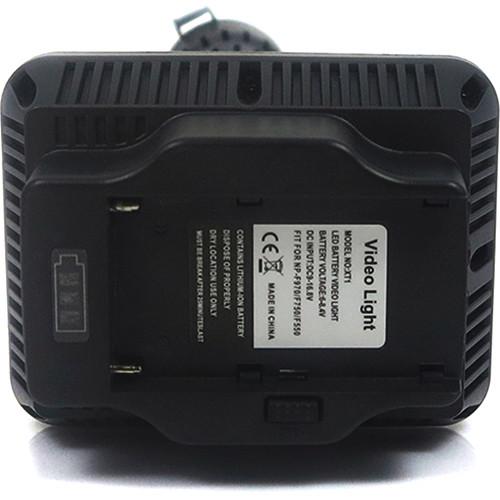

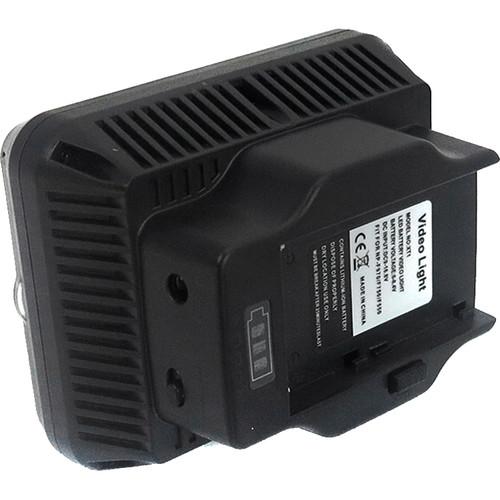

  Battery Plate	1 x Sony L-Series (NP-F)
  Power Input Connector	Barrel / Coax
  Power Source	AC Adapter, External Battery

  Mount Type	1/4"-20 Female
  Dimensions	4.4 x 3.4 x 2.5" / 11.2 x 8.6 x 6.3 cm 4.4 x 5.6 x 2.5" / 11.2 x 14.2 x 6.3 cm (Including Shoe Mount)
  Weight	6.4 oz / 181 g

  Box Dimensions (LxWxH)	5.4 x 4.1 x 4.0"

• AC12V2 AC Power Adapter with Power Cord (12V, 2A)

  Compatibility	FP180, LED125, LED144, Specter, XT96, and XT160
  Power	12 V, 2 A
  Plug	2.1 mm Barrel
  Weight	Not Supplied by Manufacturer

  Box Dimensions (LxWxH)	4.5 x 2.9 x 2.1"
