Product description

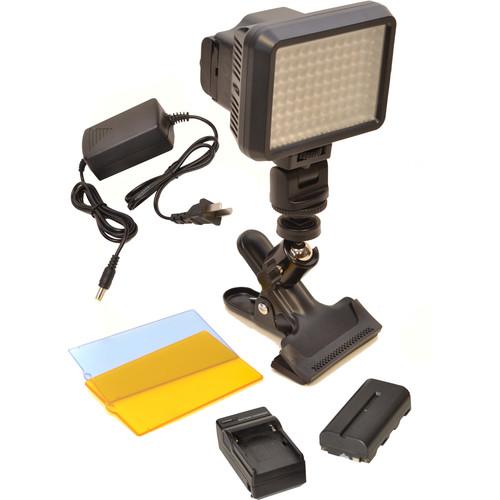

If you need a bright, compact on-camera light for your production, this XT96 On-Camera Light Kit from Bescor provides a 96 LED XT96 on-camera light, a 7.4V 2200mAh NP-F-type battery, a battery charger with an integrated plug, an AC power adapter, and a clip clamp with ball mount. The XT96 features 5600K daylight-balanced light, 10-100% dimming, a shoe mount, and three filters. The adapter provides 12 VAC, 2A power when mains power is available, and the NP-F battery can be utilized when in the field. Use the clip clamp to mount the light on a table, stand, or other surface.
  • XT96 5600K On-Camera LED Light The Bescor XT96 5600K On-Camera Light is an on-camera, dimmable, daylight-balanced 5600K LED light designed to combine bright output with a compact form factor. The compact and lightweight light features 10-100% dimming.

    Powered by either one NP-F battery or an optional AC power adapter, the unit's 96 LED bulbs produce a bright beam with a rating of 687 lux at 3.2 feet. Suitable for both video and DSLR cameras, the XT96 includes a clear filter for softening glare, a blue filter to further cool the light to 7500K, and an amber correction filter to warm the light to 3200K for shooting indoors.
      LED Technology
    • LED technology offers lamp longevity, low power consumption, daylight-balanced illumination, and never gets hot to the touch.
      DC or AC Power
    • This light utilizes one NP-F battery and can also run off AC power with an optional 12 VDC/2A adapter.
      Wide Array
    • The XT96 offers 96 individual LEDs for a wide beam.
      Dimmable
    • Dimmable from 100 to 10%.
      Amber and Frosted Filters
    • The included blue 7500K filter helps cool the image for outdoor shooting, the 3200K amber filter provides a softer, more natural lighting effect, and the clear filter helps smooth and even out the light's tone while reducing glare. Filters are easily removed from the unit's housing by sliding them in and out of the built-in filter holder.
    UPC: 741147951205
  • NPF-Style Non-Decoded 7.4V 2200mAh Battery & Universal 18W Automatic Battery Charger Kit This Bescor NPF-Style Non-Decoded 7.4V 2200mAh Battery & Universal 18W Automatic Battery Charger Kit consists of a battery and a charger. The battery is well-suited for battery-powered light fixtures and monitors that support being powered by NPF form factor batteries. However, it is non-decoded, which means it will not power a camera that requires communication with a Sony-branded battery. UPC: 741147950666
  • Clip Clamp with Attached Swivel Ball Mount If you need to mount a lightweight on-camera light in an alternate location, use this Clip Clamp with Attached Swivel Ball Mount from Bescor to attach it to a C-stand, light stand, or surface such as the edge of a table. A swivel ball mount attached to the clip features a 1/4"-20 screw to mount your light. The clip jaws have a soft grip texture to protect and secure onto the mounting surface. UPC: 741147951069
  • AC12V2 AC Power Adapter with Power Cord (12V, 2A) Use this AC12V2 AC Power Adapter with Power Cord as a spare or replacement to power select Bescor lights. The adapter features a 12 VAC, 2A 2.1mm barrel output and the power cord is attached to the power module.
      Compatibility
    • The AC12V2 is compatible with the FP180, LED125, LED144, Specter, XT96, and XT160 light models
    UPC: 741147302618
In the Box Bundle Items XT96 5600K On-Camera LED Light ubuefrfvats
  • Clear Filter
  • Amber Filter
  • Blue Filter
  • Articulating Shoe Mount
  • Limited 90-Day Warranty
NPF-Style Non-Decoded 7.4V 2200mAh Battery & Universal 18W Automatic Battery Charger Kit
  • Automatic Charger
  • Limited 90-Day Warranty
Clip Clamp with Attached Swivel Ball Mount
  • Limited 90-Day Warranty
AC12V2 AC Power Adapter with Power Cord (12V, 2A)
  • Limited 90-Day Warranty
Table of Contents




Upload User Manual

Have you got an user manual for the Bescor XT96 On-Camera Light Kit with Battery, Charger, AC Adapter, and Clamp in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • XT96 5600K On-Camera LED Light
    Color Temperature 5600K
    Color Temperature with Included Filter 3200K
    Photometrics 5600K:
    63.8 fc / 687 lux at 3.28' / 1 m
    3200K:
    44.6 fc / 480 lux at 3.28' / 1 m
    7500K:
    38.6 fc / 415 lux at 3.28' / 1 m 3200K and 7500K with Included Filters
    Dimming Yes, 10 to 100%
    Number of LEDs 96 (Daylight)
    Battery Plate 1 x Sony L-Series (NP-F)
    Power Input Connector Barrel / Coax
    Power Source AC Adapter, External Battery
    Mount Type 1/4"-20 Female
    Dimensions 4.4 x 3.4 x 2.5" / 11.2 x 8.6 x 6.3 cm
    4.4 x 5.6 x 2.5" / 11.2 x 14.2 x 6.3 cm (Including Shoe Mount)
    Weight 6.4 oz / 181 g
    Box Dimensions (LxWxH) 5.4 x 4.1 x 4.0"
  • NPF-Style Non-Decoded 7.4V 2200mAh Battery & Universal 18W Automatic Battery Charger Kit
    Mount / Series Type Sony L-Series
    Chemistry Lithium-Ion
    Capacity (Wh) 16.28 Wh
    Amp-Hours 2200 mAh
    Output Voltage 7.4 VDC
    Box Dimensions (LxWxH) 5.3 x 4.8 x 2.95"
  • Clip Clamp with Attached Swivel Ball Mount
    Bottom Mount 1 x Clamp Mount
    Top Mount 1 x 1/4"-20 Male
    Box Dimensions (LxWxH) 8.0 x 4.5 x 4.25"
  • AC12V2 AC Power Adapter with Power Cord (12V, 2A)
    Compatibility FP180, LED125, LED144, Specter, XT96, and XT160
    Power 12 V, 2 A
    Plug 2.1 mm Barrel
    Weight Not Supplied by Manufacturer
    Box Dimensions (LxWxH) 4.5 x 2.9 x 2.1"
