User Manual for Bescor XT96 On-Camera Light Kit with Battery, Charger, and AC Adapter Click to enlarge the picture
Contents of the user manual for the Bescor XT96 On-Camera Light Kit with
- Product category: On Camera Lights Bescor
- Brand: Bescor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bescor On Camera Lights
|
User manual for the Bescor XT96 On-Camera Light Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bescor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bescor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bescor product will considerably shorten its lifespan!
|

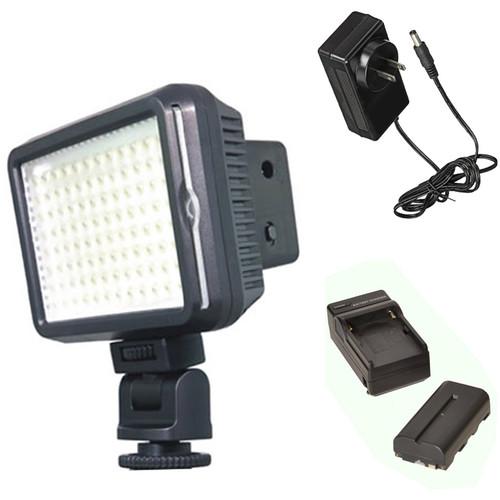

Product description If you need a bright, compact on-camera light for your production, this XT96 On-Camera Light Kit from Bescor provides a 96 LED XT96 on-camera light, a 7.4V 2200mAh NP-F-type battery, a battery charger with an integrated plug, and an AC power adapter. The XT96 features 5600K daylight-balanced light, 10-100% dimming, a shoe mount, and three filters. The adapter provides 12 VAC, 2A power when mains power is available, and the NP-F battery can be utilized when in the field. - XT96 5600K On-Camera LED Light The Bescor XT96 5600K On-Camera Light is an on-camera, dimmable, daylight-balanced 5600K LED light designed to combine bright output with a compact form factor. The compact and lightweight light features 10-100% dimming.
Powered by either one NP-F battery or an optional AC power adapter, the unit's 96 LED bulbs produce a bright beam with a rating of 687 lux at 3.2 feet. Suitable for both video and DSLR cameras, the XT96 includes a clear filter for softening glare, a blue filter to further cool the light to 7500K, and an amber correction filter to warm the light to 3200K for shooting indoors. - LED Technology
- LED technology offers lamp longevity, low power consumption, daylight-balanced illumination, and never gets hot to the touch.
- DC or AC Power
- This light utilizes one NP-F battery and can also run off AC power with an optional 12 VDC/2A adapter.
- Wide Array
- The XT96 offers 96 individual LEDs for a wide beam.
- Dimmable
- Dimmable from 100 to 10%.
- Amber and Frosted Filters
- The included blue 7500K filter helps cool the image for outdoor shooting, the 3200K amber filter provides a softer, more natural lighting effect, and the clear filter helps smooth and even out the light's tone while reducing glare. Filters are easily removed from the unit's housing by sliding them in and out of the built-in filter holder.
UPC: 741147951205 - AC12V2 AC Power Adapter with Power Cord (12V, 2A) Use this AC12V2 AC Power Adapter with Power Cord as a spare or replacement to power select Bescor lights. The adapter features a 12 VAC, 2A 2.1mm barrel output and the power cord is attached to the power module.
- Compatibility
- The AC12V2 is compatible with the FP180, LED125, LED144, Specter, XT96, and XT160 light models
UPC: 741147302618 - NPF-Style Non-Decoded 7.4V 2200mAh Battery & Universal 18W Automatic Battery Charger Kit This Bescor NPF-Style Non-Decoded 7.4V 2200mAh Battery & Universal 18W Automatic Battery Charger Kit consists of a battery and a charger. The battery is well-suited for battery-powered light fixtures and monitors that support being powered by NPF form factor batteries. However, it is non-decoded, which means it will not power a camera that requires communication with a Sony-branded battery. UPC: 741147950666
In the Box Bundle Items XT96 5600K On-Camera LED Light vesatqufxbdusdtyyvvq AC12V2 AC Power Adapter with Power Cord (12V, 2A) NPF-Style Non-Decoded 7.4V 2200mAh Battery & Universal 18W Automatic Battery Charger Kit Table of Contents
|
Upload User Manual
Have you got an user manual for the Bescor XT96 On-Camera Light Kit with Battery, Charger, and AC Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - XT96 5600K On-Camera LED Light
| | | Color Temperature | 5600K | | Color Temperature with Included Filter | 3200K | | Photometrics | 5600K:
63.8 fc / 687 lux at 3.28' / 1 m
3200K:
44.6 fc / 480 lux at 3.28' / 1 m
7500K:
38.6 fc / 415 lux at 3.28' / 1 m 3200K and 7500K with Included Filters | | Dimming | Yes, 10 to 100% | | Number of LEDs | 96 (Daylight) | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | Power Input Connector | Barrel / Coax | | Power Source | AC Adapter, External Battery | | | | Mount Type | 1/4"-20 Female | | Dimensions | 4.4 x 3.4 x 2.5" / 11.2 x 8.6 x 6.3 cm
4.4 x 5.6 x 2.5" / 11.2 x 14.2 x 6.3 cm (Including Shoe Mount) | | Weight | 6.4 oz / 181 g | | | | Box Dimensions (LxWxH) | 5.4 x 4.1 x 4.0" | - AC12V2 AC Power Adapter with Power Cord (12V, 2A)
| Compatibility | FP180, LED125, LED144, Specter, XT96, and XT160 | | Power | 12 V, 2 A | | Plug | 2.1 mm Barrel | | Weight | Not Supplied by Manufacturer | | | | Box Dimensions (LxWxH) | 4.5 x 2.9 x 2.1" | - NPF-Style Non-Decoded 7.4V 2200mAh Battery & Universal 18W Automatic Battery Charger Kit
| Mount / Series Type | Sony L-Series | | Chemistry | Lithium-Ion | | Capacity (Wh) | 16.28 Wh | | Amp-Hours | 2200 mAh | | Output Voltage | 7.4 VDC | | | | Box Dimensions (LxWxH) | 5.3 x 4.8 x 2.95" |
