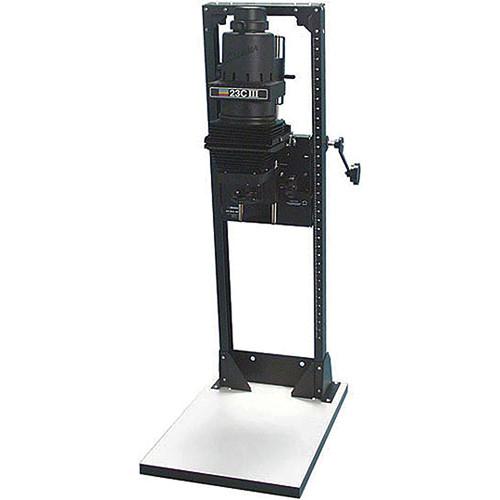

User Manual for Beseler 23CIII-XL Condenser Enlarger Click to enlarge the picture
Contents of the user manual for the Beseler 23CIII-XL Condenser Enlarger
- Product category: Enlargers Beseler
- Brand: Beseler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Beseler Enlargers
|
User manual for the Beseler 23CIII-XL Condenser Enlarger contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Beseler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Beseler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Beseler product will considerably shorten its lifespan!
|
Product description The American made Beseler 23CIII-XL Condenser Enlarger is one of the world's most popular medium format enlargers. Well over half a million have been purchased since it first became available in 1955. Many have been in near continuous use by schools, government agencies and businesses, and countless others have been handed down from father to son, to granddaughter, like the well-loved family possession that it has become. The high performance Condenser Lightsource utilizes Beseler's patented "Cone-of Light" variable condenser system to adjust the position of the over-sized 5-1/2" optical glass condensers to maximize the illumination for every format 35mm through 6x9cm, yielding exceptionally short exposure times, a cooler film stage and less negative buckling than with conventional condenser heads. The 23Clll-XL features interchangeable lightsources. The Condenser lamphouse supplied with this model is interchangeable with the Dichro Colorhead (No.8132-02) and with the Variable Contrast Lightsource (No.8134-02). The extraordinarily rigid, extra-long twin-girder construction of the 23Clll-XL helps to reduce transient vibrations, which can detract from image sharpness. A lamp is not included with the enlarger. Note: This item is ONLY wired for 230V, European voltage. Does not include lens, lensboard and negative carrier - Quality die-cast construction
- Extra long girder for bigger enlargements on the oversized baseboard
- Robust, quadra-braced twin-column construction for twice the support
- Lens stage tilts for special effects and distortion correction
- Projection assembly tilts up to 90°
- Positive rack-and-pinion elevation system with lock with convenient left or right focusing controls
- Accepts sturdy, spring-loaded, aluminum alloy negative carriers that can be revolved for precise image positioning, as well as accepting the Beseler Rapid-shift 35mm and 120 Nega-trans film carriers
- Snap-in, quick change metal lens boards, with a swing-out below-the-lens accessory holder
In the Box Beseler 23CIII-XL Condenser Enlarger (230V) 23CIII-XL Twin-Girder Chassis Condenser Lamphouse Projection Assembly Laminated White Baseboard Lamp (PH-140) Below The Lens Accessory Holder with Red Safety Filter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Beseler 23CIII-XL Condenser Enlarger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBeseler 23CIII-XL Specs | Maximum Film Size | 6 x 9 (2-1/4 x 3-1/4") | | Light Source | Condenser lamphouse | | Maximum Height | 57" (1448mm) | | Modular Head System | Accepts other 23CIII heads
(23CII heads are not compatible with the 23CIII system)
Condenser Lamphouse, 120 Volt (No.8130)
Condenser Lamphouse, 230 Volt (No.8131)
Dichro Lamphouse, 120 Volt (No.8132)
Dichro Lamphouse, 230 Volt (No.8133)
Variable Contrast Lamphouse, 120V (No.8134) | | Baseboard Size | H=1.25" (32mm)
W=16" (406mm)
D=25.5" (648mm) | | Maximum Print Size On Baseboard | Larger than 16 x 20" (+ 17.5 x 22") | | Filter Drawer | Included (accepts 5.5 x 5.5" variable contrast, or color printing filters) | | Replacement Lamp | Screw mount PH-140 (75w/120v)
Older models require bayonet mount PH-111A bulb | | Reversible Column | No | | Wall Projection | Yes, no accessories required | | Tilts | Yes (left/right shift) | | Voltage | 120V | | Voltage Stabilized | No | | Weight | 60 lbs (27kg) | | Specialties | All 23C3-XL enlargers are factory aligned using the most up-to-date laser technologies | | Accessories | Dust Cover (No.8047), Alignment Tool (No.8139), Replacement Focusing Knob with screw (No.8039), Heat Absorbing Glass (No.8042), Red Safety Filter (No.8040) | | | | Package Weight | 51.05 lb | | Box Dimensions (LxWxH) | 17.4 x 14.6 x 14.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
