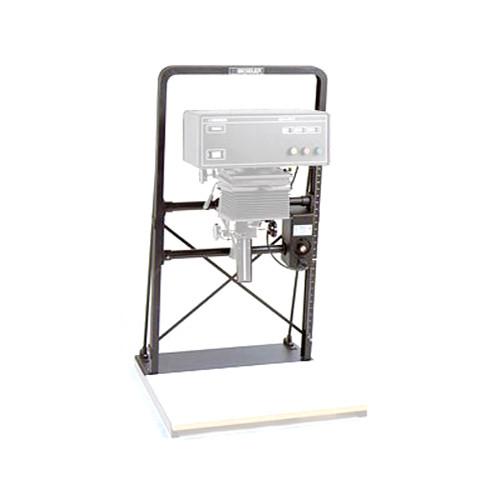

User Manual for Beseler 45MXT Enlarger Click to enlarge the picture
Contents of the user manual for the Beseler 45MXT Enlarger
- Product category: Enlargers Beseler
- Brand: Beseler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Beseler Enlargers
|
User manual for the Beseler 45MXT Enlarger contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Beseler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Beseler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Beseler product will considerably shorten its lifespan!
|
Product description The Beseler 45MXT is the latest in a series of 45M enlargers that Beseler has been manufacturing and continuously improving for more than half a century. The triangular truss reinforced, twin-girder frame provides a rock-steady foundation for this classic enlarging system, enabling it to produce tack-sharp prints from 35mm film larger than 16 x 20" on the baseboard (+ 17.5 x 22"), up to 25.5 x 38.5" on an Adjus-Table and even larger images via wall projection. A neoprene light seal in the upper negative stage virtually eliminate stray light leakage in the darkroom. From the onset, the 45MXT has always been a modular system, so virtually every component and accessory that fits the current enlarger will also fit every 45M enlarger manufactured since 1953. Thus the long term retained value of every Beseler 45M enlarger is enhanced by its non-obsolescence design. Note: Does not include light source, lens, lensboard & negative carrier - Rugged twin girder frame with triangular truss reinforcement
- The 45MXT chassis can be configured in a variety of different modes. It accommodates the Condenser Light Source (No.8123/230v), the 45S Dual-Dichro Colorhead (No.8279/230v) and the 8 x 10" Coldlight Conversion Kit (No.8350
- The high performance 45M Condenser Lightsource utilizes Beseler's patented "Cone-of Light" variable condenser system to adjust the position of the over-sized 6-1/2" optical glass condensers to maximize the illumination for every film format 35mm through 4 x 5", yielding exceptionally short exposure times, a cooler film stage and less negative buckling than with conventional condenser heads
- Motorized "Up/Down" switch with Micro Adjustment control on chassis
- Perspective adjustment: Projection assembly swivels front-rear
- Lens stage tilts left-right
- Accepts 3 lens all metal turret or individual snap-in metal lensboards
In the Box Beseler 45MXT Enlarger (Chassis, 230V) Motorized Chassis Elevation with Manual Micro-Adjustment Left & Right Hand Focusing Below-the-lens Accessory Holder One-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Beseler 45MXT Enlarger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBeseler 45MXT Specs | Maximum Film Size | Up to 4 x 5"
Up to 8 x 10" with 810 Coldlight kit (No.8350) | | Light Source | 1) Condenser Lightsource (No.8121/120v)(No.8123/230v)
2) Dichro 45S Colorhead (No.8278/120v)(No.8279/230v)
3) 8x10" Coldlight Conversion Kit (No.8350) | | Maximum Height | With Condenser Lightsource: (No.8121 or 8123) 571/2" (146cm)
With Dichro 45S Colorhead: (No.8278 or 8279) 54-1/4" (138 Cm)
With 8x10" Coldlight Head (No.8350) 58" (147mm) | | Baseboard Size | Laminated 20.3 x 25.5" | | Maximum Print Size On Baseboard | >16 x 20" (+ 17.5 x 22") | | Filter Drawer | Only in Condenser Head (accepts 6 x 6" variable contrast or color printing filters) | | Replacement Lamp | For condenser head: PH 212 (150w)
For Dichro 45S: EVW bulb (250w/82v)
For 8 x 10" Coldlight: 2 coated lamps (No.10-52720) + 2 uncoated lamps (No.10-625-30-40) | | Reversible Column | No | | Wall Projection | Yes, with accessory Wall Projection Bracket (No.8128) | | Tilts | Yes | | Voltage | 120V (No.8227) 230V (No.8221) | | Voltage Stabilized | 45S Head: Yes
Condenser Head: No
810 Coldlight(No. 8235): Yes | | Weight | Chassis: 56 lbs (25.4kg)
Baseboard: 21 lbs (9.5kg) (not included) | | Specialties | Sturdy heavy gauge steel enlarging table for the 45M series. Drop-top design permits the standard MXT baseboard (No.8232) to be lowered into a series of slots within the frame of the Adjus-Table. The lower the baseboard, the greater the magnification, up to 30x with 50mm lens and up to 11x with 150mm lens. Maximum full frame print size is 24 x36". In addition, Wall Mount Kit (No.8239), attaches 45MXT chassis to wall for extra rigidity with the baseboard, for extra large printing, or over table for applications where a baseboard isn't required. Also includes upper chassis support bracket to secure to wall for maximum system rigidity. Requires user installation. | | Modular Head System | See "Light Sources" above | | Lens Mounting System | Individual Lensboards:
Lenses with 39mm rear thread size:
Most 50mm lenses can be mounted on (No.8021) lensboards.
Most 75-80-90-105mm lenses can be mounted on (No.8023) lensboards.
Most 135-150mm lenses can be mounted on (No.8029) lensboards.
Most 150mm lenses with 50mm rear thread size can be mounted on (No.8037) lensboards.Other lensboards are available to accomodate virtually every lens.
3-Lens Turret (No.8225):
Most 35-150mm lenses with 39mm rear thread size screw directly into the Turret without an adapter. Lens adapters are available for other lenses. NOTE: If in doubt about mounting a specific lens onto the Turret, please call store to learn which lens adapter is required, if any. | | Accessories | Wall/Table Mount (No.8239), Adjust-Table (No.8540), Wall Projection Bracket (No.8128), Lens Stage Conversion Kit (No.8226) (for older 45 series enlargers prior to MXT to accept 3 lens turret. Offers improved alignment and adjustable below the lens filter holder. Takes 4 x 4" lensboards), Bilateral Alignment Tool (No.8139). |
