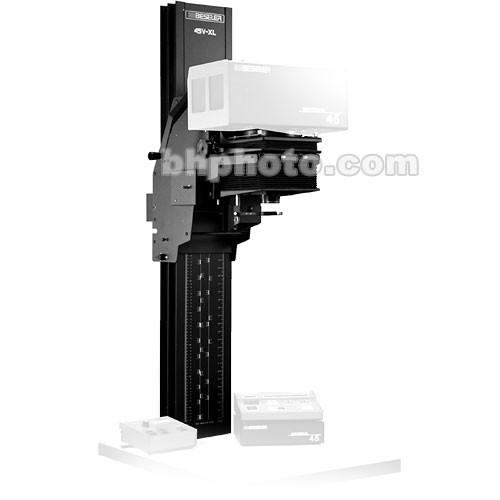

User Manual for Beseler 45V-XL Enlarger - Chassis Only Click to enlarge the picture
Contents of the user manual for the Beseler 45V-XL Enlarger - Chassis Only
- Product category: Enlargers Beseler
- Brand: Beseler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Beseler Enlargers
|
User manual for the Beseler 45V-XL Enlarger - Chassis Only contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Beseler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Beseler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Beseler product will considerably shorten its lifespan!
|
Product description The Beseler 45V-XL is the finest enlarger that Beseler has ever made. It is a solid, reliable, and functionally superb productivity tool. All operating controls are right where they should be, resulting in less wasted time and effort. Its simple, well thought out design, meticulous fabrication from the best materials, precision assembly, and attention paid to small details such as final step laser alignment by a skilled technician, assures that it will always be a pleasure to work with a Beseler 45V-XL enlarger. The massive true vertical column, along with a perfectly aligned projection assembly, film stage and lens stage, results in an image in which the center and all four corners are in simultaneous sharp focus and in which the center of the projected image does not move, irrespective of the image magnification. The center remains stationary, even while increasing/decreasing the size of the projected image, so it is never necessary to move the easel in order to recenter the image from wallet size through larger than 24 x36" on the baseboard. In terms of illumination, the 45V-XL accommodates the 45M Condenser Lightsource (8121), the Dichro 45S Colorhead (8278), and the 810 Coldlight Conversion Kit (8350). It can even be purchased with pre-installed or retrofitted with baseboard controlled, motorized Power Elevation and Power Focus modules. The high performance 45M Condenser Lightsource for the 45V utilizes Beseler's patented "Cone-of Light" variable condenser system to adjust the position of the over-sized 6-1/2" optical glass condensers to maximize the illumination for every format 35mm through 4 x 5", yielding exceptionally short exposure times, a cooler film stage and less negative buckling than with conventional condenser heads. Note: Does not include light source, lens, lensboard & negative carrier - The "V" in the product name is an acronym for Vertical, but it could also be indicative of its Versatility. It accepts three Beseler light sources, more than a dozen glass and glassless negative carriers, a host of lensboards, lens mounts, a three lens turret and a plethora of assorted accessories, plus accommodating a variety of third party condenser heads, colorheads, coldlights, V-C lightsources, film carriers, lens plates, etc. The 45V is Versatile.
- Extra-long, twin E-channel, centerbraced vertical column
- Manual "UP/Down" control or via flexible shafts supplied with enlarger. Motorized chassis available(No.8545-02), will come with factory installed Power elevation module(No.8567)
Power Focus Module(No.8569)
45V System Controller(No.8568)
1 Please Note: Chasiss still requires the use of either Baseboard(No.8561) or Wall/Table Mount(No.8562). close - Can be either single or turret mounted. Turret system may require use of turret lens adapter 2
Please Note: See below under "Specifications" close UPC: 094653985456 In the Box Beseler 45V-XL Enlarger - Chassis Only Flexible 12" Focus Adjustment Shaft Calibrated magnification scale Requires use of either Baseboard(Catalog #8561) or Wall/Table Mount(Catalog #8562). Requires user installation. Flexible 30" Elevation Adjustment Shaft Adjustable counterweight set Under-lens filter holder Red Safety Filter Table of Contents
|
Upload User Manual
Have you got an user manual for the Beseler 45V-XL Enlarger - Chassis Only in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBeseler 45V-XL Specs | Maximum Film Size | 4 x 5" with Condenser Lightsource (No.8121) or with 45S Colorhead (No.8278)
8 x 10" with Coldlight Conversion Kit (No.8350) | | Light Source | 45M Condenser Lightsource, 120V (No.8121) 45M Condenser Lightsource, 230V (No.8123) Dichro 45S Colorhead, 120V (No.8278)
Dichro 45S Colorhead, 230V (No.8279)
8 x 10" Coldlight Conversion Kit, 120V (No.8350)
All of which can be installed either directly or via appropriate adapters. | | Maximum Height | With Beseler Condenser Lamphouse (No.8121) 64" (1625mm) With Beseler 45S Colorhead in diffusion configuration (No.8278) 61" (1549mm)
With Beseler 45S Colorhead in Condenser configuration (No.8278) 66" (1676mm)
With Beseler 8 x 10" Coldlight Head (No.8350) 61-1/2" (1562mm)
With Omega DV Condenser Lamphouse 64" (1626mm)
With Super Chromega ll Colorhead 58" (1473mm)
With Ilfospeed Multigrade 500 Head 61-1/2" (1562mm)
With Aristo Cold Light Heads 57" (1449mm) | | Modular Head System | Yes (See "Light Source" above) | | Baseboard Size | Laminated, H=1-1/2" x W=23-3/4" x L=30" (38 x 603 x 762 mm) | | Maximum Print Size On Baseboard | Larger than 24 x 36" (610 x 914 mm) | | Filter Drawer | Only in Condenser Lamphead, for 6 x 6" Variable Contrast or Color Printing Filters | | Replacement Lamp | For Condenser Head: PH 212(150w)
For Dichro 45S: EVW Bulb(250w/82v)
For 8x10 Coldlight: 2 Inner Coated lamps (No.10-52720) and 2 Outer Coated lamps (No.625-30-40) | | Reversible Column | No | | Wall Projection | No | | Tilts | No | | Voltage | 120V or 230V depending upon lightsource | | Voltage Stabilized | 45S Head: Yes
Condenser Head: No
810 Coldlight(No. 8235): Yes | | Weight | Chassis with Baseboard: 118 lbs (53.64 Kg)
45M Condenser Lightsource: 16 lbs (7.24 Kg) | | Specialties | Wall/Table Mount Kit to attach 45V chassis to wall for extra large printing, or over a table for applications where a baseboard is not required. Also includes upper column support bracket to secure to wall for maximum system rigidity. Requires user installation. | | Lens Mounting System | Single, 39mm (Leica thread)lens mounts require lensboard (No.8021)(requires jam nut) or (No.8086)(contains mounting flange).
For three-lens turret system (No.8225),
most enlarging lenses are equipped with a 39mm (Leica) mounting thread which will screw directly in to the three openings on the turret lensplate.
If your lens does not have a 39mm thread or if the distance from the mounting face to the rear of the lens is greater than 13mm, or the other diameter of the lens is greater than 54mm, then a lens mount or spacer is required(No.8370),
39 x 6.5mm(No.8371),
39 x 11.5mm (No.8373),
50 x 21mm.
An expanded list of specific lens mounts is available for both systems. NOTE: Please call store to confirm which lensboard or spacer is required for your system. | | Accessories | Wall/Table Mount(No.8562)
Three-lens Turret(No.8225) | | | | Package Weight | 105.3 lb | | Box Dimensions (LxWxH) | 60.0 x 32.0 x 16.0" |
