User Manual for Beseler 67XLC Condenser Enlarger with Lens Kit, 230V Click to enlarge the picture
Contents of the user manual for the Beseler 67XLC Condenser Enlarger with Lens
- Product category: Enlargers Beseler
- Brand: Beseler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Beseler Enlargers
 |
User manual for the Beseler 67XLC Condenser Enlarger with Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Beseler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Beseler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Beseler product will considerably shorten its lifespan!
|
Product description The American made Beseler 67XLC Condenser Enlarger utilizes a massively braced column to assure more than adequate support for even the largest magnification images. A 50mm lens projects 16 x 20" images from 35mm negatives onto the extra-large baseboard. NOTE: Includes lens, lensboard, & negative carrier Note: This item is wired for 230VAC, European Voltage ONLY. - The entire projection assembly swivels up to 90° for special effects and huge enlargements via wall projection.
- The 67XLC Enlargers are built to withstand heavy usage. They are a good choice for people who are serious about photography, schools, and industrial applications.
- Solid design provides additional support and alignment protection.
- Image size adjustment is by means of a silky, smooth crank operated rack-and-pinion elevation system with lock.
- Provides for right- and left-hand focusing as well as a built-in calibrated column elevation scale.

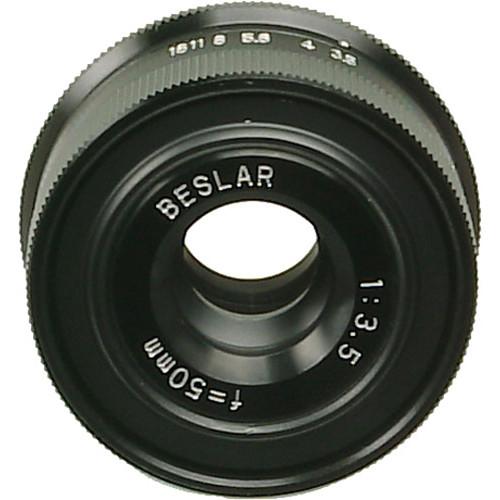

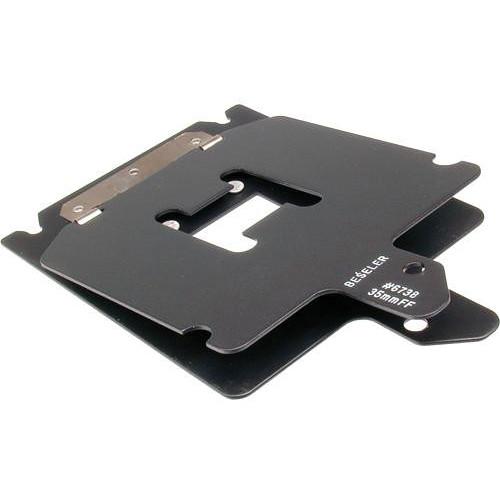

In the Box Beseler 67XLC Condenser Enlarger with Lens Kit, 230V (Black & White) Chassis with Super-Rigid XL Column XL White Laminated Baseboard 6 x 7 cm Condenser Lamp House Below The Lens Accessory Holder with Red Safety Filter Beslar 50mm/3.5 Lens Standard Lens Board 35mm Negative Carrier One Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Beseler 67XLC Condenser Enlarger with Lens Kit, 230V in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBeseler 67XLC Specs | Maximum Film Size | 6 x 7cm | | Light Source | Condenser lamp house | | Maximum Height | 50.5" (1283mm) | | Modular Head System | Accepts:
67S Dichro Colorhead (No. 6730)
67VC Variable Contrast Light Source (No. 6724) | | Baseboard Size | 16 x 25.5" (406 x 648mm) (HW) | | Maximum Print Size On Baseboard | 16 x 20" (406 x 508mm) (HW) | | Filter Drawer | Included (accepts 3.5 x 3.5" variable contrast or color printing filters) | | Replacement Lamp | PH 1400 | | Reversible Column | No | | Wall Projection | Yes (Head swivel allows for left-right wall projection) | | Tilts | No | | Voltage | 230V | | Voltage Stabilized | Yes | | Weight | 52.20 lbs (23.7 kg) (shipping weight) | | Accessories | Dust Cover (No. 8047), Heat-Absorbing Glass (No. 6760), Red Safety Filter (No. 8040). | | | | Package Weight | 41.0 lb | | Box Dimensions (LxWxH) | 46.5 x 17.6 x 9.8" |
