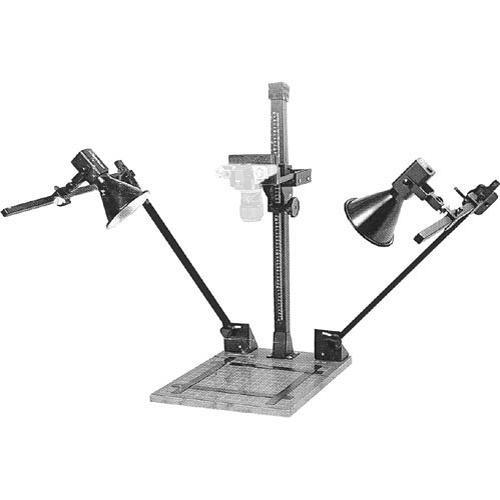

User Manual for Beseler CS-14 Copystand Kit and CL-600 Copy Lights and Two R50, 5" Reflectors Click to enlarge the picture
Contents of the user manual for the Beseler CS-14 Copystand Kit and CL-600
- Product category: Copystands & Copylights Beseler
- Brand: Beseler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Beseler Copystands & Copylights
|
User manual for the Beseler CS-14 Copystand Kit and CL-600 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Beseler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Beseler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Beseler product will considerably shorten its lifespan!
|
Product description The CS-14 Copy Stand offers reliable Beseler performance, an 18% gray baseboard with grid and magnetic copy hold-down bars, and a unique, adjustable camera platform that facilitates the precise alignment of the optical axis of the camera over the exact center of the baseboard. Copy positioning is aided by multiple positioning grids, format patterns and reference scales on the baseboard. The camera moves on a single, straight vertical column, aided by a constant force, counterbalanced elevation system. The turn of a knob locks the camera in position at the desired height. The column is anchored to the 16 x 19" baseboard at four points and accepts any camera up to 5 lb. (2268 g). Maximum recommended copy size is 14 x 14" (356 x 356 mm). NOTE: This copy stand is available without any lights - #BECS14 (column and baseboard ONLY). Can be used with standard or reflector lamps up to 600 watts. - Accepts a wide range of camera systems
- Options, like the Beseler CLA copylight arms give the user a choice of lighting
- Four lights can be mounted onto the universal 3/8" studs which are positioned for the best illumination control
- Additional calibrations and controls are available to enhance operation and output
- A uniquely adjustable camera platform facilitates the precise alignment of the optical axis of the camera over the exact center of the baseboard. (Positioning grids on the 18% grey baseboard aids in alignment
- Magnetic holddown bars locate the copy and keep it flat and in place
- Accessory Beseler CLA Copylight Arms with industry standard 3/8" mounting studs accept almost any light system
UPC: 094653042050 In the Box Beseler CS-14 Copystand Kit (Consists of CS-14 Copystand, CLA Light Arms (#4212) and CL-600 Copy Lights (#4230) and Two R50, 5" Reflectors (#4235-01) CS-14 Copystand CLA Light Arms (2) CL-600 Copy Lights (2) R50, 5" Reflectors (2) 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Beseler CS-14 Copystand Kit and CL-600 Copy Lights and Two R50, 5" Reflectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBeseler CS-14 Specs | Format | 35mm | | Minimum Elevation | 9.5" (241.3 mm) | | Maximum Elevation | Column height: 31" (787.4 mm) ; Maximum camera height: 30" (762 mm) | | Baseboard Size | 16 x 19" (406.4 x 482.6 mm) | | Reversible Column | No | | Geared/Motorized Column | Counterbalanced rise and fall with lock-up set knob | | Wall/Table Mountable | Free-standing table model | | Levelling Control | None; In/Out centering control possible: Maximum travel from column: 10" (254 mm); Minimum distance: 4.5" (114.3 mm) | | Type/Number of Lights | Includes two (2) CL-600 Lights, two CLA Light Arms and two R-50 Reflectors - Can be used with standard or reflector lamps up to 600 watts | | Voltage | No outlets on copy stand; Voltage only required for lights | | Dimensions | 16 x 19" (406.4 x 482.6 mm) baseboard; Column height: 31" (787.4 mm) | | Weight | 23.27 lb (10,555 g) (Shipping weight) | | Accessories | | | | | Package Weight | 40.6 lb | | Box Dimensions (LxWxH) | 35.5 x 19.0 x 14.0" |
