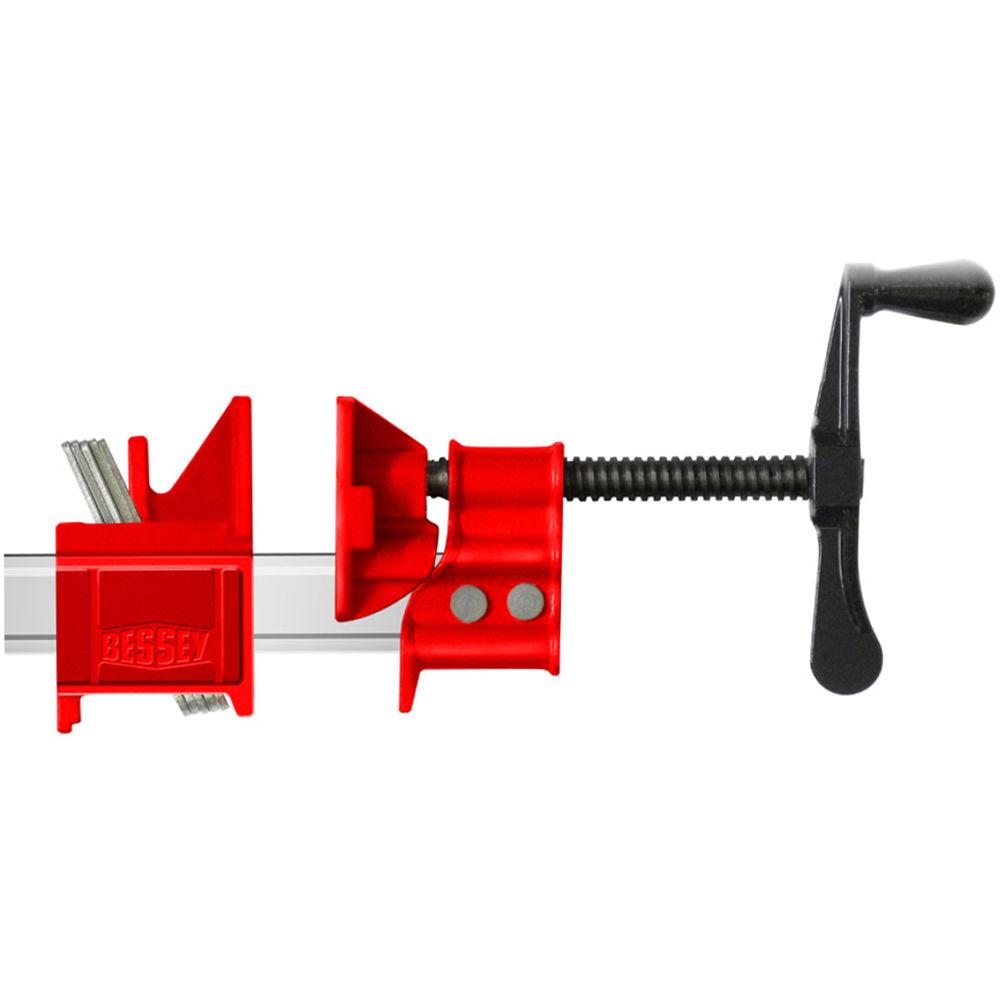

User Manual for Bessey IBeam Bar Clamp Click to enlarge the picture
Contents of the user manual for the Bessey IBeam Bar Clamp
- Product category: Stage Equipment Bessey
- Brand: Bessey
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bessey Stage Equipment
 |
User manual for the Bessey IBeam Bar Clamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bessey product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bessey user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bessey product will considerably shorten its lifespan!
|

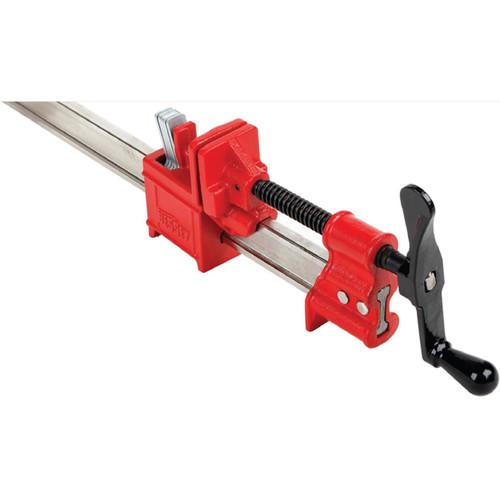

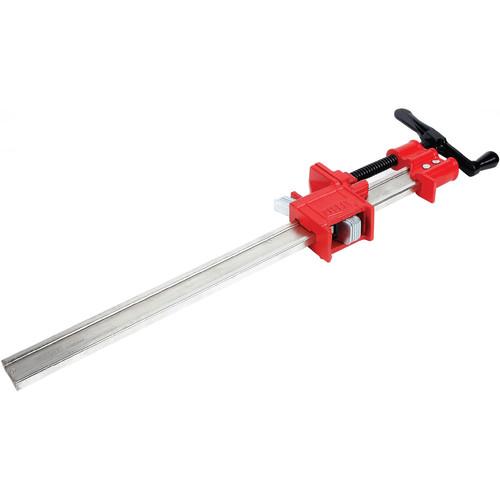

Product description Keep your material aligned and in position while working with the IBeam Bar Clamp from Bessey, featuring a 30" clamping capacity. These heavy-duty steel clamps are mounted onto a durable beam with a width of 1.37" and thickness of 0.44", and are designed to assist with demanding woodworking in industrial and institutional settings. A strong crank handle is used for regulating one of the jaws, while five clutch plates on the opposite jaw aid with gripping while you're making adjustments.Plated with nickel, the rail of the clamp is durable and resistant to corrosion. The rugged construction of the tool is supplemented by ACME threaded screws with a 9/16" spindle diameter and powder-coated castings. With a throat depth of 2", the clamps feature a jaw width of 1.75" and a load capacity of 7000 lb. -
- Heavy-duty steel clamps intended for professional woodworking
- Maximum clamping capacity of 30"
- Sturdy I-beam with a 1.37" width and 0.44" thickness
- Crank handle designed for strength and durability

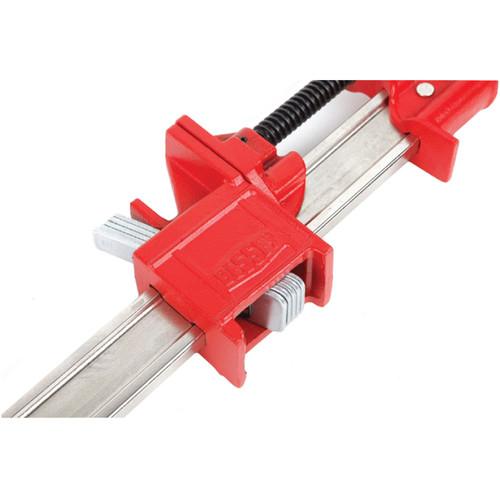

- Five steel clutch plates to aid with gripping the bar stock
- Nickel-plated rail, resistant to corrosion
- Powder-coated ductile castings for additional toughness
- ACME threaded screws with 9/16" spindle diameters
- Throat depth of 2"
- Jaw width of 1.75"
- Load capacity of 7000 lb
UPC: 788502203562 In the Box Bessey IBeam Bar Clamp (30" Clamping Capacity) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bessey IBeam Bar Clamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBessey IBEAM30 Specs | Material | Steel | | Clamp Opening | Maximum: 30" (76.2 cm) | | Depth Of Throat | 2" (5.1 cm) | | Bar | Width: 1.37" (3.48 cm)
Thickness: 0.44" (1.12 cm) | | Screw Diameter | Spindle: 0.56" (1.42 cm) | | Jaw Size | Width: 1.75" (4.44 cm) | | Load Capacity | 7000 lb (3175 kg) |
