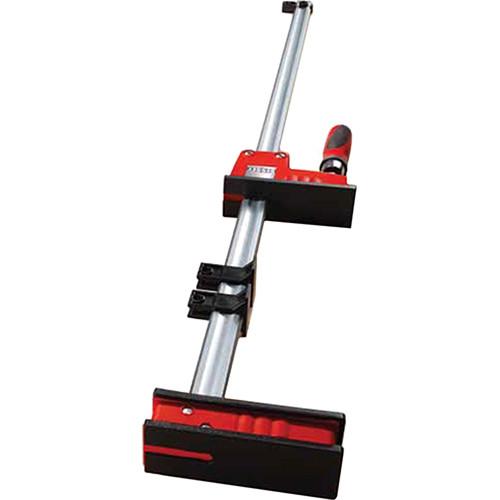

User Manual for Bessey K Body REVO Parallel Clamp Click to enlarge the picture
Contents of the user manual for the Bessey K Body REVO Parallel Clamp
- Product category: Stage Equipment Bessey
- Brand: Bessey
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bessey Stage Equipment
|
User manual for the Bessey K Body REVO Parallel Clamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bessey product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bessey user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bessey product will considerably shorten its lifespan!
|
Product description Keep your woodworking projects securely fastened with the K Body REVO Parallel Clamp from BESSEY, featuring a clamping capacity of 40". Able to brace objects at a precise 90° angle with a force of 1500 lb, this tool has three pressure caps—two on one jaw and one on the other jaw facing inwards. All caps are resistant to glue, paint, and solvents, and can be easily removed if you need to clean or replace them.Complementing the strong jaws is a large composite 2K handle designed for comfortable use. Two rail protection pieces are also present, which can be used with an optional accessory to fasten the K Body onto a work surface for stable operation. At the tip of the rail is an end clip that helps ensure the clamp sits parallel to the work surface; it can also be removed when reversing the sliding arm to use it as a spreader. This model of the K Body weighs 7.61 lb and features a jaw depth of 3.75". -
- Parallel clamp fastens work up to 40" long at a 90° angle with a force of 1500 lb
- Measured throat depth of 3.75"
- Three removable, included pressure caps are resistant to glue, paint, and solvents
- Large composite handle allows for easy adjustments during use
- Rail pieces protect rail from dripping glue and can be used to fasten clamp to a workstation with optional accessory
- End clip helps ensure clamp stays parallel, and comes off to reverse arm for use as a spreader
- Approximate weight of 7.61 lb
UPC: 091162006276 In the Box Bessey K Body REVO Parallel Clamp (40" Clamping Capacity) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bessey K Body REVO Parallel Clamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBessey KRE3.540 Specs | Clamp | Maximum Opening: 40.0" (101.6 cm)
Force: 1500 lb (680 kg) | | Depth Of Throat | 3.75" (9.5 cm) | | Weight | 7.61 lb (3.45 kg) |
