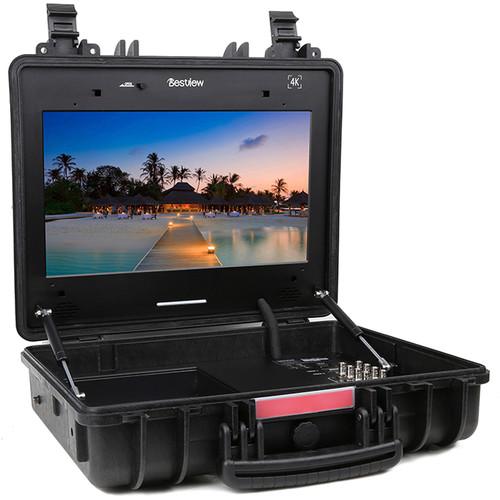

Product description The 17" Portable UHD 4K HDMI Quad-Split Broadcast Director's Monitor from Bestview is designed for field or studio work such as ENG, broadcast studios, and post production environments. It supports UHD 3840 x 2160 IPS HD video, and it has a contrast ratio of 1000:1, 10-bit color depth, 400 cd/m2 brightness, and Rec. 709 color calibration.

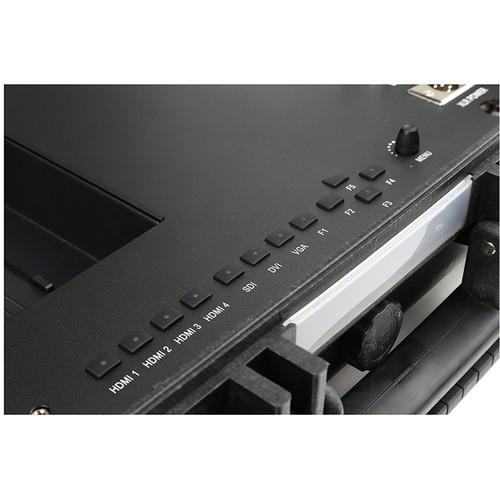

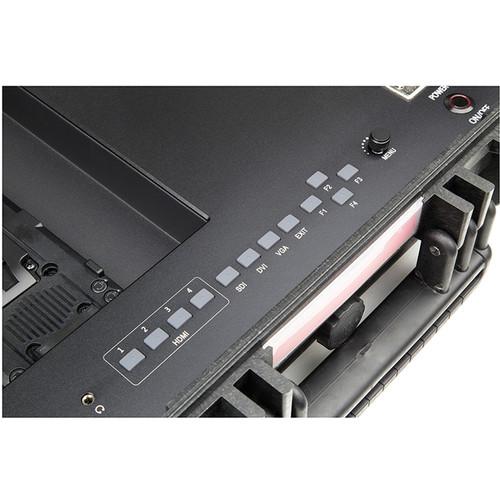

The monitor features four HDMI 2.0 inputs and can display up to four 4K sources in a quad PIP/PBP format simultaneously, and additional 3G-SDI and DVI/VGA sources can also be switched in. The monitor has a headphone jack and a two-channel audio line-level output. The monitor also includes an RJ45 tally port. Settings and controls are configured with the buttons in the base of the case.

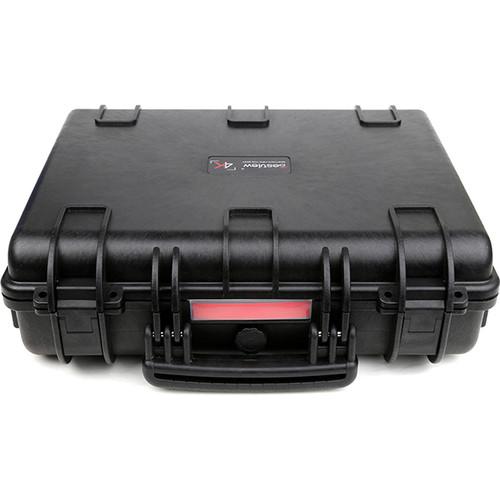

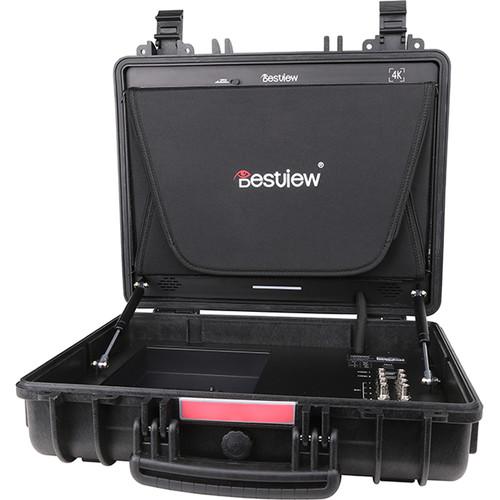

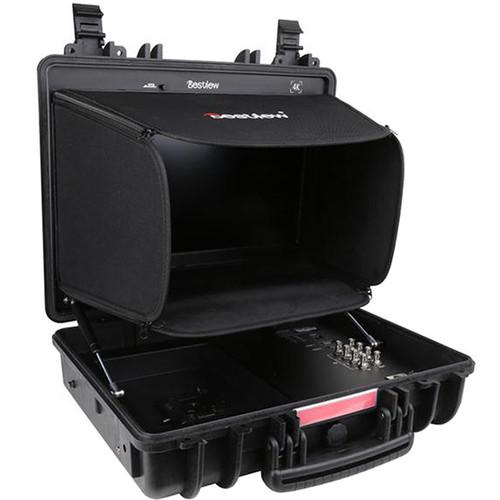

The portable monitor is installed in a rugged, military-grade plastic case and includes a V-mount battery plate when mains power is unavailable. The case also supports an optional Gold mount plate. The package also includes a sun hood, HDMI cable, SDI cable, XLR AC power adapter, and a cleaning cloth. - Installed in a rugged carry case for use in ENG, live, broadcast, and post environments
- UHD 3840 x 2160 IPS HD monitor with a contrast ratio of 1000:1, a 178° viewing angle, 10-bit color depth, 400 cd/m2 brightness, and Rec. 709 color calibration
- Four HDMI 2.0 inputs and can display up to four 4K sources in a quad PIP/PBP format simultaneously, and you can switch in 3G-SDI and DVI/VGA sources
- Audio signals output through a headphone jack and two-channel RCA output

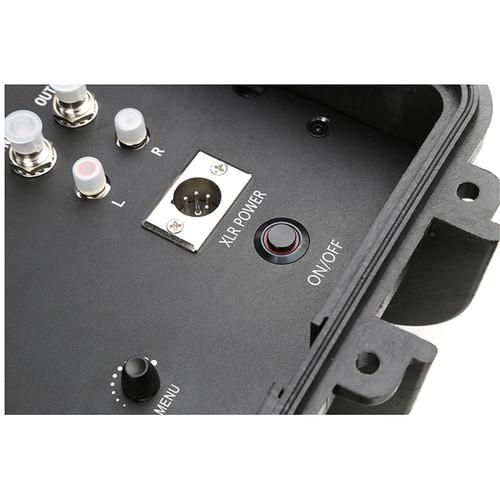

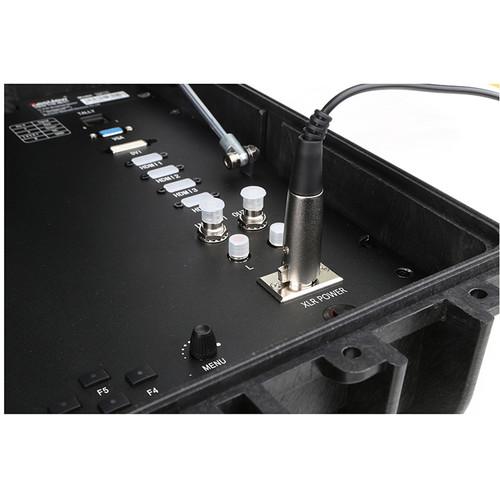

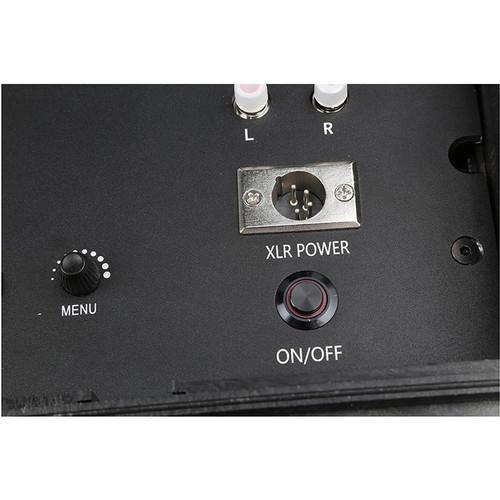

- An XLR power adapter is included, or use the included V-mount battery plate when mains power is unavailable. An optional Gold mount plate can be purchased separately
- A sun hood, HDMI cable, SDI cable, and a cleaning cloth are also included in the box
In the Box Bestview 17" Portable UHD 4K HDMI Quad-Split Broadcast Director's Monitor Sun Hood HDMI Cable SDI Cable XLR Power Adapter V-Mount Battery Plate Cleaning Cloth Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bestview 17" Portable UHD 4K HDMI Quad-Split Broadcast Director's Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBestview SP17 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 17.3" / 43.9 cm | | Active Area | 15.04 x 8.43" / 382 x 214 mm | | Screen Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Touchscreen | No | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 1000:1 | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Response Time | 10 / 15 ms (Rise / Fall) | | Finish | Matte | | Color Gamut | 100% Rec. 709 | | Real-Time LUT Monitoring | No | | Image Controls | Focus Peaking, Image Flip, Picture-in-Picture, RGB Parade, Screen Markers, Underscan | | | | Video | 1 x BNC (3G-SDI) Input
4 x HDMI Type A (HDMI 2.0) Input
1 x DVI-I (Dual-Link DVI) Input
1 x DE-15/DB-15 (VGA) Input
1 x RCA (Composite) Output
1 x BNC (3G-SDI) Output
1 x 3.5 mm (Component) Output | | Audio | 1 x 2RCA Line Input
1 x 3.5 mm Headphone Output | | Built-In Speaker | 2 x 2 W | | Power | 1 x 5-Pin XLR Input | | Other I/O | 1 x Tally (RJ45) | | Card Slot | None | | | | Video Format | HDMI (10-Bit)
UHD 4K: 24
DCI 2K: 24/25/30
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080i: 50/59.94/60
720p: 50/59.94/60
576p: 50
480p: 59.94/60
SDI (10-Bit)
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080i: 50/59.94/60
720p: 50/59.94/60
576p: 50
480p: 59.94/60
DVI
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080i: 50/59.94/60
720p: 50/59.94/60
576p: 50
480p: 59.94/60
VGA
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 24/25/29.97/30
1080i: 50/59.94/60
720p: 50/59.94/60
576p: 50
480p: 59.94/60
Composite
NTSC
PAL | | | | Pulldown Conversion | None | | Camera Trigger | None | | | | AC Input Power | 110 to 265 VAC, 50 / 60 Hz | | DC Input Power | 12 to 24 VDC at 2 A | | Battery Type | 1 x V-Mount (Interchangeable Mount) | | Power Consumption | 26 W (Typical) | | | | Certifications | CE, FCC, Kcc, RoHS, as per Manufacturer | | Operating Humidity | 10 to 90% | | Operating Temperature | 50 to 140°F / 10 to 60°C | | Storage Humidity | 5 to 90% | | Storage Temperature | 68 to 176°F / 20 to 80°C | | | | Material of Construction | Plastic | | Dimensions (W x H x D) | 22.44 x 16.54 x 1.61" / 57 x 42 x 4.1 cm | | Weight | 31.97 lb / 14.5 kg | | | | Package Weight | 32.1 lb | | Box Dimensions (LxWxH) | 22.1 x 19.8 x 9.3" |
