Product description The 21.5" HDMI/3G-SDI/SDI Full HD Director's Monitor from Bestview is designed for field or studio work such as ENG, broadcast studios, and post-production environments. It supports 1920 x 1080p HD video, and it has a contrast ratio of 1000:1, 8-bit color depth, 300 cd/m2 brightness, and a 178/178° viewing angle.
The monitor features a single HDMI input/output, SDI input/output, and YPbPr and composite inputs. The monitor has two RCA audio outputs on the back, as well as a headphone jack and two stereo speakers on the front of the unit.
Other features include a three-light tally system with an RJ45 input and additional LEDs to help locate programming buttons in low light. The buttons and dials on the front of the unit control functions such as volume, brightness, saturation, contrast, hue, source switching, peaking, zebra, color bars, vectorscope, waveform, and histogram.

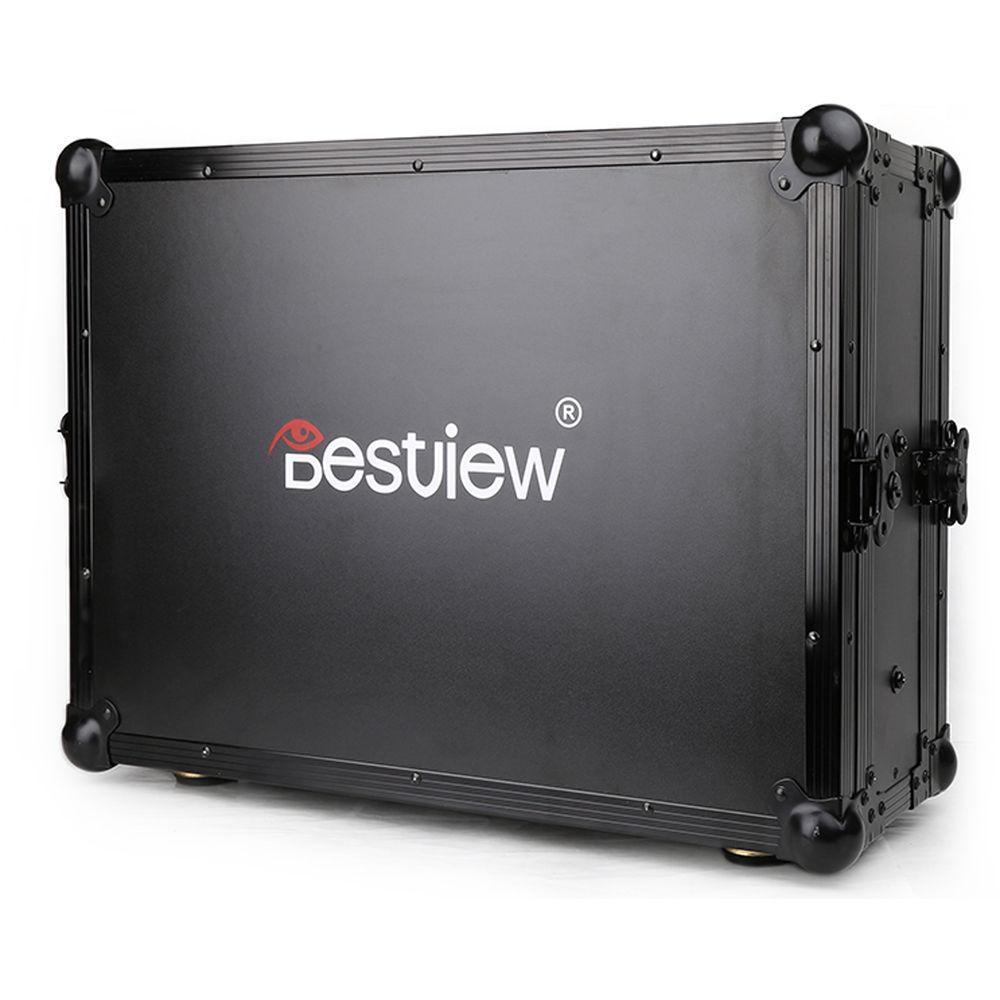

The portable monitor is installed in a rugged, rustproof aluminum case with a top handle and support feet, and the included V-mount battery plate can be used when mains power is unavailable. A Gold mount battery plate can be purchased separately to replace the pre-installed V-mount plate. The package includes an XLR AC power adapter. - Installed in rugged aluminum case for use in ENG, live, broadcast, and post environments
- 1920 x 1080p HD monitor with a contrast ratio of 1000:1, a 178° viewing angle, 8-bit color depth, and 300 cd/m2 brightness

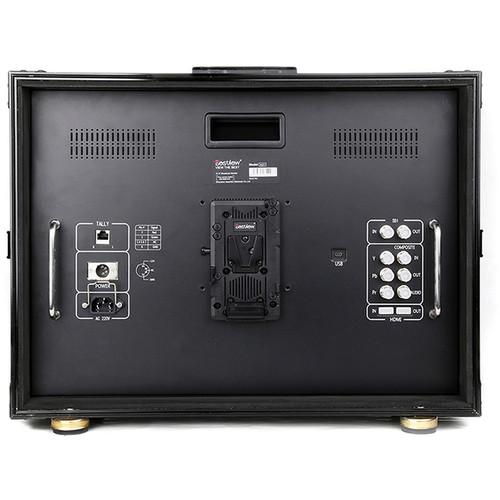

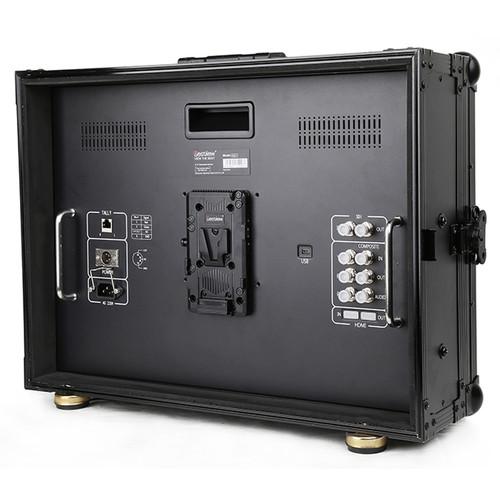

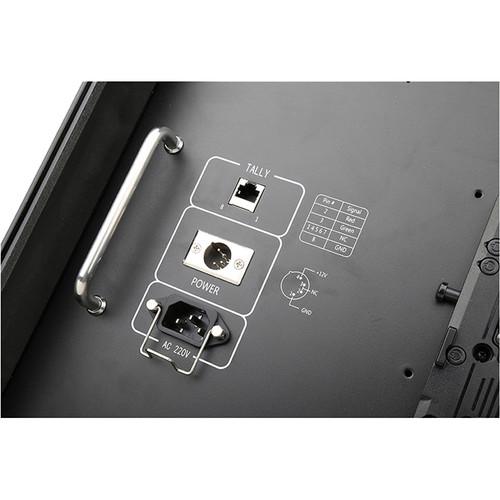

- On the Back: single HDMI input/output, SDI input/output, YPbPr composite input, two RCA audio outputs, and RJ45 tally

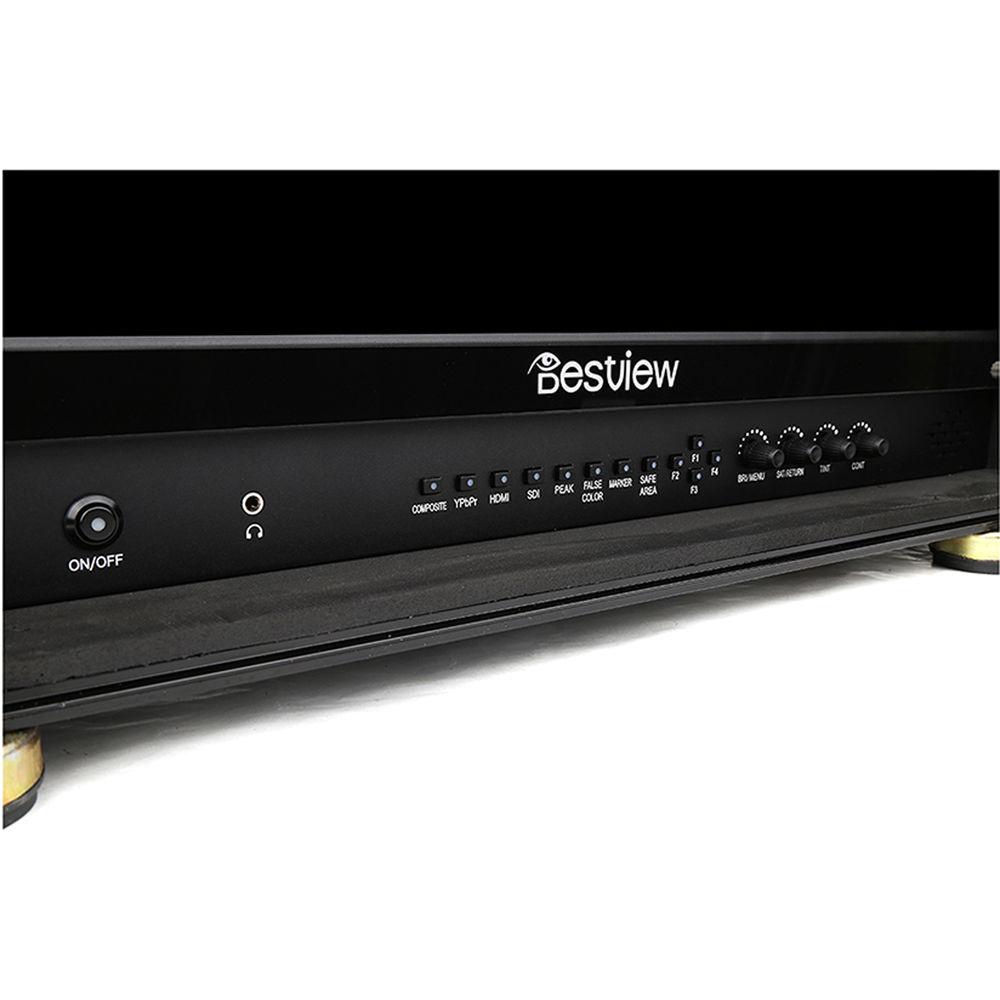

On the Front: a headphone jack, two stereo speakers, and settings and controls are configured with the buttons and dials - Monitoring Tools and Configurable Settings Include: volume, brightness, saturation, contrast, hue, source switching, peaking, zebra, color bars, vectorscope, waveform, and histogram
- An XLR AC power adapter and V-mount battery plate are included. An optional Gold mount plate can be purchased separately. Batteries are not included
In the Box Bestview 21.5" HDMI/3G-SDI/SDI Full HD Director's Monitor Power Adapter V-Mount Battery Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bestview 21.5" HDMI 3G-SDI SDI Full HD Director's Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBestview N21 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 21.5" / 54.6 cm | | Active Area | 18.70 x 10.51" / 475 x 267 mm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Touchscreen | No | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 14 / 14 ms (Rise / Fall) | | Finish | Matte | | Real-Time LUT Monitoring | No | | | | Video | 1 x HDMI Type A (HDMI 2.0) Input
1 x HDMI Type A (HDMI 2.0) Output
1 x BNC (SDI) Input
1 x BNC (SDI) Output
1 x RCA (Component) Input
1 x RCA (Composite) Input | | Audio | 1 x RCA Line Output | | Built-In Speaker | 2 x 2 W | | Power | 1 x 5-Pin XLR Input | | Other I/O | 1 x USB 2.0 (Mini-USB)
1 x Tally (RJ45) | | Card Slot | None | | | | Video Format | HDMI (8-Bit)
1080PsF: 23.98/24/25/29.97/30/50/59.94/60
1080i: 50/59.94/60
720p: 50/59.94/60
576p: 50
480p: 59.94/60
SDI (8-Bit)
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24/25/29.97/30
720p: 50/59.94/60
576p: 50
480p: 60
Component
1080p: 23.98/24/25/29.97/30
1080PsF: 24/25/29.97/30
1080i: 50/59.94/60
720p: 23.98/24/25/29.97/30
576p: 50
480p: 60
Composite
NTSC
PAL | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | DC Input Power | 9 to 24 VDC | | Battery Type | 1 x V-Mount | | Power Consumption | 24 W (Typical) | | Mounting | None | | | | Certifications | CE, FCC, Kcc, RoHS, as per Manufacturer | | Operating Humidity | 10 to 90% | | Operating Temperature | 50 to 140°F / 10 to 60°C | | Storage Humidity | 5 to 90% | | Storage Temperature | -4 to 176°F / -20 to 80°C | | | | Material of Construction | Aluminum | | Dimensions (W x H x D) | 20.04 x 13.74 x 15.16" / 509 x 349 x 385 mm | | Weight | 17.64 lb / 8 kg | | | | Package Weight | 17.6 lb | | Box Dimensions (LxWxH) | 26.9 x 20.4 x 8.5" |
