Product description

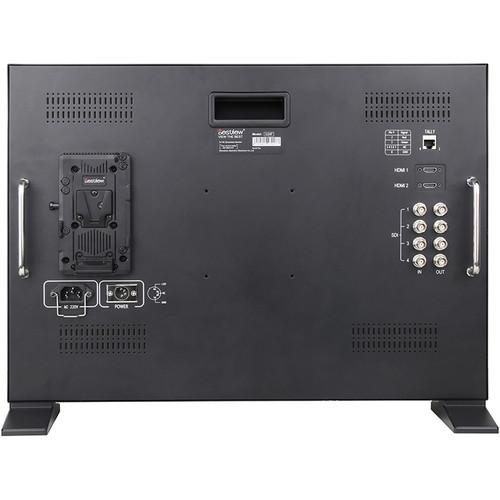

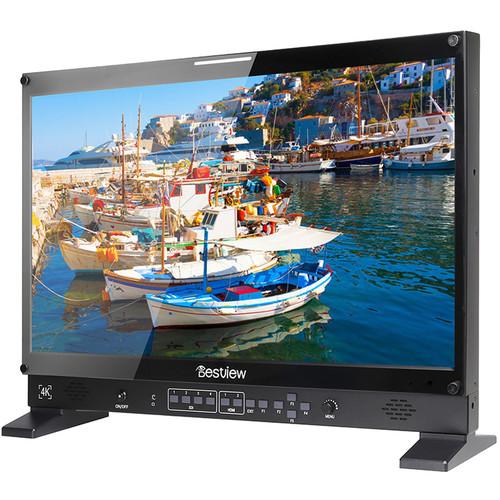

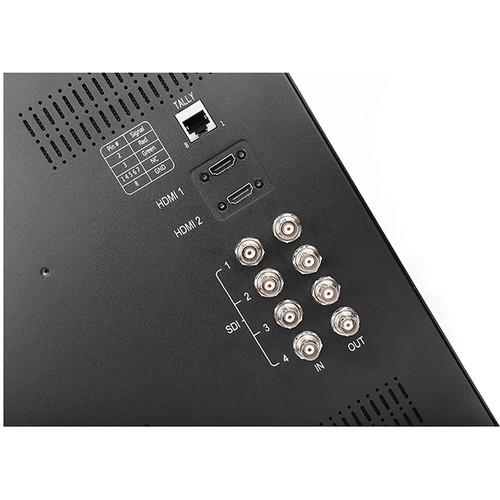

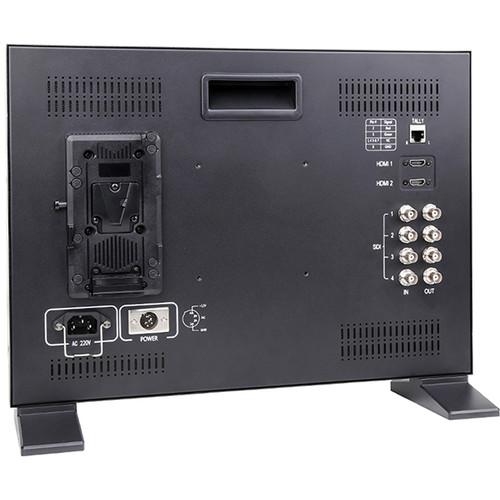

The 4K UHD Broadcast Monitor from Bestview is a monitor with a 24" 10-bit IPS screen that has multiple viewing options, including quad and multi-view. It supports a resolution of up to 3840 x 2160 at 60 Hz and has an aspect ratio of 16:9. This monitor has a 178° wide viewing angle and a brightness of 400 cd/m2. It features four SDI inputs, four SDI thru-puts, two HDMI inputs, a tally RJ45 input, audio (L/R) input, a stereo headphone output, and stereo built-in speakers. This monitor can be powered via an AC power cable, XLR power adapter, or a V-lock battery (available separately). It includes a sunhood, a HDMI cable, a SDI cable, and a wipe cloth.
  • Rec. 709 standard for color calibration
  • Acrylic screen for panel protection
  • Short-cut setting can be customized by users
  • PIP/PBP multi-view function allows multiple cameras to connect at the same time
  • Picture switch
  • R/G/B check field
  • Peaking
  • Center mark
  • Safe area
  • Display ratio
  • Underscan

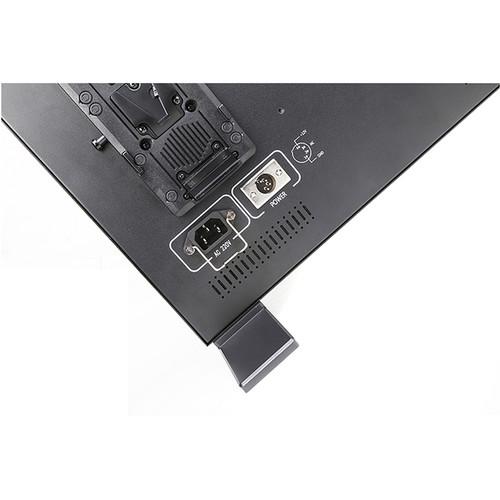

  • Supports 110-220 VAC, 12 VDC XLR power supply, or V-lock battery

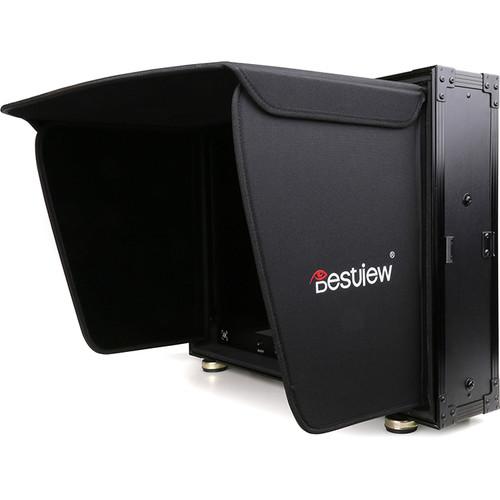

  • Sunhood with zip design is easy to open
In the Box Bestview 4K UHD LED Quad Split View Broadcast Monitor
  • Sun Hood
  • IEC Power Cable
  • HDMI Cable
  • SDI Cable
  • Wipe Cloth
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Bestview 4K UHD LED Quad Split View Broadcast Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Bestview S24F Specs

    Panel Type IPS-Type LCD
    Display Size 24.0" / 61.0 cm
    Screen Resolution 3840 x 2160
    Aspect Ratio 16:9
    Viewing Angle 178°
    Touchscreen No
    Maximum Brightness 400 cd/m2
    Contrast Ratio 1000:1
    Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
    Pixels Per Inch (ppi) 255 ppi
    Response Time 10 / 15 ms (Rise / Fall)
    Real-Time LUT Monitoring No
    Video 2 x HDMI Type A (HDMI 2.0) Input
    4 x BNC (HD-SDI) Input
    4 x BNC (HD-SDI) Output
    Audio 1 x 3.5 mm Headphone Output
    Built-In Speaker 2
    Power 1 x IEC Input
    1 x 4-Pin XLR Input
    Other I/O 1 x Tally (RJ45)
    Card Slot None
    AC Input Power 110 to 265 VAC, 50 / 60 Hz
    DC Input Power 12 VDC at 2 A
    Battery Type 1 x V-Mount
    Power Consumption 26 W (Maximum)
    Certifications CE, FCC, Kcc, RoHS, as per Manufacturer
    Operating Humidity 10 to 90%
    Operating Temperature 14 to 140°F / -10 to 60°C
    Storage Humidity 5 to 90%
    Storage Temperature -4 to -112°F / -20 to -80°C
    Dimensions (W x H x D) 21.89 x 15.51 x 1.57" / 556 x 394 x 40 mm
    Weight 25.35 lb / 11.5 kg
    Package Weight 38.7 lb
    Box Dimensions (LxWxH) 27.0 x 20.0 x 13.0"
