User Manual for Bestview S5 5" OCR Screen 4K HDMI On-Camera Monitor Click to enlarge the picture
Contents of the user manual for the Bestview S5 5" OCR Screen 4K
- Product category: On Camera Monitors Bestview
- Brand: Bestview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bestview On Camera Monitors
 |
User manual for the Bestview S5 5" OCR Screen 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bestview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bestview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bestview product will considerably shorten its lifespan!
|

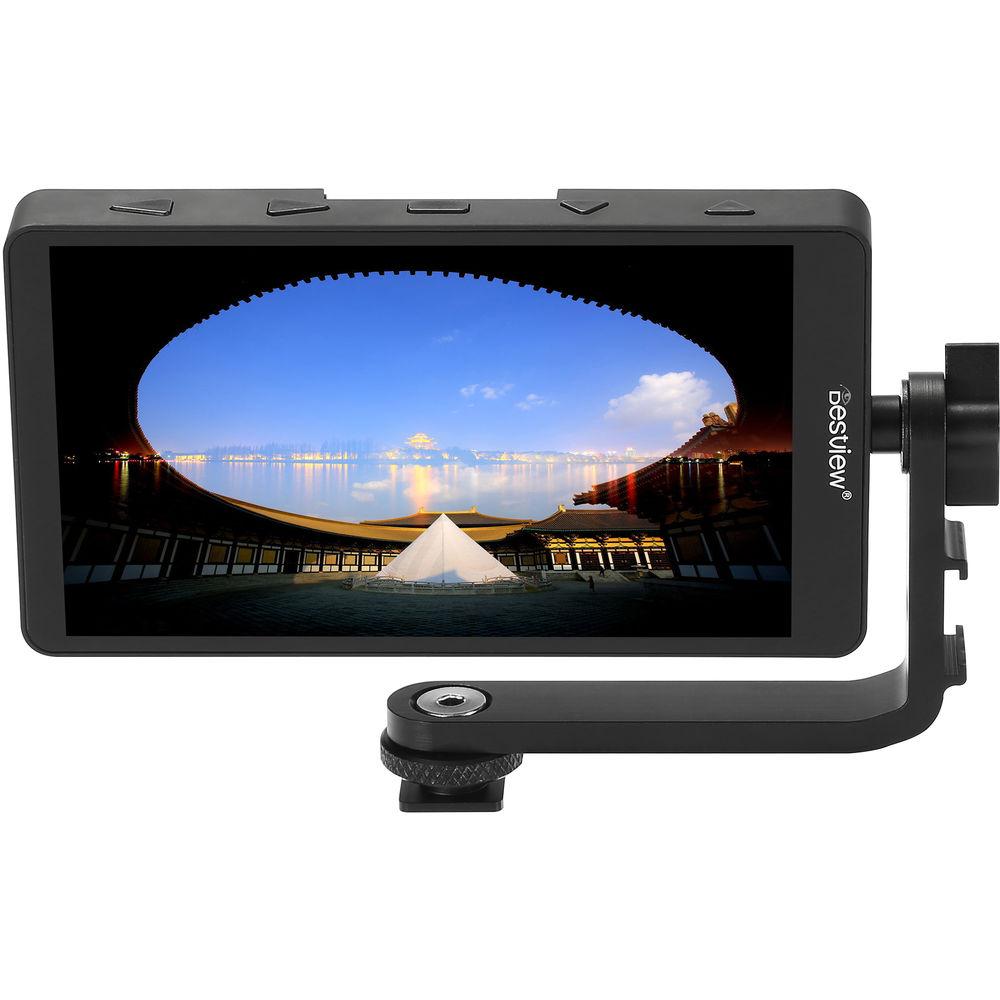

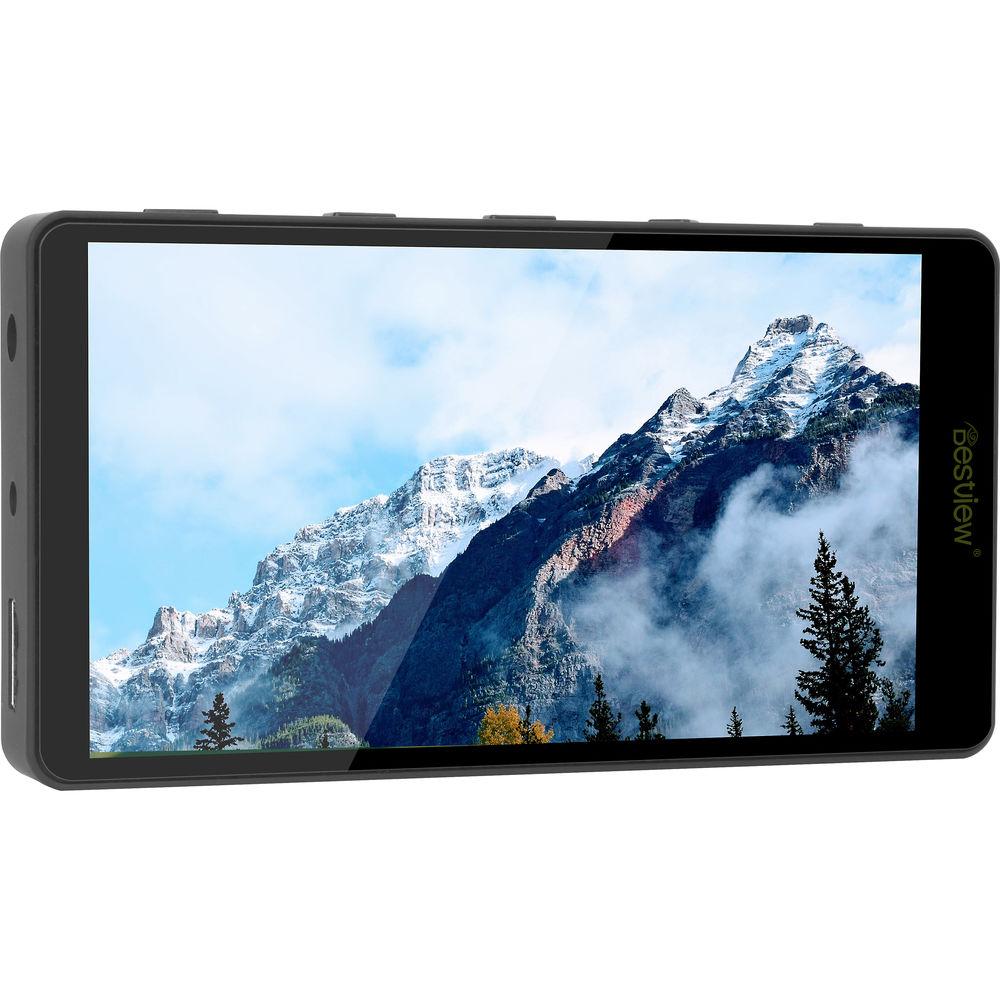

Product description The Bestview S5 is a compact and highly lightweight on-camera monitor featuring a 1920 x 1080 screen resolution and supporting up to DCI 4K HDMI signals. Its small size makes it a convenient on-camera option as well as a suitable complement to handheld gimbals. The S5 is designed with what Bestview calls "OCR" (Optical Clear Resin) screen technology, which is a type of screen bonding that allows the monitor to have thinner bezels and hence more room to display an image.
In addition to helping you frame and monitor your shots, the S5 also offers a store of monitoring functions for setting up your shot with the proper focus and other factors. Included among these are Histogram, Zebra, Peaking, False Colors, Pixel-to-Pixel, and Anamorphic mode.

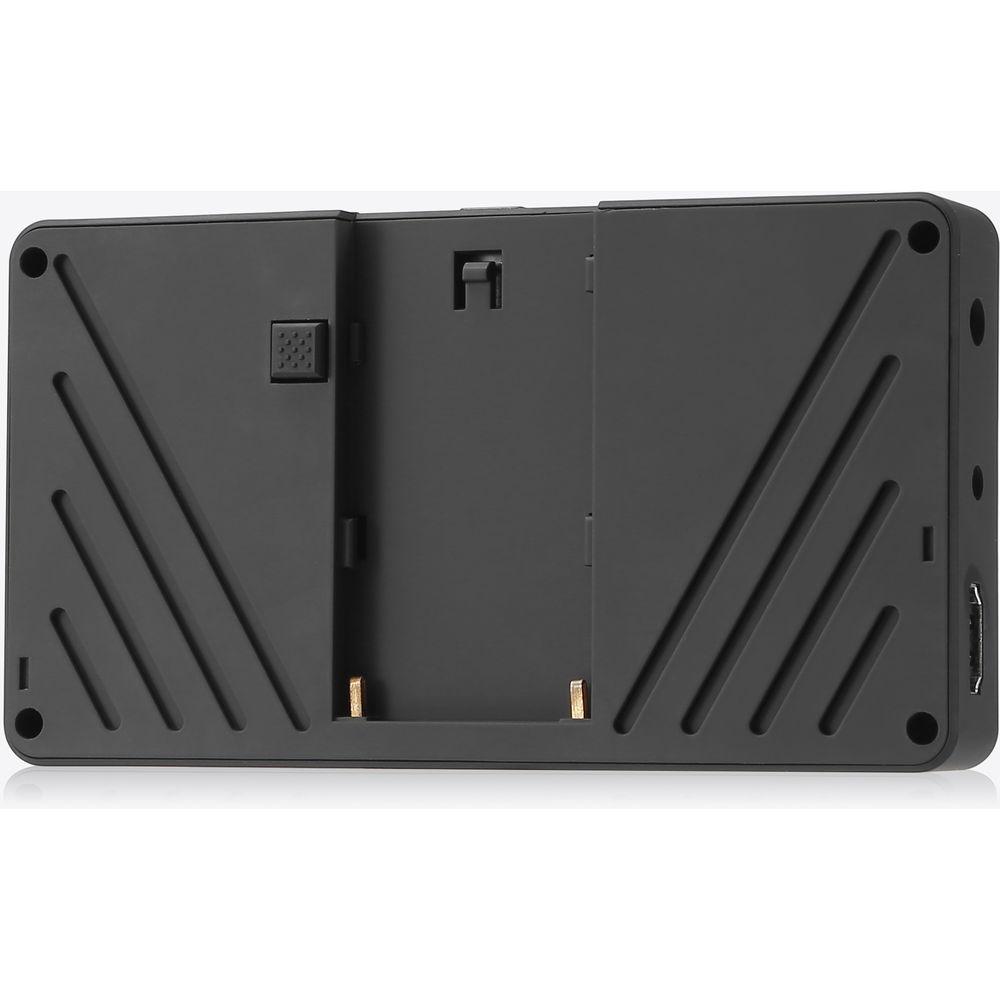

The S5 is built with native support for L-series batteries. A battery is sold separately. Alternatively, an optional power supply can be used. In addition, the monitor is capable of outputting 8V of DC power via any optional dummy battery with a 5.5mm barrel connector.

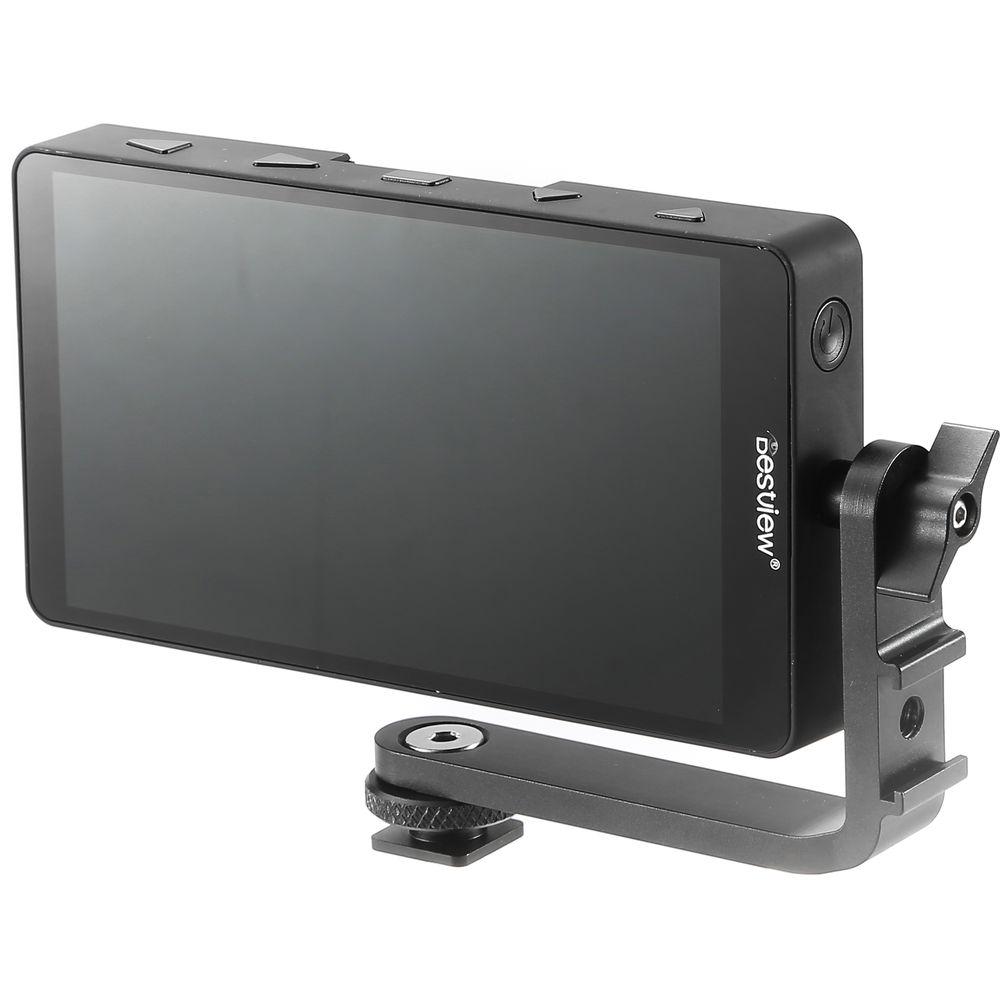

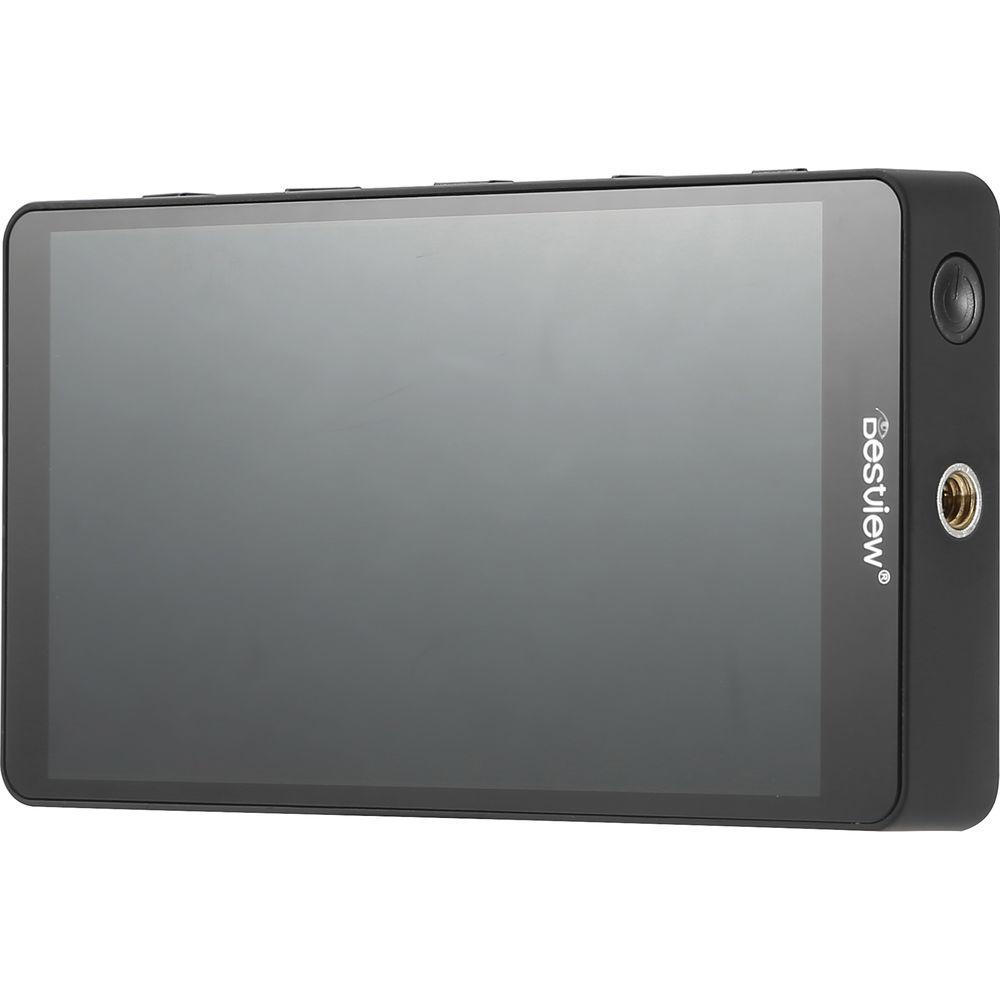

For mounting, an L-shaped mounting bracket is included that secures into a 1/4"-20 mounting thread on the side of the monitor. The bracket provides a cold shoe on the other end and offers a cold shoe mount on the side. For control, there are four function buttons and a menu button on top. A protective case and sunhood are also included along with cables and other accessories. - Key Features
-
- 1920 x 1080 screen resolution
- Up to DCI 4K HDMI signal input
- "OCR" (Optical Clear Resin) screen technology allowing for thin bezels and larger display

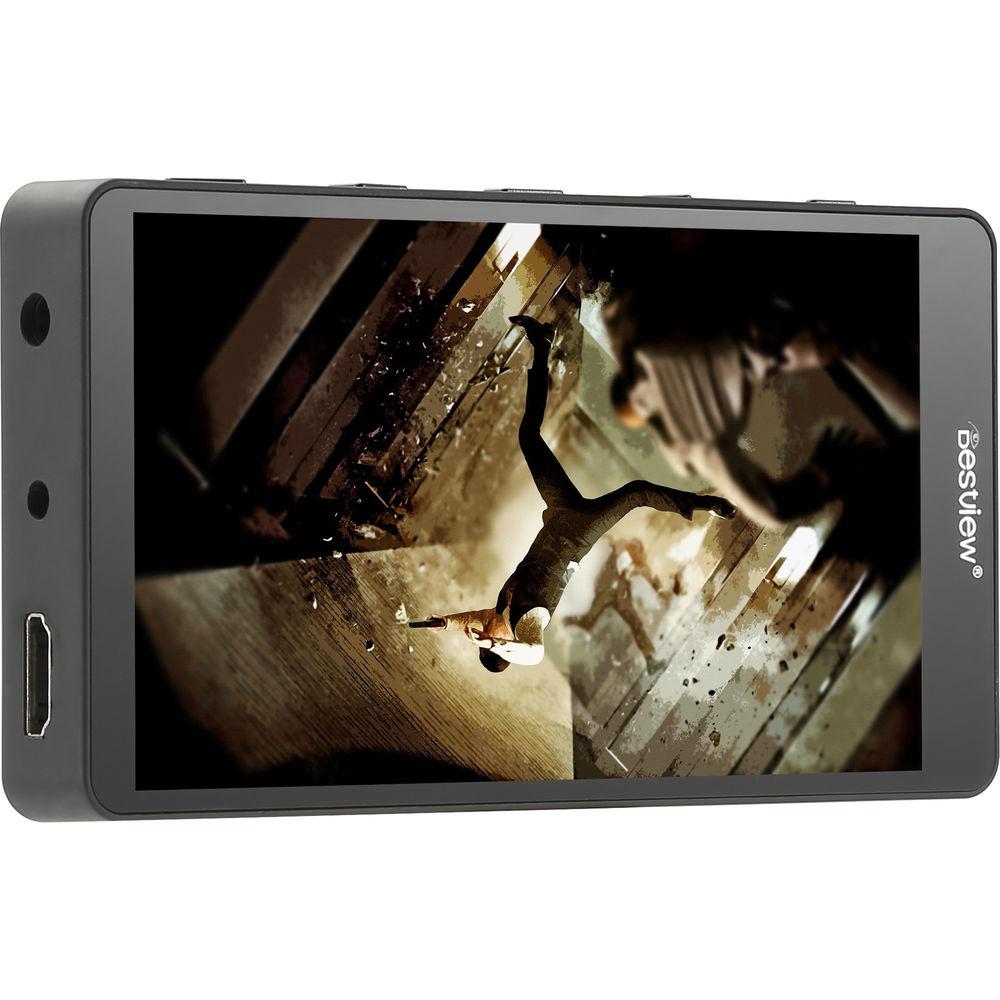

- HDMI and headphone inputs
- Native support for L-series batteries
- Support for optional power supply
- L-shaped mounting bracket with cold shoe and shoe mount
- Four function buttons and a menu button on top
- Protective case and sunhood included
- 8 VDC output via any optional dummy battery with a 5.5mm barrel connector
- Monitoring Functions
-
- Histogram
- Zebra
- Check field
- Peaking
- False colors
- Camera mode
- Image freeze
- Guide marks and crosshair
- DSLR scale
- Pixel-to-pixel
- Audio wave
- Image flip
- Exposure
- Zoom-in
- Anamorphic mode

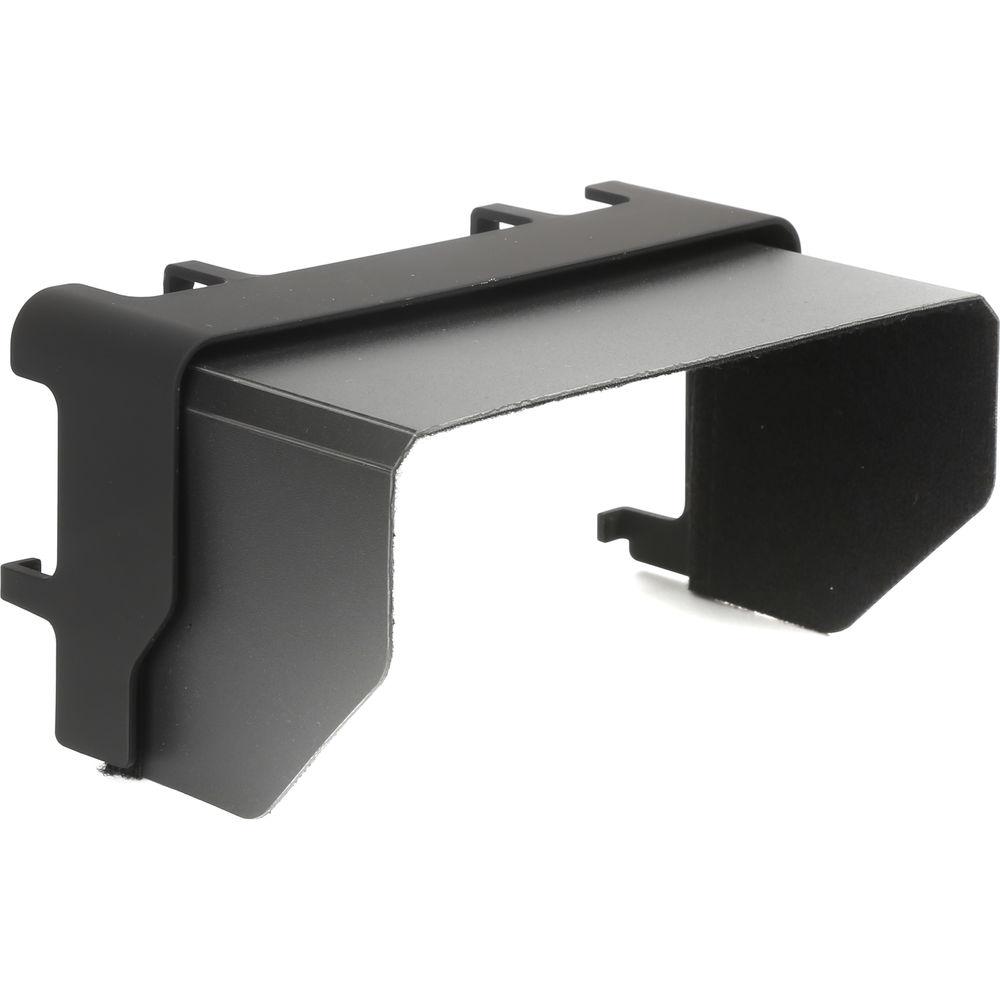

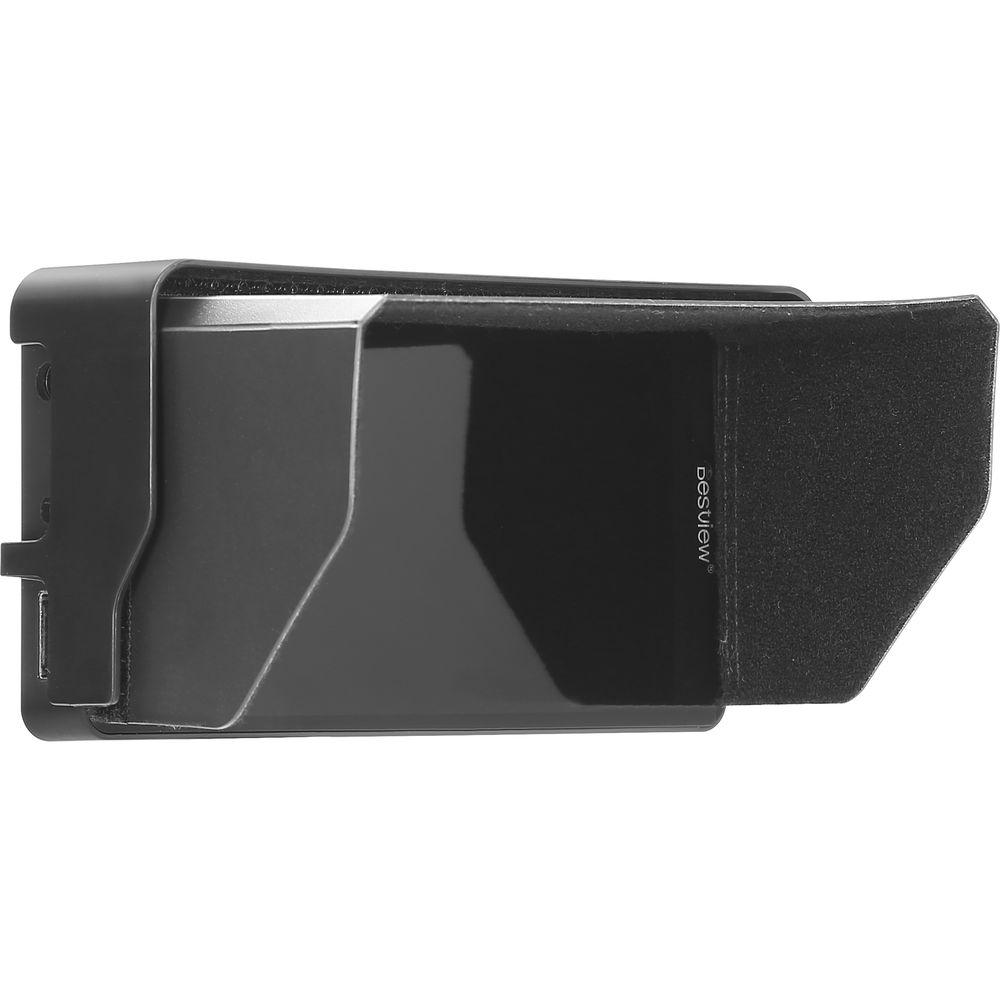

In the Box Bestview S5 5" OCR Screen 4K HDMI On-Camera Monitor Sunhood HDMI Cable D-Tap Cable Protection Case L-Type Magic Arm Wipe Cloth NP-F550 L-Series Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bestview S5 5" OCR Screen 4K HDMI On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBestview S5 Specs | | | Panel Type | Unspecified LCD | | Display Size | 5.0" / 12.7 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 160° (80/80)
Vertical: 160° (80/80) | | Touchscreen | No | | Maximum Brightness | 330 cd/m2 | | Contrast Ratio | 1000:1 | | Real-Time LUT Monitoring | No | | | | Video | 1 x HDMI Type A Input | | Audio | 1 x 3.5 mm Headphone Input | | Built-In Speaker | None | | Power | 1 x Barrel Input | | Other I/O | None | | Card Slot | None | | | | Video Format | HDMI
DCI 4K: 24
UHD 4K: 24/25/30
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 24/25/29.97/30
1080i: 50/59.94/60
720p: 50/60
NTSC
PAL | | | | DC Input Power | 7 to 24 VDC | | Battery Type | 1 x L-Series | | Power Consumption | 9 W (Maximum) | | | | Mounting | 1 x 1/4"-20 Female | | | | Dimensions (W x H x D) | 5.63 x 3.07 x 0.83" / 14.3 x 7.8 x 2.1 cm | | Weight | 0.34 lb / 153 g | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 9.25 x 7.0 x 2.5" |
