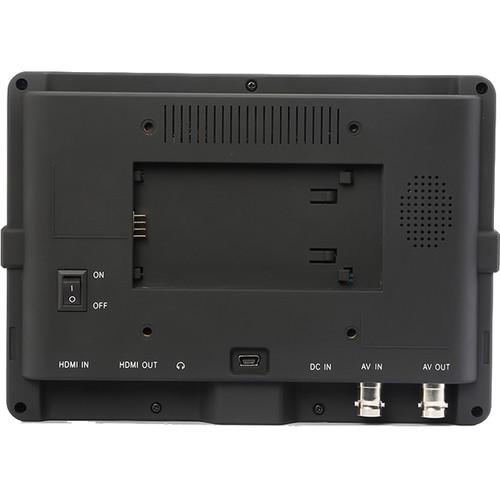

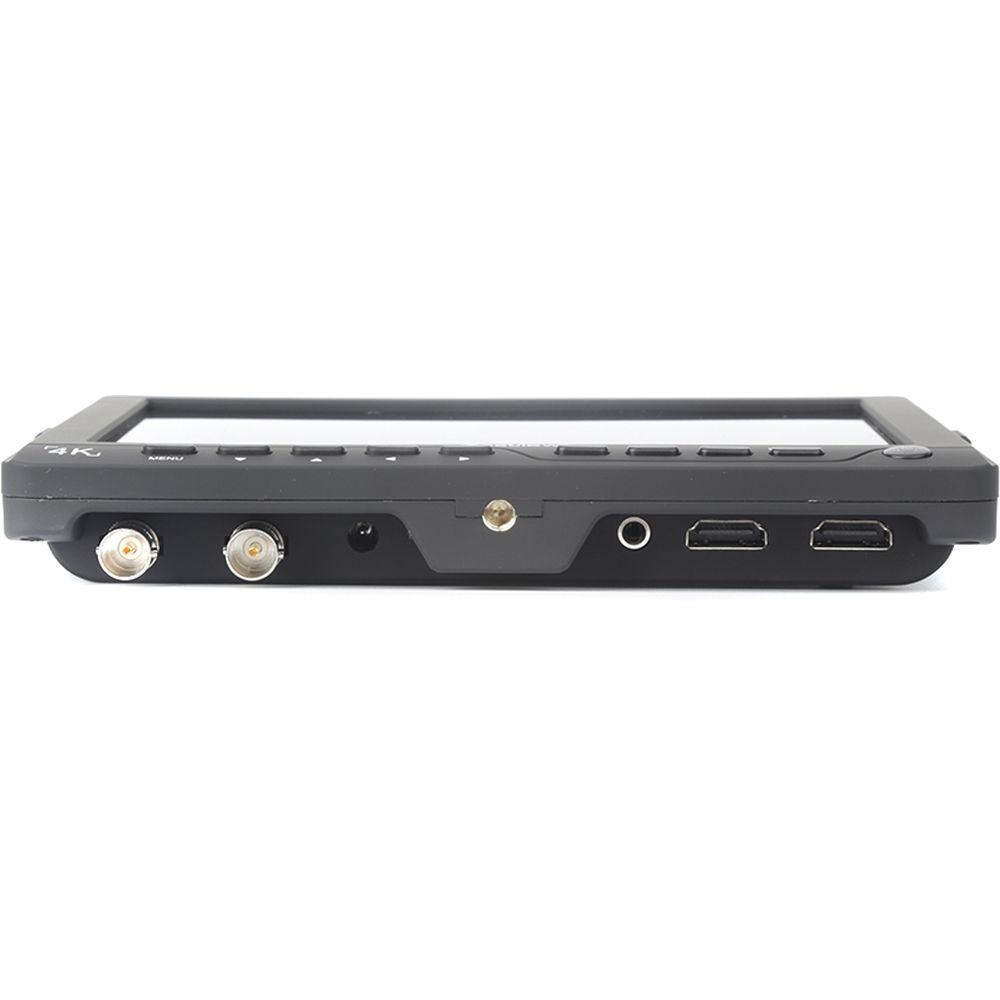

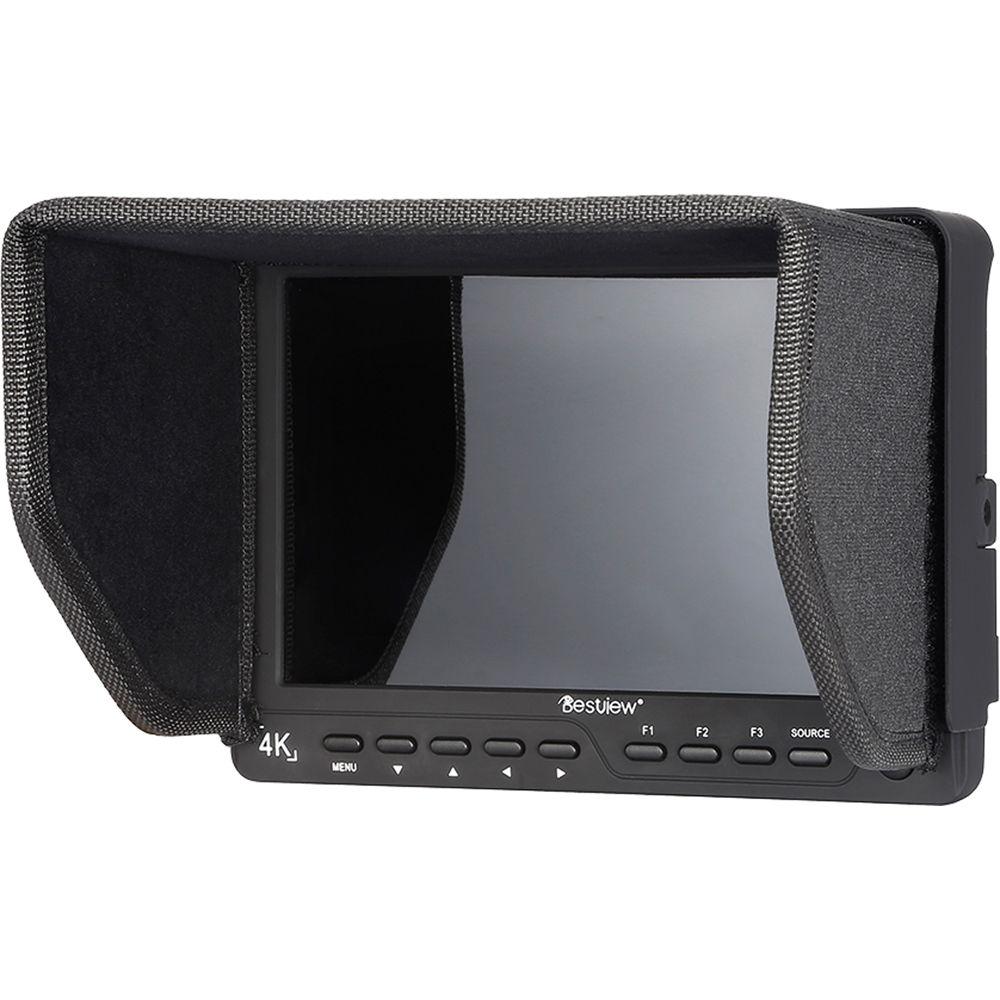

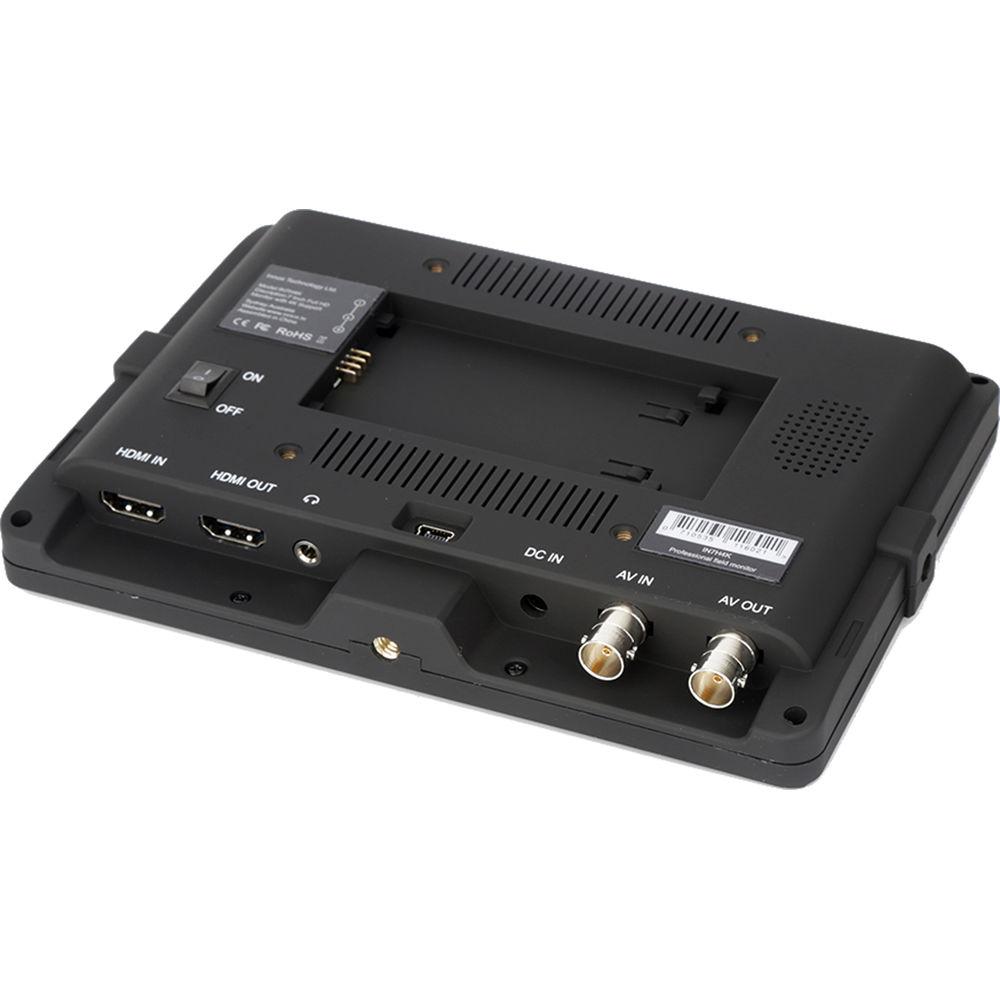

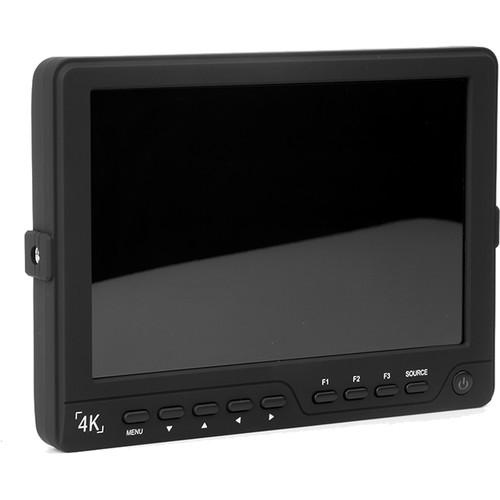

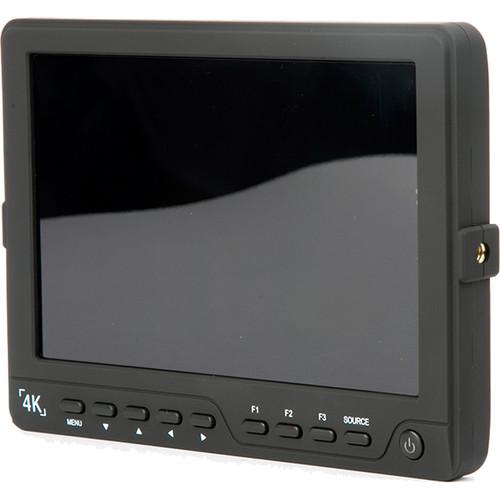

Product description The Bestview S7 7" On-Camera Monitor features a 10-bit, 1920 x 1200 resolution, IPS LCD for displaying 4K, HD, or SD video signals input via the HDMI or composite inputs. Both inputs offer loop-through outputs to send the video signal downstream to other equipment for switching or recording. Monitoring tools such as focus peaking, zebras, 1:1 pixel mapping, and more make it easy to assess your image.The monitor includes both an L-series and an LP-E6 battery plate, and it can also be powered using the included power supply. Three 1/4"-20 threaded points offer mounting options such as on an optional articulating arm or to the included shoe mount ball head. A sun hood is also included for shooting outdoors in bright sunlight or other harshly lit situations. - The S7 can display UHD and DCI 4K signals on its 10-bit panel. The 1920 x 1200 display can be used to easily check the focus and framing of your high-resolution video.
- When you need to fine-tune your picture, enable the peaking filter to remove color from the image and add a selectable red, blue, or green outline to any part of the image that's in focus.
- Four programmable function buttons on the front panel let you create shortcuts to the functions you use most often.
- The monitor will display a 4K signal at a 1:1 resolution without any scaling or processing. As the 4K image is a greater resolution than the monitor can display natively, to see the entire image you will need to move it around on the monitor.
- One of several included tools to perfect your picture, the Check Field mode helps you accurately calibrate the monitor by displaying only the selected color onscreen. Choose from red, green, blue, or gray for a grayscale image.
- Image flip is an advanced feature that allows you to adjust the picture if you need to mount your monitor upside down, or if an adapter changes the orientation of the image.
- For quickly assessing your exposure for blown highlights, the zebras are animated black and white stripes through overexposed areas of the image.
In the Box Bestview S7 7" On-Camera Monitor Shoe Mount Ball Head Sun Hood with Frame Power Supply L-Series Battery Plate LP-E6 Battery Plate Mini HDMI to HDMI Cable 1/4"-20 Stud Allen Wrench Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bestview S7 7" On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBestview S7 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 7.0" / 17.8 cm | | Active Area | 5.95 x 3.72" / 151.2 x 94.5 mm | | Screen Resolution | 1920 x 1200 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Touchscreen | No | | Maximum Brightness | 450 cd/m2 | | Contrast Ratio | 1100:1 | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Pixels Per Inch (ppi) | 332 ppi | | Response Time | 10 / 15 ms (Rise / Fall) | | Real-Time LUT Monitoring | No | | Image Controls | False Color, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, R/G/B/Chroma Only, Screen Markers, Zebra | | | | Video | 1 x HDMI Type A (HDMI 1.4) Input
1 x HDMI Type A (HDMI 1.4) Output
1 x BNC (Composite) Input
1 x BNC (Composite) Output | | Embedded Audio | HDMI | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Power | 1 x Barrel Input | | Other I/O | None | | Card Slot | None | | | | Video Format | HDMI
DCI 4K: 24
UHD 4K: 30/25/24
1080p: 60/59.94/30/25/24
1080PsF: 30/25/24
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
NTSC
PAL
Composite
NTSC
PAL | | | | DC Input Power | 12 VDC | | Battery Type | 1 x LP-E6, L-Series (Interchangeable Mount) | | | | Mounting | 3 x 1/4"-20 Female | | | | Dimensions (W x H x D) | 7.09 x 5.12 x 1.02" / 180 x 130 x 26 mm | | | | Package Weight | 3.205 lb | | Box Dimensions (LxWxH) | 11.9 x 10.1 x 7.85" |
