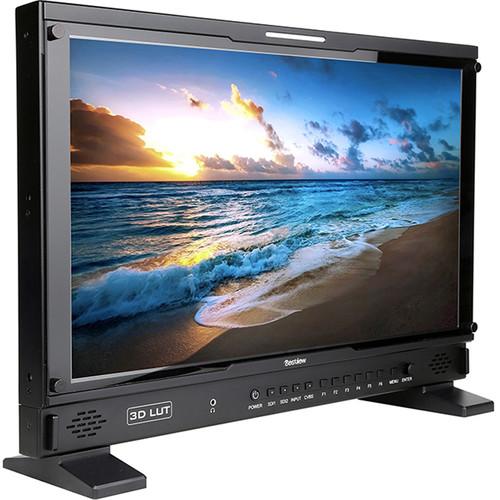

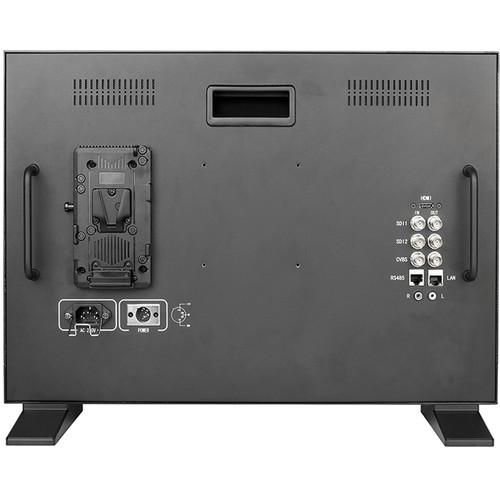

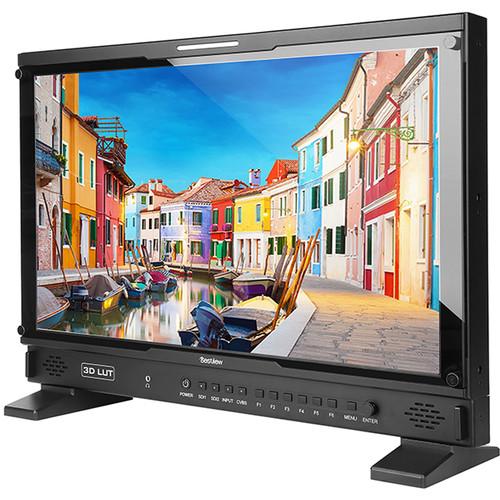

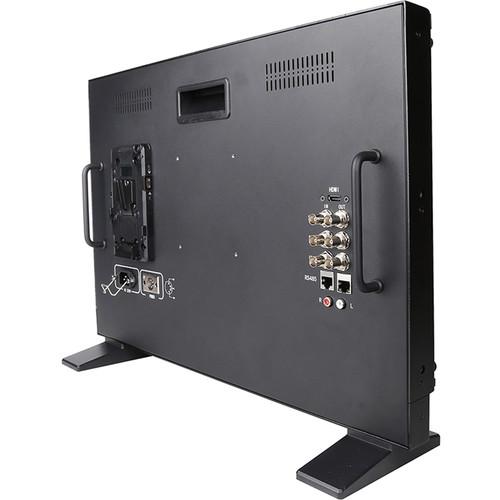

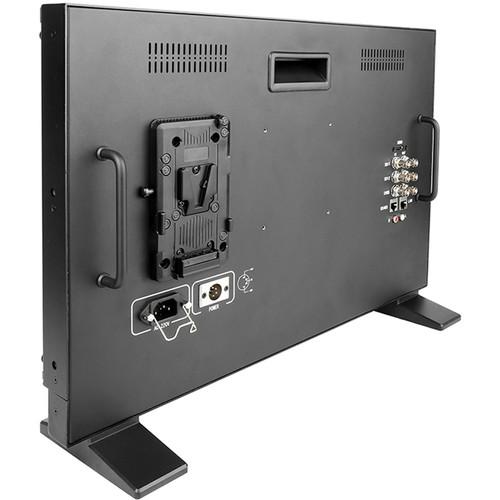

Product description The Bestview YC228 21.5" Production Monitor is an HD production monitor for studio and field use. Two sets of SDI and one set of composite video I/O can be found on the rear of the monitor. An HDMI input is also available. Stereo RCA line-level and headphone audio outputs transmit audio. Dedicated front panel buttons can quickly select between input sources. The monitor's LCD panel has a Full HD 1920 x 1080 resolution for displaying HD and SD sources. While one SDI input is displayed, the HDMI or composite input can be overlaid in a picture-in-picture mode. A built-in vectorscope tool is also available for color analysis. Five front panel shortcut buttons let you instantly initiate your favorite functions. Power can be supplied either via the included AC power cord—with a separately available 4-pin XLR DC power source—or a separately available V-mount battery secured to the built-in battery mount. HDMI cables and a cleaning cloth are included. In the Box Bestview YC228 21.5" Production Monitor Power Cable HDMI Cable Mini HDMI to HDMI Cable Cleaning Cloth Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bestview YC228 21.5" Production Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBestview YC228 Specs | | | Panel Type | Unspecified LCD | | Display Size | 21.5" / 54.6 cm | | Active Area | 18.70 x 10.51" / 475 x 267 mm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 178° (89/89)

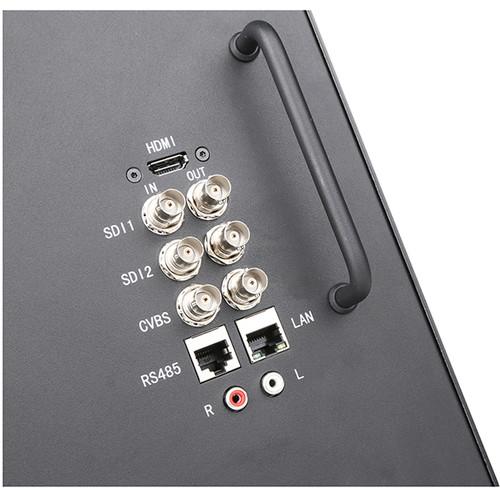

Vertical: 178° (89/89) | | Touchscreen | No | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 1000:1 | | Real-Time LUT Monitoring | No | | Image Controls | Picture-in-Picture, Screen Markers, Vectorscope | | | | Video | 1 x HDMI Type A (HDMI 1.3) Input
2 x BNC (SDI) Input
2 x BNC (SDI) Output
1 x BNC (Composite) Input
1 x BNC (Composite) Output | | Embedded Audio | HDMI: 2-Channel
SDI: 2-Channel | | Audio | 1 x 2RCA Line Output

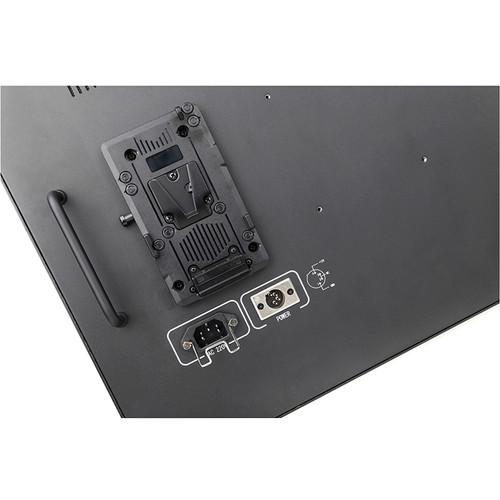

1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 x 2 W | | Power | 1 x IEC Input
1 x 4-Pin XLR Input | | Other I/O | 1 x RS-485 (RJ45)
1 x LAN (RJ45) | | Card Slot | None | | | | Video Format | HDMI
1080p
1080PsF
1080i
720p
NTSC
PAL
SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p
1080PsF
1080i
720p
NTSC
PAL | | | | AC Input Power | 110 to 265 VAC, 50 / 60 Hz | | DC Input Power | 12 to 24 VDC | | Battery Type | 1 x V-Mount | | Power Consumption | 40 W (Maximum) | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 26.8 x 20.6 x 8.6" |
