Product description - BETA Shell Series 5C, 5, 5X, and SL overview

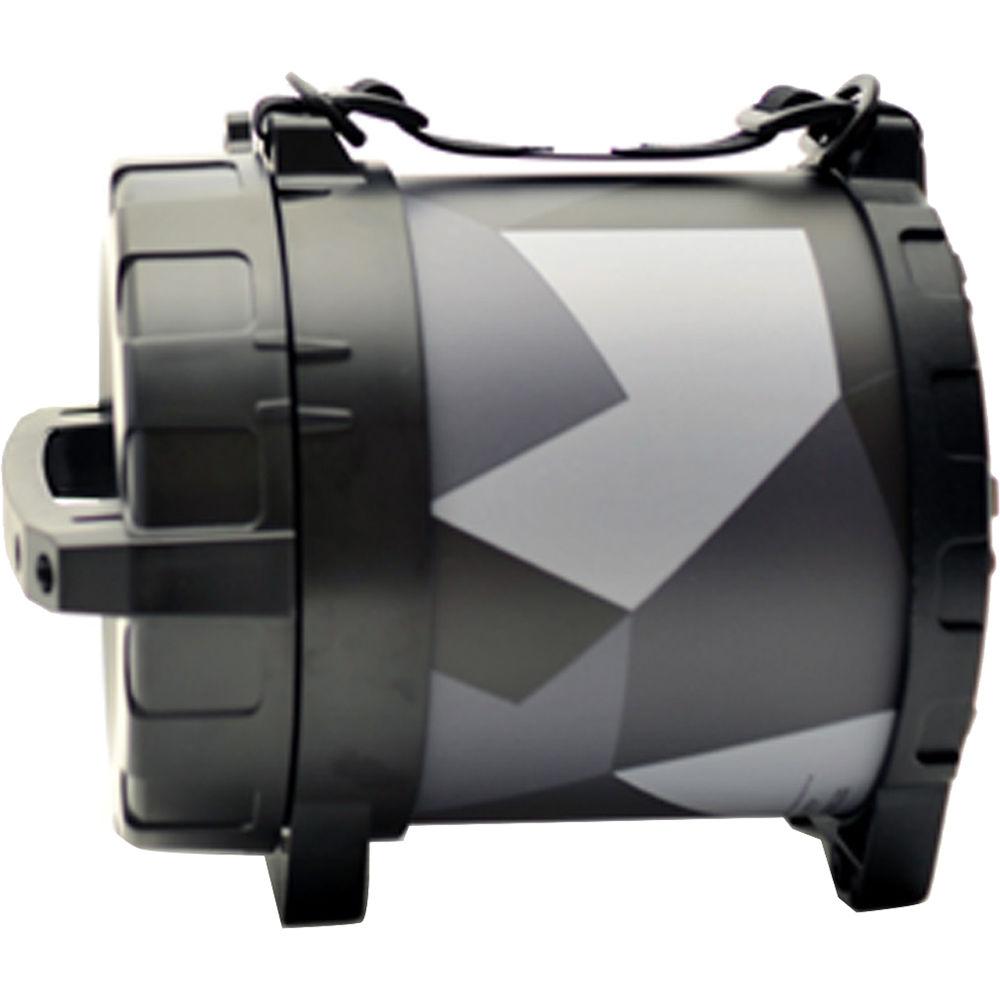

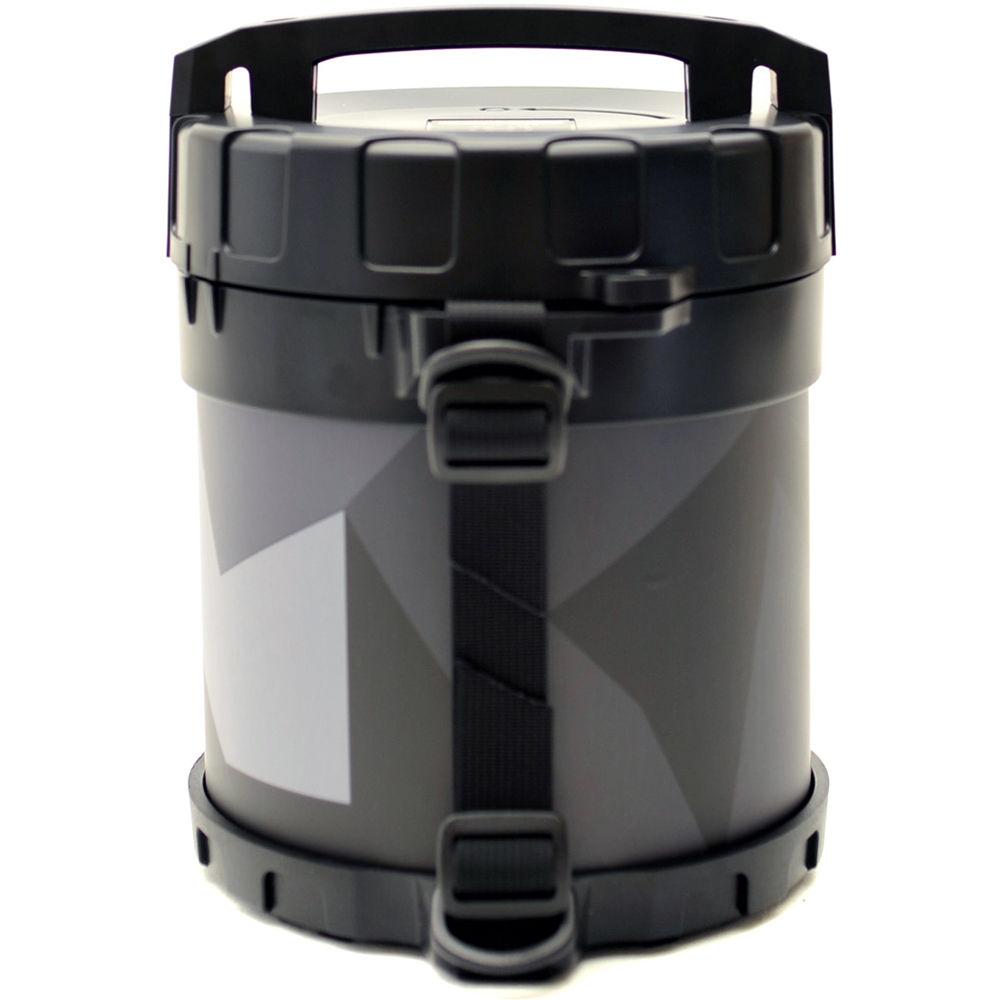

Store, protect, and transport your valuable up to 6.89" lens with the water-resistant, crush-proof Series 6 Protective Lens Case from Beta Shell. This case is constructed from tough, impact-resistant ABS polymer. It has an X-design foam liner, and upper and lower foam disks. The lid is lockable with an optional, user-supplied TSA-approved lock. Carry the case with the hand strap or wear by attaching the shoulder strap to the D-rings. Users will appreciate the included, two silica gel packs, two decal labels, beta shell decal, and four rigid mount T-nut inserts. This versatile case is suitable for photography lenses, cinema lenses, commercial/industrial optics, camera bodies, spotting scopes, and military optics. General - Rigid, cylindrical, impact-resistant and waterproof polymer case
- Strong and rigid cylindrical body
- Patented tri-lock lid provides easy access with no latches or moving parts
- Lid opens quickly & closes securely with only 35° of rotation
- Oversized top handle for easy opening, closing, and handling

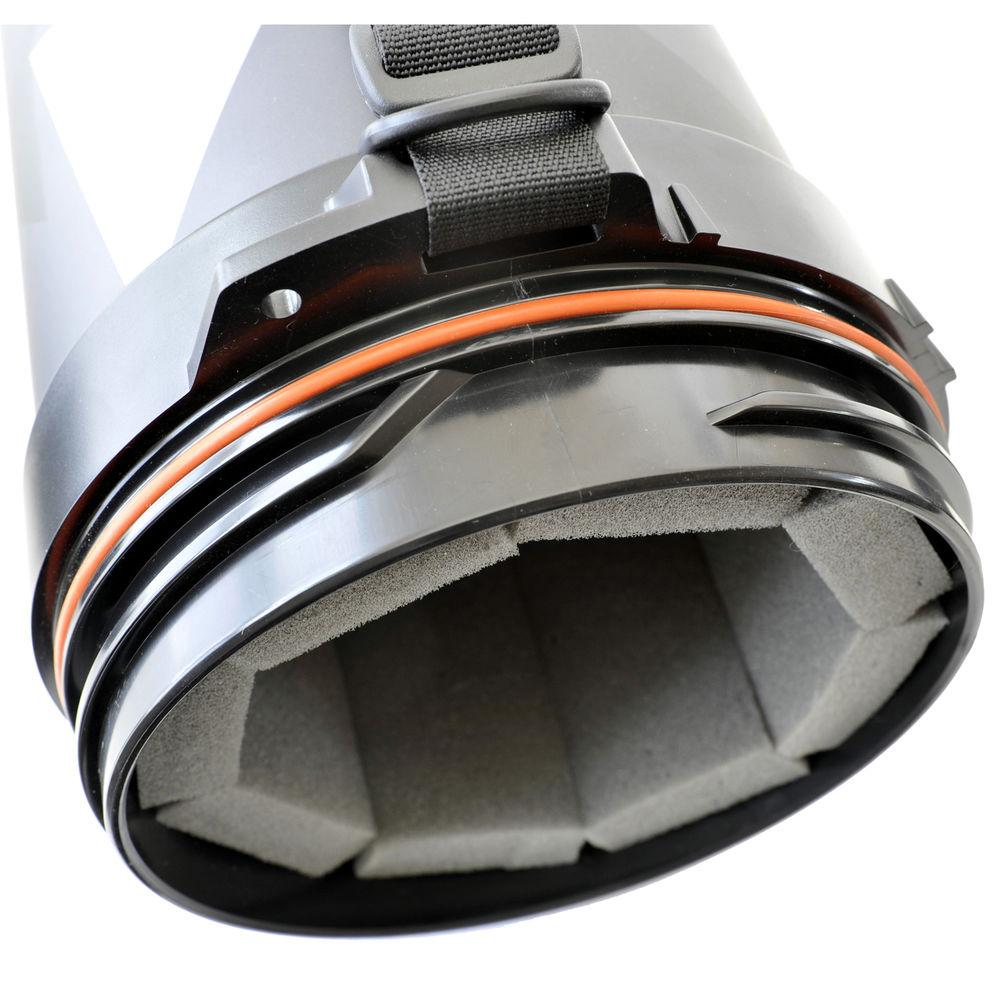

- Heavy-duty 70 durometer O-ring provides waterproof seal

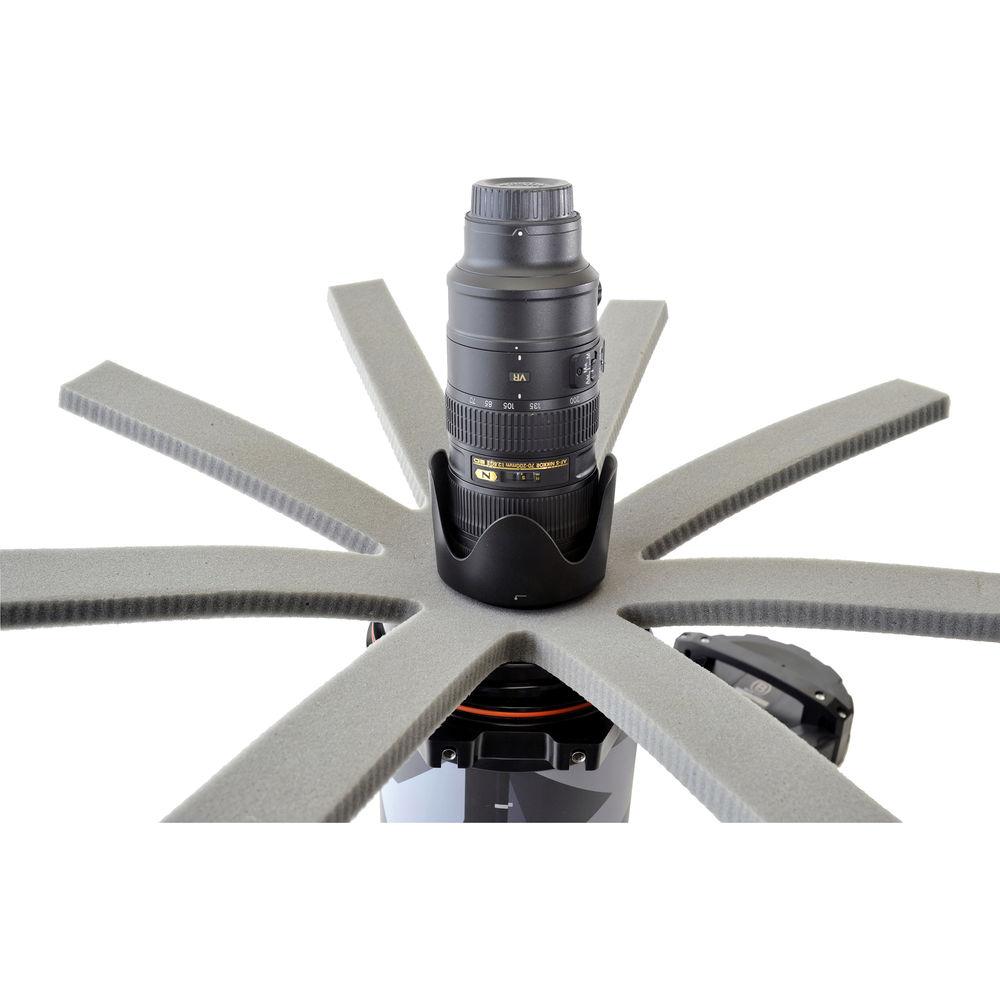

- X-design liner wraps itself around a wide range of equipment providing better impact damping

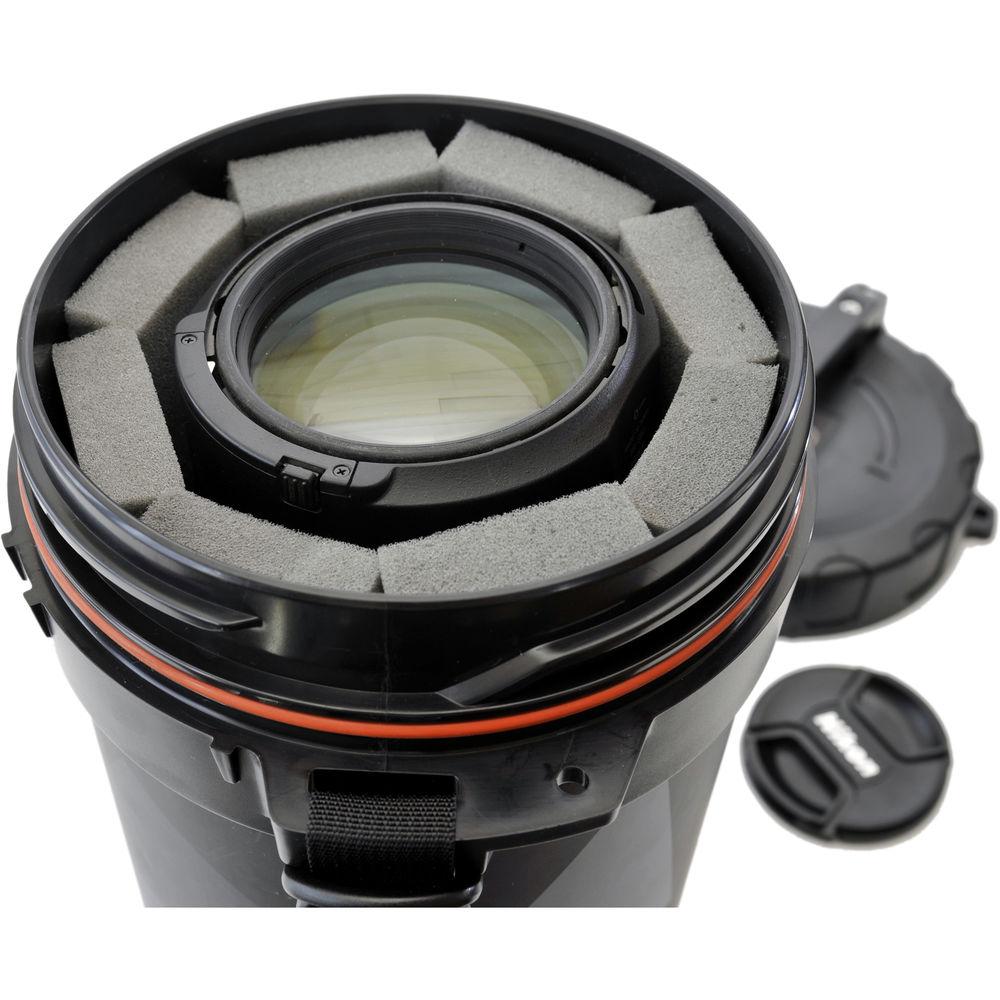

- Medium density polyethylene foam liner limits shock exposure to equipment
- Foam liner allows for storage of moisture absorbing silica packets
- Lockable lid with optional, user-supplied TSA approved lock
- Wide nylon side handle with integrated attach points for shoulder strap option
- 12mm-thick heavy-duty lower end section for long life and impact protection
- MOLLE compatible attachment with optional MOLLE mount kit
Applications - Large photography lenses, cinema lenses, large commercial / industrial optics, camera bodies, hunting spotting scopes and optics, military optics
UPC: 602573147351 In the Box Beta Shell Series 6 Protective Lens Case (6.89") X-Design Foam Liner Lower Foam Disk (Inside Case) Upper Foam Disk (Attached to Lid) Hand Strap with D-rings Adjustable Shoulder Strap 2 x Silica Gel Pack 2 x Users' Labelling Decal 4 x Rigid Mount T-nut Insert Beta Shell Decal Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Beta Shell Series 6 Protective Lens Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBeta Shell Series 6 Specs | Material | Impact-resistant acrylonitrile butadiene styrene (ABS) polymer | | Rating | IP67, 3.3' (1 m) depth submersion for 30 minutes with no water entry | | Lid | Type:
Patented BETA Shell tri-start type, ABS polymer, single piece
Open / Close Torque:
5 lbf-ft (6.8 Nm)
Open / Close Rotation Angle:
35° | | O-rings | Light: 252 BN70
Standard: 253 BN70
Heavy: 254 BN70 | | Interior | Liner Type: Open-cell foam, 0.75" (19 mm) thick, six leg cross, removable | | Type | Liner: Closed-cell polyethelene foam, 0.75" (19 mm) thick, 2 disks | | Carrying Strap | 0.98" (25 mm) wide woven nylon, removable
2 x Polymer D-rings, black | | Attachment | Rigid Type: 4 x Steel inserts, 1/4"-20 UNC thread pitch | | Thickness | Case: 0.25" (6.3 mm) | | Diameter | Exterior: 6.93" (176 mm)
Interior: 6" (153 mm) | | Height | Overall: 9.01" (229 mm)
To Lid Top: 7.96" (202 mm) | | Length | 6.89" (175 mm) | | Weight | 2.75 lb (1.25 kg) | | | | Package Weight | 4.1 lb | | Box Dimensions (LxWxH) | 16.1 x 8.5 x 7.6" |
