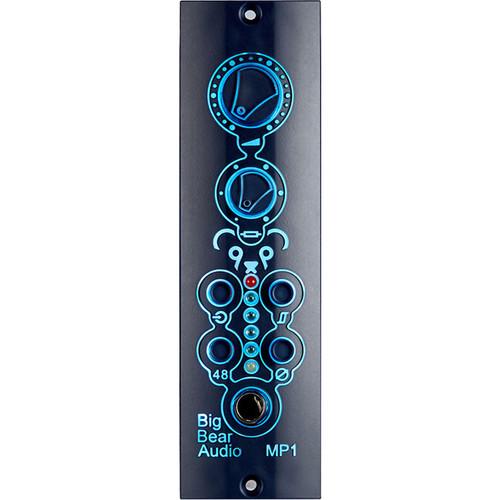

User Manual for Big Bear Audio MP1 500 Series Microphone Preamplifier with Interchangeable Colour Slot Click to enlarge the picture
Contents of the user manual for the Big Bear Audio MP1 500 Series
- Product category: 500 Series Big Bear Audio
- Brand: Big Bear Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Big Bear Audio 500 Series
 |
User manual for the Big Bear Audio MP1 500 Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Big Bear Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Big Bear Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Big Bear Audio product will considerably shorten its lifespan!
|
Product description 500 Series: Guide to Effects Read More The Big Bear Audio MP1 is a low noise, discrete Class-A microphone preamplifier with high-impedance, discrete instrument input for 500 Series racks. It features a Colour slot that lets you interchange a wide variety of DIYRE modular cards (available separately) to impart various types of analog coloring to your sound. The MP1 combines a discrete, electronically balanced mic/line input with a Burr-Brown electronically balanced output op-amp. It provides up to 66 dB of gain with a frequency response of 10 Hz to 80 kHz and can be used as a studio reference amplifier. The unit ships with a Discrete Saturator card designed to add the saturation characteristics of a vintage console to your sound. - Key Features
-
- Discrete Class-A amplifier

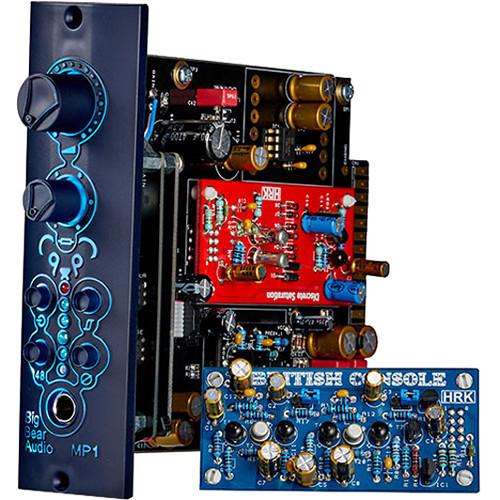

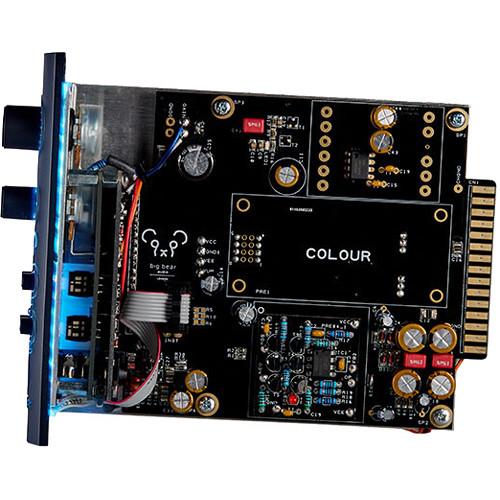

- Interchangeable DIYRE Colour slot
- Mic/line input at rear (balanced)
- Discrete, high-impedance instrument input on front panel (unbalanced)
- Burr-Brown electronically balanced output op-amp
- Audio-grade capacitors
- Low noise floor at -128 dB EIN
- Frequency response of 10 Hz to 80 kHz

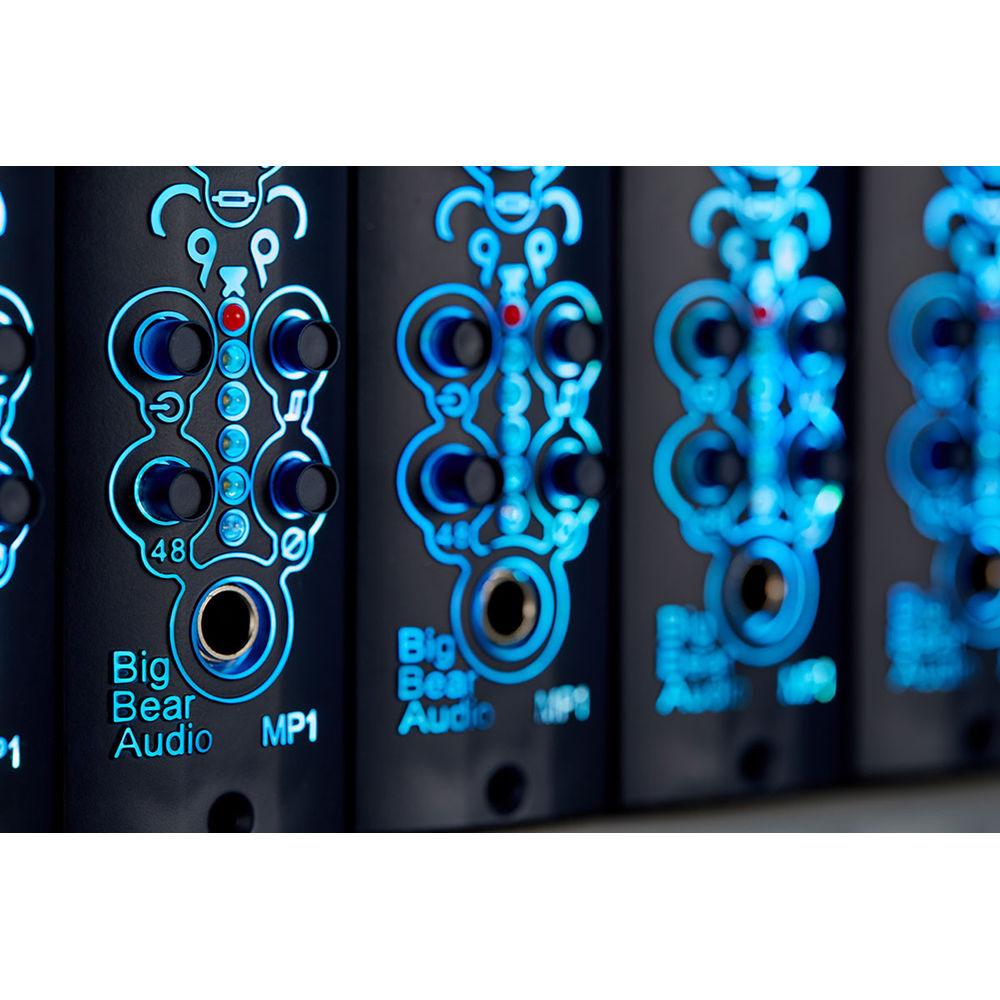

- LED VU meter
- Includes extra-long mounting screws

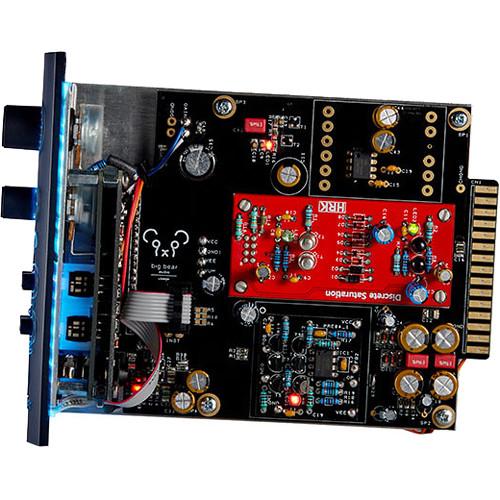

- Discrete Saturator Card
-
- Adds vintage console saturation
- NOS germanium or silicon transistors
- Combination of silicon and germanium diodes
- Adds diode-compressor-like tone
- Completely discrete Class-A signal path
In the Box Big Bear Audio MP1 500 Series Microphone Preamplifier with Interchangeable Colour Slot Discrete Saturator Card Set of Metric M3 Mounting Screws Set of Imperial 4-40 Mounting Screws Limited 1-Year Warranty upon Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Big Bear Audio MP1 500 Series Microphone Preamplifier with Interchangeable Colour Slot in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBig Bear Audio BBA MP1 Specs | Format | 500 Series module
Interchangeable DIYRE Colour slot | | Amplifier | Discrete Class-A mic/line amplifier | | Output | Burr-Brown electronically balanced op-amp | | Input Gain | 6 to 66 dB | | Input | Instrument Input: 1 x TRS jack on front panel
Switch between balanced input at rear or unbalanced input at front | | Input Impedance | Mic/Line: 4.8 kOhms
Instrument: > 2 MOhms | | Phantom Power | +48 V, switchable | | Phase Invert | Yes | | Output Trim Range | -20 to 0 dB | | Total Harmonic Distortion (THD) | Mic/Line: 0.001%
Instrument: 0.04% | | Frequency Response | 10 Hz to 80 kHz,
