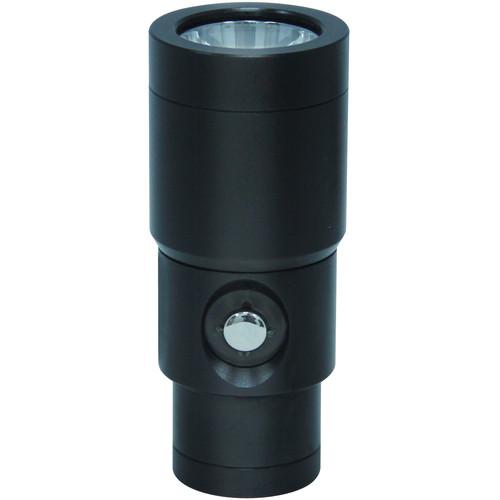

User Manual for Bigblue AL1000NP Narrow Beam LED Dive Light Head Click to enlarge the picture
Contents of the user manual for the Bigblue AL1000NP Narrow Beam LED Dive
- Product category: Lighting Accessories Bigblue
- Brand: Bigblue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bigblue Lighting Accessories
|
User manual for the Bigblue AL1000NP Narrow Beam LED Dive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bigblue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bigblue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bigblue product will considerably shorten its lifespan!
|
Product description Brighten up the underwater world with this Bigblue AL1000NP Narrow Beam LED Dive Light Head, which features a depth rating of 328'. The XML LED outputs 100-1000 lumens at a beam angle of 10° and a daylight-balanced color temperature of 6500K. This head is included with the complete AL1000 light that has the body and battery attached, and is interchangeable with the optional wide and extra wide heads to give you different angles of coverage.
Built for durability, the AL1000NP head is made of anodized aluminum and has a tempered optical glass emitter window. Optional removable red and yellow filters can be placed over the glass to lower the color temperature, in order to create a warming effect so as not to alarm sealife. The light's push-button switch turns it on and off and lets you cycle through output levels, while also offering a battery level indicator. - Light Performance
-
- XML LED
- Four outputs from 100-1000 lumens
- 10° beam angle
- Daylight-balanced color temperature of 6500K
- Optional, rechargeable 18650 lithium-ion battery pack provides run time of 2.0 - 20 hr, depending on the output level selected
- Switching System
-
- Push-button switch
- Push to power on, then continue to push to cycle through outputs and turn off
- Battery level indicator
- Construction Details
-
- Depth rating: 328'
- Made of aluminum that has been anodized for resistance to corrosion
- Emitter window made of tempered optical glass
- This head and optional wide and extra wide heads are interchangeable on AL1000 light body, giving you the chance to experiment with different angles of coverage
- Optional Accessories
-
- Removable red and yellow filters allow you to lower color temperature of light, in order to create warming effect so as not to scare off sealife. These filters are supplied with the complete AL1000 light head/body/battery unit
- Mounting clip enables attachment to optional lighting arms on underwater camera systems. Clip is included with complete AL1000 light
In the Box Bigblue AL1000NP Narrow Beam LED Dive Light Head Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bigblue AL1000NP Narrow Beam LED Dive Light Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBigblue AL1000NPLH Specs | Configuration | Light head only | | Depth Rating | 328' / 100 m | | Light Source | XML LED | | Light Intensity | I: 100 lumens
II: Approx. 200 lumens
III: Approx. 400 lumens
IV: 1000 lumens | | Beam Angle | 10° | | Color Temperature | 6500 K | | Run Time | 2.0 - 20 hr with required battery and light body (not included) | | Switching System | Push-button switch for on / off and cycling through output levels
Battery level indicator (battery not included) | | Material of Construction | Anodized aluminum with tempered optical glass emitter window | | Power | Rechargeable 18650 lithium-ion battery pack and charger (not included) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 3.8 x 1.9 x 1.7" |
