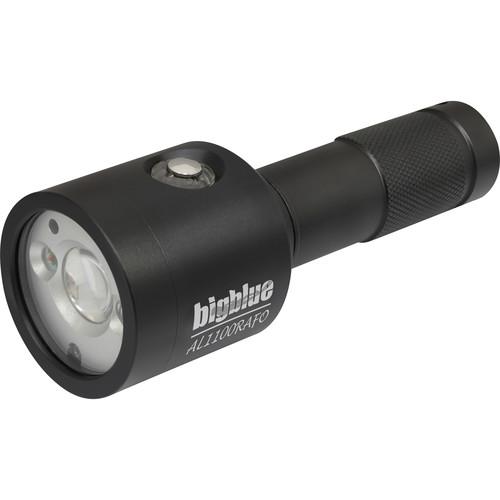

User Manual for Bigblue AL1100RAFO Video LED Dive Light Click to enlarge the picture
Contents of the user manual for the Bigblue AL1100RAFO Video LED Dive Light
- Product category: Continuous Lights Bigblue
- Brand: Bigblue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bigblue Continuous Lights
|
User manual for the Bigblue AL1100RAFO Video LED Dive Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bigblue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bigblue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bigblue product will considerably shorten its lifespan!
|
Product description Illuminate the underwater world at depths as great as 328' with Bigblue's black AL1100RAFO Video LED Dive Light. Its Auto Flash Off (AFO) function triggers it to turn off for a second when your strobe is fired, so that the light won't create a hot spot in your captured still images. The AL1100RAFO's white LEDs output 110-1100 lumens in four selectable levels. A supplied 18650 rechargeable lithium-ion battery provides run times ranging from 2-20 hours, depending on the output level.
The white beam has a daylight-balanced color temperature of 6500K, allowing it to restore hues that are absorbed by the water. Bigblue's AL1100RAFO also offers red LEDs that lower the color temperature, creating a warming effect to greatly reduce the likelihood that sea life will flee in fear. Additionally, the light's 55° beam angle makes it a good choice for both video recording and general diving.
Built for extreme durability as well as high performance, the light body and head are made from an aluminum alloy that has been anodized to resist corrosion. The emitter window is crafted from tempered optical glass with notable strength and clarity. - Light Performance
-
- Light Source: White and red LEDs
- White Outputs: 110, 275, 550, and 1100 lumens
- Run Time: 2 h at 1100 lumens, 4 h at 550 lumens, 8 h at 275 lumens, and 20 h at 110 lumens with the supplied, rechargeable li-ion battery
- Auto Flash Off (AFO) function triggers the light to turn off for a second when your strobe is fired, so that the light won't create a hot spot in captured photos
- 55° beam provides mid-range coverage, making the light a good choice for both video capture and general diving
- Daylight-balanced color temperature of 6500K allows the light to restore hues that are absorbed by the water, thus ensuring that captured images are full of rich, vibrant color
- Red LEDs lower the color temperature, producing a warming effect for observing and recording sea creatures without scaring them off
- A second benefit of the red light is that it helps you see better when diving at night
- Switching System
-
- Push-button switch for turning the power on/off and selecting output levels
- Battery level indicator shows remaining power
- Construction Details
-
- Depth rating: 328'
- Double O-ring seal
- Body and head are made from a durable aluminum alloy, which has been anodized for excellent resistance to corrosion
- Emitter window is crafted from tempered optical glass, which has notable strength and clarity
In the Box Bigblue AL1100RAFO Video LED Dive Light (Black) 18650 Rechargeable Lithium-Ion Battery Battery Charger Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bigblue AL1100RAFO Video LED Dive Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBigblue AL1100RAFO Specs | Depth Rating | 328' / 100 m | | Light Source | White and red LEDs | | Light Intensity | I: 110 lumens
II: 275 lumens
III: 550 lumens
IV: 1100 lumens | | Beam Angle | 55° | | Color Temperature | 6500K | | Run Time | I: 20 h
II: 8 h
III: 4 h
IV: 2 h | | Switching System | Push-button with battery indicator | | Material of Construction | Body and Head: Anodized aluminum alloy
Emitter Window: Tempered optical glass | | Power | 18650 rechargeable lithium-ion battery pack (included)
Charger (included) | | Operating Temperature | Not specified by manufacturer | | Dimensions | Not specified by manufacturer |
